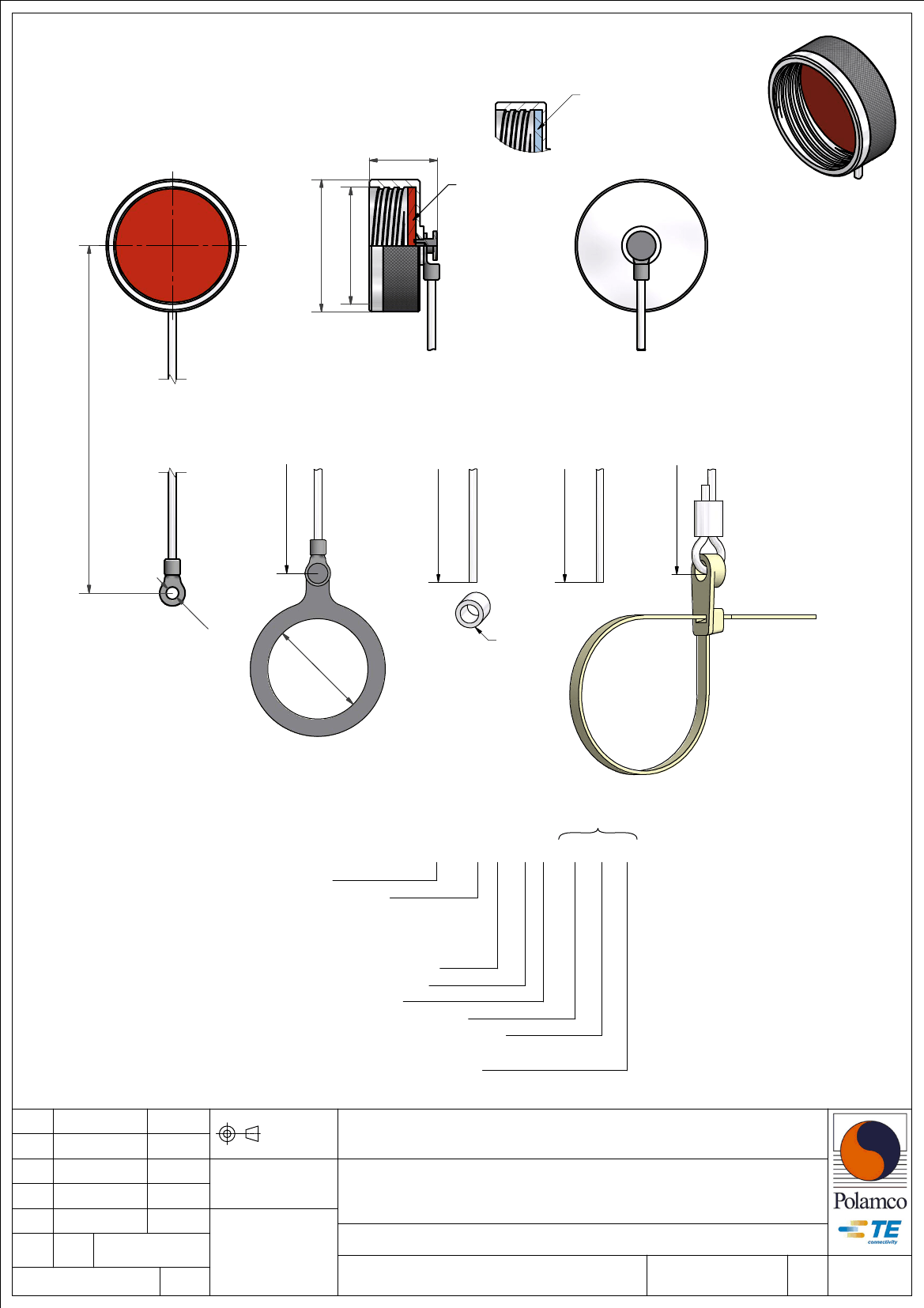

WITH ATTACHMENT
FLUOROSILICONE
GASKET OPTION
(SEE NOTE 1)
17,50 0,50
(SEE NOTE 2)
GASKET
A
M
RT
RP
ARK
AND
BA
T
C
H
B THREAD
MBER
HER
NU
E
ATTACHMENT OPTIONS:
-01 TO -05
EYELET
OPTION
(TABLE 2)
-09 TO -25
RING OPTION
(FITS OVER JAM NUT THREAD)
(TABLE 3)
-CF
CRIMP
FERRULE
OPTION
-00
NO
TERMINATION
-TR
TIE-WRAP
OPTION
LASE
A
LANYARD LENGTH
LANYARD LENGTH
LANYARD LENGTH
F
NOTE1:
CONTACT SALES TEAM
FOR GASKET OPTIONS.
NOTE 2:
DOES NOT APPY FOR COMPOSITE
AND BLACK ACETAL (OPTION 74 & 7).
ACTUAL VALUE FOR COMPOSITE AND
BLACK ACETAL IS 18,50 0,50
E
CRIMP
SUPPLIED
LOOSE
OMIT FOR NO ATTACHMENT
(SEE SHEET 2)
100P160-17-1-C-WR4-17
SERIES
INSERT 'F' FOR
FLUOROSILICONE GASKET
OMIT FOR STANDARD
SILICONE GASKET
SHELL SIZE (TABLE 1)
MATERIAL (TABLE 5)
FINISH (TABLE 6)
LANYARD TYPE (TABLE 4)
LANYARD LENGTH (IN INCHES)
+1,0"/-0" TOLERANCE
ATTACHMENT (SEE ABOVE)
DRAWN
DATE
12/02/2014
12/02/2014
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
W.RUST
PART NUMBER:
SALES
APPR
DESIGN
APPR
PROD
APPR
QUAL
APPR
ISSUE REV.
100P160 SERIES
TITLE:
RECEPTACLE PROTECTION CAP
ASSY USED ON:
MIL-DTL-38999 SERIES III
THIS DRAWING IS COPYRIGHT AND THE PROPERTY OF POLAMCO LTD POLAMCO LTD, WESTON LOCK,
IT MUST NOT BE COPIED, USED FOR MANUFACTURE OR OTHERWISE
LOWER BRISTOL ROAD
DISCLOSED WITHOUT PRIOR WRITTEN CONSENT OF THE COMPANY.
BATH BA2 1EP
DCR
MATERIAL
SEE PART NUMBER
BREAKDOWN
WEIGHT
___
FINISH
SEE PART NUMBER
BREAKDOWN
AA
7332
LANYARD LENGTH
LANYARD LENGTH
SHT DRAWING NO:
NCAGE CODE U5792
1 P10523

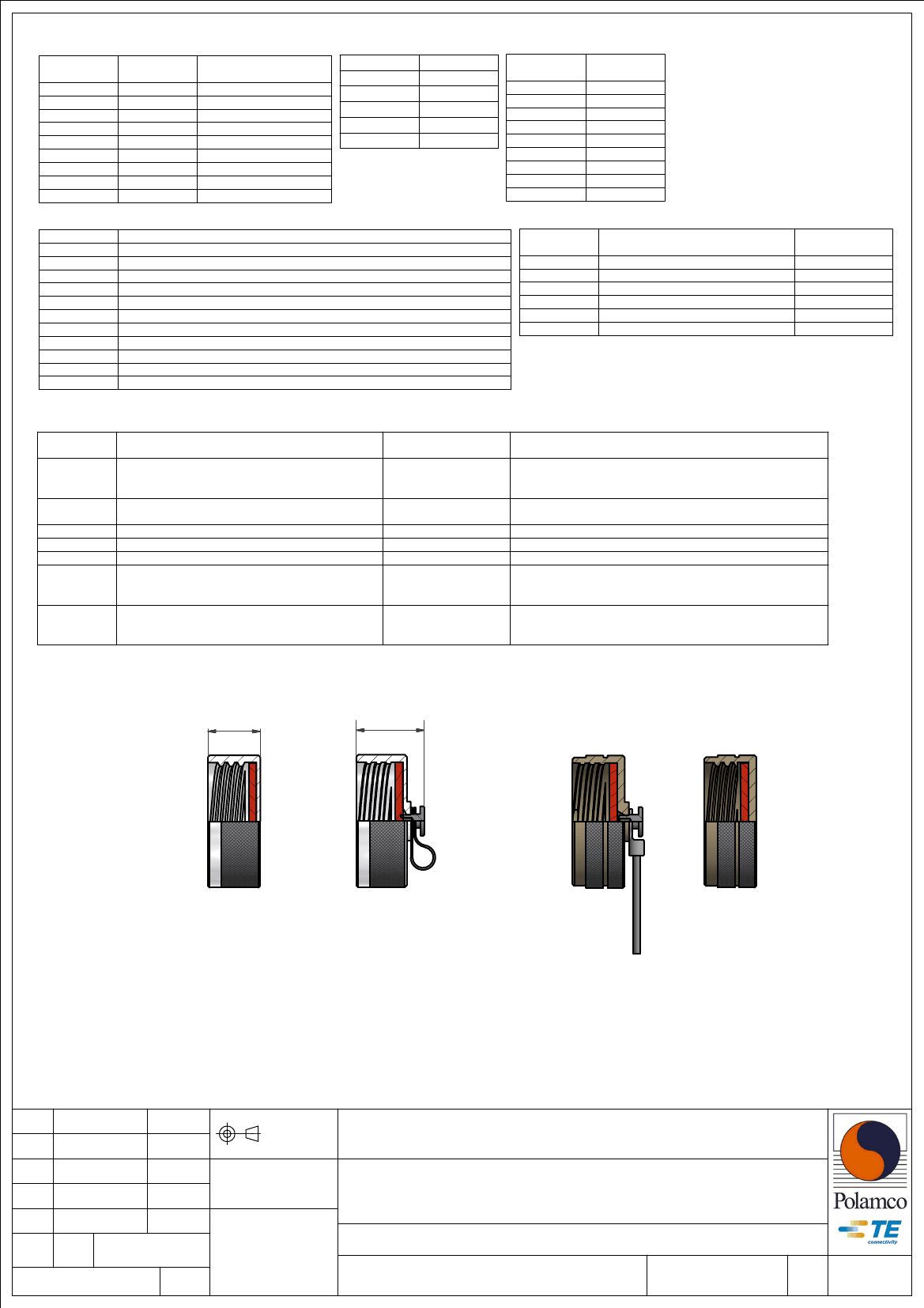

TABLE 1
SHELL
SIZE
09
11
13
15
17
19
21
23
25
A
MAX
21,0
24,5
28,0
30,0
34,0
37,0
40,0
43,0
47,0
B
THREAD
0.625-0.1P-0.3L-TS
0.750-0.1P-0.3L-TS
0.875-0.1P-0.3L-TS
1.000-0.1P-0.3L-TS
1.1875-0.1P-0.3L-TS
1.250-0.1P-0.3L-TS
1.375-0.1P-0.3L-TS
1.500-0.1P-0.3L-TS
1.625-0.1P-0.3L-TS
TABLE 2
EYELET REF.
01
02
03
04
05
F
3,2
3,7
4,3
5,3
6,4
TABLE 3
RING
REF.
09
11
13
15
17
19
21
23
25
E
MAX
18,0
21,4
25,8
28,8
32,0
35,0
38,3
41,7
44,6
TABLE 4
CODE
WR
TC
WG
WB
WRB
LC
BK
VGB
R
NB
NK
LANYARD TYPE
NYLON COVERED (CLEAR) STAINLESS STEEL WIRE ROPE
TEFLON COVERED (CLEAR) STAINLESS STEEL WIRE ROPE
TEFLON COVERED (OLIVE DRAB) STAINLESS STEEL WIRE ROPE
TEFLON COVERED (BLACK) STAINLESS STEEL WIRE ROPE
PVC COVERED (BLACK) STAINLESS STEEL WIRE ROPE
LINK CHAIN
BLACK CORD
1,5mm BLACK POLYESTER CORD EQV. TO DIN83330-E1,5
OLIVE DRAB POLYESTER CORD
OLIVE DRAB NYLON CORD
BLACK NYLON CORD
TABLE 5
GASKET
MATERIAL
ALUMINIUM
1
SILICONE
2
NICKEL ALUMINIUM BRONZE
SILICONE
4
STAINLESS STEEL
SILICONE
7
BLACK ACETAL
SILICONE
74
COMPOSITE
SILICONE
46
STAINLESS STEEL 316
SILICONE
LIST NOT EXHAUSTIVE, SEE MATERIAL TABLE FOR OTHER OPTIONS
CODE
MATERIAL
TABLE 6
PLATING
CODE
PLATING DESCRIPTION
ROHS COMPLIANT
ENVIRONMENT PROTECTION/ CONDUCTIVITY
CONDUCTIVE 500 HRS SALT SPRAY. EXEMPTION
APPLICABLE FOR AEROSPACE / MILITARY APPLICATIONS.
SEE ROHS WEBSITES FOR MORE INFORMATION.
CONDUCTIVE
ROHS COMPLIANT
CONDUCTIVE
CONDUCTIVE
CONDUCTIVE 350 HRS SALT SPRAY
CADMIUM, OLIVE DRAB (5-10 MICRONS)
YES (SUBJECT TO
B
QQ-P-416, TYPE II, CLASS 3 OVER
EXEMPTION)
ELECTROLESS NICKEL
ELECTROLESS NICKEL, AMS-C-26074, CLASS 4,
C
YES
GRADE B
PASSIVATE, PER QQ-P-35 OR MI-S-5002
J
YES
U
UNPLATED CLEAN FINISH NOT SHOT BLASTED
YES
Z
SHOT BLAST FOR NON-REFLECTIVE FINISH
YES
ZINC COBALT (5-10 MICRONS) OVER
ZB
ELECTROLESS NICKEL (2,5-7,5 MICRONS) WITH
YES
A OLIVE DRAB CHROMATE CONVERSION
ZINC NICKEL BLACK PASSIVATE (5-12 MICRONS)
YES (SUBJECT TO
ZN
OVER ELECTROLESS NICKEL (8-12 MICRONS),
TESTING)
ASTM B 841 CLASS 1
LIST NOT EXHAUSTIVE, SEE PLATING TABLE FOR OTHER OPTIONS
ROHS COMPLIANT (SUBJECT TO TESTING)
WITHOUT ATTACHMENT
13,50
0,50
17,50
0,50
COMPOSITE VERSION

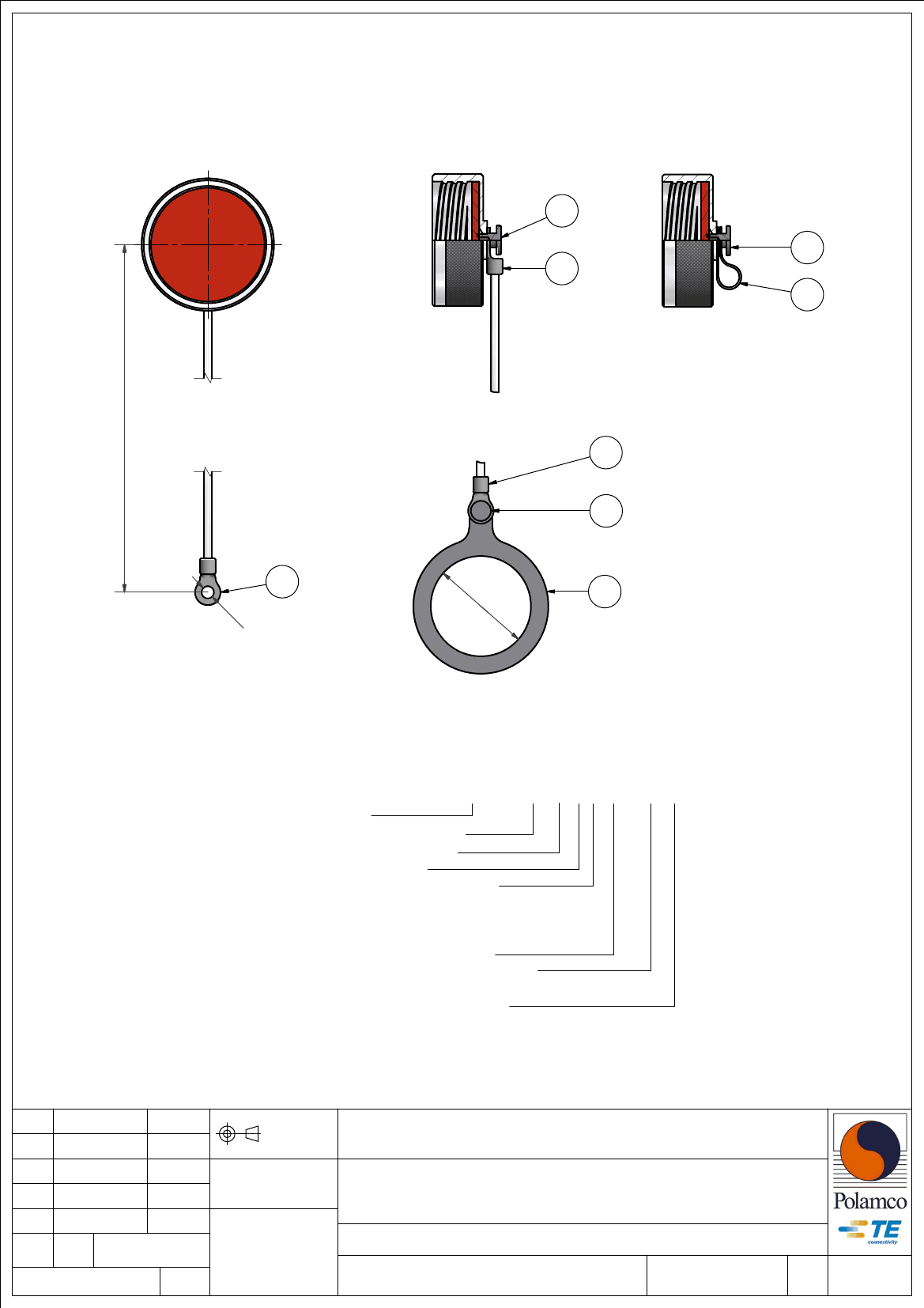

100P160-17-1-C
NO ATTACHMENT VERSION
100P160-17-1-C-EO
EYELET ONLY VERSION
(NO LANYARD)
DRAWN
W.RUST
DATE
12/02/2014
12/02/2014
SALES
APPR
DESIGN
APPR
PROD
APPR
QUAL
APPR
ISSUE REV.
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
PART NUMBER:
100P160 SERIES
TITLE:
PROTECTION CAP ASSEMBLY
ASSY USED ON:
MIL-DTL-38999 SERIES III
THIS DRAWING IS COPYRIGHT AND THE PROPERTY OF POLAMCO LTD POLAMCO LTD, WESTON LOCK,
IT MUST NOT BE COPIED, USED FOR MANUFACTURE OR OTHERWISE
LOWER BRISTOL ROAD
DISCLOSED WITHOUT PRIOR WRITTEN CONSENT OF THE COMPANY.
BATH BA2 1EP
DCR
MATERIAL
SEE PART NUMBER
BREAKDOWN
WEIGHT
___
FINISH
SEE PART NUMBER
BREAKDOWN
AA
7332
SHT DRAWING NO:
NCAGE CODE U5792
2 P10523

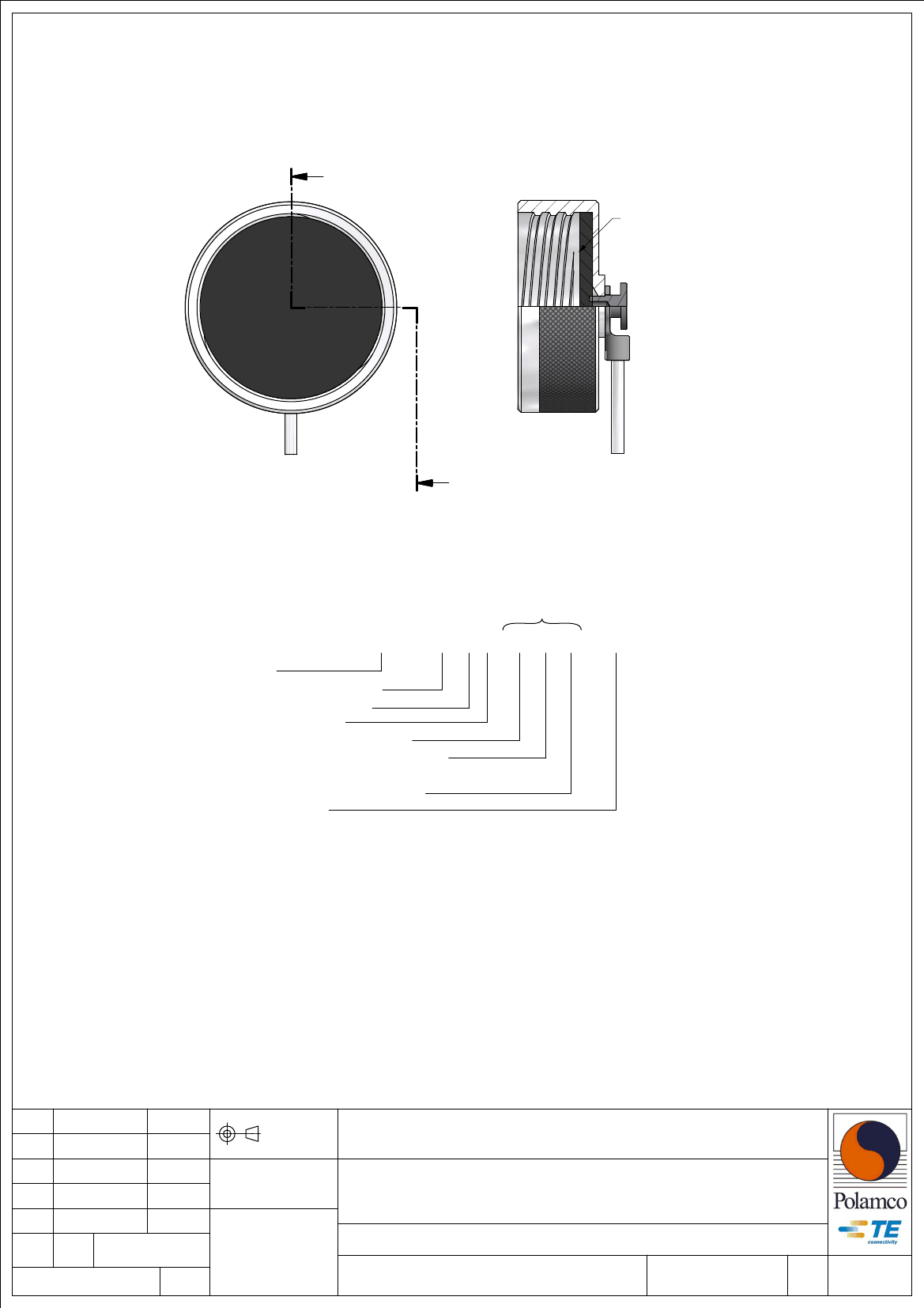

OPTIONAL GASKET:
A-A
A
BLACK 62 SHORE
EPDM GASKET
A
OMIT FOR NO ATTACHMENT
(SEE SHEET 2)
100P160-17-1-C-WR4-17-EPDM
SERIES
SHELL SIZE (TABLE 1)
MATERIAL (TABLE 5)
FINISH (TABLE 6)
LANYARD TYPE (TABLE 4)
LANYARD LENGTH (IN INCHES)
+1,0"/-0" TOLERANCE
ATTACHMENT (SEE ABOVE)
EPDM GASKET
DRAWN
W.RUST
DATE
12/02/2014
12/02/2014
SALES
APPR
DESIGN
APPR
PROD
APPR
QUAL
APPR
ISSUE REV.
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
PART NUMBER:
100P160 SERIES
TITLE:
RECEPTACLE PROTECTION CAP
ASSY USED ON:
MIL-DTL-38999 SERIES III
THIS DRAWING IS COPYRIGHT AND THE PROPERTY OF POLAMCO LTD POLAMCO LTD, WESTON LOCK,
IT MUST NOT BE COPIED, USED FOR MANUFACTURE OR OTHERWISE
LOWER BRISTOL ROAD
DISCLOSED WITHOUT PRIOR WRITTEN CONSENT OF THE COMPANY.
BATH BA2 1EP
DCR
MATERIAL
SEE PART NUMBER
BREAKDOWN
WEIGHT
___
FINISH
SEE PART NUMBER
BREAKDOWN
AA
7332
SHT DRAWING NO:
NCAGE CODE U5792
3 P10523
WITH PLATED ACCESSORIES
1
1
1
1
100P160-17-1-C2-EO
EYELET ONLY VERSION
(NO LANYARD)
EYELET
OPTION
RING OPTION
(FITS OVER JAM NUT THREAD)
1
LANYARD LENGTH
1
1
E
F
1
100P160-17-1-C2-WR4-17
SERIES
SHELL SIZE (TABLE 1)
MATERIAL (TABLE 5)
FINISH (TABLE 6)
PLATED EYELETS, RIVETS
AND RINGS - AVAILABLE
FOR PLATING CODES B, C, ZB, ZN
(SEE NOTE)
LANYARD TYPE (TABLE 4)
LANYARD LENGTH (IN INCHES)
+1,0"/-0" TOLERANCE
ATTACHMENT (SEE ABOVE)
NOTE:
1. ALL COMPONENTS INDICATED TO BE PLATED THE SAME AS CAP WHEN CODE "2" IS INSERTED IN THE PART NUMBER
DRAWN
W.RUST
DATE
12/02/2014
12/02/2014
SALES
APPR
DESIGN
APPR
PROD
APPR
QUAL
APPR
ISSUE REV.
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
PART NUMBER:
100P160 SERIES
TITLE:
RECEPTACLE PROTECTION CAP
ASSY USED ON:
MIL-DTL-38999 SERIES III
THIS DRAWING IS COPYRIGHT AND THE PROPERTY OF POLAMCO LTD POLAMCO LTD, WESTON LOCK,
IT MUST NOT BE COPIED, USED FOR MANUFACTURE OR OTHERWISE
LOWER BRISTOL ROAD
DISCLOSED WITHOUT PRIOR WRITTEN CONSENT OF THE COMPANY.
BATH BA2 1EP
DCR
AA
7332
WEIGHT
___
MATERIAL
SEE PART NUMBER
BREAKDOWN
FINISH
SEE PART NUMBER
BREAKDOWN
SHT DRAWING NO:
NCAGE CODE U5792
4 P10523

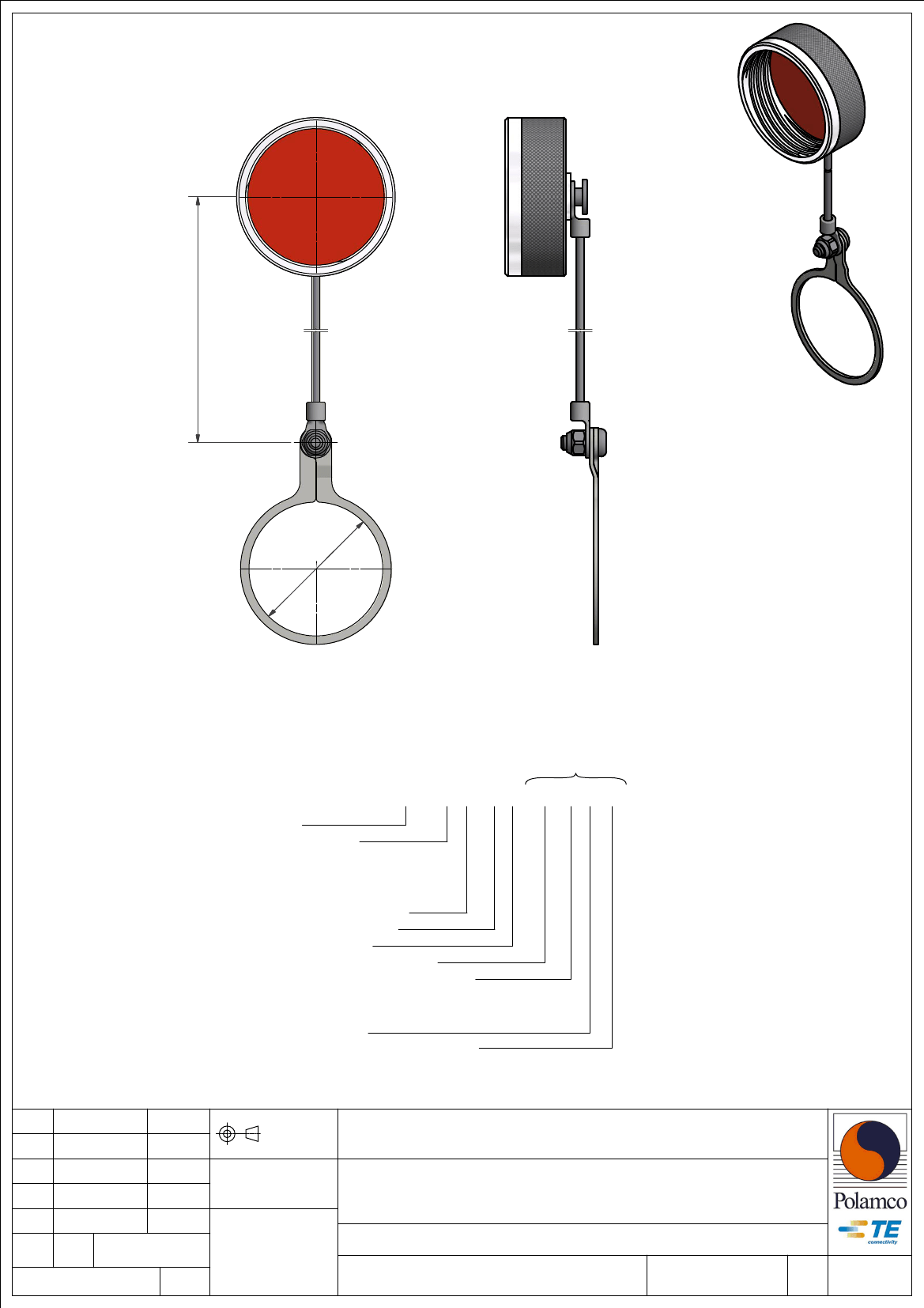

SPLIT RING OPTION:
LANYARD LENGTH
E
OMIT FOR NO ATTACHMENT
(SEE SHEET 2)
100P160-17-1-C-WR4-C17
SERIES
INSERT 'F' FOR
FLUOROSILICONE GASKET
OMIT FOR STANDARD
SILICONE GASKET
SHELL SIZE (TABLE 1)
MATERIAL (TABLE 5)
FINISH (TABLE 6)
LANYARD TYPE (TABLE 4)
LANYARD LENGTH (IN INCHES)
+1,0"/-0" TOLERANCE
ATTACHMENT
C - SPLIT RING
17 - RING SIZE (SEE TABLE 3)
DRAWN
W.RUST
DATE
12/02/2014
12/02/2014
SALES
APPR
DESIGN
APPR
PROD
APPR
QUAL
APPR
ISSUE REV.
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
PART NUMBER:
100P160 SERIES
TITLE:
RECEPTACLE PROTECTION COVER
ASSY USED ON:
MIL-DTL-38999 SERIES III
THIS DRAWING IS COPYRIGHT AND THE PROPERTY OF POLAMCO LTD POLAMCO LTD, WESTON LOCK,
IT MUST NOT BE COPIED, USED FOR MANUFACTURE OR OTHERWISE
LOWER BRISTOL ROAD
DISCLOSED WITHOUT PRIOR WRITTEN CONSENT OF THE COMPANY.
BATH BA2 1EP
DCR
MATERIAL
SEE PART NUMBER
BREAKDOWN
WEIGHT
___
FINISH
SEE PART NUMBER
BREAKDOWN
AA
7332
SHT DRAWING NO:
NCAGE CODE U5792
5 P10523
