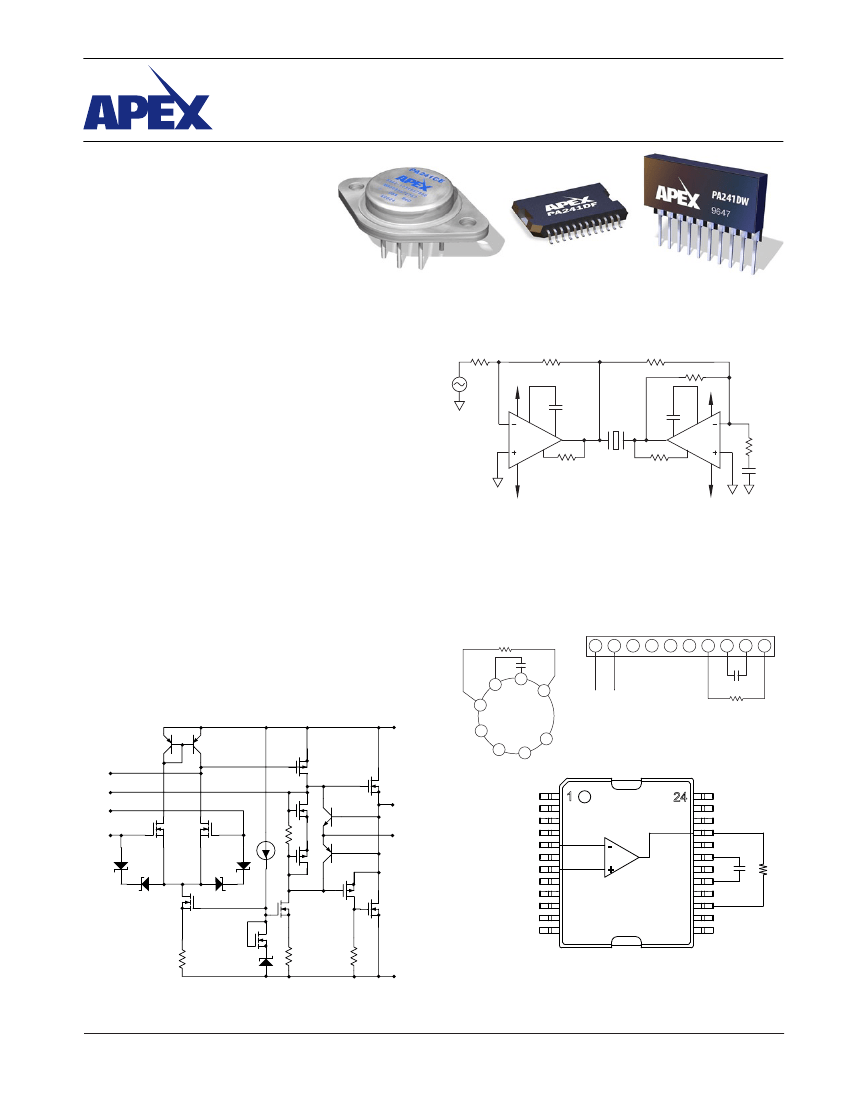

FEATURES
MONOLITHIC MOS TECHNOLOGY
LOW COST
HIGH VOLTAGE OPERATION—350V
LOW QUIESCENT CURRENT TYP.—2.2mA
NO SECOND BREAKDOWN
HIGH OUTPUT CURRENT—120mA PEAK
AVAILABLE IN DIE FORM—CPA241
APPLICATIONS
8-PIN TO-3
PACKAGE STYLE CE
24-PIN PSOP
PACKAGE STYLE DF
10-PIN SIP
PACKAGE STYLE DW
PIEZO ELECTRIC POSITIONING
ELECTROSTATIC TRANSDUCER & DEFLECTION
DEFORMABLE MIRROR FOCUSING
BIOCHEMISTRY STIMULATORS
COMPUTER TO VACUUM TUBE INTERFACE
TYPICAL APPLICATION
Ref: APPLICATION NOTE 20: "Bridge Mode Operation of Power Amplifiers"
½
½
½½
½½½½
½½½
½½½
½½½
½½½½
DESCRIPTION
The PA241 is a high voltage monolithic MOSFET operational
amplifier which achieves performance features previously
found only in hybrid designs while increasing reliability. Inputs
are protected from excessive common mode and differential
mode voltages. The safe operating area (SOA) has no second
breakdown limitation and can be observed with all type loads
by choosing an appropriate current limiting resistor. External
compensation provides the user flexibility in choosing optimum
gain and bandwidth for the application.
The PA241CE is packaged in a hermetically sealed 8-pin
TO-3 package. The metal case of the PA241CE is isolated in
excess of full supply voltage.
The PA241DF is packaged in a 24 pin PSOP (JEDEC MO-
166) package. The metal heat slug of the PA241DF is isolated
in excess of full supply voltage.
The PA241DW is packaged in Apex’s hermetic ceramic SIP
package. The alumina ceramic isolates the die in excess of
full supply voltage.
½½½½
½½
½½½½½
½½½½
½½
½½½½½
½
½½
½½½½½
½½½
½½½½½½½½½½
½½½
½
½½
½½
½½
½½½½
LOW COST 660V p-p
PIEZO DRIVE
½½½½
Two PA241 amplifiers operated as a bridge driver for a piezo
transducer provides a low cost 660 volt total drive capability.
The R
N
C
N
network serves to raise the apparent gain of A2 at
high frequencies. If R
N
is set equal to R the amplifiers can be
compensated identically and will have matching bandwidths.
EXTERNAL CONNECTIONS
PA241CE
R
CL
C
C
PA241DW
1
2
3
4
5
6
7
8
9
10
NC NC -V
S
+V
S
I
LIM
C
C
2 C
C
1 OUT
C
C
1 3
OUT 4
2 C
C
2
1 I
LIM
-IN +IN
C
C
EQUIVALENT SCHEMATIC
TOP VIEW
6
+IN
8
7
–V
S
NC
+V
S
5
–IN
+V
S

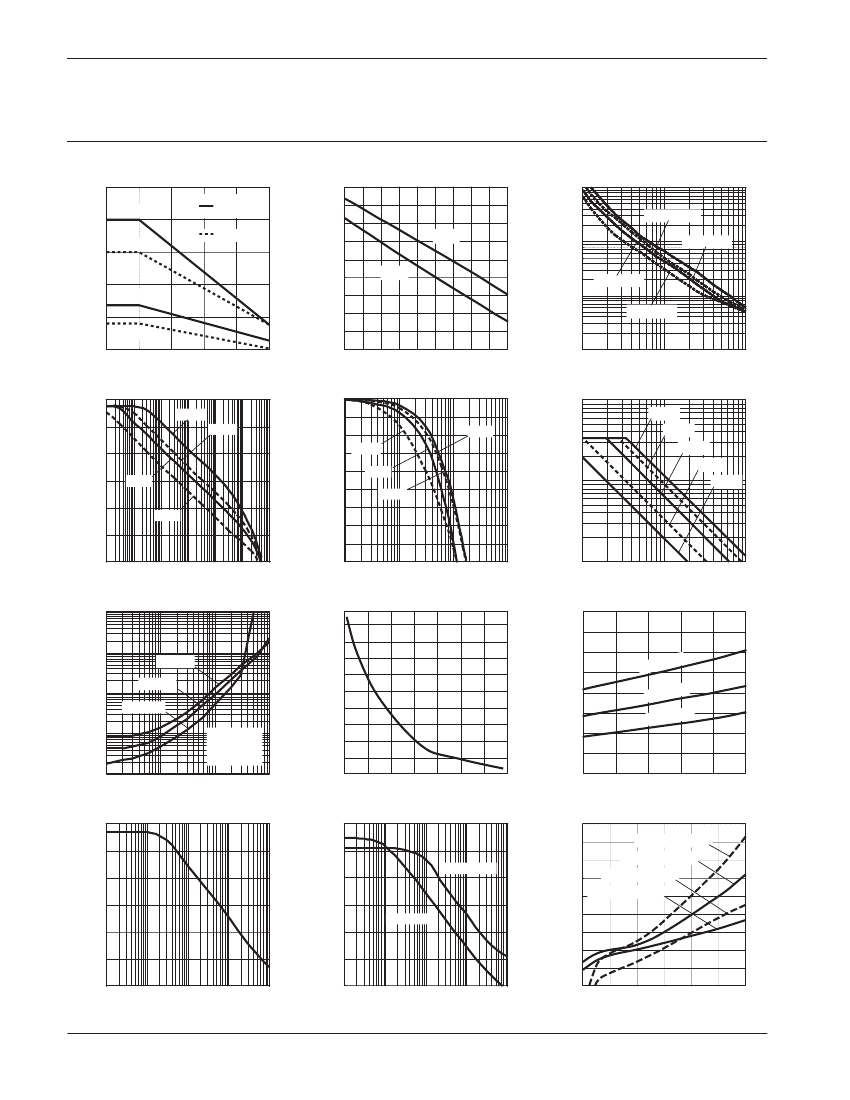

For CC values, see graph on page 4.
Note: CC must be rated for full supply
voltage.
NC
NC
NC
OUT
NC
COMP
NC
COMP
NC
ILIM
NC
+VS
C
C
R
CL
R
CL
C
C
1
C
C
2
+IN
-IN
I
LIM
OUT
PA241DF
NC
NC
NC
NC
+IN
NC
NC
NC
NC
-VS
-IN
1
24
-V
S
NOTE: PA241CE Recommended mounting torque is 4-7
in•lbs (.45 -.79 N•m)
CAUTION: The use of compressible, thermally conductive
insulators may void warranty.
APEX MICROTECHNOLOGY CORPORATION • TELEPHONE (520) 690-8600 • FAX (520) 888-3329 • ORDERS (520) 690-8601 • EMAIL prodlit@apexmicrotech.com
+
-
1

PA241CE Related Products

PA241CE PA241 PA241DWA PA241DW PA241DFA PA241DF PA241CEA
Description OP-AMP, 40000 uV OFFSET-MAX, 3 MHz BAND WIDTH, MBFM8 OP-AMP, 30000 uV OFFSET-MAX, 3 MHz BAND WIDTH, CSIP10 OP-AMP, 30000 uV OFFSET-MAX, 3 MHz BAND WIDTH, CSIP10 OP-AMP, 40000 uV OFFSET-MAX, 3 MHz BAND WIDTH, CSIP10 OP-AMP, 40000 uV OFFSET-MAX, 3 MHz BAND WIDTH, PDSO24 OP-AMP, 40000 uV OFFSET-MAX, 3 MHz BAND WIDTH, PDSO24 OP-AMP, 30000 uV OFFSET-MAX, 3 MHz BAND WIDTH, MBFM8
Number of functions - 1 1 1 1 1 -
Number of terminals - 10 10 10 24 24 -
Maximum supply/operating voltage - 175 V 175 V 175 V 175 V 175 V -
Maximum operating temperature - 125 Cel 125 Cel 125 Cel 125 Cel 125 Cel -
Minimum operating temperature - -40 Cel -40 Cel -40 Cel -40 Cel -40 Cel -
Rated supply voltage - 150 V 150 V 150 V 150 V 150 V -
Maximum negative supply voltage - -175 V -175 V -175 V -175 V -175 V -
Rated negative supply voltage - -150 V -150 V -150 V -150 V -150 V -
Rated bandwidth - 3 kHz 3 kHz 3 kHz 3 kHz 3 kHz -
Rated rotation rate - 30 V/us 30 V/us 30 V/us 30 V/us 30 V/us -
Maximum input offset voltage - 30000 mV 30000 mV 40000 mV 40000 mV 40000 mV -
Processing package description - ROHS COMPLIANT, HERMETIC SEALED, Ceramic, SIP-10 ROHS COMPLIANT, HERMETIC SEALED, Ceramic, SIP-10 ROHS COMPLIANT, HERMETIC SEALED, Ceramic, SIP-10 ROHS COMPLIANT, plastic, MO-166, SOP-24 ROHS COMPLIANT, plastic, MO-166, SOP-24 -
Lead-free - Yes Yes Yes Yes Yes -
EU RoHS regulations - Yes Yes Yes Yes Yes -
state - ACTIVE ACTIVE ACTIVE DISCONTINUED ACTIVE -
Craftsmanship - MOS MOS MOS MOS MOS -
packaging shape - Rectangle Rectangle Rectangle Rectangle Rectangle -
Package Size - IN-line IN-line IN-line SMALL OUTLINE, SHRINK PITCH SMALL OUTLINE, SHRINK PITCH -
Terminal form - THROUGH-hole THROUGH-hole THROUGH-hole GULL WING GULL WING -
Terminal spacing - 2.54 mm 2.54 mm 2.54 mm 1 mm 1 mm -
terminal coating - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED MATTE Tin Tin BISMUTH -
Terminal location - single single single pair pair -
Packaging Materials - Ceramic, Metal-SEALED COFIRED Ceramic, Metal-SEALED COFIRED Ceramic, Metal-SEALED COFIRED Plastic/Epoxy Plastic/Epoxy -
Temperature level - AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE -
Amplifier type - Operational Amplifier Operational Amplifier Operational Amplifier Operational Amplifier Operational Amplifier -
Rated common mode rejection ratio - 94 dB 94 dB 94 dB 94 dB 94 dB -
Maximum input bias current IIB - 0.0020 uA 0.0020 uA 0.0020 uA 2.00E-4 uA 2.00E-4 uA -
