125N11-660 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 125N11-660

125N11-660: DescriptionElectric Fuse, 125A, 660VAC, 400VDC, Inline/holder; CategoryCircuit protection Circuit protection; File Size54KB，1 Pages; ManufacturerCooper Industries; Environmental Compliance

Download Datasheet Parametric Compare View All

125N11-660 Overview

Electric Fuse, 125A, 660VAC, 400VDC, Inline/holder

125N11-660 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
body height	73 mm
Body length or diameter	49 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	30000 J
Manufacturer's serial number	N11-660
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	49mm x 73mm
Rated current	125 A
Rated voltage (AC)	660 V
Rated voltage (DC)	400 V
Guideline	BS; IEC
surface mount	NO
Terminal shape	TAB/BLADE
Base Number Matches	1

Preview

Download Datasheet

View All

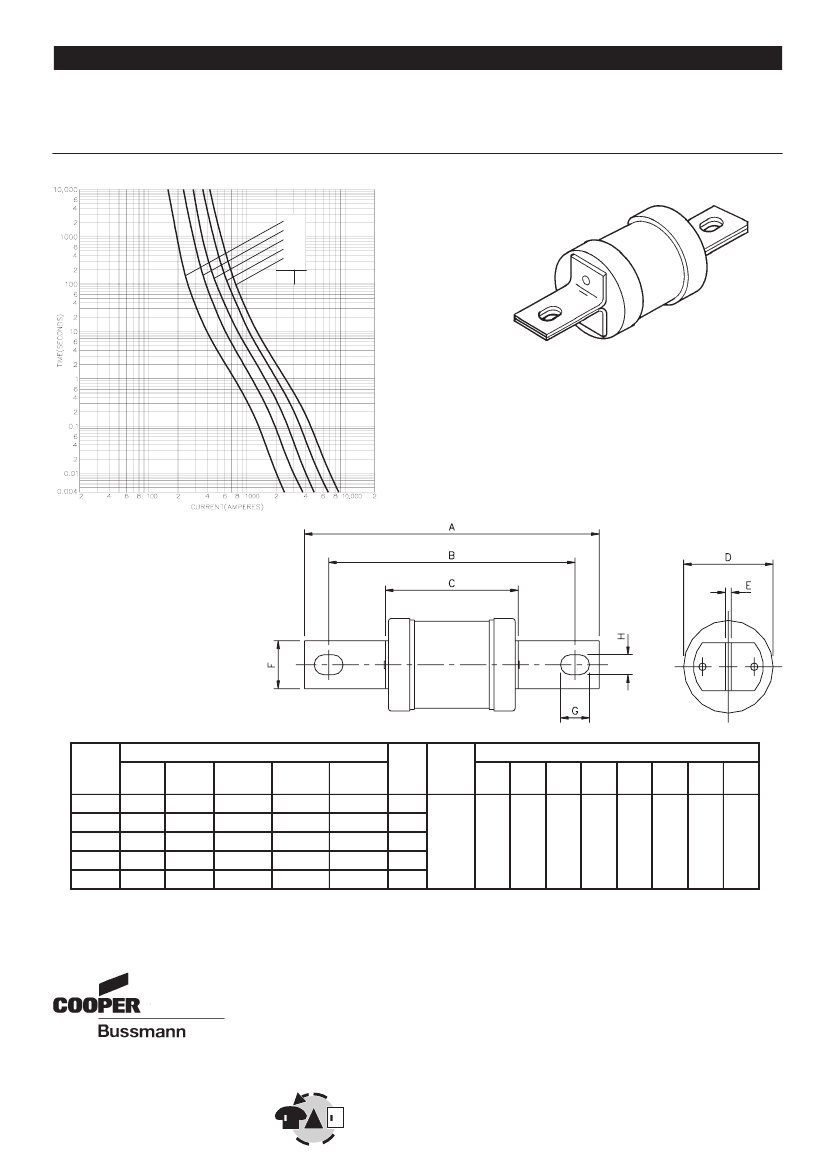

Bussmann

Industrial HRC Fuse Links 660V Range

Centre Bolted Tags

Time-Current Characteristic Curve

BS88, IEC269

N11-660

125A

160A

200A

250A

315A

Centre Bolted Tag

Dimensional Data

Carton Quantities:

1 per carton all ratings

Ordering Code:

Rating followed by N11-660

Catalog

Number

N11-660

I t (Ampere

Seconds)

Amp

Ratings

125

160

200

250

315

Pre-

Arcing

30,000

67,000

120,000

220,000

340,000

Total at

415V

52,000

120,000

210,000

390,000

600,000

Total at

550V

75,000

170,000

300,000

550,000

870,000

Total at

660V

150,000

335,000

590,000

1,100,000

1,700,000

Nom.

Rated

Watts

Voltage

Loss

Dimensions (mm)

660V ac

400V 162.0 135.0 73.0

49.0

3.2

25.4

15.8

10.5

This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the end user with

design applications. Bussmann reserves the right, without notice, to change design or construction of any products and to discontinue

or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information

contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.

Bussmann Division

Cooper (U.K.) Ltd

Burton-on-the-Wolds

Leicestershire, LE12 5TH

United Kingdom

Tel: (44) (0)1509 88 27 37

Fax: (44) (0)1509 88 27 86

Head Office

St. Louis, MO, U.S.A. Tel: (314) 527-3877 Fax: (800) 544-2570 International Fax: (314) 527-1445

Bussmann Information Fax (00 1) 314 527 1450

N11 11.96

Doc. No. 4160

125N11-660 Related Products

	125N11-660	160N11-660	315N11-660	250N11-660	200N11-660
Description	Electric Fuse, 125A, 660VAC, 400VDC, Inline/holder	Electric Fuse, 160A, 660VAC, 400VDC, Inline/holder	Electric Fuse, 315A, 660VAC, 400VDC, Inline/holder	Electric Fuse, 250A, 660VAC, 400VDC, Inline/holder	Electric Fuse, 200A, 660VAC, 400VDC, Inline/holder
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknow	unknow	unknown	unknown	unknown
body height	73 mm	73 mm	73 mm	73 mm	73 mm
Body length or diameter	49 mm	49 mm	49 mm	49 mm	49 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Joule integral nominal	30000 J	67000 J	340000 J	220000 J	120000 J
Manufacturer's serial number	N11-660	N11-660	N11-660	N11-660	N11-660
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
method of packing	BOX	BOX	BOX	BOX	BOX
physical size	49mm x 73mm	49mm x 73mm	49mm x 73mm	49mm x 73mm	49mm x 73mm
Rated current	125 A	160 A	315 A	250 A	200 A
Rated voltage (AC)	660 V	660 V	660 V	660 V	660 V
Rated voltage (DC)	400 V	400 V	400 V	400 V	400 V
Guideline	BS; IEC	BS; IEC	BS; IEC	BS; IEC	BS; IEC
surface mount	NO	NO	NO	NO	NO
Terminal shape	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE
Base Number Matches	1	1	1	1	1
