3PECLH-1.25H datasheet, PDF - EEWORLD Datasheet

3PECLH-1.25H: DescriptionActive Delay Line, Programmable, 1-Func, 7-Tap, True Output, ECL, PDSO16, MODULE, SMD-16; Categorylogic logic; File Size96KB，1 Pages; ManufacturerRhombus Industries, Inc.; Websitehttp://www.rhombus-ind.com/

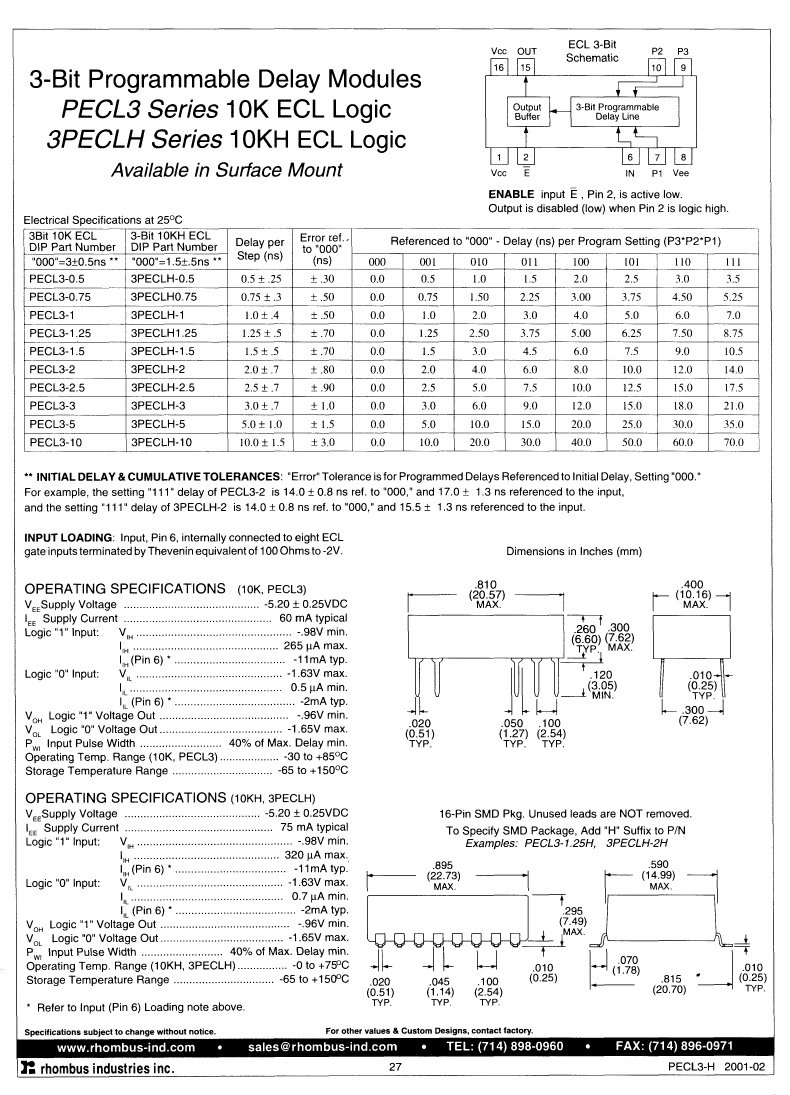

Download Datasheet Parametric View All

3PECLH-1.25H Overview

Active Delay Line, Programmable, 1-Func, 7-Tap, True Output, ECL, PDSO16, MODULE, SMD-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	MODULE, SMD-16
Contacts	16
Reach Compliance Code	unknown
series	10K
JESD-30 code	R-PDSO-G16
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	7
Number of terminals	16
Maximum operating temperature	75 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	GWDIP16,.9
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	-5.2 V
programmable delay line	YES
Prop。Delay @ Nom-Sup	8.75 ns
Certification status	Not Qualified
Maximum seat height	7.49 mm
surface mount	YES
technology	ECL
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	10.25 ns
Base Number Matches	1
