CRYSTAL OSCILLATORS

Data Sheet 1121A

Rev. B

AB-X3A2XX-X Series

SINEWAVE VCXO

Description

The AB-X3A2XX Series

of voltage controlled crystal oscillators (VCXO) provides high

frequency with Sinewave outputs. The device does not use any frequency multiplication, providing

exceptionally low Phase Noise and Jitter and wide pull. It’s packaged in a miniature, FR-4 based

9x14 mm SMD package

Applications and Features

•

Wide frequency range – 12.0MHz to 250.000MHz

•

Fiber Channel; 10 GbE; Infiniband; Network Processors; SONET/SDH

High Reliability – NEL HALT/HASS qualified for crystal oscillator start-up conditions

Extremely Low Phase Noise and Jitter

High Shock Resistance, to 1000g

No Multiplication

Absolute Pull Range (APR) to ±1000 ppm

SONET ± 20 ppm overall free-run stability available

COTS/Dual use

Creating a Part Number

AB - X 3A2 X X – X - FREQ

Package code

AB 6 pad 9x14 mm SMD

Environmental

L Contains a level of lead that is in

excess of RoHs directive and is

not designed for reflow

R RoHS compliant

Operating Voltage

0 5.0V ± 5%

A 3.3V ± 5%

B 2.5V ± 5%

Temperature Range, ºC

A 0 to 50

B 0 to 70

C -20 to 70

D -40 to 85

9 Customer Specific

Absolute Pull Range, ppm

E ±20

F ±32

G ±50

H ±100

9 Customer specific

357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881

Email:

nelsales@nelfc.com

www.nelfc.com

CRYSTAL OSCILLATORS

AB-X3A2XX-X Series

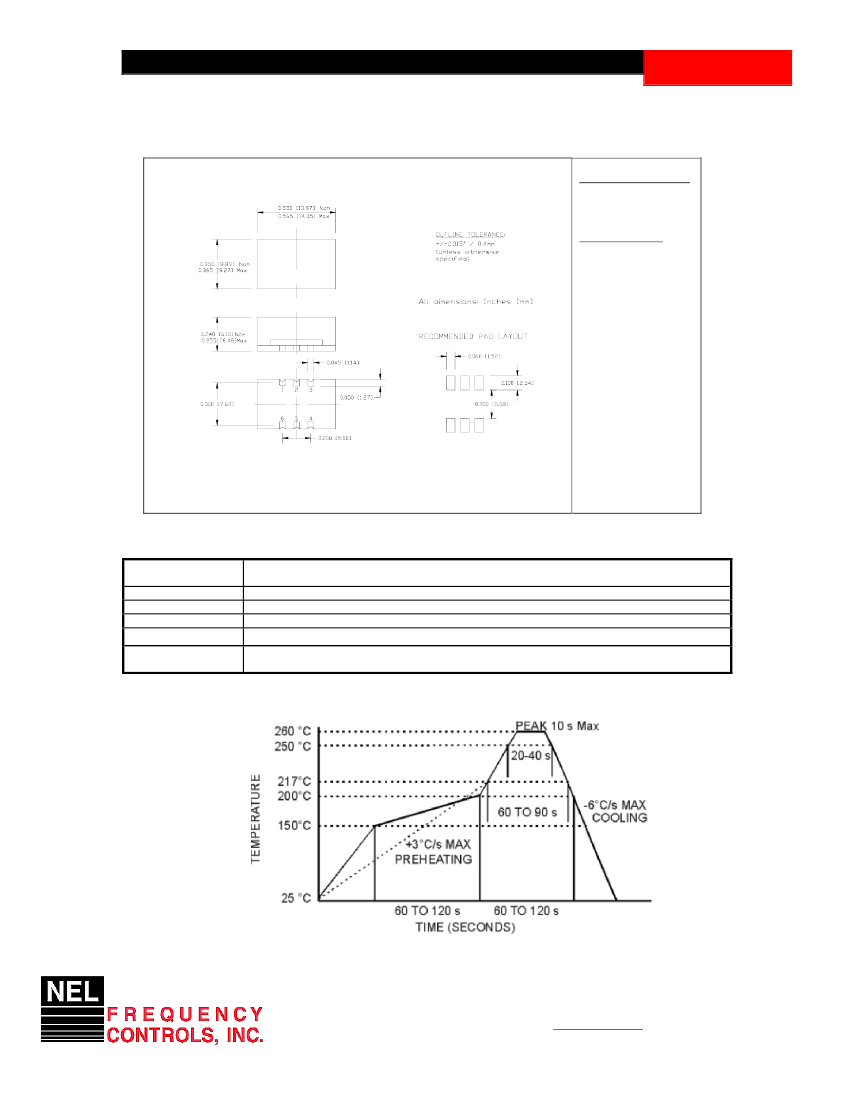

Drawing Specification

Data Sheet 1121A

Rev. B

OUTLINE TOLERANCE:

±0.015” / 0.4mm

(Unless otherwise

specified)

PIN FUNCTIONS:

[1] Vco

[2] N/C

[3] GROUND

[4] OUTPUT

[5] NC

[6] Vcc

Environmental and Mechanical Characteristics

Operating temp.

range

Mechanical Shock

Thermal Shock

Vibration

Hermetic Seal

Soldering conditions

see part # table

Per MIL-STD-202, Method 213, Cond. A

Per MIL-STD-883, Method 1011, Cond. A

Per MIL-STD-883, Method 2007, Cond. A

Leak rate less than 1x10-8 atm.cc/s of helium

See MAX reflow profile below; The device may be reflowed once. Reflowing upside down is not

allowed. NO CLEAN assembly is recommended

MAX Reflow Profile

The device may be reflowed once. Reflowing upside down is not allowed. NO CLEAN assembly is recommended

357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881

Email:

nelsales@nelfc.com

www.nelfc.com

CRYSTAL OSCILLATORS

AB-X3A2XX-X Series

Absolute Maximum Ratings

Parameter

Operating Temperature Range

Storage Temperature Range

Supply Voltage

Control Voltage

Data Sheet 1121A

Rev. A

Symbol

Tst

Vcc

Value

-40 to +85

-50 to +90

-0.5 to 5.5 for Vcc = 5 V

-0.5 to 3.6 For Vcc 3.3 or 2.5 V

-0.5 to Vcc + 0.5

Unit

ºC

Electrical Parameters (1)

Parameter

Nominal Frequency

Supply Voltage

Symb

Vcc

Conditions, Note

Code 0

Code A

Code B

Loaded Vcc=3.3V 100MHz

Internally AC coupled

Into 50 Ohm, Vcc = 3.3 V

MIN

4.75

3.135

2.375

TYP

5.0

3.3

2.5

Sinewave

-85

-115

-145

-160

-165

MAX

250

5.25

3.465

2.625

Unit

MHz

Supply current

Output Type

Load

Output Power

Phase Noise

Icc

Ohm

dBm

£(Δf)

100.0MHz,

APR 32 ppm

or less

@ 10 Hz

@100 Hz

@1 KHz

@10KHz

@100KHz

@>1MHz

-80

-110

-140

-155

-160

dBc/Hz

Sub-harmonics

Frequency Stability

usually not specified

unless necessary. APR

is specified to

incorporate stability

Control Voltage Range

Setability

Absolute Pull Range

Input Impedance

Modulation Bandwidth

ΔF/F

Overall, including

temperature, aging 10 years,

shock and vibration @

Vc=Vcc/2; APR 50ppm, or

less

Vc to set F at Fo; T, Vcc,

load – nominal as shipped

Overall conditions, see part #

creation

±20

None

±30

dBc

ppm

Vcs

APR

Zin

0.4 Vcc

20,32,

50,100

0.5 Vcc

Vcc

0.6 Vcc

ppm

KOhm

KHz

@ Fmod < 100kHz

At Vc = Vcc/2, -3dB

Notes:

1. All parameters, unless other

wise specified, are at nominal conditions, ie: T=25°C, Nominal Vcc &

Nominal Load.

357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881

Email:

nelsales@nelfc.com

www.nelfc.com
