36502AR18K

Description
1 ELEMENT, 0.18uH, ALUMINA-CORE, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0805
CategoryPassive components    inductor
File Size509KB,5 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

36502AR18K Overview

1 ELEMENT, 0.18uH, ALUMINA-CORE, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0805

36502AR18K Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1996827006
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL7.6
uppercase and lowercase codes0805
core materialALUMINA
DC Resistance0.64 Ω
Nominal inductance(L)0.18 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
method of packingTR
Minimum quality factor (at nominal inductance)50
Maximum rated current0.4 A
self resonant frequency870 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency250 MHz
Tolerance10%
Product – Specification
TYPE 3650 SERIES
1
st
April 2003
ISSUE 3

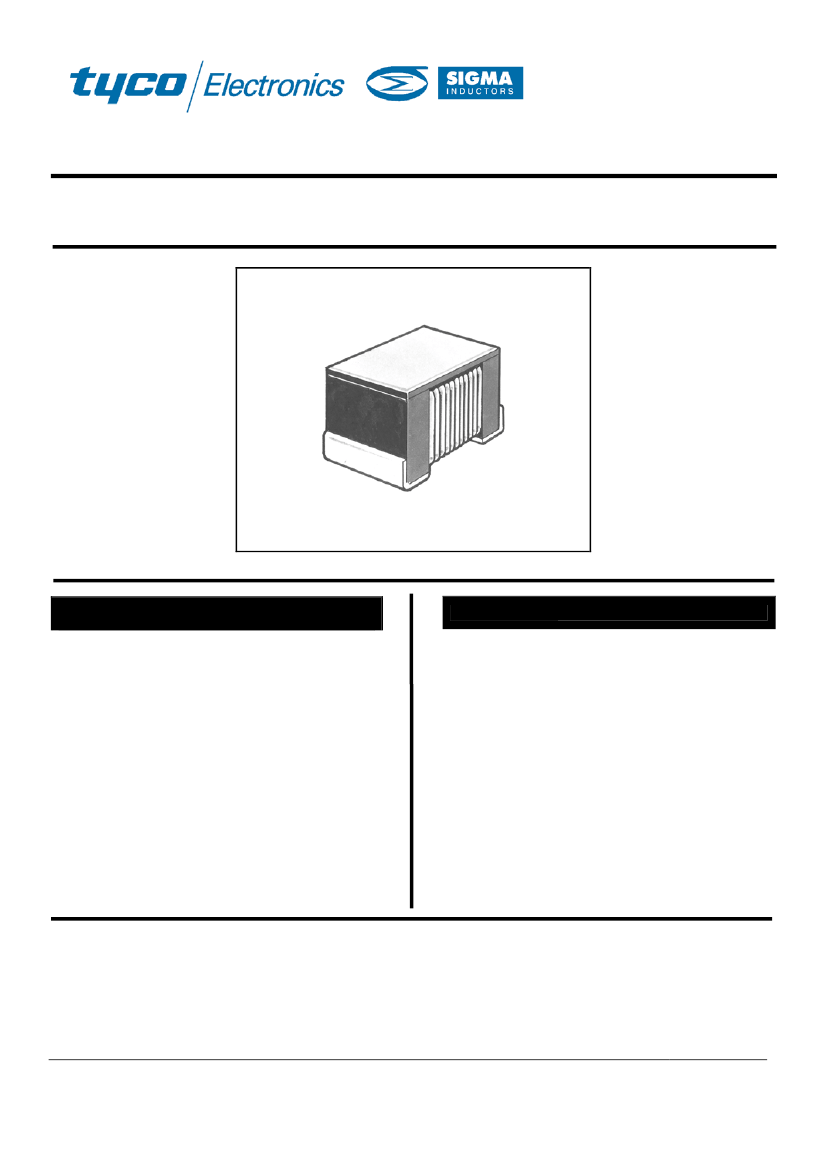

Low Inductance, High Frequency Chip Inductor
TYPE 3650 SERIES
KEY FEATURES
The 3650 Series is a new concept from Tyco, a
range of inductors in values from 1.0
nanohenry to 4.7 microhenries. The 3650 is
available in four package sizes and is designed
for automatic placement.
Choice of Four Package Sizes
Wire Wound Construction
Smooth Top Aids Placement
1.0NH to 4.7µH Value Range
Laboratory Design Kits Available
High Q Factor
High S.R.F.
Standard Tolerances
STOCKISTS:
This product is not available in Distribution.
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 1 of 5
Website – www.resistors.tycoelectronics.com
Email – passivesales@tycoelectronics.com
