MKF13375-6-1-1515: DescriptionBoard Connector, 15 Contact(s), 2 Row(s), Female, 0.098 inch Pitch, IDC Terminal, Locking Mech, Socket; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerStocko Contact GmbH & Co Kg; Websitehttps://www.stocko-contact.com; Environmental Compliance

Download Datasheet Parametric View All

MKF13375-6-1-1515 Overview

Board Connector, 15 Contact(s), 2 Row(s), Female, 0.098 inch Pitch, IDC Terminal, Locking Mech, Socket

MKF13375-6-1-1515 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED
Board mount options	POLARIZATION POST
body width	0.236 inch
subject depth	0.469 inch
body length	1.571 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
Minimum insulation diameter	0.047 inch
Insulation resistance	1000000000 Ω
insulator material	POLYCARBONATE
MIL compliance	NO
Manufacturer's serial number	MKF13360
Plug contact pitch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	115 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	2.5 A
Guideline	UL,VDE
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	15
Maximum wire diameter	26 AWG
Minimum wire diameter	26 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

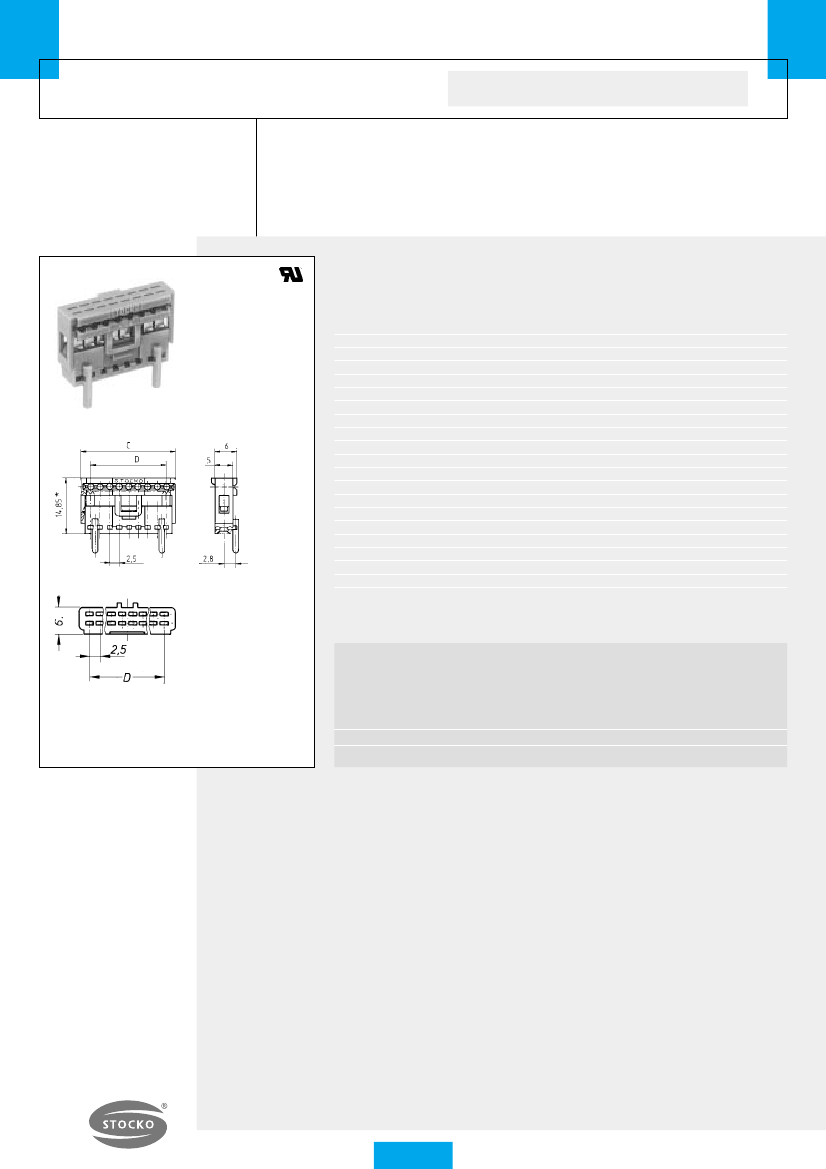

Serie / Series

F ederleisten in Schneidklemmtechnik

I DC socket connectors

MKF 13360

Serie MKF 13360, wie MKF 13260, jedoch mit Codierbeinen

Series MKF 13360, like MKF 13260, but with polarizing pegs

Polzahl

Positions

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

Artikel-Nummer

Part number

MKF

13362 - 6 -

"

- 202

13363 - 6 -

"

- 303

13364 - 6 -

"

- 404

13365 - 6 -

"

- 505

13366 - 6 -

"

- 606

13367 - 6 -

"

- 707

13368 - 6 -

"

- 808

13369 - 6 -

"

- 909

13370 - 6 -

"

- 1010

13371 - 6 -

"

- 1111

13372 - 6 -

"

- 1212

13373 - 6 -

"

- 1313

13374 - 6 -

"

- 1414

13375 - 6 -

"

- 1515

13376 - 6 -

"

- 1616

13377 - 6 -

"

- 1717

13378 - 6 -

"

- 1818

13379 - 6 -

"

- 1919

13380 - 6 -

"

- 2020

Abmessungen C

Dimensions C

7,4

9,9

12,4

14,9

17,4

19,9

22,4

24,9

27,4

29,9

32,4

34,9

37,4

39,9

42,4

44,9

47,4

49,9

52,4

Abmessungen D

Dimensions D

2,5

5,0

7,5

10,0

12,5

15,0

17,5

20,0

22,5

25,0

27,5

30,0

32,5

35,0

37,5

40,0

42,5

45,0

47,5

"

Bitte fügen Sie hier die

Kennziffer

für den Leiterquerschnitt gemäß nachfolgender Tabelle ein.

"

Please enter here the

code number

for the required wire size as indicated in the chart below.

* nach Montage 11,9 mm

* after assembly 11.9 m

Massivleiter

Solid wire

0,4 mm Ø

0,5-0,6 mm Ø

Litze, 7 drähtig verseilt

7 stranded wire

0,14 mm

2

0,22-0,25 mm

2

AWG

26

24

Isolations Ø

Insulation Ø

1,2-1,5 mm

Kennziffer

Code number

1

0

Serie mit einem Codierbein auf Anfrage.

Series with only one polarizing peg on request.

9
