EB52F3A30V-10.240M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EB52F3A30V-10.240M

EB52F3A30V-10.240M: DescriptionTCVCXO, CLOCK, 10.24 MHz, LVCMOS OUTPUT, METAL, DIP-14/4; CategoryPassive components oscillator; File Size134KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com

Download Datasheet Parametric View All

EB52F3A30V-10.240M Overview

TCVCXO, CLOCK, 10.24 MHz, LVCMOS OUTPUT, METAL, DIP-14/4

EB52F3A30V-10.240M Parametric

Parameter Name	Attribute value
Objectid	1285918996
Reach Compliance Code	unknown
YTEOL	0
Ageing	1 PPM/YEAR
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	10 ns
Frequency Adjustment - Mechanical	YES
Frequency offset/pull rate	20 ppm
frequency stability	3%
Installation features	THROUGH HOLE MOUNT
Number of terminals	14
Nominal operating frequency	10.24 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Oscillator type	LVCMOS
Output load	15 pF
physical size	18.3mm x 11.7mm x 4.8mm
longest rise time	10 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

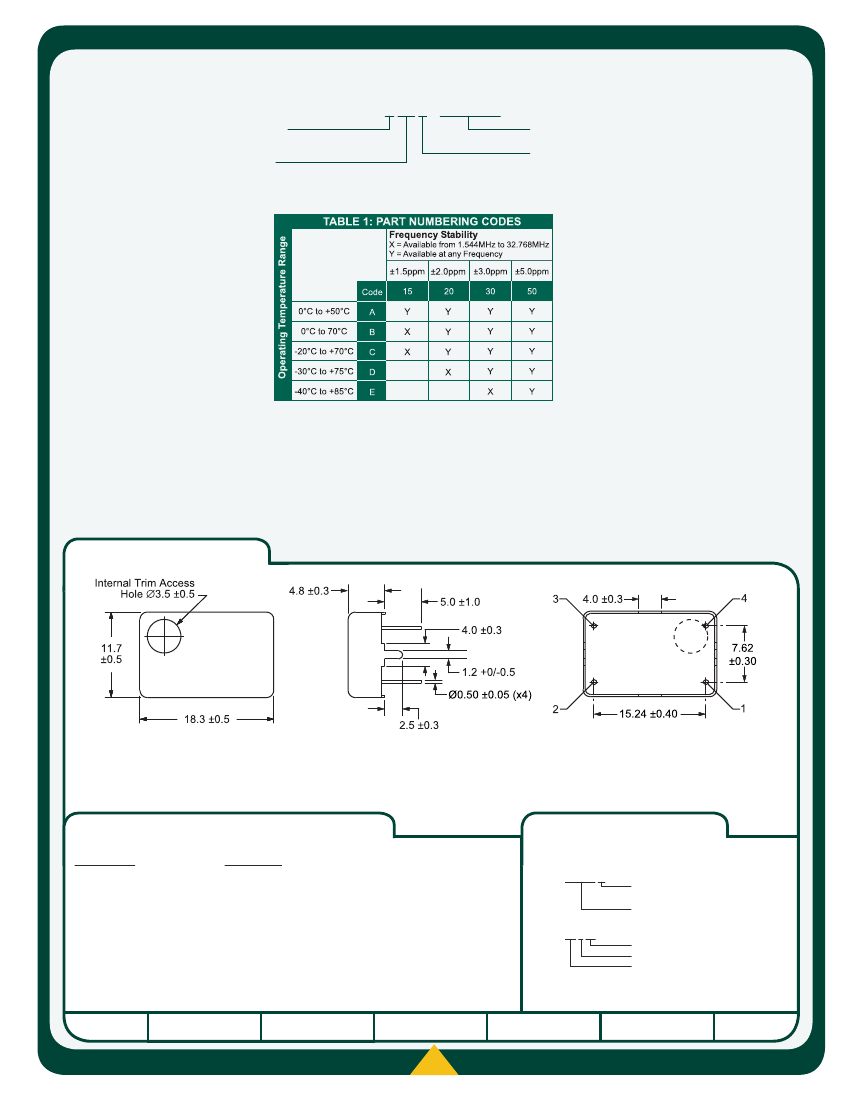

EB52F3

Series

• Temperature Compensated

Crystal Oscillators (TCXO)

• LVCMOS Output

• +3.3V Supply Voltage

• Internal Mechanical Trim Function

• External Voltage Control Option

• 14 pin DIP Metal Package

NOTES

EB52F3

H 4.8

L 18.3

W 11.7

OSCILLATOR

__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Input Current

Frequency Stability

1.544MHz to 44.736MHz

See Table 1

-40°C to 85°C

3.3V

±5%

10mA Maximum

20mA Maximum

See Table 1

±0.3ppm Maximum

±0.2ppm Maximum

±1ppm / year Maximum

90% of V

Minimum

10% of V

Maximum

10 nSeconds Maximum

50 ±10(%)

15pF Maximum

±3ppm Minimum

1.65V

±1.35V

, Positive Transfer Characteristic

±7ppm Minimum, ±20ppm Maximum

10kOhms Typical

10kHz Minimum

-70dBc/Hz

-100dBc/Hz

-130dBc/Hz

-140dBc/Hz

-145dBc/Hz

VOLTAGE

CLASS

REV

DATE

1.544MHz to 20.000MHz

20.001MHz to 44.736MHz

vs. Operating Temperature Range

vs. Input Voltage (V

±5%)

vs. Load (±2pF)

Aging (at 25°C)

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time

Duty Cycle

Load Drive Capability

Internal Trim (Top of Can)

Control Voltage (External)

Frequency Deviation

Input Impedance

Modulation Bandwidth

Typical Phase Noise

20% to 80% of Waveform

at 50% of Waveform

Referenced to F

at V

= 1.65V

; V

= 3.3V

Measured at -3dB, V

= 1.65V

at 10Hz Offset

at 100Hz Offset

at 1kHz Offset

at 10kHz Offset

at 100kHz Offset

SERIES

PACKAGE

MANUFACTURER

Recommended Resources

Stepper motor drive circuit composed of LB1836M

Lithium battery fast charger circuit diagram design

Wiring a when the leakage protector in the TT system is used for single-phase load

Inverter and inverter02

Red Star brand KHG1-20B, KHG1-25B, KHG1-30B ventilation fan circuit diagram

LT1044 negative voltage generator circuit diagram
