BH02B-PXASK(LF)(SN) datasheet, PDF

Datasheet> All Categories > The connector> The connector> BH02B-PXASK(LF)(SN)

BH02B-PXASK(LF)(SN): DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size106KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

BH02B-PXASK(LF)(SN) Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

BH02B-PXASK(LF)(SN) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	SHROUDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	PXA
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	2
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

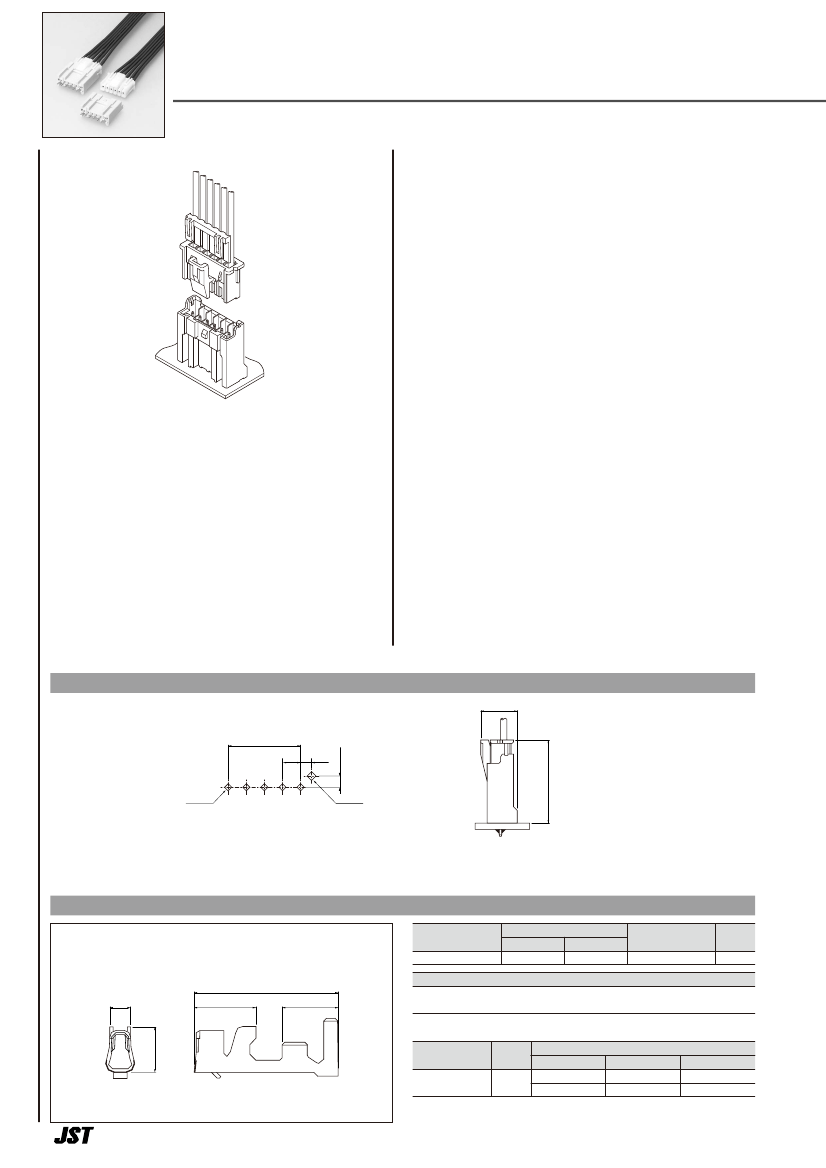

PXA

CONNECTOR

2.5mm pitch/Disconnectable Crimp style connectors

Specifications –––––––––––––––––––

Secondary retainer mountable 2.5mm pitch

high-box type, with 20.5mm mounting

height.

Fully shrouded header has the walls

between every circuit to consider as the

structure against vibration or prying.

• Secure locking device

• Fully shrouded header

• Header for use specifically with resin coated

("potted") PC boards

• PC board layout is exactly same as

XA connector

• Secondary retainer

• Current rating: 3A AC, DC (AWG #22)

• Voltage rating: 250V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/10m

Ω

max.

After environmental testing/20m

Ω

max.

• Insulation resistance:

1,000M

Ω

min.

• Withstanding voltage: 1,000V AC/minute

• Applicable wire: AWG #26 to #22

• Applicable PC board thickness: 1.6mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

PC board layout (viewed from component side) and Assembly layout

（8.95）

±0.1

2.5

±0.05

1.6

±0.05

1.6

±0.05

φ0.9

＋0.1

φ1.2

＋0.1

Note: 1. Tolerances are non-cumulative:

0.05mm for all centers.

2. Hole dimension differ according to the kind of PC board and piercing method. If PC boards made of hard material are used, the hole dimensions should

be larger. The dimensions above should serve as a guideline. Contact JST for details.

Contact

Model No.

SPXA-001T-P0.6

7.3

1.15

3.1

2.9

Applicable wire

AWG#

0.13∼0.33

26∼22

（20.5）

Insulation O.D.

(

)

1.2∼1.9

個数/

Q'ty /

reel

リ

ール

7,000

Material and Finish

Phosphor bronze, tin-plated (reflow treatment)

RoHS compliance

Crimping

machine Crimp applicator

MKS-L

−

Contact

Applicator

Dies

−

2.3

Crimp applicator with dies

−

SPXA-001T-P0.6

AP-K2N

MK/SPXA-001-06 APLMK SPXA001-06

BH02B-PXASK(LF)(SN) Related Products

	BH02B-PXASK(LF)(SN)	BH03B-PXASK(LF)(SN)	PXARP-02V	PXARP-06V	BH02B-PXASK	BH03B-PXASK	1446	BH06B-PXASK	PXARP-03V
Description	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Number of pins: 2 Number of rows: 2 Series: XA Male and female: Male spacing: 0.098"(2.50mm) Row spacing: 0.098"(2.50mm)	Number of pins: 6 Number of rows: 2 Series: XA Male and female: Male spacing: 0.098"(2.50mm) Row spacing: 0.098"(2.50mm)	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Medium Power, 7/16 Connectors	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 3 Contact(s), 1 Row(s), Female, Crimp Terminal, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Contains lead	Contains lead	-	Contains lead	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	incompatible	incompatible	-	incompatible	conform to
Maker	JST	JST	JST	JST	JST	JST	-	JST	JST
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	-	-	-	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	-	unknown	unknown
Other features	SHROUDED	SHROUDED	COMPATIBLE CONTACT: SPXA-001T-P0.6	COMPATIBLE CONTACT: SPXA-001T-P0.6	SHROUDED	SHROUDED	-	SHROUDED	COMPATIBLE CONTACT: SPXA-001T-P0.6
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER	TIN OVER COPPER	NOT SPECIFIED	NOT SPECIFIED	TIN OVER COPPER	TIN OVER COPPER	-	TIN OVER COPPER	NOT SPECIFIED
Contact completed and terminated	TIN OVER COPPER	TIN OVER COPPER	-	-	TIN OVER COPPER	TIN OVER COPPER	-	TIN OVER COPPER	-
Contact point gender	MALE	MALE	FEMALE	FEMALE	MALE	MALE	-	MALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY	-	COPPER ALLOY	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	-	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	-	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	-	NO	NO
JESD-609 code	e3	e3	-	-	e3	e3	-	e3	-
MIL compliance	NO	NO	NO	NO	NO	NO	-	NO	NO
Manufacturer's serial number	PXA	PXA	PXA	PXA	PXA	PXA	-	PXA	PXA
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	-	NO	NO
Installation method	STRAIGHT	STRAIGHT	-	-	STRAIGHT	STRAIGHT	-	STRAIGHT	-
Installation type	BOARD	BOARD	CABLE	CABLE	BOARD	BOARD	-	BOARD	CABLE
Number of rows loaded	1	1	1	1	1	1	-	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.5 mm	2.5 mm	-	-	2.5 mm	2.5 mm	-	2.5 mm	-
Termination type	SOLDER	SOLDER	CRIMP	CRIMP	SOLDER	SOLDER	-	SOLDER	CRIMP
Total number of contacts	2	3	2	6	2	3	-	6	3
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	-	94V-0	94V-0
