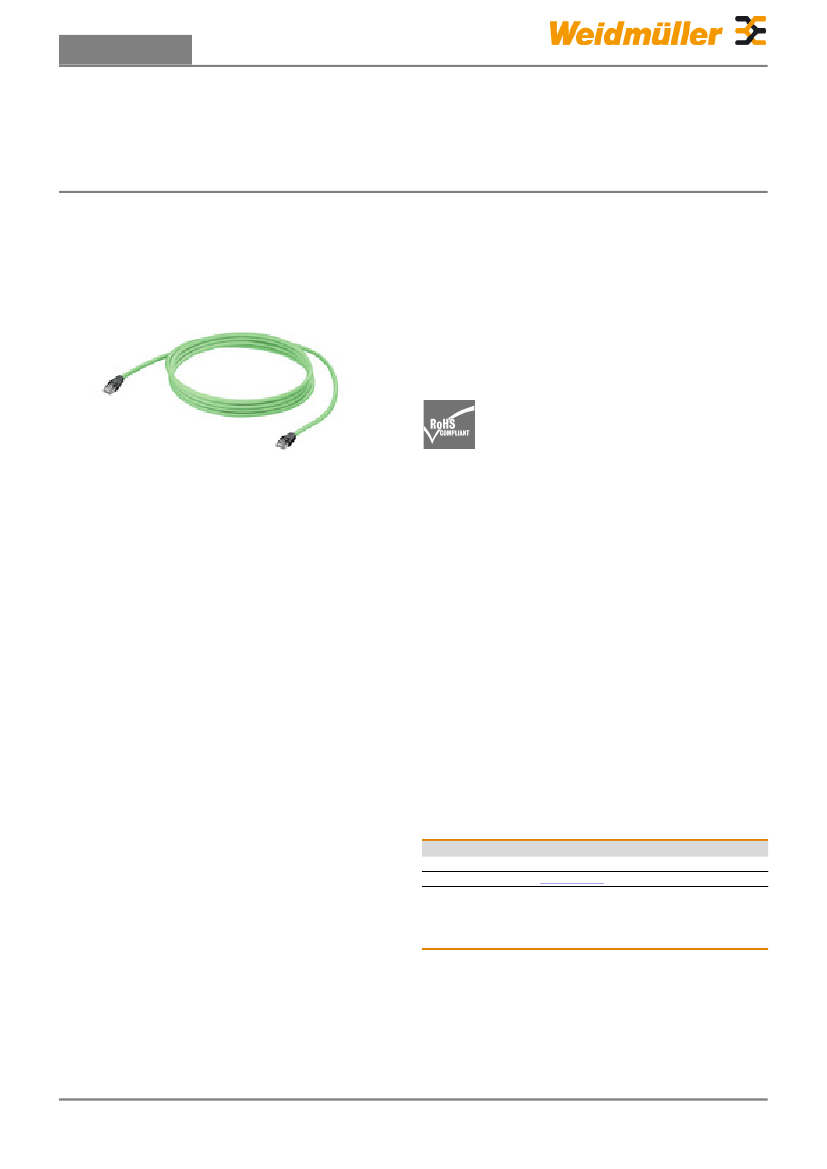

Data sheet
Industrial Ethernet
IE-C6ES8UG0150A40A40-E
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 26
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Assembled IE cables, patch cable Cabinet Line, various
colours
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
IE-C6ES8UG0150A40A40-E
8909650150
System cable, RJ45 IP 20, RJ45 IP 20, Cat.6
A
/
Class E
A
(ISO/IEC 11801 2010), PUR, 15 m
4050118473629
1 pc(s).
Creation date November 19, 2019 3:59:29 AM CET
Catalogue status 08.11.2019 / We reserve the right to make technical changes.
1
Data sheet
Industrial Ethernet
IE-C6ES8UG0150A40A40-E
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 26
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
15 m
220 g
Length (inches)
Insulation cross-section
Dimensions and weights
Length
Net weight
0.591 inch
1.03 mm
Temperatures
Operating temperature, max.
Storage temperature, max.
Operating temperature
Installation temperature
80 °C
80 °C
-40 °C...80 °C
-15 °C...60 °C
Operating temperature, min.
Storage temperature, min.
Storage temperature
-40 °C
-40 °C
-40 °C...80 °C
Environmental Product Compliance
REACH SVHC
Lead 7439-92-1
Standards
Corrosiveness of fumes
Standard, assembly
to IEC 60754-2
UL-Style 20963
(80°C/30V)
Generic communication cable facilities EN 50173-1:2007, ISO /
IEC 11801:2002
Cable structure
Wire material
Strands
Insulation
Arrangement of wire cores
Colour sequence or wires - wire pairs
Complete shielding
Material sheath
Sheath diameter, max.
Stranded tin-plated copper
wire
7
PE
Twisted pair
white - blue, white -
orange, white - green,
white - brown
Shielding braid made from
copper wiring
PUR
6.6 mm
Standard designations
Cross-section
Insulation cross-section
Wire pair shielding
Shielding
Shielding braid thickness
Sheath diameter, min.
Sheathing colour
S/FTP, LIO2YSC11Y
4x2x0.15 PIMF FRNC GN
4*2*AWG 26/7 -
4*2*0.128 mm²
1.03 mm
Aluminium foil
S/FTP
0.1 mm
6.2 mm
green (RAL 6018)
Electrical properties of cable
Category
Cat.6
A
/ Class E
A
(ISO/IEC
11801 2010)
100 ± 5 Ω at 100MHz
3 ns/100m
45 nF/km
10 GBit/s
Test voltage: wire-wire-shield
Loop resistance
Transfer impedance
Signal propagation time
700 V AC
290 Ω/km
15 mΩ/m at 1 MHz, 10
mΩ/m at 10 MHz, 30
mΩ/m at 30 MHz
4.5 ns/m
Characteristic impedance
Deviation
Capacity at 1 kHz
Speed
Creation date November 19, 2019 3:59:29 AM CET
Catalogue status 08.11.2019 / We reserve the right to make technical changes.
2
Data sheet
Industrial Ethernet
IE-C6ES8UG0150A40A40-E
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 26
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
5 x cable diameter
≤ 100 N
very good
in accordance with IEC
60811-2-1
to IEC 60754-2
Mechanical and material properties of cable
Min. bending radius, once only
Pulling force
Abrasion resistance
Resistance to oils
Corrosiveness of fumes
Min. bending radius, repetitive
Speed
Resistance to spread of flame
Halogen
10 x cable diameter
10 GBit/s
in accordance with IEC
60332-1
halogen-free, according to
IEC 60754-2
plug
Connector left
RJ45 IP 20
Connector right
RJ45 IP 20
Classifications
ETIM 6.0
eClass 9.0
eClass 10.0
EC002599
27-06-03-08
27-06-03-08
ETIM 7.0
eClass 9.1
UNSPSC
EC002599
27-06-03-08
26-12-16-06
Approvals
ROHS
Conform
Downloads
Brochure/Catalogue
User Documentation
FL FIELDWIRING EN
PI PROFINET CABLING EN
MAN IE GUIDE DE
MAN IE GUIDE EN
Creation date November 19, 2019 3:59:29 AM CET
Catalogue status 08.11.2019 / We reserve the right to make technical changes.
3
Data sheet
Industrial Ethernet
IE-C6ES8UG0150A40A40-E
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 26
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Drawings
Wiring
Creation date November 19, 2019 3:59:29 AM CET
Catalogue status 08.11.2019 / We reserve the right to make technical changes.
4
Data sheet
Industrial Ethernet
IE-C6ES8UG0150A40A40-E
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 26
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Accessories
Blank
TM-I is an acknowledged and accredited marker type
for traffic engineering applications. There are five
different tag lengths available for individual labelling
with long character strings. Easy handling of separation
and installation thanks to the project marker field. Pre-
attachment of sleeves and retrofitting of tags offer
excellent versatility
The special contour of TM-I allows easy assembly and
secures firm positioning. They are compatible with a
number of commercially available sleeves. Thanks to
the MultiCard format, the tags can be printed quickly
and conveniently with the SMark laser printer, PrintJet
ADVANCED, plotter, MC-Mobilo or the STI pen.
• Easy handling of separation and installation thanks to
the project marker field.
• Acknowledged and accredited marker for traffic
engineering applications
• Pre-attachment of sleeves and retrofitting of tags offer
excellent versatility
• Not suited for labelling with P-Ink or STI pen in
connection with CLI T sleeves
For custom printing:
Please send us a file of our
labeling software M-Print PRO or M-Print PRO Online
(without installation) for your labeling specifications.
General ordering data
Type
Order No.
Qty.
TM-I 18 MC NE WS
1718431044
320 pc(s).
4008190349011
Version
GTIN (EAN)
TM-I, Insert markers, 18 x 4 mm, white
Creation date November 19, 2019 3:59:29 AM CET
Catalogue status 08.11.2019 / We reserve the right to make technical changes.
5
