3545-116 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3545-116

3545-116: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Male, IDC Terminal; CategoryThe connector The connector; File Size190KB，2 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/

Download Datasheet Parametric Compare View All

3545-116 Overview

Board Connector, 16 Contact(s), 1 Row(s), Male, IDC Terminal

3545-116 Parametric

Parameter Name	Attribute value
Maker	Lumberg
Reach Compliance Code	compliant
Other features	LATCHED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	3545-1
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

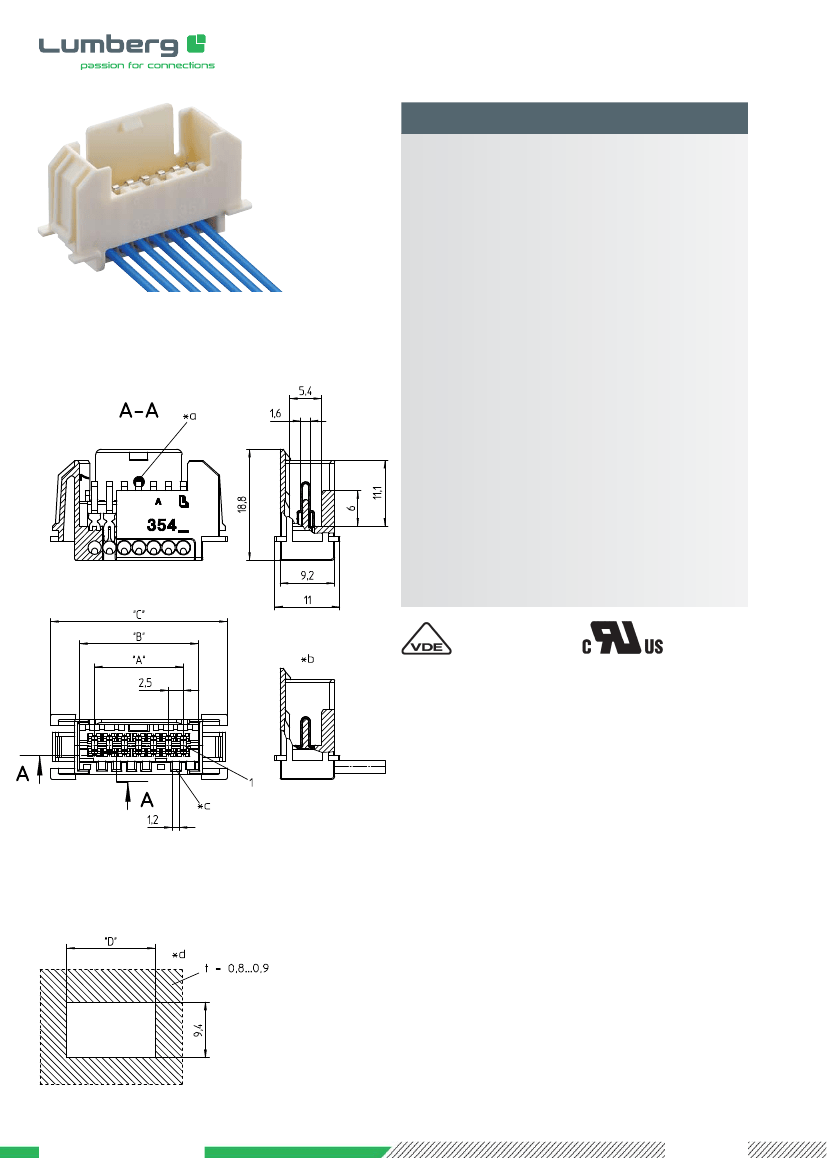

3545

3545-1

RAST-2.5-Einbaustiftleiste, in Schneidklemmtechnik (SKT),

mit Verriegelungslasche

Kontaktraster 2,5 mm

1. Temperaturbereich

2. Werkstoffe

Kontaktträger 3545(-...) (S...)

Kontaktträger 3545(-...) M13(S...)

Kontaktstift

3. Mechanische Daten

Steckverbindern 3521, 3521-2,

352100,

Steckverbindern nach

RAST-2.5-Standard

Anschließbare Leiter Schneidklemmbereich

Querschnitt 3545 (M...)

0,22–0,38 mm

Querschnitt 3545 (M...)S01

0,34 mm

(7-drähtig)

Querschnitt 3545-1 (M...)S01

0,50 mm

Isolationsdurchmesser

3545 (M...), 3545 (M...)S01

≤

1,65 mm

Isolationsdurchmesser

3545-1 (M...)S01

≤

2,20 mm

Freigegebene Leitungen im Internet unter www.lumberg.com

Kodiervorschläge im Internet unter www.lumberg.com

Kontaktierung mit

4. Elektrische Daten

(bei T

20 °C)

≤

5 mΩ

4 A bei T

60 °C

2 A bei T

100 °C

32 V AC

Bemessungsspannung

IIIa (CTI

≥

250)

Isolierstoffgruppe

Kriechstrecke

≥

0,53 mm

Luftstrecke

≥

0,53 mm

Isolationswiderstand

> 1 GΩ

Bauteil glühdrahtbeständig nach IEC 60695-2-11 bzw. IEC 60335-1

(GWT 750 °C ohne Flamme)

nach IEC 60664/DIN EN 60664

Durchgangswiderstand

Bemessungsstrom

PBT GF, V0 nach UL 94

PA GF, V0 nach UL 94

CuSn, verzinnt

-40 °C/+130 °C

Reg.-Nr. B339

*a Farbkennzeichnung blau bei 3545(-...) (M...)S01

blue color marking of 3545(-...) (M...)S01

marque en couleur bleue sur 3545(-...) (M...)S01

*b konfektionierter Zustand

terminated connector

connecteur après montage

*c Kodierung

keying

codage

*d Einbauöffnung

port

ouverture d’emplacement

www.lumberg.com

11/2012

3545-116 Related Products

	3545-116	3545-119	3545-115	3545-114	3545-118	3545-117	3545-113
Description	Board Connector, 16 Contact(s), 1 Row(s), Male, IDC Terminal	Board Connector, 19 Contact(s), 1 Row(s), Male, IDC Terminal	Board Connector, 15 Contact(s), 1 Row(s), Male, IDC Terminal	Board Connector, 14 Contact(s), 1 Row(s), Male, IDC Terminal	Board Connector, 18 Contact(s), 1 Row(s), Male, IDC Terminal	Board Connector, 17 Contact(s), 1 Row(s), Male, IDC Terminal	Board Connector, 13 Contact(s), 1 Row(s), Male, IDC Terminal
Maker	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	3545-1	3545-1	3545-1	3545-1	3545-1	3545-1	3545-1
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	16	19	15	14	18	17	13
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1
