INIATURE
M
INIATURE
F
USEHOLDERS
WICKMANN

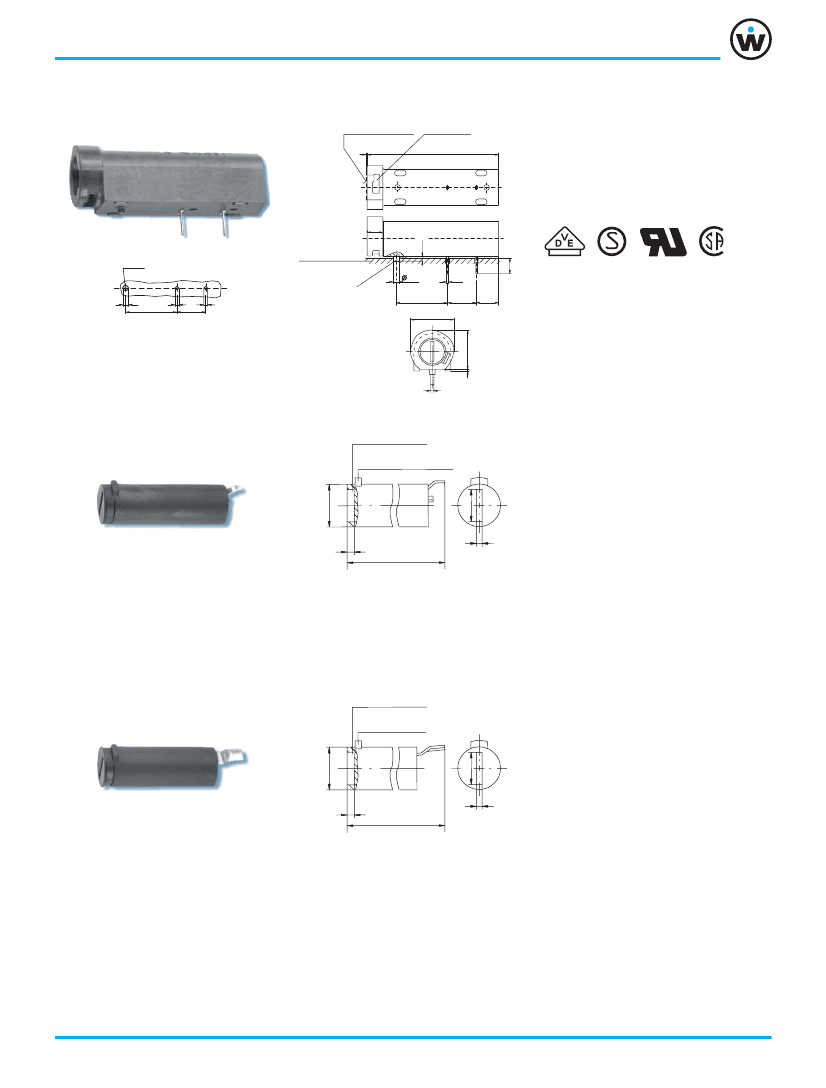

Holder / No. 813
Not for new designs - refer to No. 862
PC Mount, Shocksafe
5x20mm / 6.3x32mm Fuses
Fuse carrier inserted Bayonet-joint
max. 0,2
45,7
Specifications
Standard
IEC 60127-6
UL 512
CSA C22.2. No.39
Approvals
VDE: License No. 118349
SEMKO: Certificate No. 9948168
UL Recognized: File No. E 70164
CSA Certified: File No. 47574
5,5
1,65
Stud
Printed circuit board
2 -0,05
Stud
0,5
10
15
7,9
5,7
Horizontal / 2-Pin
Mounting
(2) Solder pins 0.5mm x 1.1mm and plastic stud
2 +0,1
17,8
10
1,3 +0,1
17,8
Protection Class & Category
IP 40 (IEC 60529)
PC2 (IEC 60127-6)
Holes in the printed circuit board: 1,3 +0,1
13,8
Materials
Holder/Cap:
Metal Parts:
Terminals:
Black Thermoplastic
Polyamide PA 6.6, UL 94V0
Copper alloy,
corrosion protected
Solderable, tinned
0,5
Cap / No. 815
Slot for screwdriver
1,1 +0,1
Electrical Data (23ºC)
Bayonet-connector-nose
∅
9,2
Rated Voltage: 250V
Rated Current: 6.3A (VDE/SEMKO)
16A (UL/CSA)
Rated Power: 1.6W (813+815 - VDE/SEMKO)
2.5W (813+816 - VDE/SEMKO)
7
Temperature
Operating Temperature
For 5x20mm Fuses
1,5
max. 34
1,2
-25ºC to +70ºC (consider de-rating)
Test
Climatic Test
-25ºC/+70ºC/21 days (IEC 60068-2-1...3)
Stock Conditions
+10ºC to +60ºC
relative humidity
≤
75% yearly average,
without dew, maximum value for 30 days - 95%
Cap / No. 816
Slot for screwdriver
Bayonet-connector-nose
Vibration Resistance
24 cycles at 15 min. each (IEC 60068-2-6)
10 - 60Hz at 0.75mm amplitude
60 - 2000Hz at 10g acceleration
Contact Resistance
≤
5mΩ
Dielectric Strength
> 1.5 kV
∅
9,2
Impulse Voltage
4 kV, 50 Hz, 1 min., dry
7
For 6.3x32mm Fuses
1,5
max. 33,8
1,2
Insulation Resistance
Solderability
> 10
3
MΩ (500 VDC, 1 min.)
235ºC, 3 sec. (Wave)
350ºC, 1 sec. (Soldering Iron)
Soldering Heat Resistance
260ºC, 5 sec. (IEC 60068-2-20)
Minimum Cross Section
Order Information
Packaging
Bulk (100 pcs.)
WebLinks
Data Sheet
www.wickmann.com/products/813.pdf
Conducting path - 0.2mm
2
813, 250V, Approvals
Marking
Unit Weight
5.8g (Holder) / 2.5g (Cap)
Order Numbers
Holder
Cap, 5x20mm
Cap, 6.3x32mm
No. 813 0000 000
No. 815 0000 000
No. 816 0000 000
Approval Certificates
www.wickmann.com/approvals
FaxBack Document # 506
• Europe
Tel: +49 (2302) 662-107
• Americas
Tel: +1 (404) 699-7820
• Asia
Tel: +852 26 14-1108
E-mail: sales@wickmann.com
E-mail: service@wickmannusa.com E-mail: sales@wickmann.com.hk
000801
WebSite:
www.wickmann.com
FaxBack: +1 (404) 699-6176
