KUGP-7AT5-240 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> KUGP-7AT5-240

KUGP-7AT5-240: DescriptionKUGP-7AT5-240=KU; CategoryTopical application Mechanical and electrical/engineering/automation; File Size438KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

KUGP-7AT5-240 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KUGP-7AT5-240	-	-	View	Buy Now

KUGP-7AT5-240 Overview

KUGP-7AT5-240=KU

KUGP-7AT5-240 Parametric

Parameter Name	Attribute value
Power relay type	Industrial panel plug-in
Terminal limit breaking current (A)	10
Coil excitation system	monostable, AC
Coil Power Rating Class (VA)	2 – 3
Coil Power Rating (AC) (VA)	2.1
Coil resistance (Ω)	9110
Coil characteristics	UL Coil Insulation Class B
Coil Voltage Rating (VAC)	240
Terminal switch load (minimum)	300mA @ 12V
Terminal Voltage Rating (VAC)	240
Insulation initial resistance (MΩ)	100
Initial dielectric between terminal and coil (Vrms)	3750
Initial dielectric between adjacent terminals (Vrms)	3750
Terminal limit continuous current (A)	10
Terminal limit short-time current (A)	10
Terminal limit closing current (A)	10
Open terminal insulation initial dielectric (Vrms)	3500
Drive System	AC
Initial dielectric (V) for insulation between terminals and coil	3750
Coil/terminal insulation initial dielectric type (V)	3500 – 4000
product weight	85 g [ 2.988 oz ]
Terminal arrangement	2 Form A (NO)
Terminal current type (A)	5 – 10, 16
Contact Current Rating (Max) (A)	10
Terminal material	AgCdO
Number of terminal poles	2
Terminal type	quick connect, welding
Terminal characteristics	3 mm terminal gap
Relay installation type	flange mounting, panel mounting
Product height	57.1 mm [ 2.248 in ]
Product length	38.6 mm [ 1.52 in ]
Product width	34.9 mm [ 1.374 in ]
Width type (mechanical) (mm)	30 – 40
Insulation gap between terminal and coil	8 mm [ .315 in ]
Insulation gap type (mm)	5 – 8
Length type (mechanical) (mm)	35 – 40
Working group temperature range (°C)	-45 – 70
Environmental Protection Category	RTI
Ambient temperature (maximum)	70 °C [ 158 °F ]
Ambient temperature category (°C)	50 – 70
Encapsulation method	Package

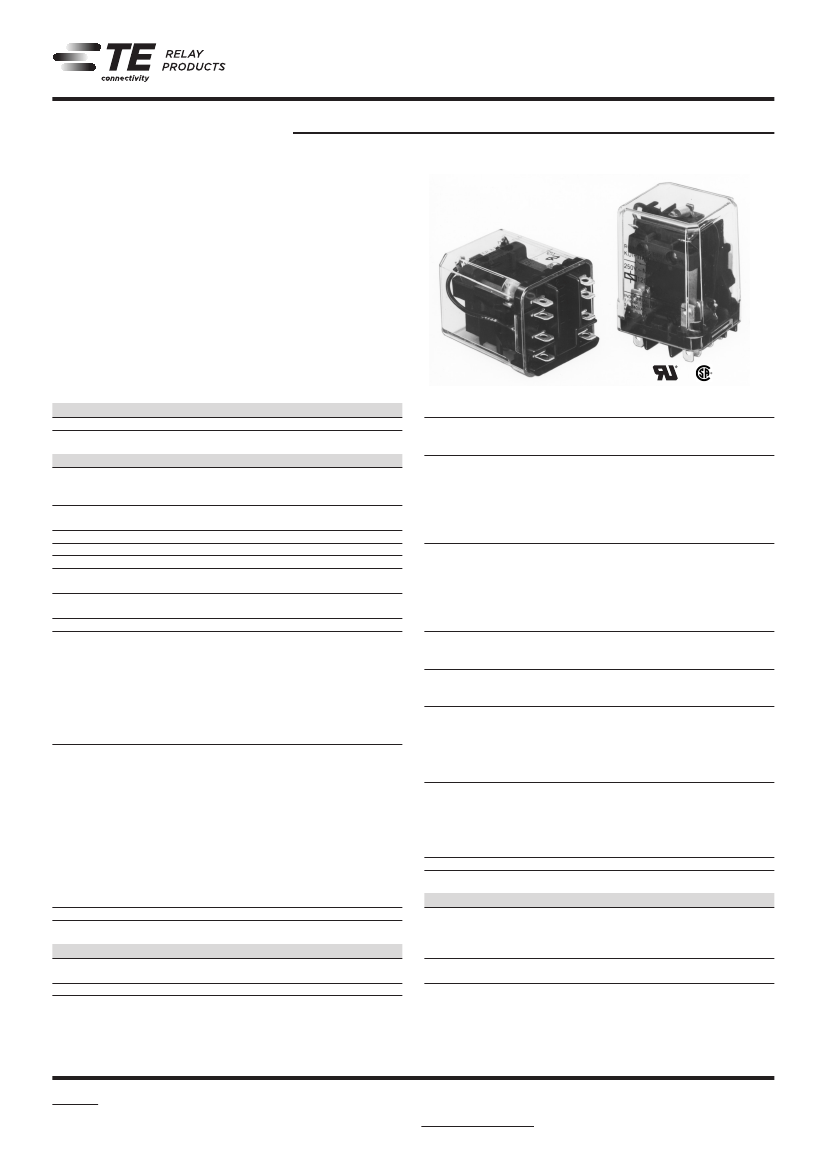

Preview

Download Datasheet

View All

General Purpose Relays

Industrial Relays

KUIP/KUGP Series Panel Plug-in Relay

Potter & Brumfield

10 amp rated relays

2 Form A (NO) and 1-3 Form C (CO) contact arrangement

KUIP 8mm coil-to-contact spacing and KUGP 3mm contact gap

Various mounting and socket styles

Typical applications

Voltage control units

Approvals

UL E22575; CSA LR15734

Technical data of approved types on request

Contact Data

Contact arrangement

KUGP:

2 form A (NO); 3 form A (NO)

KUIP:

1 form C (CO), 2 form A (NO), 2 form C (CO), 3 form C (CO)

Rated voltage

240VAC

Rated current

10A

Contact material

AgCdO

Min recommended contact load

100mA, 12VDC 300mA, 12VDC

Frequency of operation

360 ops./hour

Operate/releases time max.

20/15ms

Bounce time max.

20ms

Contact ratings

Type

Load

UL 508

5A, 240VAC

5A, 28VDC

1/6HP, 120VAC

2.5A, 120VAC, tungsten

1/3HP, 240VAC

0.5A, 120VDC

5FLA, 15LRA, 250VAC

AgCdO

10A, 240VAC

10A, 32VDC

5FLA, 15LRA, 250VAC

1/3HP, 120VAC

5A, 120VAC, tungsten

1/2HP, 250VAC

0.5A, 125VDC

10FLA, 40LRA, 125VAC

3A, 600VAC

1/2HP, 480VAC

1/2HP, 600VAC

1HP, 480VAC, 3 phase

Mechanical endurance

Cycles

Coil versions, DC coil

Coil

Rated

code

voltage

VDC

KUIP

110

KUGP

110

Coil versions, AC coil

Coil

Rated

code

voltage

VAC

KUIP 1 and 2 pole

120

240

KUIP 3 pole, KUGP

120

240

Operate

voltage

VDC

3.75

4.5

9.0

18.0

36.0

82.5

3.75

4.5

9.0

18.0

36.0

82.5

Coil

resistance

Ω±10%

32.1

120

472

1800

10000

320

1250

6720

Rated coil

power

1.2

1.125

1.2

1.25

1.3

1.25

1.8

1.85

1.8

All figures are given for coil without preenergization, at ambient temperature +23°C.

Operate

voltage

VAC

5.1

10.2

20.4

102.0

204.0

5.1

10.2

20.4

102.0

204.0

Coil

resistance

Ω±15%

2250

9110

4.2

1700

7200

Rated coil

power

2.0

2.1

2.8

2.9

All figures are given for coil without preenergization, at ambient temperature +23°C.

10x10

ops.

Insulation Data

Coil Data

Coil voltage range

Coil insulation system according UL

6 to 110VDC

6 to 240VAC

Class B

Initial dielectric strength

between open contacts

between contact and coil

between adjacent contacts

Initial insulation resistance

between insulated elements

KUIP

1200V

rms

2200V

rms

2200V

rms

KUGP

3500V

rms

3750V

rms

3750V

rms

100MΩ, 500VDC

08-2011, Rev. 0811

www.te.com

a TE Connectivity Ltd. company

Datasheets and product specification

according to IEC 61810-1 and to be used

only together with the ‘Definitions’ section.

Datasheets and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.te.com/definitions

Datasheets, product data, ‘Definitions’ sec-

tion, application notes and all specifications

are subject to change.

KUGP-7AT5-240 Related Products

	KUGP-7AT5-240	KUGP-7A55-120
Description	KUGP-7AT5-240=KU	KUGP-7A55-120=KU
Power relay type	Industrial panel plug-in	Industrial panel plug-in
Terminal limit breaking current (A)	10	10
Coil excitation system	monostable, AC	monostable, AC
Coil Power Rating Class (VA)	2 – 3	2 – 3
Coil Power Rating (AC) (VA)	2.1	2.1
Coil resistance (Ω)	9110	2250
Coil characteristics	UL Coil Insulation Class B	UL Coil Insulation Class B
Coil Voltage Rating (VAC)	240	120
Terminal switch load (minimum)	300mA @ 12V	300mA @ 12V
Terminal Voltage Rating (VAC)	240	240
Insulation initial resistance (MΩ)	100	100
Initial dielectric between terminal and coil (Vrms)	3750	3750
Initial dielectric between adjacent terminals (Vrms)	3750	3750
Terminal limit continuous current (A)	10	10
Terminal limit short-time current (A)	10	10
Terminal limit closing current (A)	10	10
Open terminal insulation initial dielectric (Vrms)	3500	3500
Drive System	AC	AC
Initial dielectric (V) for insulation between terminals and coil	3750	3750
Coil/terminal insulation initial dielectric type (V)	3500 – 4000	3500 – 4000
product weight	85 g [ 2.988 oz ]	85 g [ 2.988 oz ]
Terminal arrangement	2 Form A (NO)	2 Form A (NO)
Terminal current type (A)	5 – 10, 16	5 – 10, 16
Contact Current Rating (Max) (A)	10	10
Terminal material	AgCdO	AgCdO
Number of terminal poles	2	2
Terminal type	quick connect, welding	quick connect, welding
Terminal characteristics	3 mm terminal gap	3 mm terminal gap
Relay installation type	flange mounting, panel mounting	bracket, panel mount
Product height	57.1 mm [ 2.248 in ]	35.7 mm [ 1.405 in ]
Product length	38.6 mm [ 1.52 in ]	48.4 mm [ 1.906 in ]
Product width	34.9 mm [ 1.374 in ]	38.9 mm [ 1.531 in ]
Width type (mechanical) (mm)	30 – 40	30 – 40
Insulation gap between terminal and coil	8 mm [ .315 in ]	8 mm [ .315 in ]
Insulation gap type (mm)	5 – 8	5 – 8
Length type (mechanical) (mm)	35 – 40	40 – 50
Working group temperature range (°C)	-45 – 70	-45 – 70
Environmental Protection Category	RTI	RTI
Ambient temperature (maximum)	70 °C [ 158 °F ]	70 °C [ 158 °F ]
Ambient temperature category (°C)	50 – 70	50 – 70
Encapsulation method	Package	Package
