DPA4119 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> DPA4119

DPA4119: Descriptionsolid state relays - pcb mount pcb 16p dip ssr 140 vac/1A,3,5-10v In; CategoryLED optoelectronic/LED photoelectric; File Size550KB，4 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric Compare View All

DPA4119 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DPA4119	-	-	View	Buy Now

DPA4119 Overview

solid state relays - pcb mount pcb 16p dip ssr 140 vac/1A,3,5-10v In

DPA4119 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	DIP-4/16
Reach Compliance Code	compliant
Other features	UL RECOGNIZED, ZERO VOLTAGE CROSSING
Configuration	SINGLE
Maximum insulation voltage	3750 V
JESD-609 code	e3
Number of components	1
Maximum on-state current	1 A
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	TRIGGER OUTPUT SSR
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

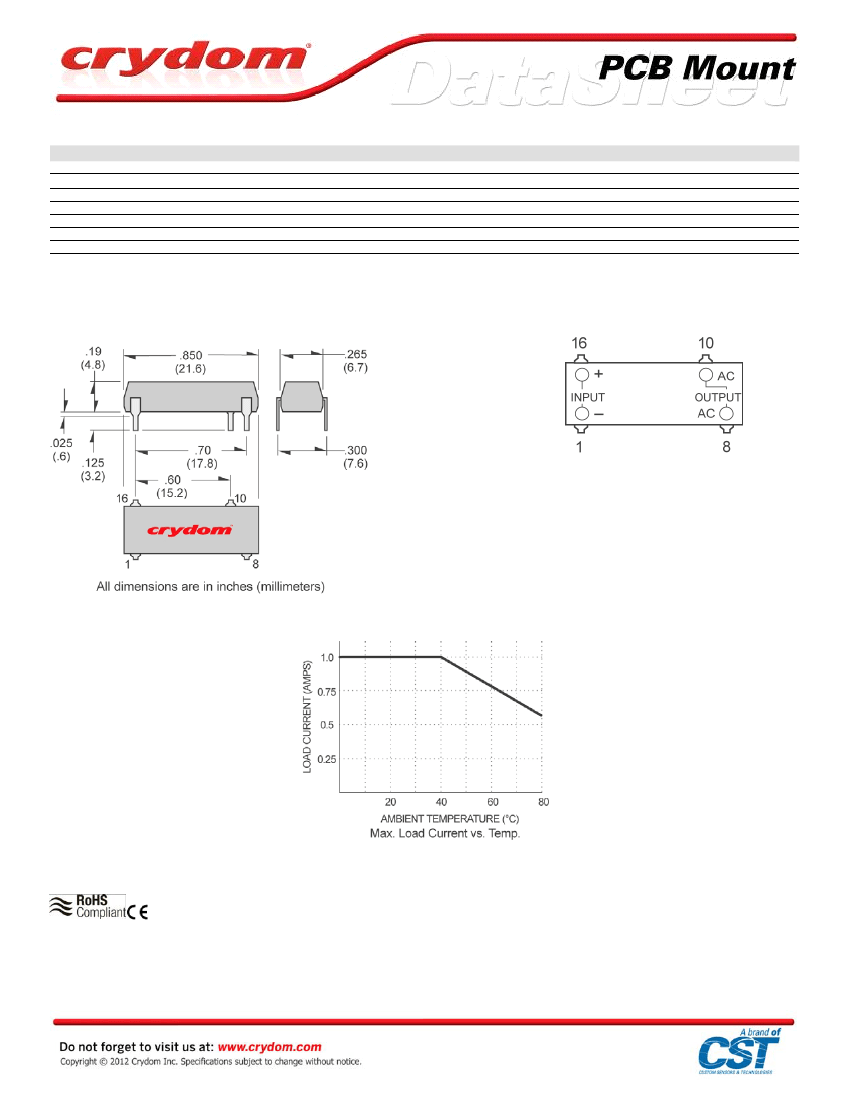

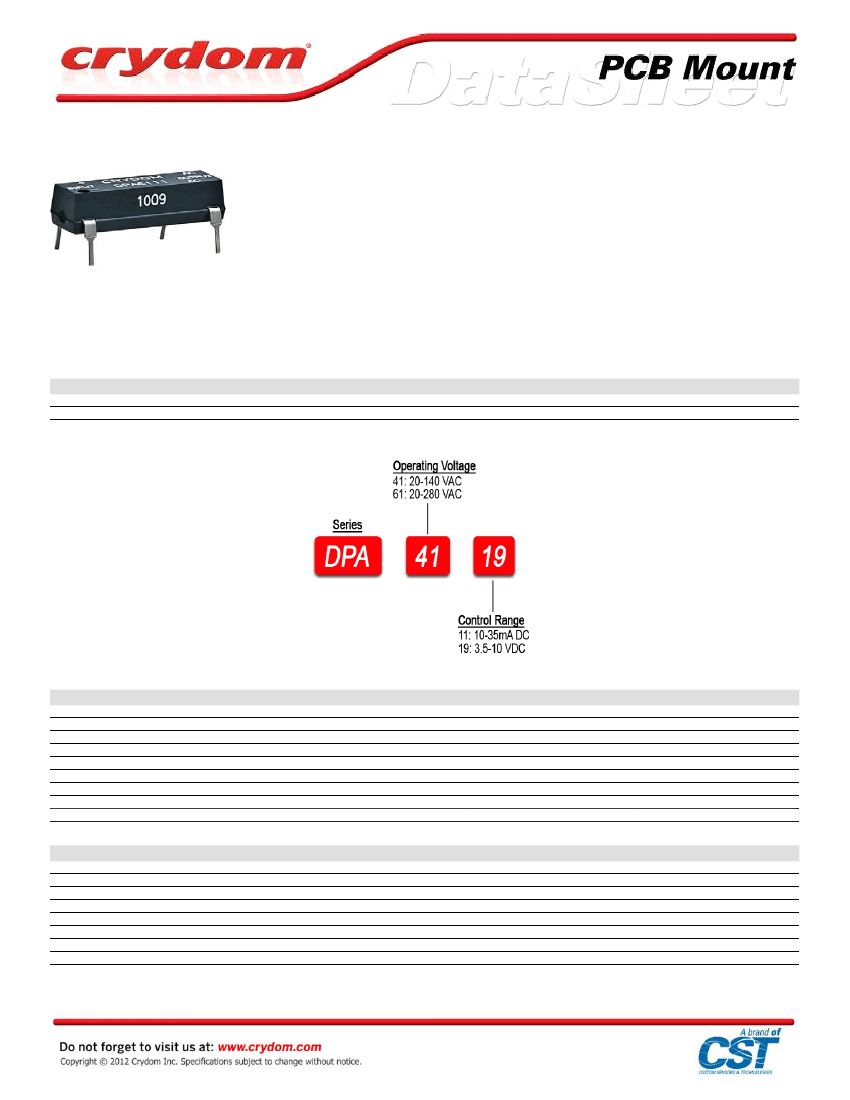

DPA Series

• 16 Pin DIP SSR

• Ratings to 1A @ 280 VAC

• SCR output

• Voltage or current-control input

• Zero-crossing (resistive loads) output

PRODUCT SELECTION

Control Voltage

3.5-10 VDC

10-35 mA

DPA4119

DPA4111

DPA6119

DPA6111

AVAILABLE OPTIONS

OUTPUT SPECIFICATIONS (1)

Description

Operating Voltage (47-63Hz) [Vrms]

Transient Overvoltage [Vpk]

Maximum Off-State Leakage Current @ Rated Voltage [mArms]

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (3)

Maximum Load Current [Arms]

Minimum Load Current [Arms]

Maximum Surge Current (16.6ms) [Apk]

Maximum On-State Voltage Drop @ Rated Current [Vpk]

Minimum Power Factor (with Maximum Load)

DPA41xx

20-140

400

0.01

500

1.0

0.025

1.2

0.5

DPA61xx

20-280

600

0.01

500

1.0

0.025

1.2

0.5

INPUT SPECIFICATIONS (1)

Description

Control Voltage Range

Control Current Range

Must Turn Off-State Current

Must Turn Off-State Voltage

Typical Input Current @ 5 VDC

Nominal Input Impedance

Maximum Turn-On Time [msec]

Maximum Turn-Off Time [msec]

DPAxx11

10-35 mA

1.0 mA

1/2 Cycle

DPAxx19

3.5-10 VDC

1.0 VDC

15 mAdc

270 Ohm

1/2 Cycle

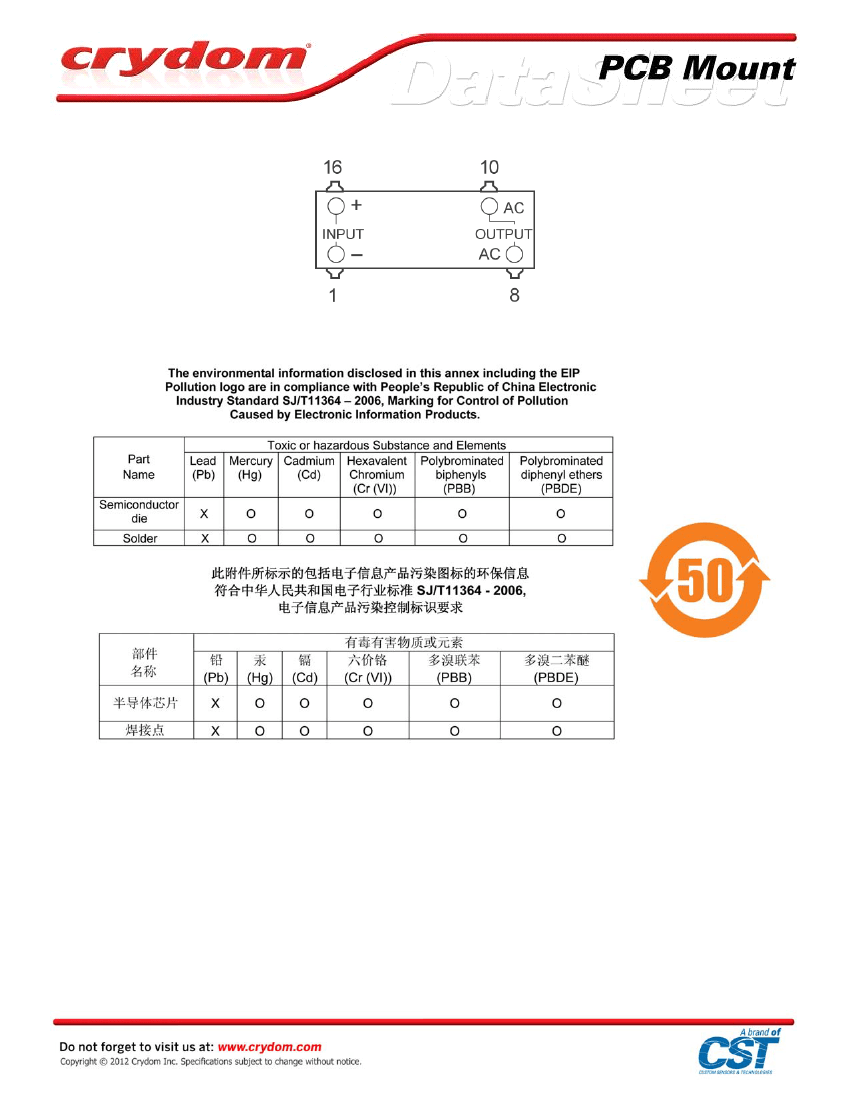

DPA4119 Related Products

	DPA4119	DPA6111	DPA4111
Description	solid state relays - pcb mount pcb 16p dip ssr 140 vac/1A,3,5-10v In	solid state relays - pcb mount pcb 16p dip ssr 280 vac/1a10-35ma In	solid state relays - pcb mount pcb 16p dip ssr 140 vac/1a10-35ma In
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
package instruction	DIP-4/16	DIP-4/16	DIP-4/16
Reach Compliance Code	compliant	compliant	compliant
Other features	UL RECOGNIZED, ZERO VOLTAGE CROSSING	UL RECOGNIZED, ZERO VOLTAGE CROSSING	UL RECOGNIZED, ZERO VOLTAGE CROSSING
Configuration	SINGLE	SINGLE	SINGLE
Maximum insulation voltage	3750 V	3750 V	3750 V
JESD-609 code	e3	e3	e3
Number of components	1	1	1
Maximum on-state current	1 A	1 A	1 A
Maximum operating temperature	80 °C	80 °C	80 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C
Optoelectronic device types	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Maker	-	Crydom	Crydom
