BYM13-50HE3/97

Description
schottky diodes & rectifiers 1.0 amp 50 volt 30 amp ifsm
CategoryDiscrete semiconductor    diode
File Size95KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

BYM13-50HE3/97 Overview

schottky diodes & rectifiers 1.0 amp 50 volt 30 amp ifsm

BYM13-50HE3/97 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Parts packaging codeDO-213AB
package instructionO-PELF-R2
Contacts2
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresLOW POWER LOSS, FREE WHEELING DIODE, HIGH RELIABILITY
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.7 V
JEDEC-95 codeDO-213AB
JESD-30 codeO-PELF-R2
JESD-609 codee3
Humidity sensitivity level1
Maximum non-repetitive peak forward current30 A
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Maximum output current1 A
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage50 V
surface mountYES
technologySCHOTTKY
Terminal surfaceMatte Tin (Sn)
Terminal formWRAP AROUND
Terminal locationEND
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

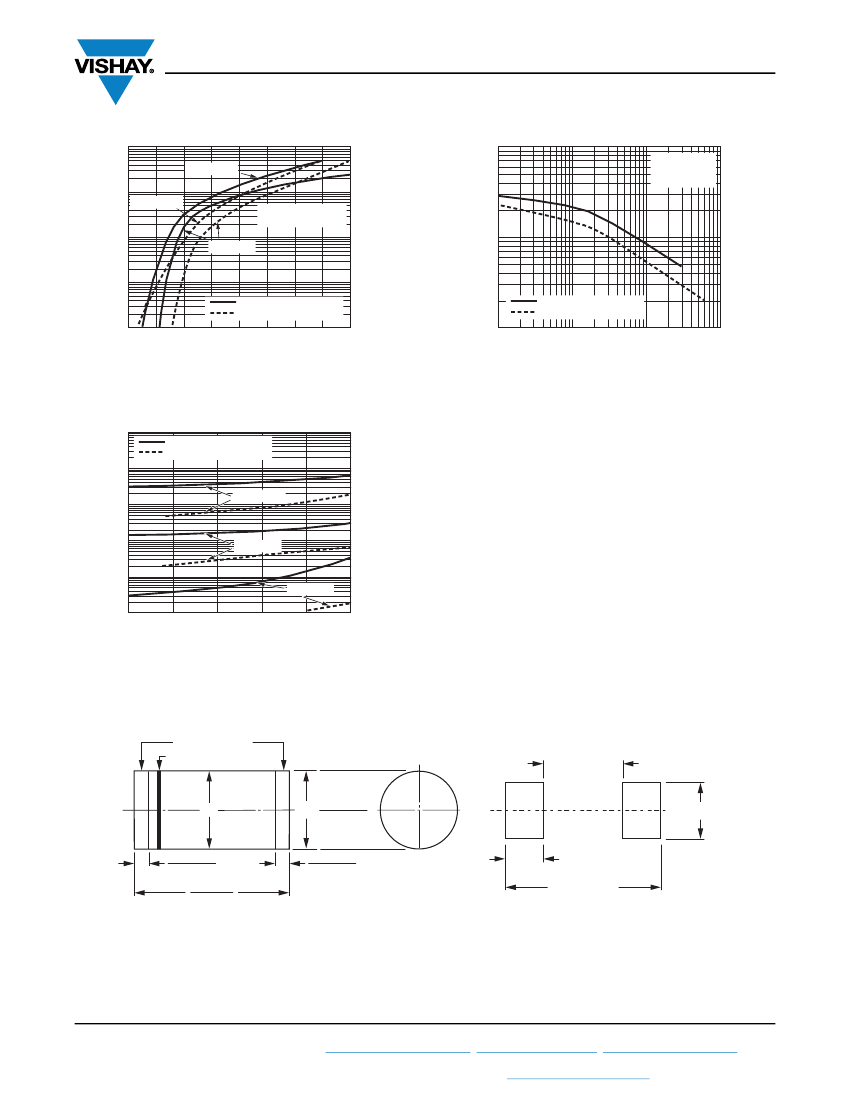

BYM13-xx, SGL41-xx
www.vishay.com
Vishay General Semiconductor
Surface Mount Schottky Barrier Rectifier
FEATURES
• MELF Schottky rectifier
• Ideal for automated placement
• Guardring for overvoltage protection
• Low power losses, high efficiency
• Low forward voltage drop
• High surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 250 °C
GL41 (DO-213AB)
• AEC-Q101 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
DESIGN SUPPORT TOOLS
Models
Available
click logo to get started
TYPICAL APPLICATIONS
For use in low voltage high frequency inverters,
freewheeling, DC/DC converters, and polarity protection
applications
MECHANICAL DATA
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
T
J
max.
Package
Circuit configuration
1.0 A
20 V to 60 V
30 A
0.50 V, 0.70 V
125 °C, 150 °C
GL41 (DO-213AB)
Single
Case:
GL41 (DO-213AB)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified
Terminals:
matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity:
two bands indicate cathode end 1
st
band denotes
device type 2
nd
band denotes voltage type
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
DENOTES SCHOTTKY DEVICES:
1
st
BAND IS ORANGE
Polarity color bands (2
nd
band) voltage type
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current (fig. 1)
Peak forward surge current 8.3 ms single half
sine-wave superimposed on rated load
Voltage rate of change (rated V
R
)
Operating junction temperature range
Storage temperature range
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
dV/dt
T
J
T
STG
-55 to +125
-55 to +150
SYMBOL BYM13-20 BYM13-30 BYM13-40 BYM13-50 BYM13-60
SGL41-20
Gray
20
14
20
SGL41-30
Red
30
21
30
SGL41-40
Orange
40
28
40
1.0
30
10 000
-55 to +150
SGL41-50
Yellow
50
35
50
SGL41-60
Green
60
42
60
V
V
V
A
A
V/μs
°C
°C
UNIT
Reivision: 19-Feb-18
Document Number: 88548
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
