TLP3114
TOSHIBA PHOTOCOUPLER
PHOTO RELAY
TLP3114
MEASUREMENT INSTRUMENTS
LOGIC IC TESTERS / MEMORY TESTERS
BOARD TESTERS / SCANNERS
Unit: mm
The TOSHIBA TLP3114 Mini-flat photorelay is a small-outline photorelay,
suitable for surface-mount assembly. The TLP3114 consists of a GaAs
infrared-emitting diode optically coupled to a photo-MOS FET and housed
in a 4-pin package.
Its characteristics include low OFF-state current and low output pin
capacitance, enabling it to be used in high-frequency measuring
instruments.
Features
•
•
•
•
•
•
•
•
•
•
4 pin SOP (2.54SOP4)
1-Form-A
Peak Off-State Voltage
Trigger LED Current
On-State Current
On-State Resistance
Output Capacitance
Isolation Voltage
: 40 V (min)
: 4 mA (max)
: 250 mA (max)
: 3
Ω
(max), 2
Ω
(typ.)
: 7 pF (max), 5 pF (typ.)
: 1500 Vrms (min)
JEDEC
―
JEITA
―
TOSHIBA
11−5H1
Weight: 0.1 g (typ.)
: 2.1 mm high, 2.54 mm pitch
UL approved: UL1577, File No.E67349
cUL approved :CSA Component Acceptance Service
No. 5A, File No.E67349

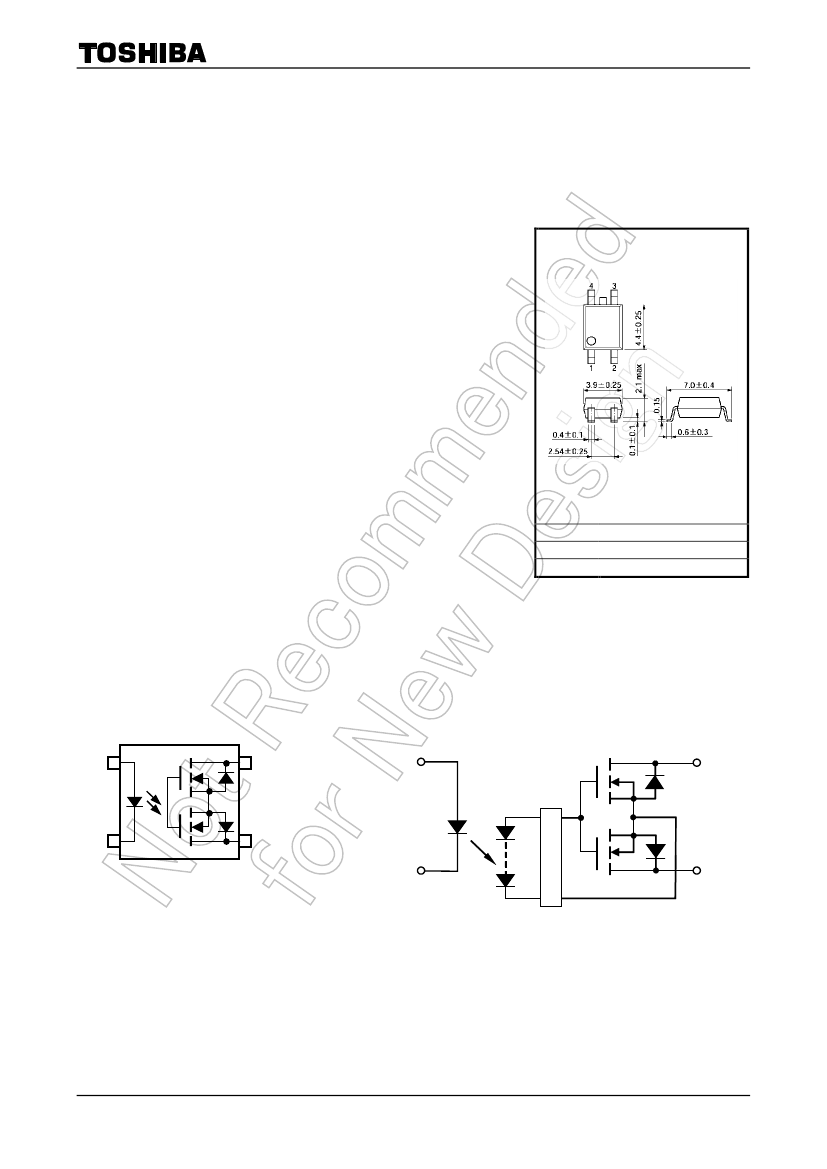

Pin Configuration (top view)
1
4
Schematic
1
4
2
1 : ANODE
2 : CATHODE
3 : DRAIN
4 : DRAIN
3
2
3
Start of commercial production
2001-03
1
2017-06-08
TLP3114
Absolute Maximum Ratings
(Ta
=
25°C)
CHARACTERISTIC
Forward Current
Forward Current Derating (Ta ≥ 25°C)
LED
Reverse Voltage
Diode Power Dissipation
Diode Power Dissipation Derating (Ta ≥25°C)
Junction Temperature
Off-State Output Terminal Voltage
DETECTOR
On-State Current
On-State Current Derating (Ta ≥ 25°C)
Output Power Dissipation
Output Power Dissipation Derating (Ta ≥ 25°C)
Junction Temperature
Storage Temperature Range
Operating Temperature Range
Lead Soldering Temperature (10 s)
Isolation Voltage (AC, 1 minute, R.H. ≤ 60%) (Note 1)
SYMBOL
I
F
ΔI
F
/°C
V
R
P
D
RATING
50
−0.5
5
50
-0.5
125
40
250
−2.5
188
−1.88
125
−40
to 125
−20
to 85
260
1500
UNIT
mA
mA/°C
V
mW
mW/°C
°C
V
mA
mA/°C
mW
mW / °C
°C
°C
°C
°C
Vrms
Δ
P
D
/°C
T
j
V
OFF
I
ON
ΔI
ON
/°C
P
O
ΔP
O
/ °C
T
j
T
stg
T
opr
T
sol
BV
S
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if
the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc.).
(Note 1): Device considered a two-terminal device : Pins 1 and 2 shorted together, and pins 3 and 4 shorted together.
CAUTION
This device is sensitive to electrostatic discharge. When using this device, please ensure that all tools and equipment
are earthed.
Recommended Operating Conditions
CHARACTERISTIC
Supply Voltage
Forward Current
On-State Current
Operating Temperature
SYMBOL
V
DD
I
F
I
ON
T
opr
MIN
―
10
―
25
TYP.
―
―
―
―
MAX
32
30
250
60
UNIT
V
mA
mA
°C
Note: Recommended operating conditions are given as a design guideline to obtain expected performance of the
device. Additionally, each item is an independent guideline respectively. In developing designs using this
product, please confirm specified characteristics shown in this document.
Individual Electrical Characteristics
(Ta
=
25°C)
CHARACTERISTIC
Forward Voltage
LED
Reverse Current
Capacitance between terminals
DETECTOR
Off-State Current
Capacitance between terminals
SYMBOL
V
F
I
R
C
T
I
OFF
C
OFF
TEST CONDITION
I
F
=
10 mA
V
R
=
5 V
V
F
=
0 V, f
=
1 MHz
V
OFF
=
30 V, Ta
=
50°C
V
=
0 V, f
=
100 MHz, t < 1 s
MIN
1.0
―
―
―
―
TYP.
1.15
―
15
―
5
MAX
1.3
10
―
1000
7
UNIT
V
μA
pF
pA
pF
2
2017-06-08
TLP3114
Coupled Electrical Characteristics
(Ta
=
25°C)
CHARACTERISTIC
Trigger LED Current
Return LED Current
On-State Resistance
SYMBOL
I
FT
I
FC
R
ON
TEST CONDITION
I
ON
=
100 mA
I
OFF
=
10
μA
I
ON
=
250 mA, I
F
=
5 mA, t < 1 s
MIN
―
0.2
―
TYP.
―
0.75
2
MAX
4
―
3
UNIT
mA
mA
Ω
Isolation Characteristics
(Ta
=
25°C)
CHARACTERISTIC
Capacitance Input to Output
Isolation Resistance
SYMBOL
C
S
R
S
BV
S
TEST CONDITION
V
S
=
0 V, f
=
1 MHz
V
S
=
500 V, R.H. ≤ 60%
AC, 1 minute
Isolation Voltage
AC, 1 second (in oil)
DC, 1 minute (in oil)
MIN
―
5
×
10
10
TYP.
0.8
10
14
MAX
―
―
―
―
―
UNIT
pF
Ω
Vrms
Vdc
1500
―
―
―
3000
3000
Switching Characteristics
(Ta
=
25°C)
CHARACTERISTIC
Turn-on Time
Turn-off Time
SYMBOL
t
ON
t
OFF
TEST CONDITION
R
L
=
200
Ω
V
DD
=
10 V, I
F
=
10 mA
(Note 2)
MIN
―
―
TYP.
―
―
MAX
500
500
UNIT
μs

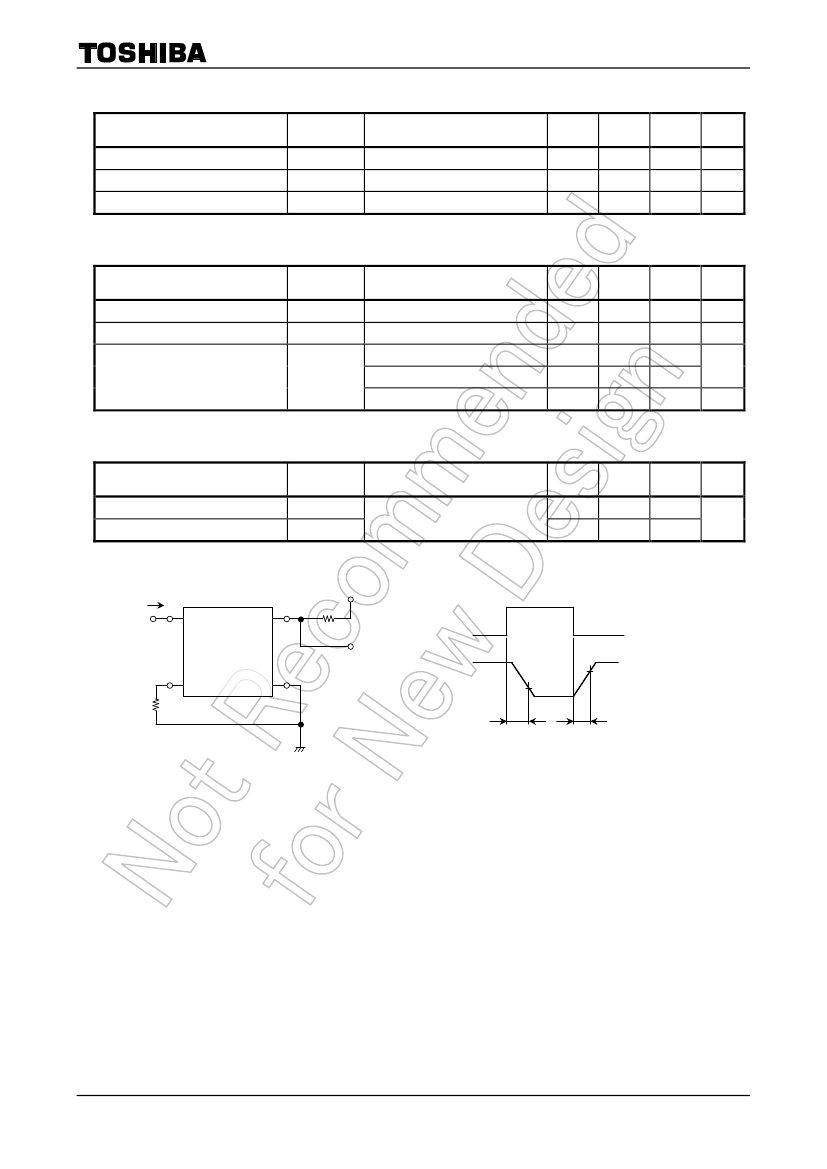

Note 2 : SWITCHING TIME TEST CIRCUIT
I
F
1
4
R
L
V
DD
I
F
V
OUT
2
3
10%
t
ON
t
OFF
V
OUT
90%
3
2017-06-08
