1-2286547-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-2286547-1

1-2286547-1: DescriptionCombination Line Connector; CategoryThe connector The connector; File Size1MB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

1-2286547-1 Overview

Combination Line Connector

1-2286547-1 Parametric

Parameter Name	Attribute value
Mixed contacts	NO
Options	GENERAL PURPOSE
Termination type	SOLDER
Contact material	NOT APPLICABLE
Contact style	SQ PIN-SKT
empty shell	NO
Filter function	NO
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Samacsys Pin Count	0
Samacsys Manufacturer	TE Connectivity
Samacsys Image	https://www.te.com/content/dam/te-com/catalog/part/122/865/471/1-2286547-1-t1.jpg/jcr:content/renditions/product-details.png
Objectid	7271709313
Reach Compliance Code	Unknown
ECCN code	EAR99
Samacsys Status	Incomplete
Is Samacsys	N
Samacsys PartID	19324310
Samacsys Thumbnail Image	https://www.te.com/content/dam/te-com/catalog/part/122/865/471/1-2286547-1-t1.jpg/jcr:content/renditions/product-details.png
Samacsys Description	Body Features: PCB Retention Feature Plating Material Tin \| Body Material ZnAL4Cu1 \| Connector & Keying Code G \| Body Material PPA GF25 \| Configuration Features: Number of Positions 4 \| PCB Mount Orientation Vertical \| Contact Features: Center Contact With \| Mating Pin Diameter .024 INCH \| RF Connector Center Contact Plating Material Gold (Au) \| Contact Type Pin \| Contact Mating Area Plating Material Gold \| Mating Pin Diameter .6 MM \| Dimensions: Product Length 12 MM \| Connector Height 15.47 MM \| Connector
Samacsys Modified On	2024-12-15 21:33:15
Number of rows loaded	2
Total number of contacts	4
Other features	POALRIZED
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT APPLICABLE
Contact point gender	MALE
insulator material	GLASS FILLED POLYPHTHALAMIDE
Installation type	BOARD
body width	0.472 inch
subject depth	0.61 inch
body length	0.557 inch

Preview

Download Datasheet

View All

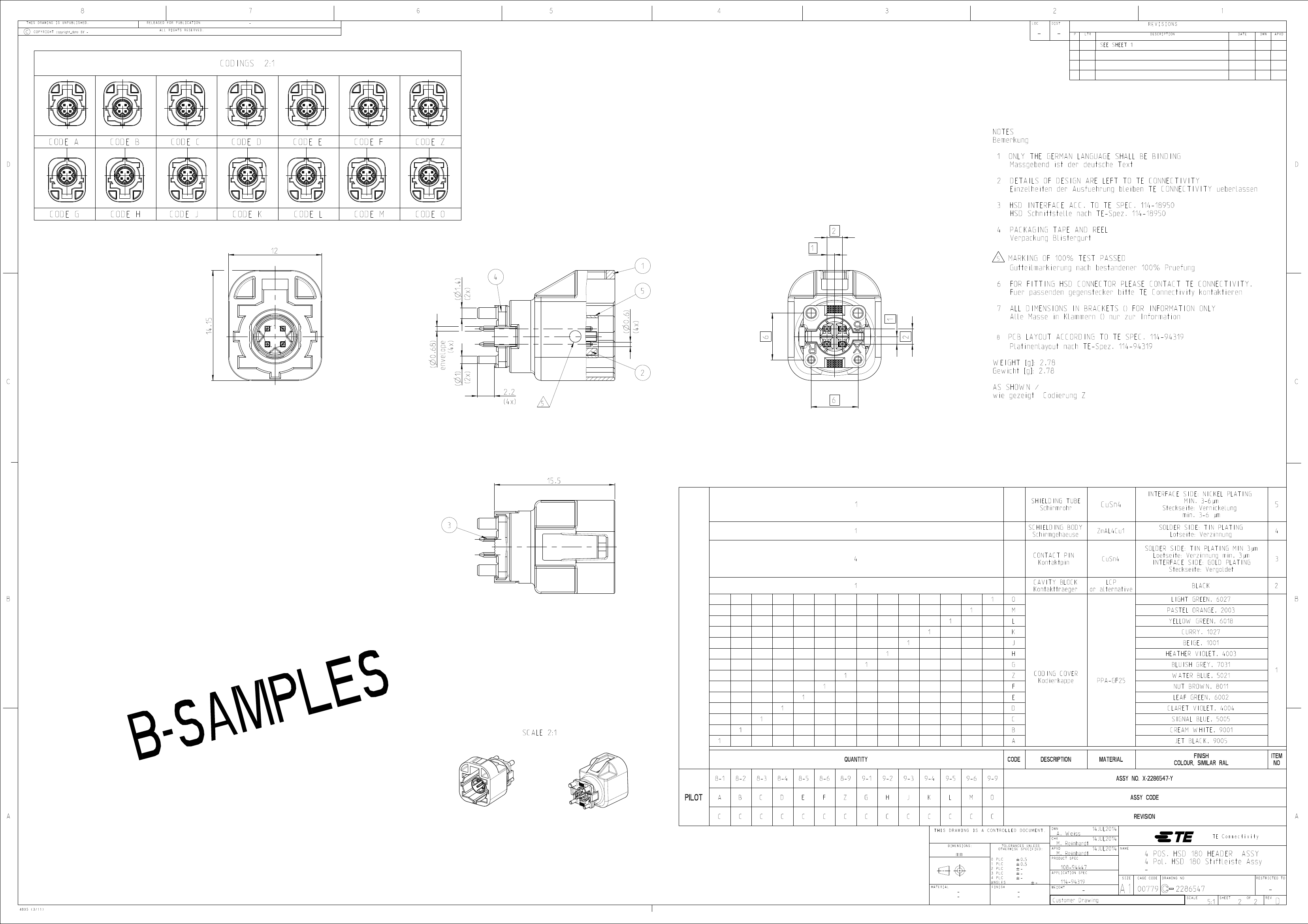

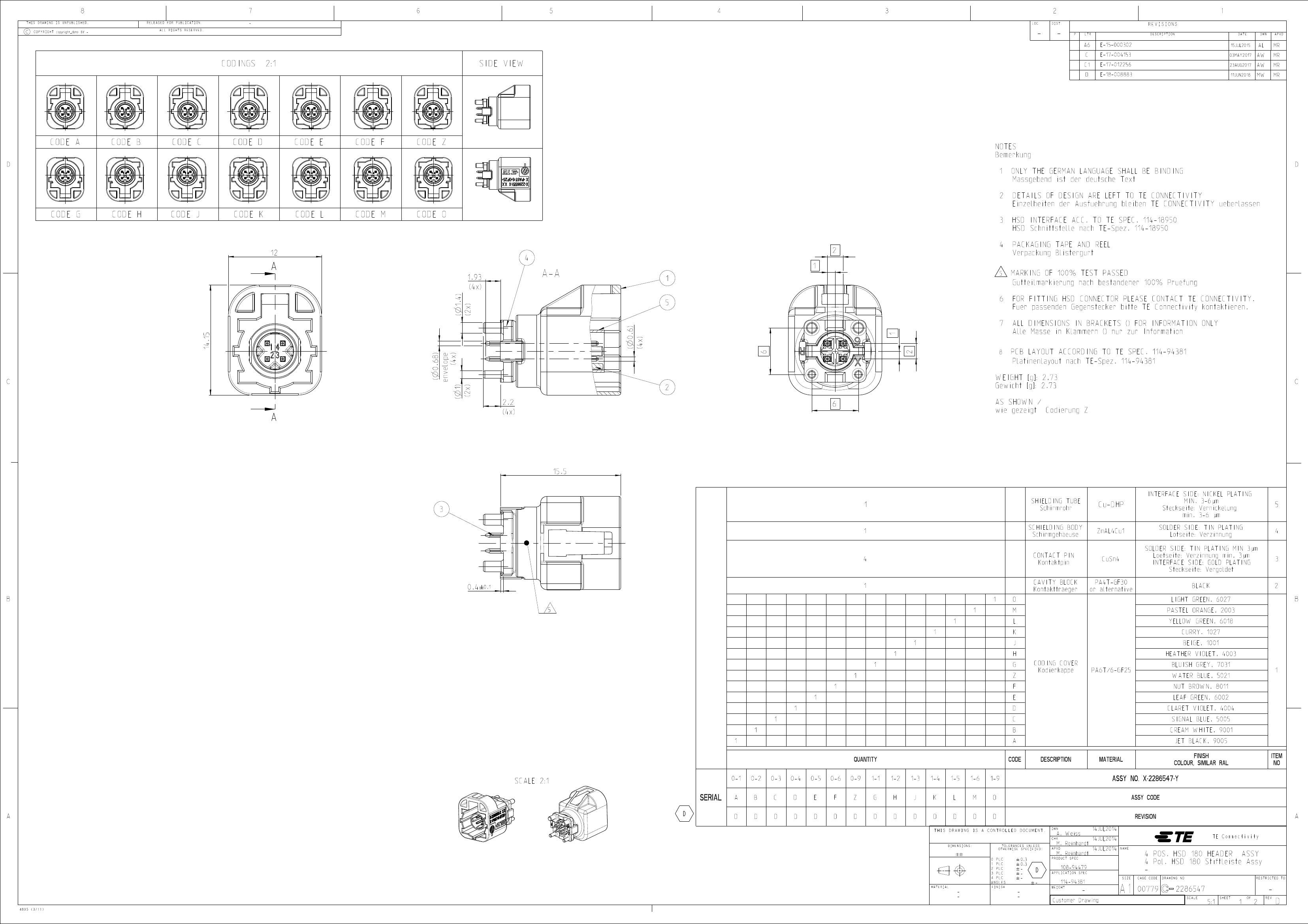

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

CODINGS

2:1

SIDE VIEW

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

E-15-000302

E-17-004153

E-17-012256

E-18-008883

15JUL2015

03MAY2017

23AUG2017

11JUN2018

CODE A

CODE B

CODE C

CODE D

CODE E

CODE F

CODE Z

NOTES

Bemerkung

ONLY THE GERMAN LANGUAGE SHALL BE BINDING

Massgebend ist der deutsche Text

DETAILS OF DESIGN ARE LEFT TO TE CONNECTIVITY

Einzelheiten der Ausfuehrung bleiben TE CONNECTIVITY ueberlassen

HSD INTERFACE ACC. TO TE SPEC. 114-18950

HSD Schnittstelle nach TE-Spez. 114-18950

PACKAGING TAPE AND REEL

Verpackung Blistergurt

MARKING OF 100% TEST PASSED

Gutteilmarkierung nach bestandener 100% Pruefung

FOR FITTING HSD CONNECTOR PLEASE CONTACT TE CONNECTIVITY.

Fuer passenden Gegenstecker bitte TE Connectivity kontaktieren.

ALL DIMENSIONS IN BRACKETS () FOR INFORMATION ONLY

Alle Masse in Klammern () nur zur Information

PCB LAYOUT ACCORDING TO TE SPEC. 114-94381

Platinenlayout nach TE-Spez. 114-94381

CODE G

CODE H

CODE J

CODE K

CODE L

CODE M

CODE O

1.93

(4x)

A-A

( n )

1.4

(2x)

14.15

(

envelope

(4x)

( n)

(2x)

(

(4x)

2.2

(4x)

WEIGHT [g]: 2,73

Gewicht [g]: 2.73

AS SHOWN /

wie gezeigt

Codierung Z

15.5

INTERFACE SIDE: NICKEL PLATING

MIN. 3-6µm

Steckseite: Vernickelung

min. 3-6 µm

SOLDER SIDE: TIN PLATING

Lotseite: Verzinnung

SOLDER SIDE: TIN PLATING MIN 3µm

Loetseite: Verzinnung min, 3µm

INTERFACE SIDE: GOLD PLATING

Steckseite: Vergoldet

BLACK

LIGHT GREEN, 6027

PASTEL ORANGE, 2003

YELLOW GREEN, 6018

CURRY. 1027

BEIGE, 1001

CODING COVER

Kodierkappe

HEATHER VIOLET, 4003

PA6T/6-GF25

BLUISH GREY, 7031

WATER BLUE, 5021

NUT BROWN, 8011

LEAF GREEN, 6002

CLARET VIOLET, 4004

SIGNAL BLUE, 5005

CREAM WHITE, 9001

JET BLACK, 9005

DESCRIPTION

MATERIAL

FINISH

COLOUR, SIMILAR RAL

ITEM

SHIELDING TUBE

Schirmrohr

SCHIELDING BODY

Schirmgehaeuse

CONTACT PIN

Kontaktpin

Cu-DHP

ZnAL4Cu1

CuSn4

0.4

0.1

QUANTITY

CODE

1-2

1-3

1-4

1-5

1-6

1-9

CAVITY BLOCK

PA4T-GF30

Kontakttraeger or alternative

SCALE 2:1

0-1

0-2

0-3

0-4

0-5

0-6

0-9

1-1

ASSY NO. X-2286547-Y

ASSY CODE

REVISION

DWN

CHK

SERIAL

TE Connectivity

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.3

14JUL2014

M. Reinhardt

APVD

14JUL2014

NAME

M. Reinhardt

PRODUCT SPEC

APPLICATION SPEC

A. Weiss

14JUL2014

108-94479

114-94381

WEIGHT

Customer Drawing

00779

SIZE

CAGE CODE DRAWING NO

4 POS. HSD 180 HEADER ASSY

4 Pol. HSD 180 Stiftleiste Assy

2286547

SCALE

RESTRICTED TO

4805 (3/11)

5:1

SHEET

REV
