500797-1150: DescriptionCard Edge Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Locking, LEAD FREE; CategoryThe connector The connector; File Size516KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

500797-1150 Overview

Card Edge Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Locking, LEAD FREE

500797-1150 Parametric

Parameter Name	Attribute value
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	FITTING NAIL
body width	0.041 inch
subject depth	0.152 inch
body length	0.213 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD (6) OVER NICKEL
Contact completed and terminated	GOLD (6) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.3 mm
Termination type	SURFACE MOUNT
Total number of contacts	11
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

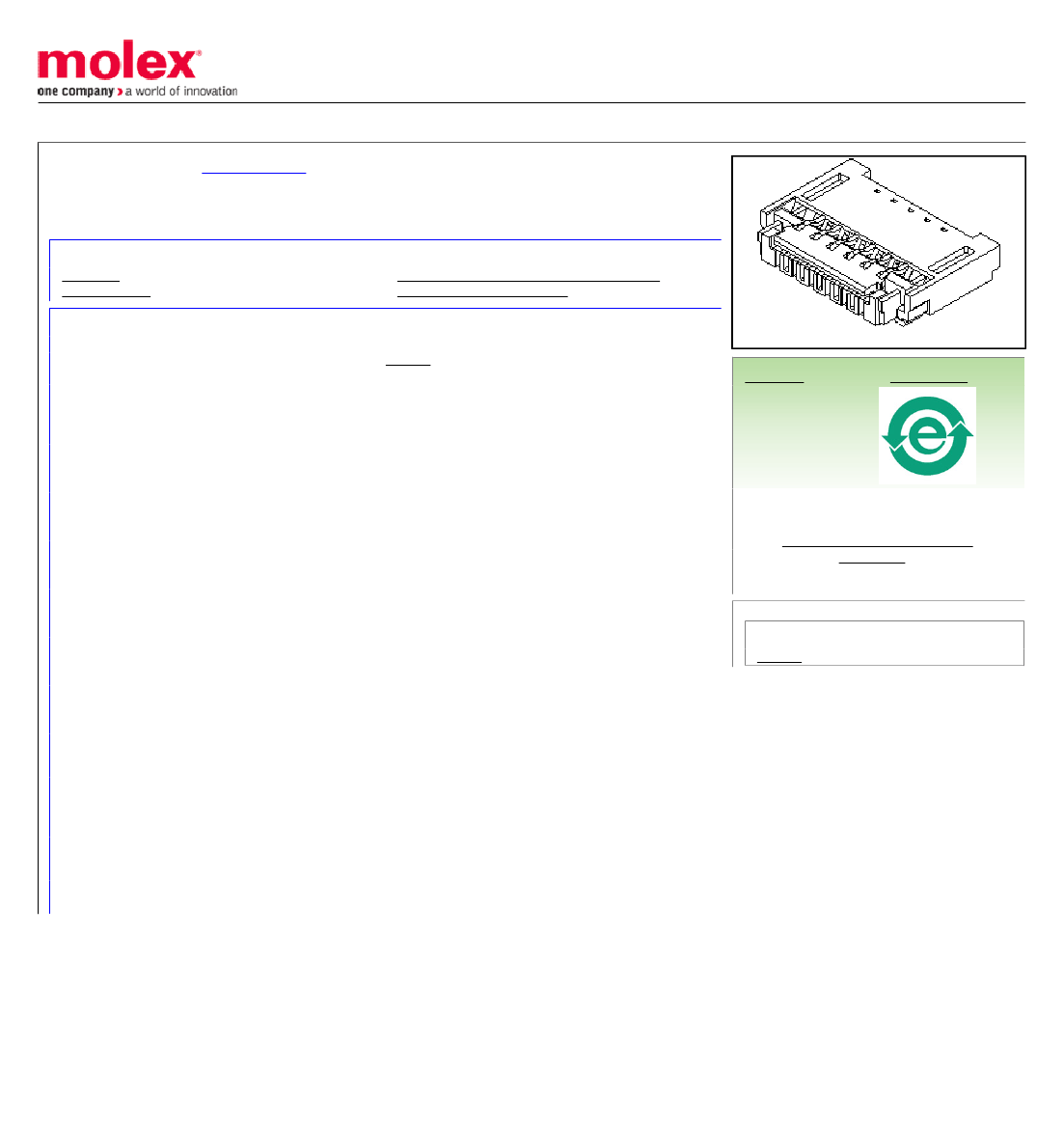

This document was generated on 01/07/2009

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

5007973594

Active

0.30mm (.012") Pitch Easy-On™ Type FPC Connector, 1.05mm (.041") Mated Height,

Right Angle, SMT, Bottom Contact Style, 35 Circuits, Lead-free

Documents:

3D Model

Drawing (PDF)

General

Product Family

Series

Product Name

Physical

Circuits (Loaded)

Contact Position

Durability (mating cycles) min

Entry Angle

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

Product Specification PS-500797-003 (PDF)

Related Catalog Page (PDF)

FFC/FPC Connectors

500797

Easy-On™

Bottom

20 cycles

90° Angle

0.041 In

1.05 mm

Copper Alloy

Phosphor Bronze

Gold

Right Angle

Yes

Embossed Tape on Reel

0.012 In

0.30 mm

Yes

-20°C to +85°C

Surface Mount

FPC only

0.200 Amp

50V

Series image - Reference only

EU RoHS

ELV and RoHS

Compliant

China RoHS

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

500797 Series

PS-500797-003

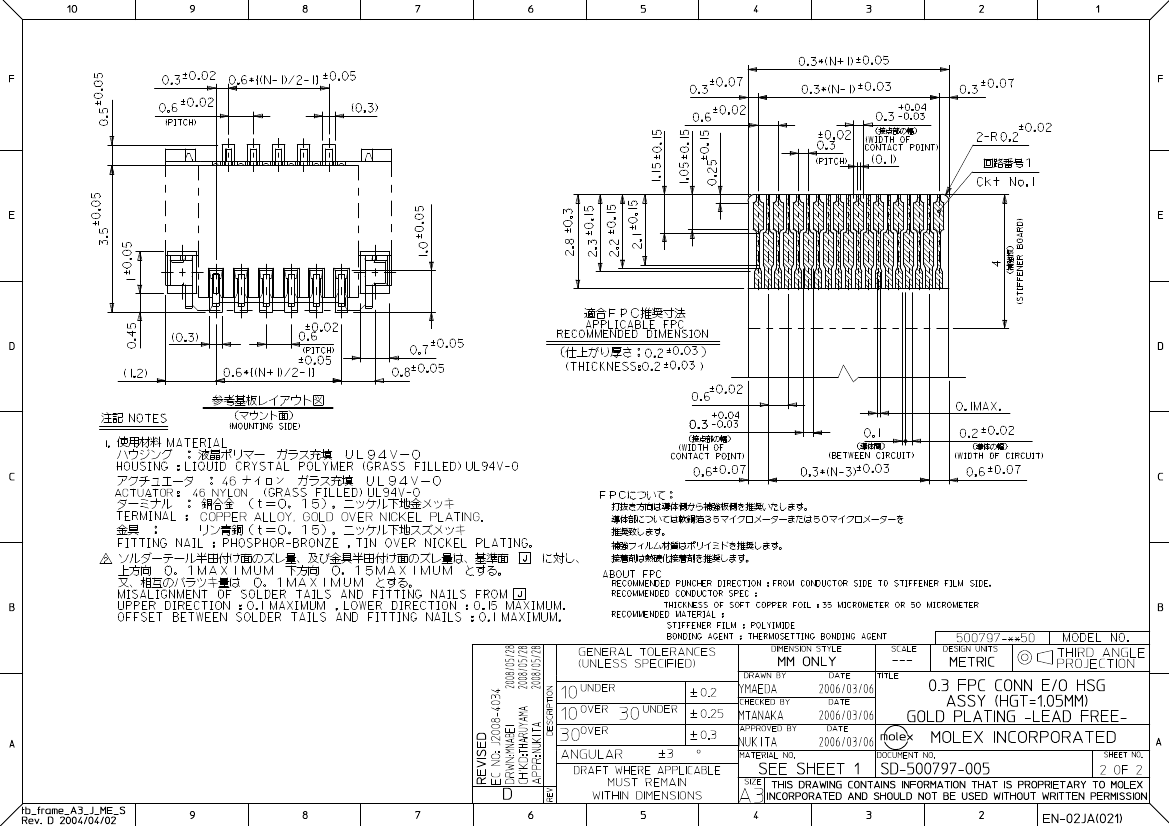

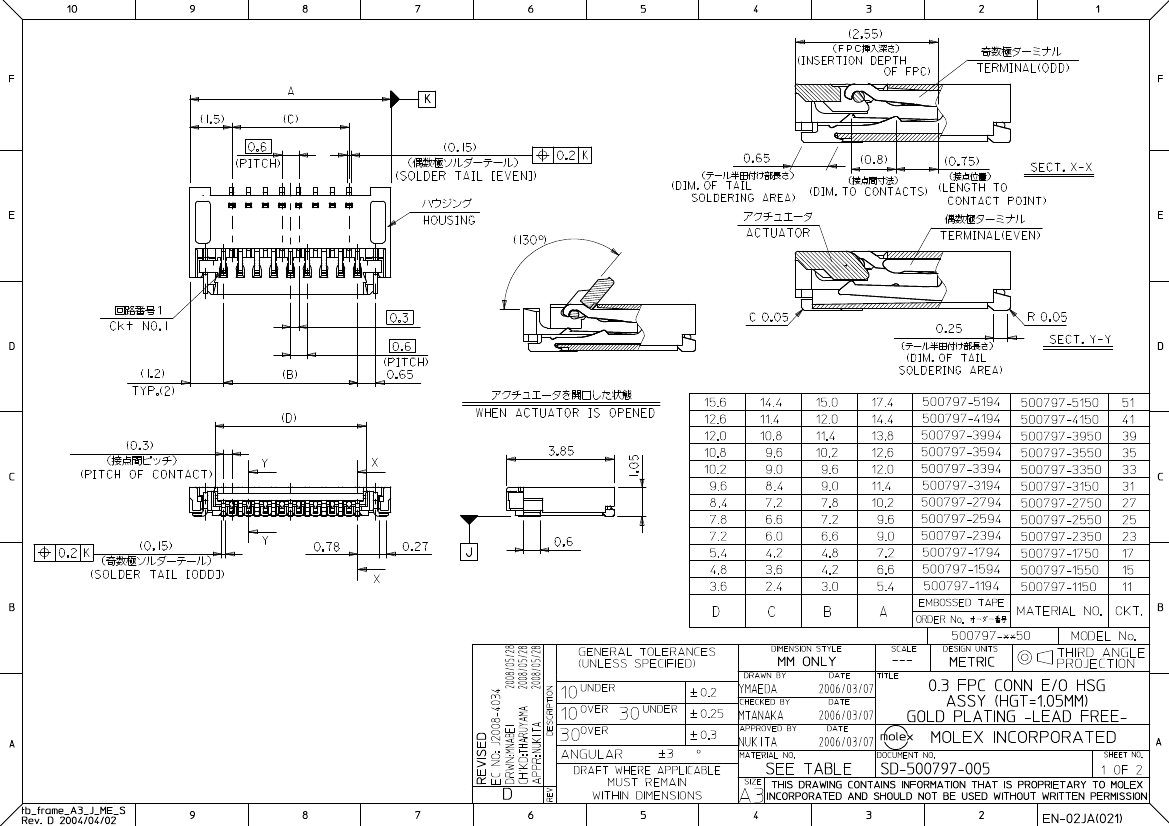

SD-500797-005

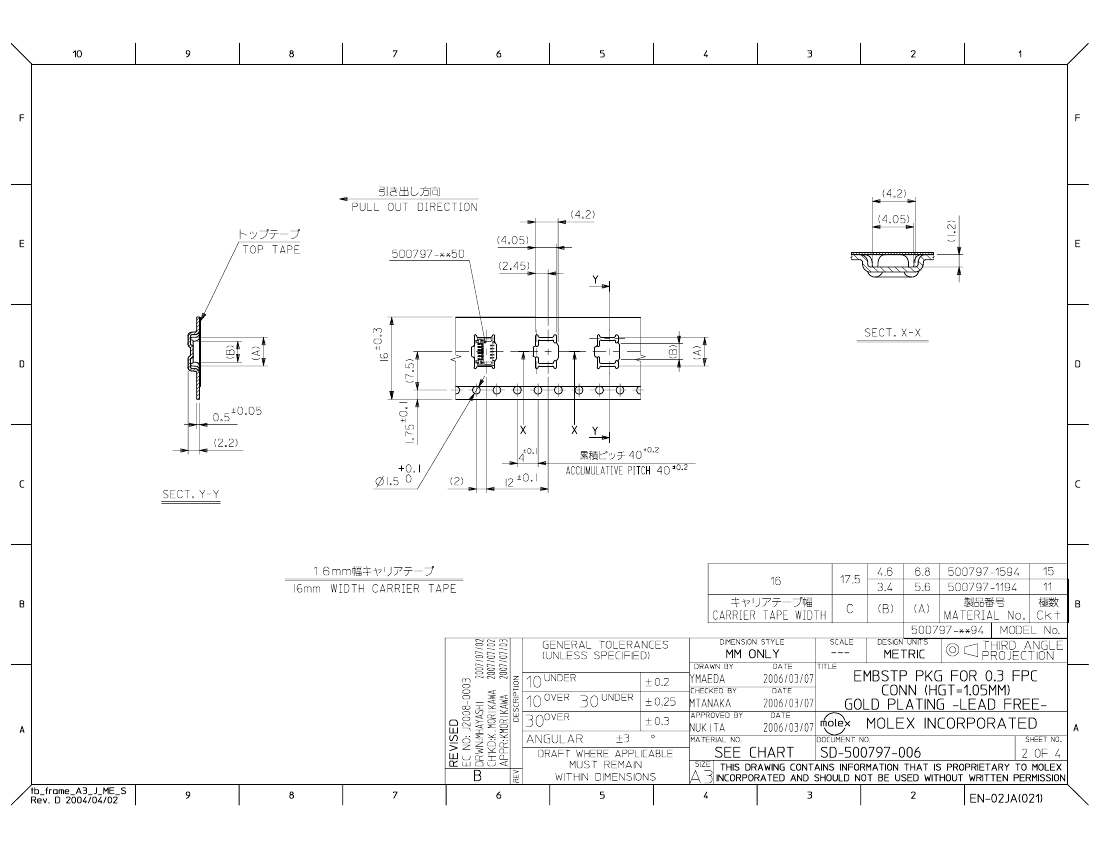

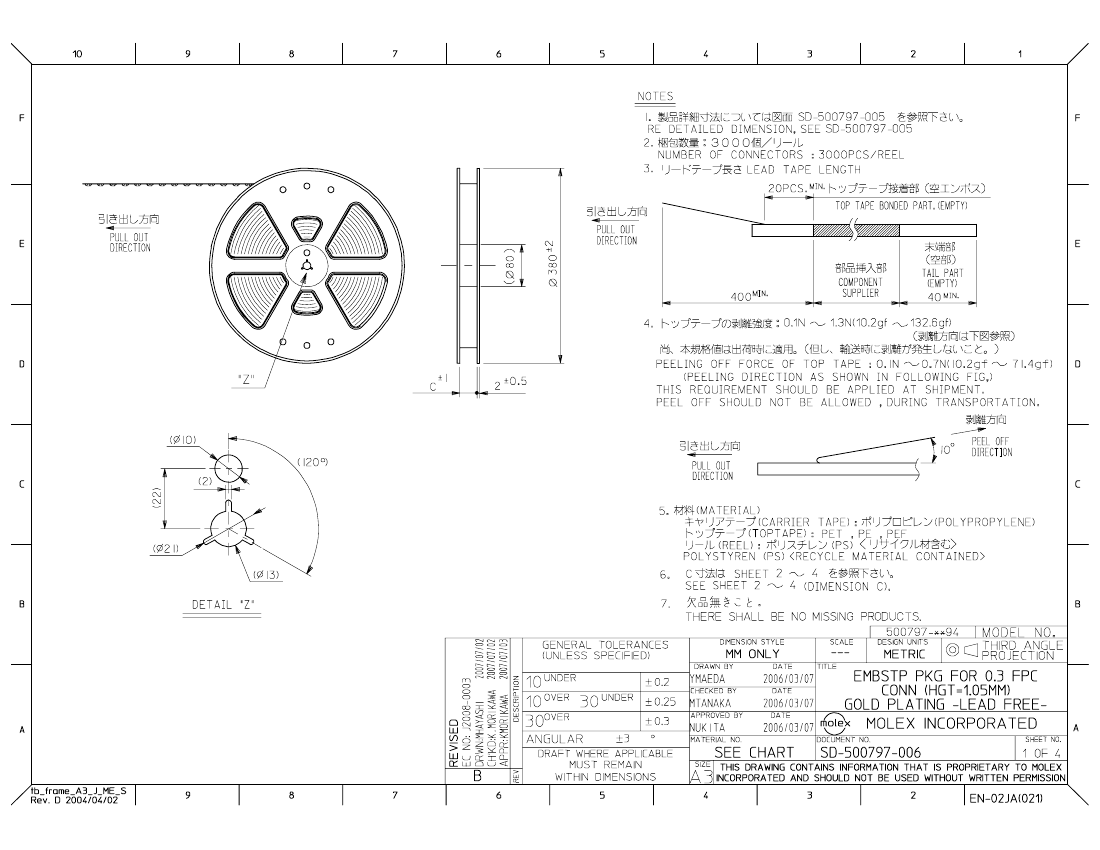

SD-500797-006

This document was generated on 01/07/2009

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
