3-1658071-1 datasheet, PDF - EEWORLD Datasheet

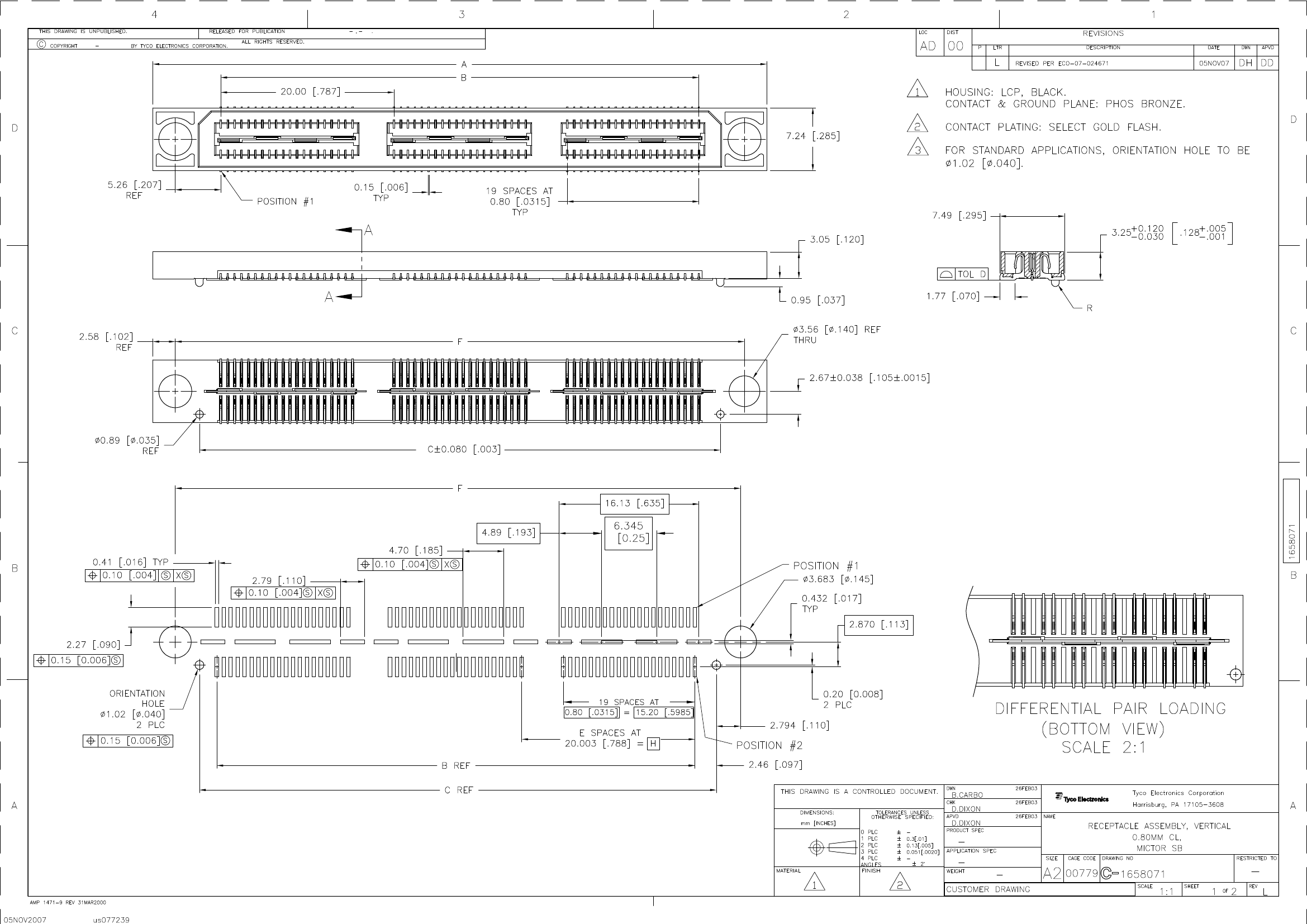

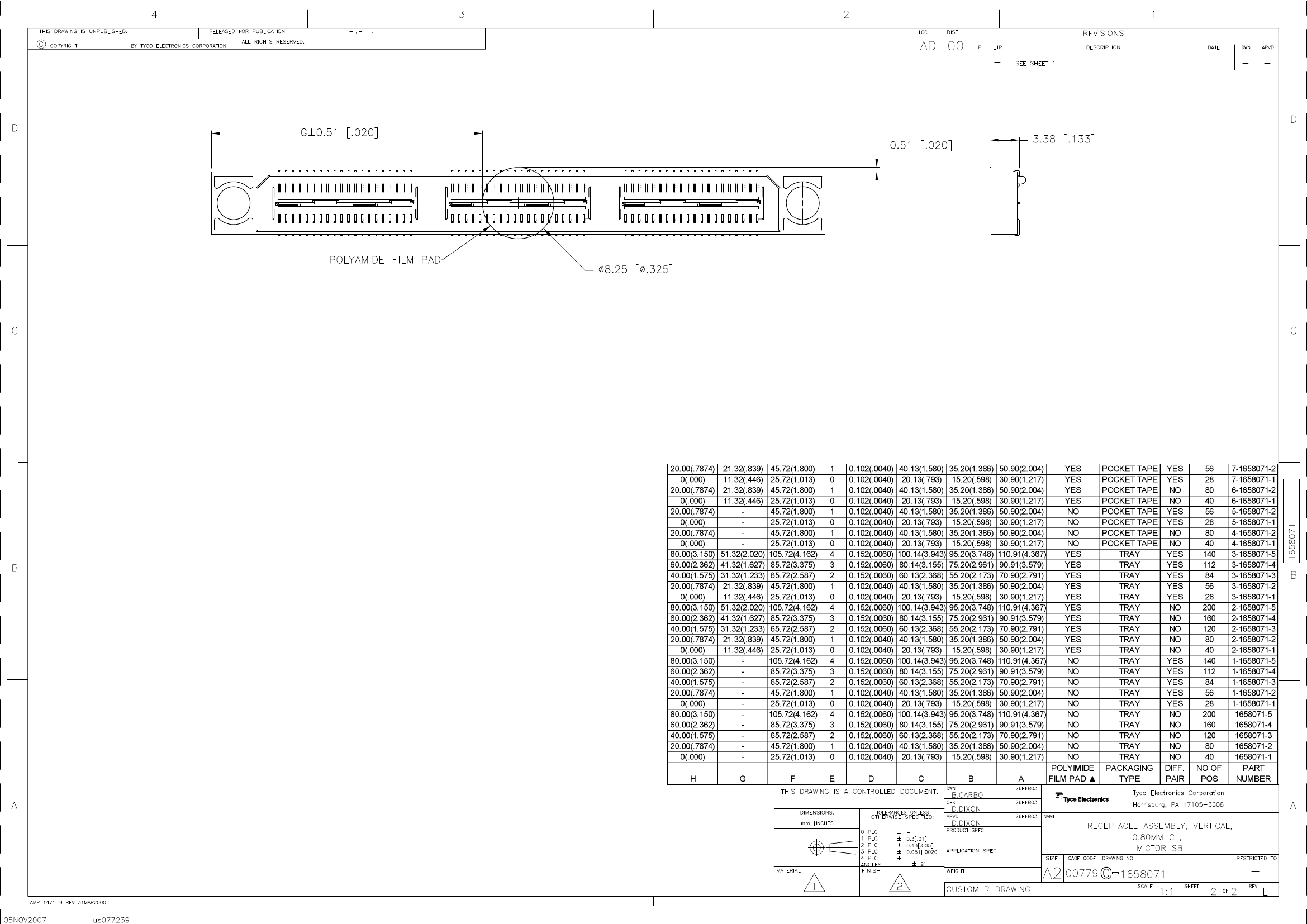

3-1658071-1: DescriptionMSB0.80RC-ASY28DP,GP,F,VCTY; CategoryThe connector; File Size281KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1658071-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1658071-1	-	-	View	Buy Now

MSB0.80RC-ASY28DP,GP,F,VCTY

Parameter Name	Attribute value
PCB Connector Component Types	PCB mounting female terminal
Connector System	Board to Board
Sealable	no
Connectors and terminals terminate to	A printed circuit board
series	MICTOR SB
lugs	yes
Connector terminal load status	Fully loaded
Stackable	no
PCB mounting direction	vertical
Number of Positions	28
Board-to-board configuration	vertical
Rows	2
Dielectric withstand voltage (VAC)	675
Voltage (VAC)	125
Insulation resistance (MΩ)	2
Plating thickness of bus bar bonding area	675
cover material	Polyamide
Terminal base material	Phosphor bronze
PCB terminal termination area plating materials	gold plated
Terminal configuration	single beam
Terminal contact plating material	Choose gold plating
Terminal Contact Plating Thickness (µin)	50
Terminal type	socket
Contact Current Rating (Max) (A)	1.25, 9.5
Ground terminal material	Phosphor bronze
PCB Termination Methods	surface mount
joint alignment	with
Joint alignment type	guide pillar
PCB installation and fixation	Without
PCB mounting alignment	with
Connector mounting type	board mounting
PCB Mount Alignment Type	Positioning post
Centerline (Pitch)	.8 mm [ .031 in ]
Shell color	black
Shell material	LCP (Liquid Crystal Polymer)
high	3.05 mm [ .119865 in ]
Working group temperature range	-65 – 125 °C [ -85 – 257 °F ]
Assembly process characteristics	none
pick and place cover	Without
Circuit Application	Signal
Applicable to	Public end
Encapsulation method	Pallets, boxes and pallets
Package quantity	48
Comment	It is recommended to use stands. Please contact Product Engineering for advice.
