CFS-125-02-S-D datasheet, PDF - EEWORLD Datasheet

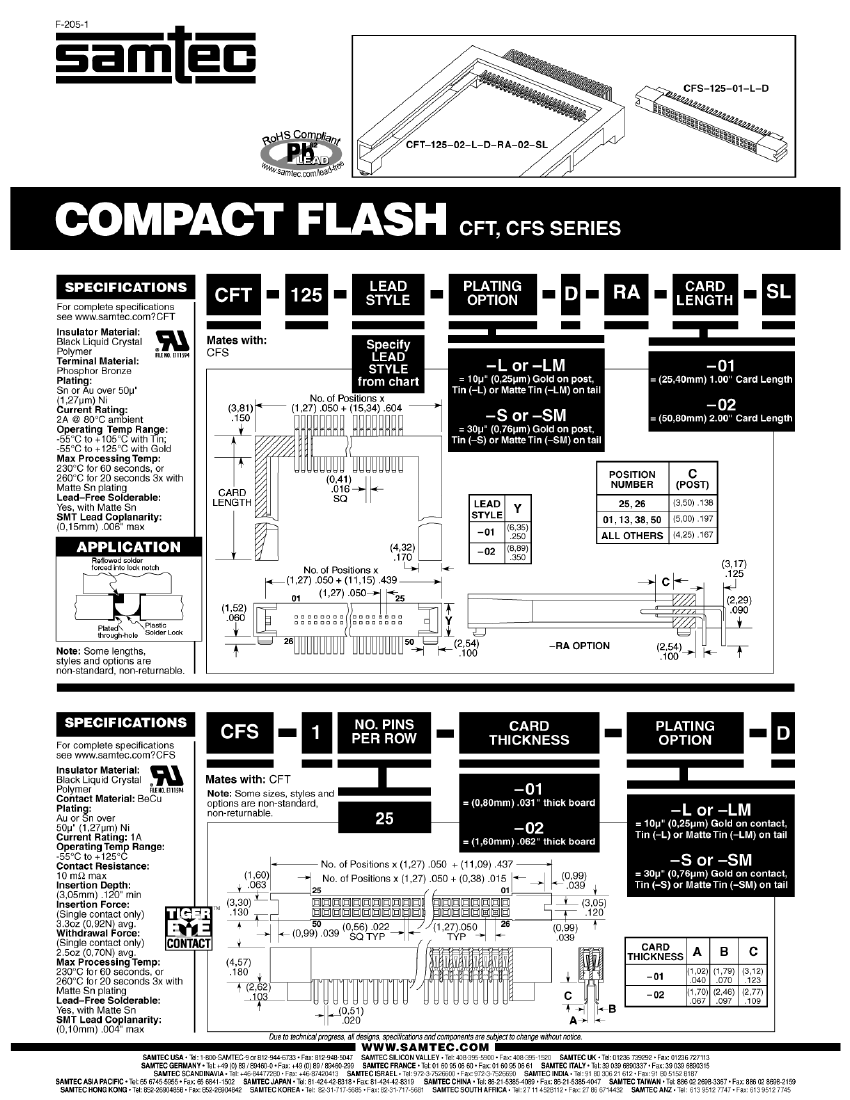

CFS-125-02-S-D: DescriptionPCMCIA Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size187KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

CFS-125-02-S-D Overview

PCMCIA Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Other features	TIGER EYE CONTACT
Board mount options	EDGE MOUNT
body width	0.13 inch
subject depth	0.283 inch
body length	1.687 inch
Body/casing type	SOCKET
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.9174 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	CFS
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
Evacuation force-minimum value	.695 N
Base Number Matches	1
