M Series

Half-inch Rotary Switches

Features/Benefits

•

Multi-pole and multi-positions

•

Panel and PCB mounting

•

Stainless steel actuator

•

Non-shorting contacts

•

RoHS Compliant

Typical Applications

•

Test equipment

•

Industrial equipment

•

Medical equipment

Models Available

Specifications

CONTACT RATING: Q contact material: Carry-6 AMPS continuous.

Switch-250 mA max. @ 125 V AC or 28 DC. Non-shorting

contacts standard. See page L-16 for additional ratings.

ELECTRICAL LIFE: 10,000 make-and-break cycles at 150 mA,

125 V AC or 28 DC.

CONTACT RESISTANCE: Below 20 mΩ typ. initial @

2-4 V DC, 100 mA, for both silver and gold plated contacts.

INSULATION RESISTANCE: 1010

Ω

min.

DIELECTRIC STRENGTH: 600 Vrms min. @ sea level.

OPERATING & STORAGE TEMPERATURE: –30ºC to 85ºC.

OPERATING TORQUE: 4-7 ounces-inches typ. initial.

SOLDERABILITY: Per MIL-STD-202F method 208D, or

EIA RS-186E method 9 (1 hour steam aging).

Materials

HOUSING AND BUSHING: Zinc alloy, bright zinc plated,

with clear chromate finish.

ACTUATOR: Zinc alloy, nickel plated or stainless steel.

BASE: Diallylphthalate (DAP) or melamine phenolic, with insert

molded terminals.

ROTOR: Glass filled polyester (UL 94V-0).

MOVABLE CONTACTS:

Non-shorting: Q contact material: Copper alloy, silver plated.

See page L-16 for additional contact materials.

STATIONARY CONTACT & ALL TERMINALS: Q contact material:

Copper alloy, silver plated. All terminals insert molded. All

terminals present regardless of number of switch positions.

See page L-16 for additional contact materials.

CONTACT SPRING: Music wire, phosphate coated.

STOP PIN: Stainless steel.

STOP RING: Brass.

HARDWARE: Nut: Brass, nickel plated; Lockwasher: Steel,

nickel plated.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages L-14 thru L-18. For additional options not shown in catalog, consult Customer Service Center.

Rotary

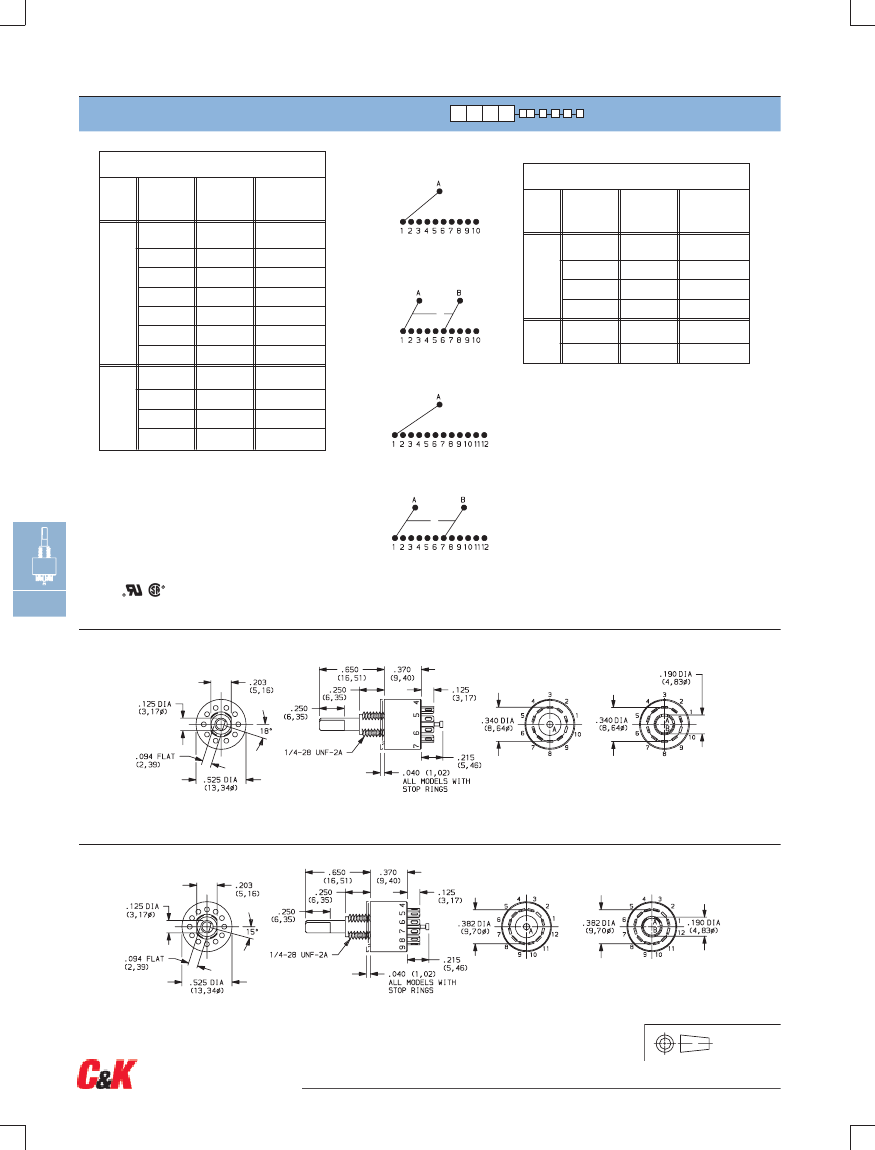

Switch Function

MA00

SP, 10 pos., 36°

MA02

SP, 2 pos., 36°

MA03

SP, 3 pos., 36°

MA04

SP, 4 pos., 36°

MA05

SP, 5 pos., 36°

MA06

SP, 6 pos., 36°

MA10

SP, 10 pos., 36°

MB00

DP, 5 pos., 36°

MB03

DP, 3 pos., 36°

MB04

DP, 4 pos., 36°

MB05

DP, 5 pos., 36°

MC00

SP, 12 pos., 30°

MC03

SP, 3 pos., 30°

MC07

SP, 7 pos., 30°

MC12

SP, 12 pos., 30°

MD00

DP, 6 pos., 30°

MD06

DP, 6 pos., 30°

ME00

SP, 10 pos., 36°

ME04

SP, 4 pos., 36°

MF00

DP, 5 pos., 36°

MG00

SP, 12 pos., 30°

MH00

DP, 6 pos., 30°

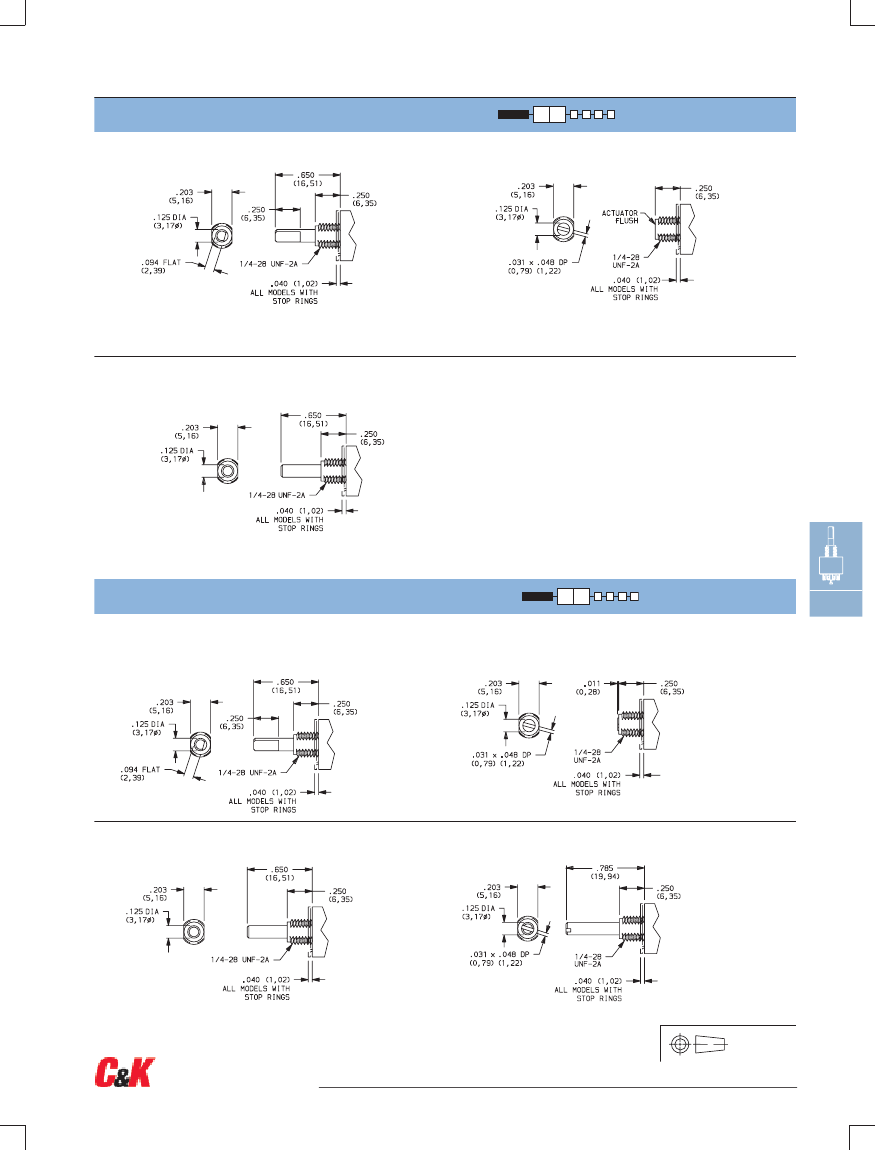

Actuator & Bushing

.650"

long, flatted

Screwdriver slot, flush

.650" long, round

.650" long, flatted

Screwdriver slot, flush

.650" long, round

.785" long, slot

Short/Non-short

Non-shorting contacts

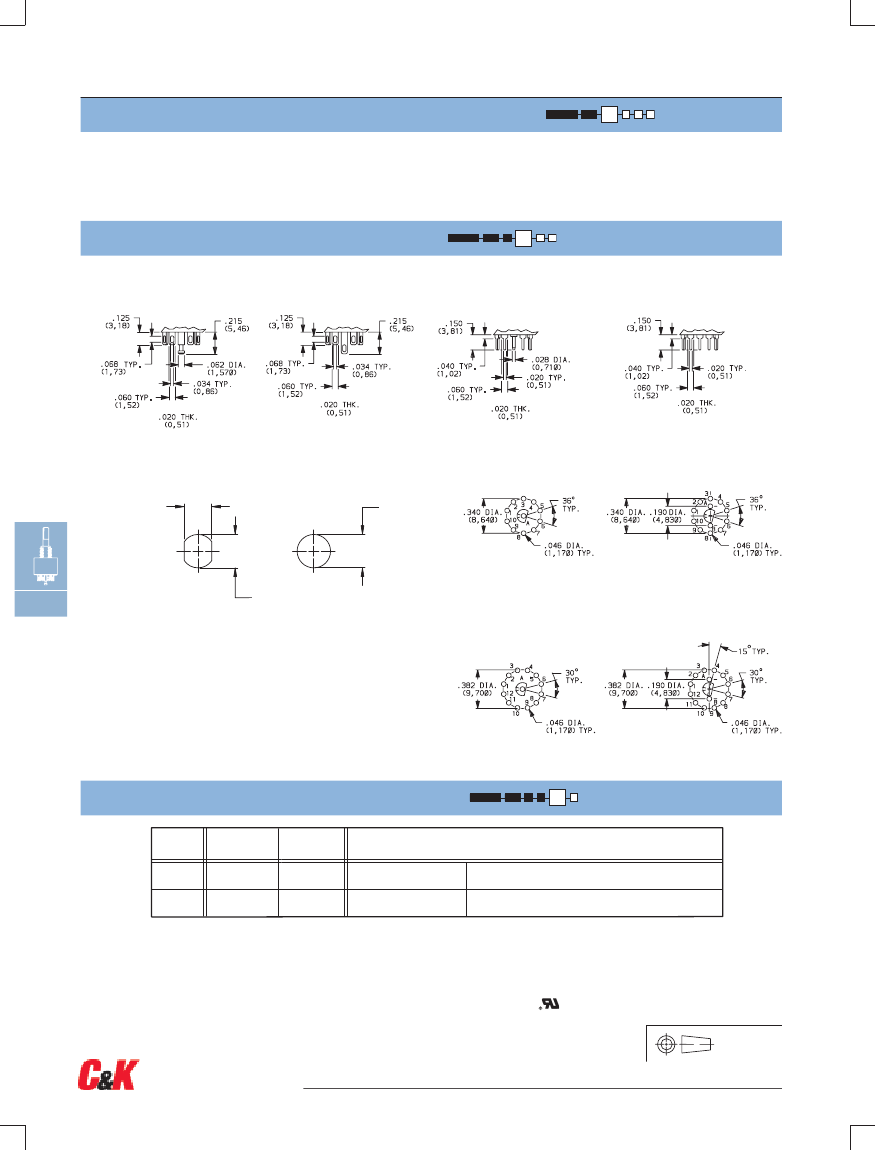

Terminations

Solder lug

PC Thru-hole

Contact Material

Silver

Gold over silver

Seal

No seal

Splashproof shaft & panel seal

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

L–13

www.ck-components.com

M Series

Half-inch Rotary Switches

SEAL

NO EPOXY SEAL

SPLASHPROOF SHAFT AND PANEL SEAL

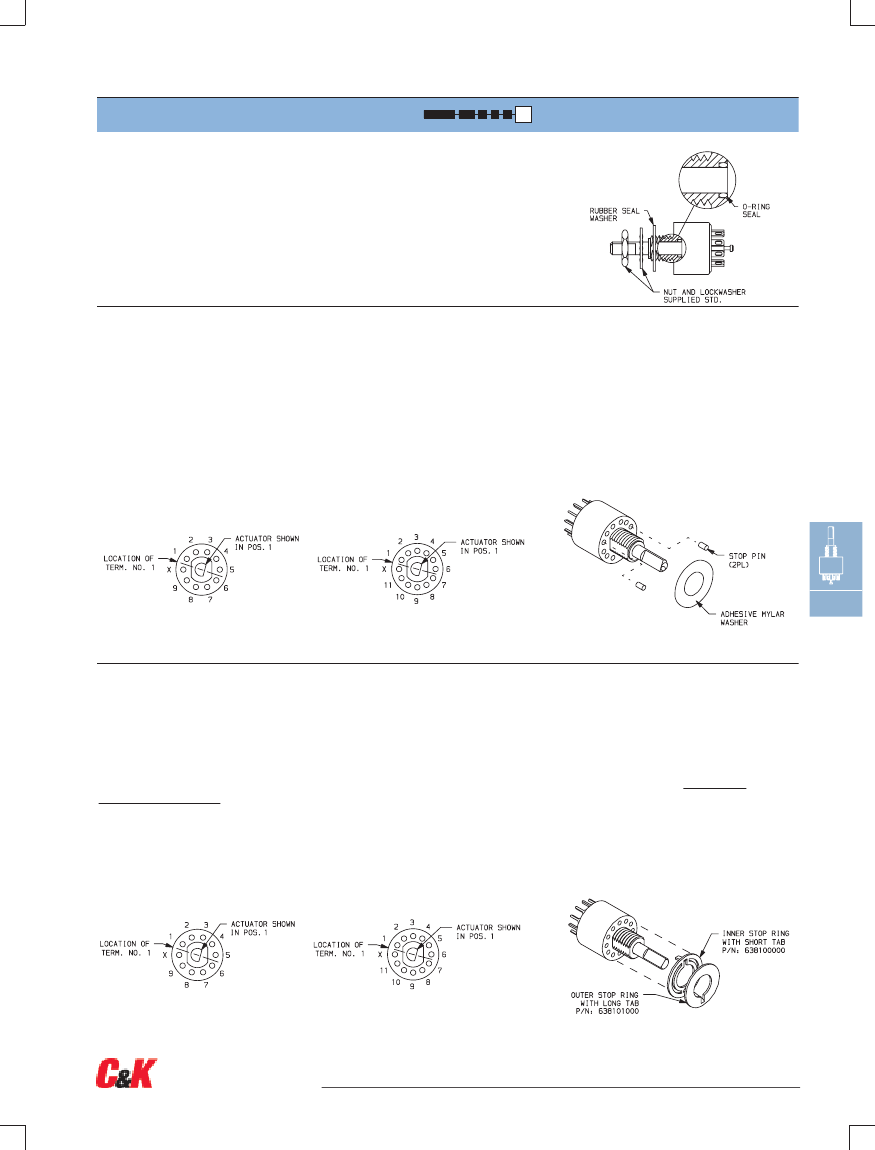

Setting Stops With Stop Pins

MA00, MB00, MC00 & MD00 Models Only:

The number of switch positions or stops are adjustable by means of stop pins provided with each switch. Switches are normally

shipped with stop pins and hardware in bulk, not installed. Without stop pins, switches have full 360º rotation and no stops.

Note that all two pole models begin to repeat when actuated 180º or more.

To set stops, refer to figures 1 & 2. Orient switch so that terminal no. 1 is as shown. Turn actuator to position 1, using flats on

bushing and terminal no. 1 as reference. Install CCW stop pin in hole designated ‘X’. Install second stop pin in hole number

corresponding to the number of positions desired. Note that two pole models will begin to repeat when actuated 180º or more.

To retain stop pins, use adhesive mylar washer included; see figure 3.

All models except MX00 models have number of switch positions or stops pre-set at factory and are not adjustable.

Hardware:

Two stop pins, mounting nut, and lockwasher supplied standard.

P/N 537100000

36º Indexing Models

Top View

Fig. 1

30º Indexing Models

Top View

Fig. 2

Fig. 3

P/N 537202000

Rotary

Setting Stops With Stop Rings

ME00, MF00, MG00 & MH00 Models Only:

The number of switch positions or stops are adjustable by means of stop rings provided with each switch. These models are

normally shipped with stop rings and hardware in bulk, not installed. Without stop rings, switches have full 360º rotation and no

stops. Note that all two pole models begin to repeat when actuated 180º or more.

To set stops refer to figures 4 & 5. Orient switch so that terminal no. 1 is as shown. Turn actuator to pos. 1 using flats on bushing

and terminal no. 1 as reference. See figure 6 and install inner stop ring with short tab in hole designated ‘X’. Install outer

stop ring with long tab in hole number corresponding to the number of positions desired. Note that all two pole models begin to

repeat when actuated 180º or more. Use mounting nut and lockwasher to retain stop rings.

All MEXX, MFXX, MGXX & MHXX Models (Except MX00 models):

Number of switch positions or stops are preset at factory, but are user adjustable.

Hardware:

Two stop rings, mounting nut and lockwasher supplied standard.

36º Indexing Models

Top View

Fig. 4

30º Indexing Models

Top View

Fig. 5

Fig. 6

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

L–17

www.ck-components.com
