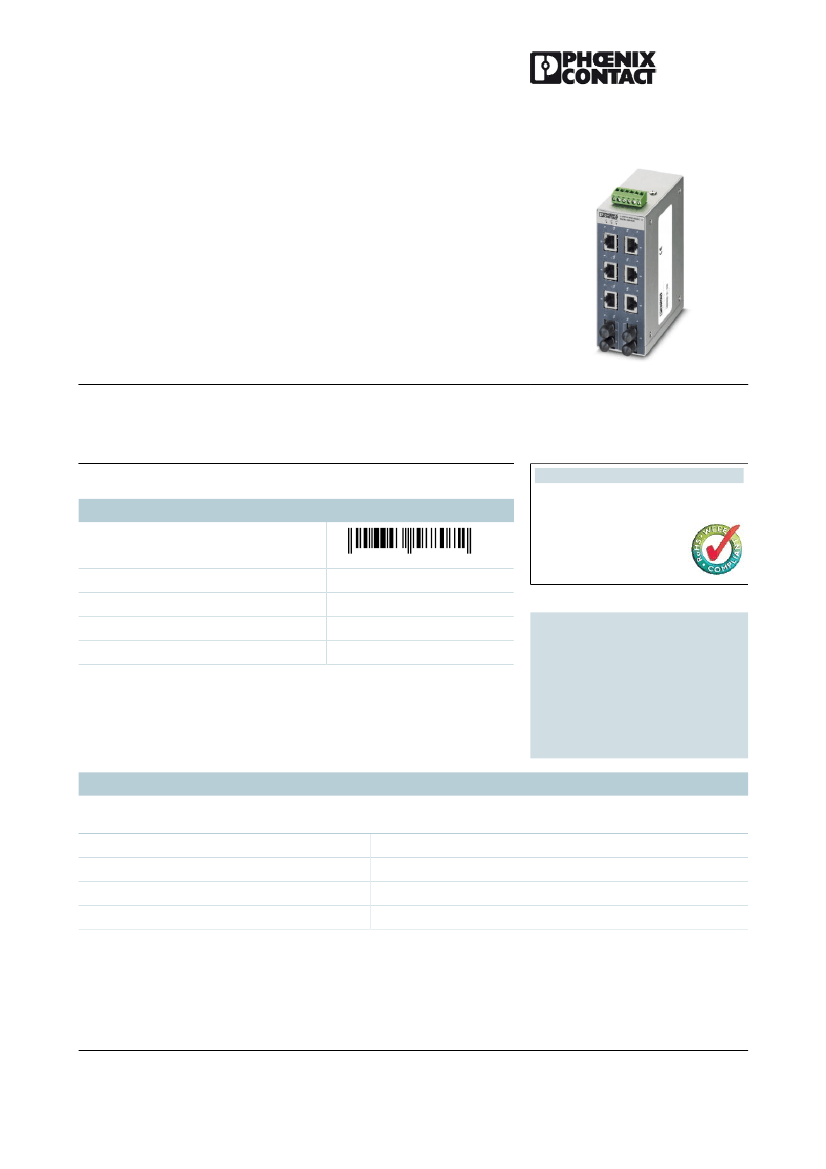

FL SWITCH SFNT 6TX/2FX ST
Order No.: 2891026
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2891026
Ethernet switch, 6 TP RJ45 ports, 2 FO ports, 100 Mbps full duplex in
ST-D format, automatic detection of data transmission speed of 10 or
100 Mbps (RJ45), autocrossing function
Product notes
Commercial data
GTIN (EAN)
4
046356
588072
WEEE/RoHS-compliant since:
11/17/2010
Note
sales group
Pack
Catalog page information
Made-to-order
K000
1 pcs.
Page 89 (AX-2011)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Interfaces
Interface 1
No. of ports
Connection method
Transmission physics
Ethernet (RJ45)
6 (RJ45 ports)
RJ45 female connector, auto negotiation and autocrossing
Ethernet in RJ45 twisted pair
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 4
Aug 30, 2011
FL SWITCH SFNT 6TX/2FX ST
Order No.: 2891026
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2891026
Transmission speed
Interface 2
No. of ports
Connection method
Transmission physics
Transmission speed
Transmission length
10/100 Mbps (RJ45)
Fiber optic interface
2 (FO port)
ST format
Multimode glass fiber
100 Mbps (ST, full duplex)
12.1 km (glass fiber with F-G 62.5/125 0.7 dB/km F1000)
3.3 km (glass fiber with F-G 62.5/125 2.6 dB/km F600)
7.1 km (glass fiber with F-G 50/125 0.7 dB/km F1200)
3.1 km (glass fiber with F-G 50/125 1.6 dB/km F800)
Function
Basic functions
Unmanaged switch / autonegotiation, complies with IEEE 802.3,
store and forward switching mode, includes QoS and alarm
contact
LEDs: U
S1
, U
S2
(redundant voltage supply), link and activity per
port, alarm (power and link down)
Status and diagnostic indicators
Network expansion parameters
Cascading depth
Maximum conductor length ((twisted pair)
Supply voltage
Supply voltage
Residual ripple
Supply voltage range
Typical current consumption
General data
Width
Height
Depth
Mounting type
Type AX
Weight
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
50 mm
130 mm
100 mm
DIN rail
Block-oriented
484 g
IP20
-40 °C ... 75 °C
-40 °C ... 85 °C
24 V DC (redundant)
3.6 V
PP
(within the permitted voltage range)
9 V DC ... 32 V DC
250 mA (@24 V DC)
Network, linear, and star structure: any
100 m
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 4
Aug 30, 2011
FL SWITCH SFNT 6TX/2FX ST
Order No.: 2891026
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2891026
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Housing material
Noise emission
Noise immunity
Accessories
Item
Designation
5 % ... 95 % (no condensation)
5 % ... 95 % (no condensation)
86 kPa ... 108 kPa (up to 1500 m above mean sea level)
Aluminum
EN 61000-6-4
EN 61000-6-2
Description
Cable/conductor
2832250
2832263
2832276
2832221
2832629
2832289
2832292
2832580
2832616
General
0800886
2891012
2832991
2832865
E/NS 35 N
FL PA SFNT 5-8
FL RJ45 PROTECT CAP
FL SEC PAC 4TX
End clamp, width: 9.5 mm, color: gray
Mounting plate for SFNT switches
Dust protection caps for RJ45 female connector
Layer1 security elements for four RJ45 network connections for
use with patch boxes and panels
FL CAT5 PATCH 0,3
FL CAT5 PATCH 0,5
FL CAT5 PATCH 1,0
FL CAT5 PATCH 1,5
FL CAT5 PATCH 10,0
FL CAT5 PATCH 2,0
FL CAT5 PATCH 3,0
FL CAT5 PATCH 5,0
FL CAT5 PATCH 7,5
Patch cable, CAT5, assembled, 0.3 m
Patch cable, CAT5, assembled, 0.5 m
Patch cable, CAT5, assembled, 1.0 m
Patch cable, CAT5, assembled, 1.5 m
Patch cable, CAT5, assembled, 10.0 m
Patch cable, CAT5, assembled, 2.0 m
Patch cable, CAT5, assembled, 3.0 m
Patch cable, CAT5, assembled, 5.0 m
Patch cable, CAT5, assembled, 7.5 m
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 4
Aug 30, 2011
FL SWITCH SFNT 6TX/2FX ST
Order No.: 2891026
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2891026
