PH115TAHT datasheet, PDF - EEWORLD Datasheet

PH115TAHT: DescriptionBoard Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size588KB，4 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

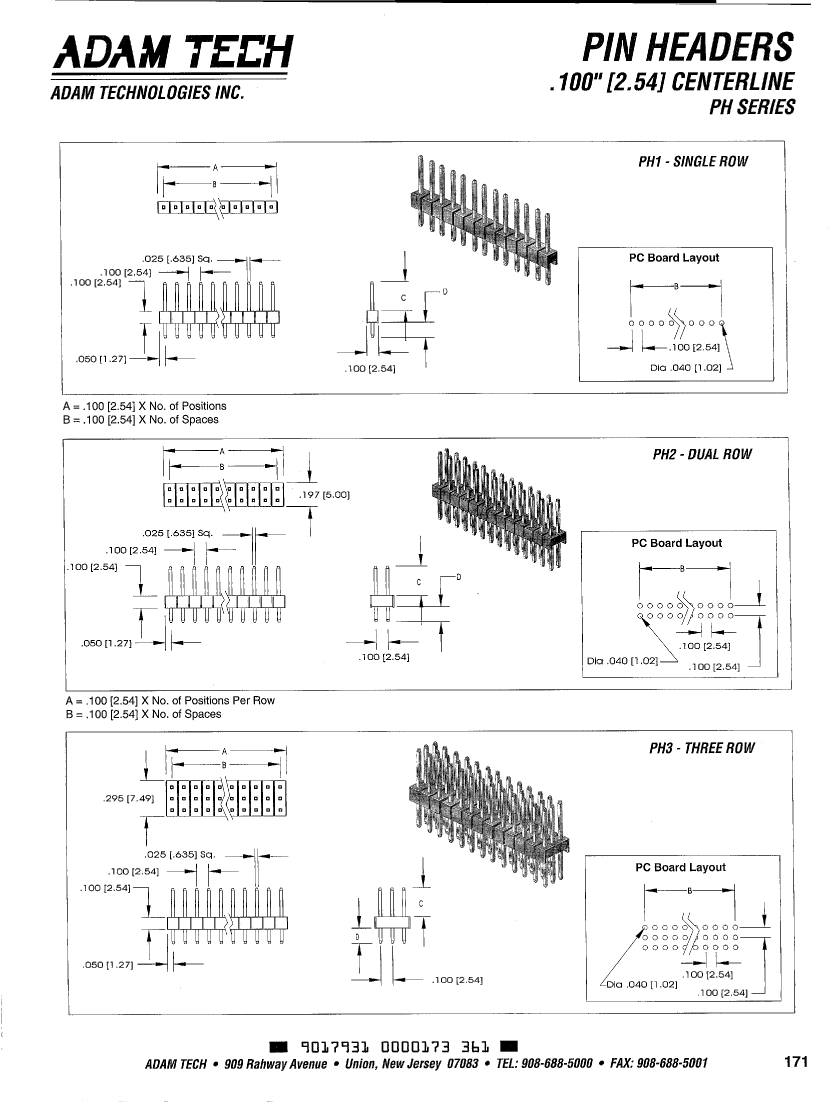

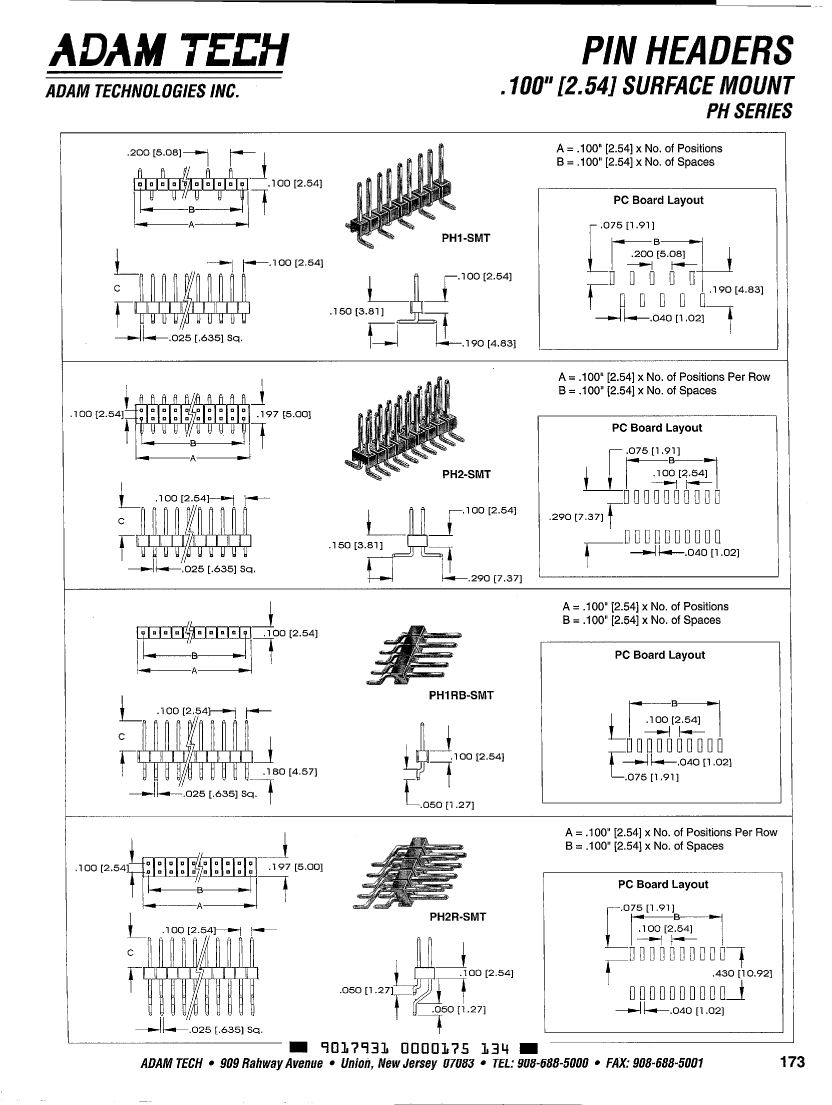

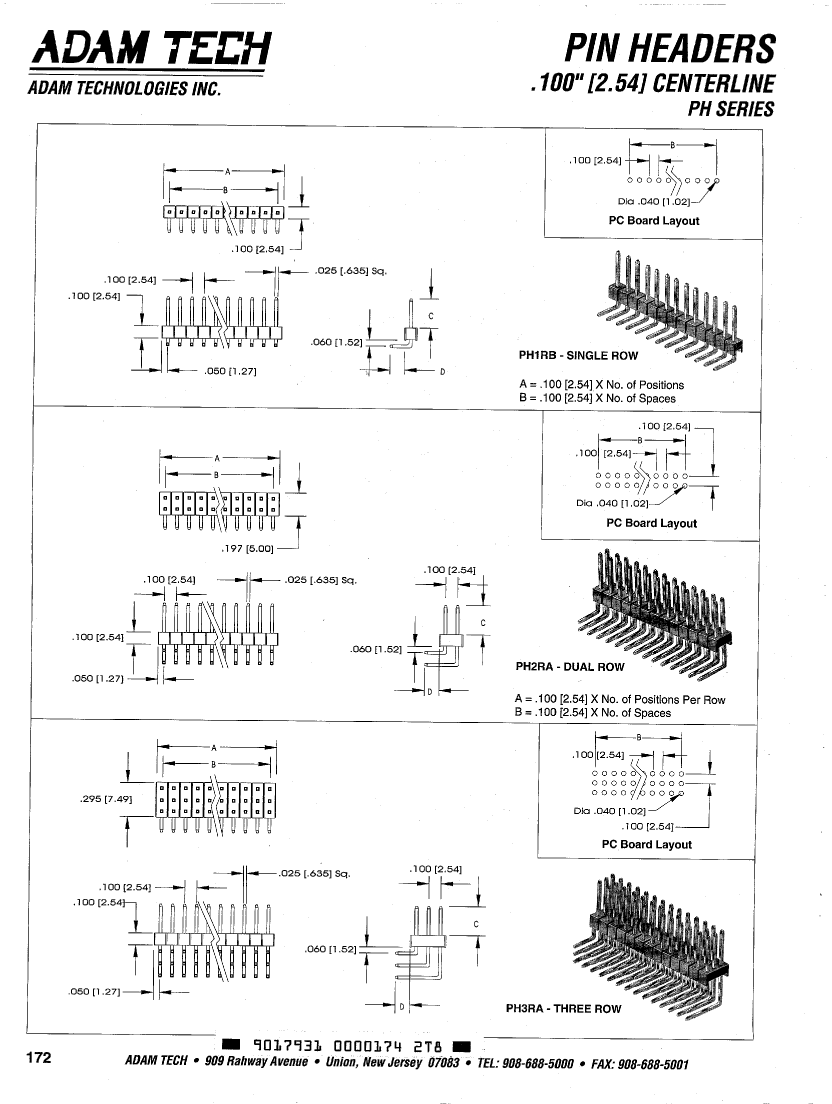

PH115TAHT Overview

Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

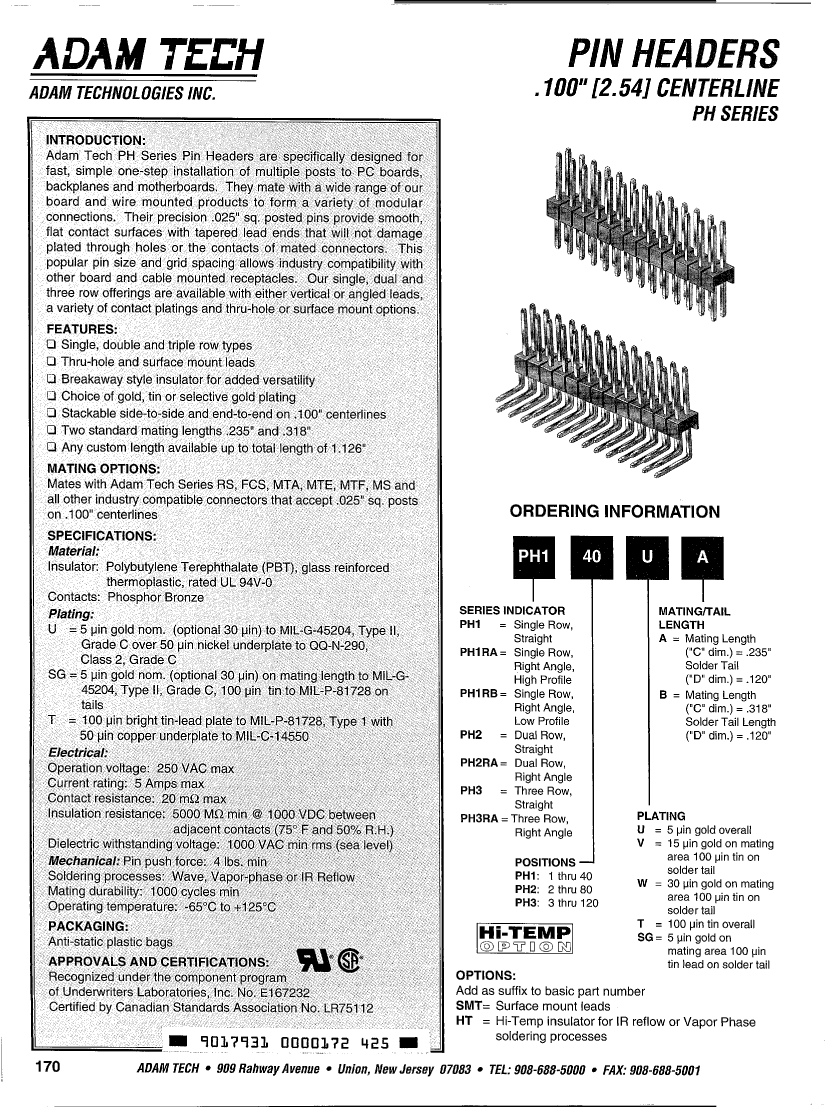

Parameter Name	Attribute value
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
YTEOL	0
Objectid	1149680947
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
body width	0.1 inch
subject depth	0.1 inch
body length	1.5 inch
Terminal length	0.12 inch
Total number of contacts	15
Contact to complete cooperation	SN-PB ON CU
Durability	1000 Cycles
insulator material	GLASS FILLED POLYETHYLENE/POLYBUTYLENE TEREPHTHALATE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Rated current (signal)	5 A
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Contact resistance	20 mΩ
Installation method	STRAIGHT
Terminal pitch	2.54 mm
Termination type	SOLDER
Contact completed and terminated	GOLD
Contact style	SQ PIN-SKT
Plug contact pitch	0.1 inch
Mixed contacts	NO
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation option 1	LOCKING
Options	GENERAL PURPOSE
Dielectric withstand voltage	1000VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
JESD-609 code	e4
Guideline	UL, CSA
UL Flammability Code	94V-0
