598-8220-102F

Description
standard leds - smd redorange water clr 200mcd 630nm
CategoryLED optoelectronic/LED    photoelectric
File Size1MB，2 Pages
ManufacturerDIALIGHT
Websitehttps://www.dialight.com
Environmental Compliance
Download Datasheet Parametric Compare View All

598-8220-102F Online Shopping

Suppliers Part Number Price MOQ In stock
598-8220-102F - - View Buy Now

598-8220-102F Overview

standard leds - smd redorange water clr 200mcd 630nm

598-8220-102F Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerDIALIGHT
package instruction3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Codecompliant
colorRED ORANGE
color@wavelengthOrange-Red
ConfigurationSINGLE
Maximum forward current0.025 A
Maximum forward voltage2.4 V
JESD-609 codee4
Lens typeWATER CLEAR
Nominal luminous intensity150.0 mcd
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
Optoelectronic device typesSINGLE COLOR LED
total height0.68 mm
method of packingTAPE
Maximum reverse voltage5 V
shapeRECTANGULAR
size2 mm
surface mountYES
Terminal surfaceNickel/Gold (Ni/Au)
Terminal pitch3.5 mm
perspective140 deg

Preview

Download Datasheet

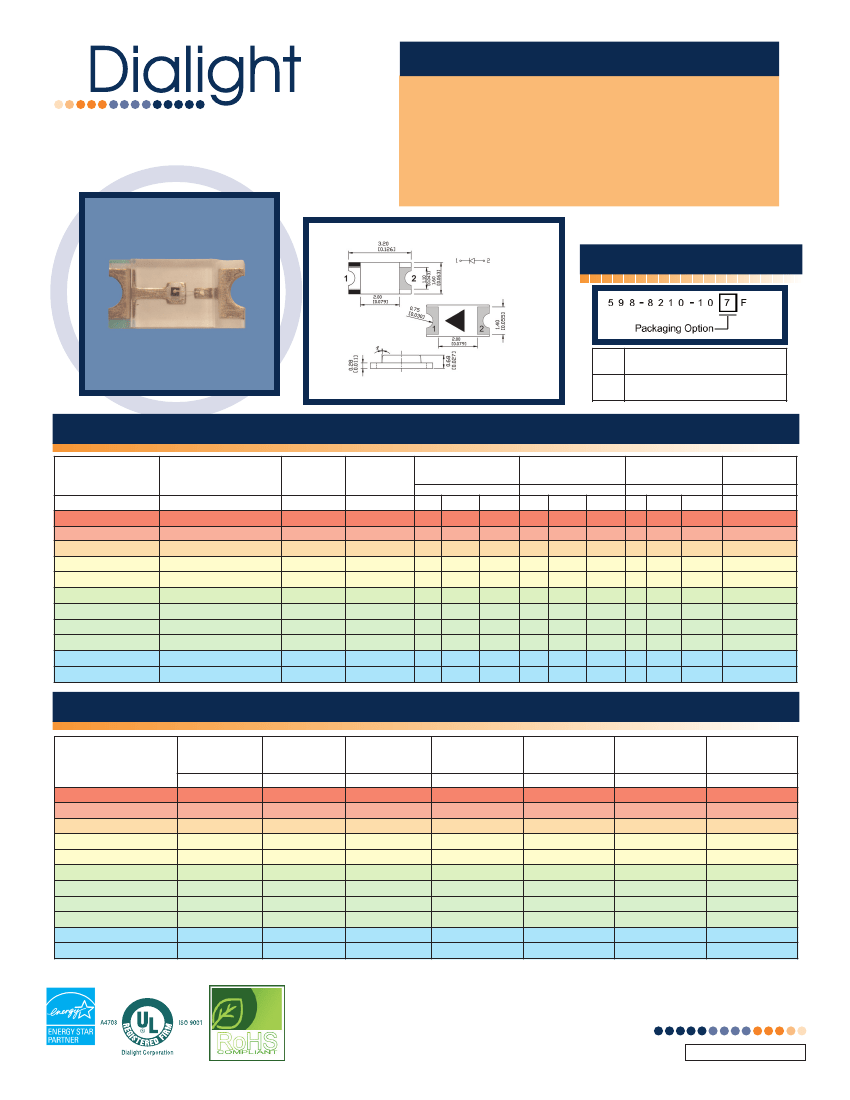

FEATURES / BENEFITS
Compatible with automatic placement equipment
Micro LED
®
SMD LED
“598 SERIES” 1206 PACKAGE
(3.2mm X 1.6mm X 0.7mm) Single Color Water Clear
RoHS compliant
Packaged in 8mm tape, 7” reel and 20 per strip
Meets EIA-481-1 pkg. std.

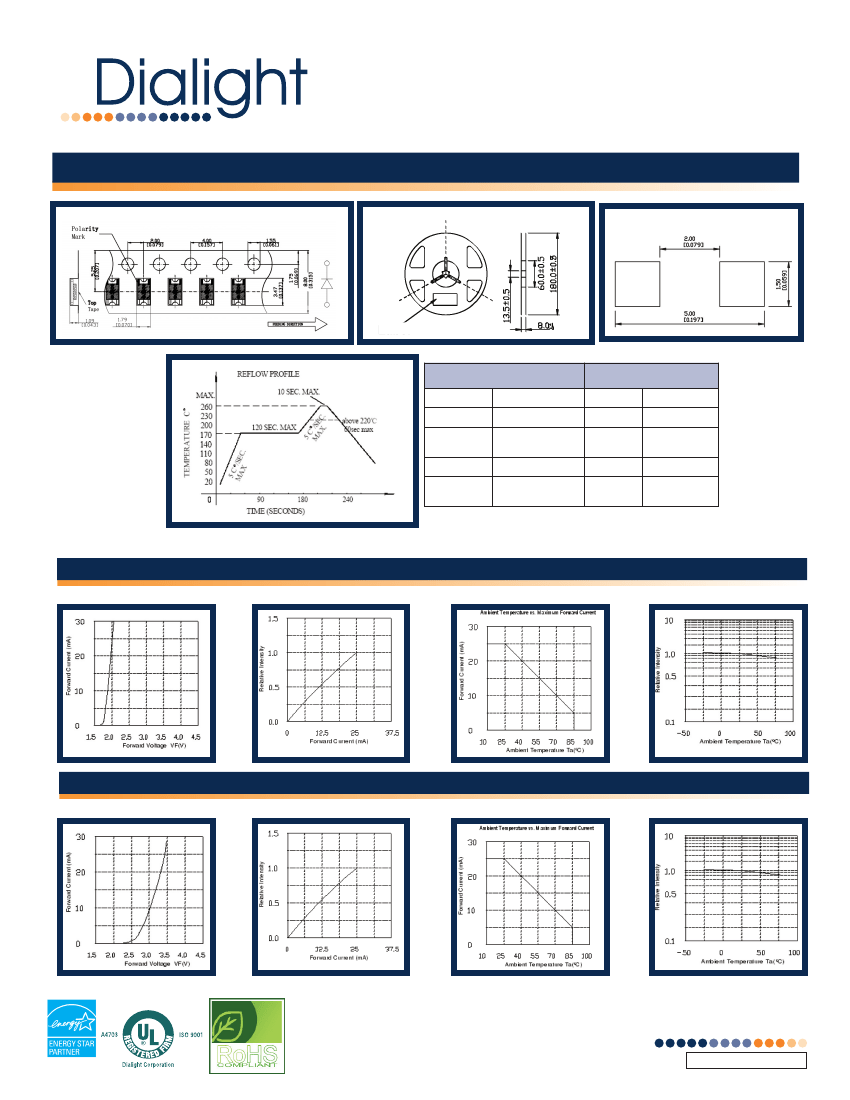

Package Outline Drawing:
ORDERING INFORMATION
2
Notes 1. All dimensions are in mm [inches];
2. Tolerances are ±0.1mm [0.004inch] unless noted.
20 pieces on tape
7” reel 3000pcs / reel
7
PART NUMBERS
DIALIGHT P/N
EMITTED COLOR
MATERIAL
LENS COLOR
LUMINOUS
INTENSITY
If = 20 ma
MIN TYP
MAX
30
120
70
100
100
20
10
150
220
60
90
-
150
110
130
130
40
20
220
300
90
140
80
200
150
160
160
60
40
300
400
140
160
DOMINANT
WAVELENGTH
If = 20 ma
MIN
TYP
MAX
630
620
600
590
583
570
562
520
520
470
470
635
625
-
-
-
-
-
523
523
473
473
640
630
610
595
590
575
570
525
525
475
475
FORWARD
VOLTAGE
If = 20 ma
MIN TYP
MAX
1.7
1.7
1.7
1.7
1.7
1.8
1.8
3
3
2.8
2.8
2
2
2
2
2
2
2
3.2
3.2
3.2
3.2
2.4
2.4
2.4
2.4
2.4
2.4
2.4
3.5
3.5
3.5
3.5
VIEWING
ANGLE
° DEGREES
140
140
140
140
140
140
140
140
140
140
140
598-8210-107F
598-8220-107F
598-8230-107F
598-8240-107F
598-8250-107F
598-8260-107F
598-8270-107F
598-8280-107F
598-8281-107F
598-8290-107F
598-8291-107F
RED
RED-ORANGE
ORANGE
YELLOW
YELLOW
YELLOW-GREEN
GREEN
GREEN
GREEN
BLUE
BLUE
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
GaP
InGaN
InGaN
InGaN
InGaN
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
ABSOLUTE RATINGS
(@ Ta = 25ºC)
DIALIGHT P/N
598-8210-107F
598-8220-107F
598-8230-107F
598-8240-107F
598-8250-107F
598-8260-107F
598-8270-107F
598-8280-107F
598-8281-107F
598-8290-107F
598-8291-107F
Power
Dissipation
(mW)
60
60
60
60
60
60
60
87.5
87.5
87.5
87.5
Forward
Current
(mA)
25
25
25
25
25
25
25
25
25
25
25
Reverse
Voltage
(V)
5
5
5
5
5
5
5
5
5
5
5
Operating
Temperature
Range
(ºC)
-30~+85
-30~+85
-30~+85
-30~+85
-30~+85
-30~+85
-30~+85
-30~+85
-30~+85
-30~+85
-30~+85
Storage
Temperature
Range
(ºC)
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
Peak Pulse
Forward
Current
(mA)
100
100
100
100
100
100
100
100
100
100
100
Electrostatic
Discharge
(HBM)
2000
2000
2000
2000
2000
2000
2000
1000
1000
1000
2000
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEI5981206WC_A
