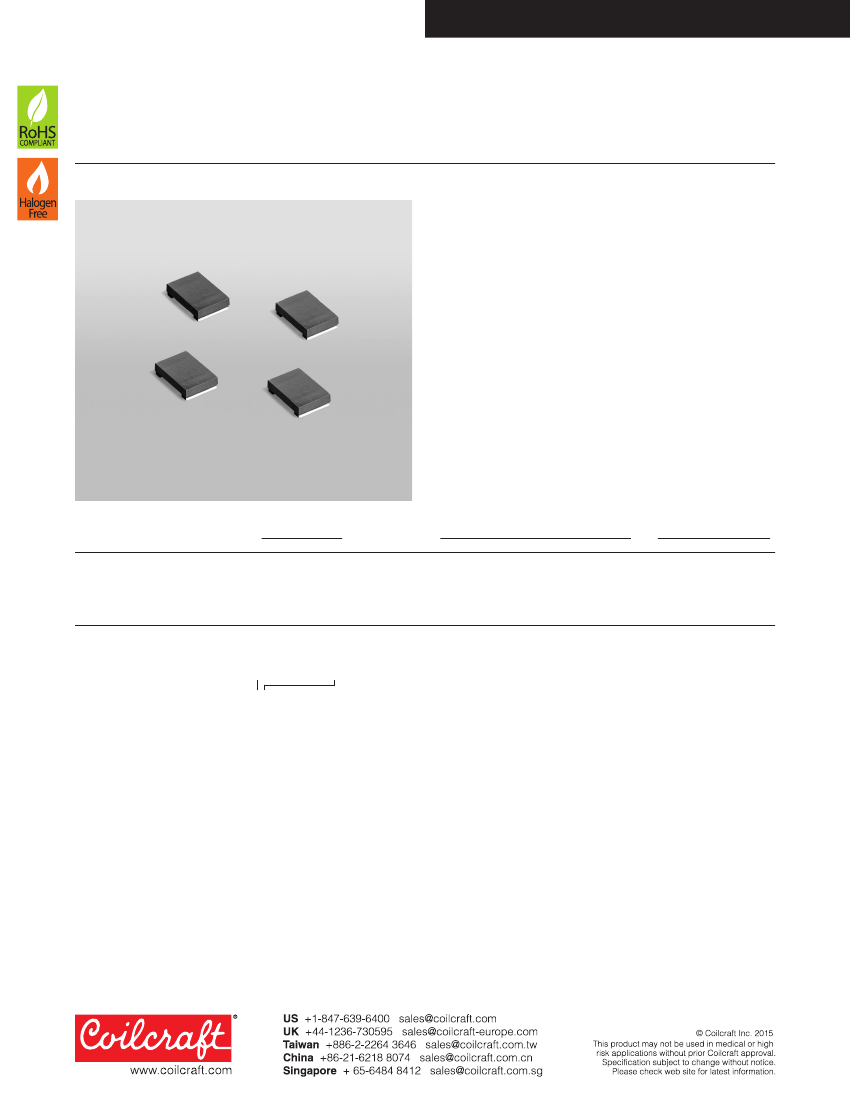

Shielded Power Inductors – PFL4514
• Low cost, low profile miniature power inductor
• Only 1.4 mm high; requires a mere 16 mm
2
of board space
• Provides current handling of much larger inductors; up to 4.2 A.
Core material
Composite
Core and winding loss
See
www.coilcraft.com/coreloss
Environmental
RoHS compliant, halogen free
Terminations
RoHS compliant matte tin over nickel over silver-
platinum-glass frit. Other terminations available at additional cost.
Weight
73.5 mg
Ambient temperature
–40°C to +85°C with (40°C rise)
Irms
current.
Maximum part temperature
+125°C (ambient + temp rise).
Derating.
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
1000/7″ reel; 5000/13″ reel. Plastic tape: 12 mm wide,
0.21 mm thick, 8 mm pocket spacing, 1.65 mm pocket depth
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
Part number
1
PFL4514-102ME_
PFL4514-222ME_
PFL4514-472ME_
PFL4514-682ME_
PFL4514-103ME_
PFL4514-153ME_
PFL4514-223ME_
Inductance
2
±20% (µH)
1.0
2.2
4.7
6.8
10
15
22
DCR (mOhms)
3
typ
max
80
115
220
400
680
1140
2330
96
135
260
480
800
1350
2750
SRF typ
4
(MHz)
300
240
180
170
140
110
75
10% drop
2.8
1.8
1.4
1.1
0.97
0.77
0.59
Isat
(A)
5
20% drop
3.8
2.6
1.9
1.5
1.2
0.99
0.74
30% drop
4.2
3.0
2.1
1.7
1.4
1.1
0.79
Irms
(A)
6
20°C rise 40°C rise
1.5
1.2
0.89
0.86
0.49
0.44
0.31
2.0
1.5
1.2
1.2
0.67
0.58
0.41
1. When ordering, please specify
termination
and
packaging
codes:
PFL4514-223MEC
Termination: E
= RoHS compliant matte tin over nickel over silver.
Special order, added cost:
Q
= RoHS tin-silver-copper (95.5/4/0.5) or
P
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic tape (1000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (5000 parts per full reel).
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
3. DCR measured using a micro-ohmmeter.
4. SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture.
5. DC current at 25°C that causes the specified inductance drop from its value without current.
Click for temperature derating information.
6. Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum
ratings.
Click for temperature derating information.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

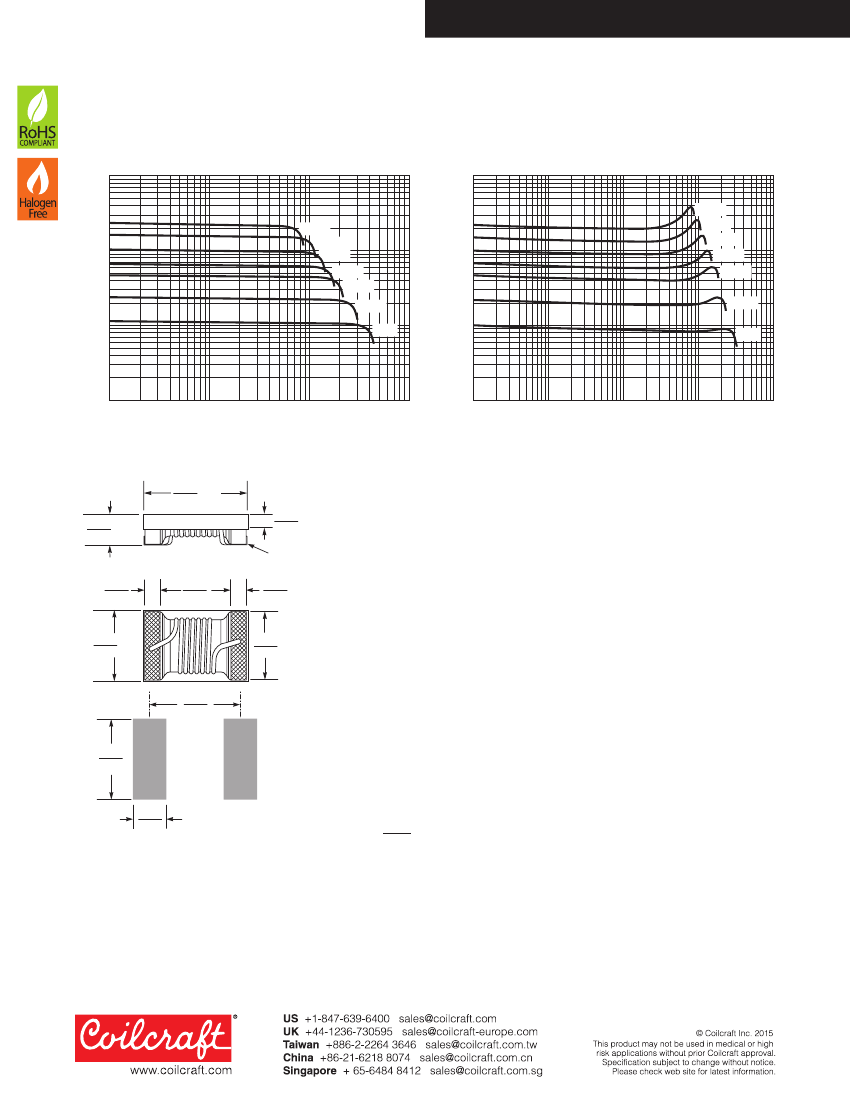

Document 849-1
Revised 09/13/15
