DF3 Series
■Features
Correspond to Board Design in Wide Variation
●ID
Socket
(1) Low profile design with the mounting height of 6.8mm
(2) Achieves the multi-harness by the full automatic ID machine in combination with the DF11 series ID
type.
(DF11 series represents the 2mm pitch single-row product.Please refer to page A266 to A277.)
●Crimp
Socket
(1) Low profile design with mounting height 7.5mm.
(Please refer to the application pattern figure on page A256 for details.)
(2) Provide the contact crimping area with the sufficient space, and secures the stable crimping
operation.
●Receptacle
(1) The board can be connected horizontally or vertically in combination with the straight header with the
right angle header.
(2) For horizontal connection, the board to board size is the low profile of 6.6mm.
(Please refer to the application pattern on page A256 for details.)
(3) Compatibility with the in-line plug allows the receptacle to set the board side to the receptacle and
the cable side to the plug in the board to cable connection.
●Pin
Header
(1) The board pre-fixed kink is treated with the post pin.
(2) The style employs a scoop-proof and sturborn box type.
(3) The type corresponding to SMT is avilable, using the heat-proof resin.
This SMT header is equipped with the metal tab to prevent peeling in the solder joint area.
●In-line
Plug
(1) The crimping in-line plug consits of two types, one type, which has pursued after space merits, and
the other employs the panel lock type, which can be fixed to the panel.
(2) The in-line adapter is available to insert and in-line the ID socket from both sides.
■Applications
Business equipment such as copy machine and printer
A254
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
■Product
Specifications
AWG 22 to 24:3A
Current rating
Rating
Note 1
IDC
Voltage rating AC100V Crimping
Wire size
Press-fit: 250V AC
IDC
Crimping
Wire size
AWG 26
AWG 28
:2A
:1A
Operating Temperature Range -30ç
to +85ç Note 2.
Operating Humidity Range
40% to 80%
AWG 26, 28:1A
Press-connect: 100V AC
Storage Temperature Range
-10ç to +60ç Note 3.
Storagg Humidity Range
40% to 70%
UL-CSA Safety Standard and Approved specification
Rated Current
Rating
Rated Voltage
Wire size
30V AC
AWG 24 to 28: 1A
■UL
CSA Safety Standard File No.
UL
:E52653
CSA
:LR95109
■UL
CSA Acquisition Objective Item
1DF3-*S-2C
2DF3/3A-*P-2DSA/DS
3DF3/DF3AA-*EP-2C
4DF3-*S-2R26/28
5DF3-*P-2H
Condition
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
5. Vibration
7. Temperature Cycle
1000M
ohms
min.
Specification
500V DC
650V AC/1 minute
100mA
No flashover or insulation breakdown.
30m
ohms
max
4. Single Insertor/Extraction Force MIN0.3N (30gf), MAX4.4N(450gf)
Measure by the square steel pin with 0.5±0.002mm
No electrical discontinuity of 1μs or more
Contact resistance: 30m
ohms
max.:Insulation resistance: 1000M
ohms
min.
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-55ç: 30 minutes 5 to 35ç: 10 minutes 85ç: 30 minutes 5 to 35ç: 10minutes) 5 cycles
No deformation of components affecting performance.
Flow: 250ç for 10 seconds Manual soldering: 300ç for 2 seconds
Reflow: At the recommended temperature profile Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
■Material
Product
Crimping Socket
IDC Contact for Socket
ID Socket
Receptacle
Pin Header
Part
Insulator
Contact
Insulator
Contact
Insulator
Contact
Insulator
Contact
Insulator
SMT Pin Header
In-line Plug
In-line IDC Contact
In-line Adapter
Contact
Metal tab
Insulator
Contact
Insulator
Contact
Materia
Polyamide
Phosphor bronze
Polyamide
Phosphor bronze
Polyamide
Phosphor bronze
Polyamide
Brass
Polyamide
Phosphor bronze
Brass
Polyamide
Phosphor bronze
Polyamide
Brass
Finish
Black
Tin plated or gold plated
Black
Tin plated or gold plated
Black
Tin plated or gold plated
Black
Tin plated or gold plated
Beige
Tin plated or gold plated
Tin plated
Black
Tin plated or gold plated
Black
Tin plated
Remarks
UL94V-0
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
Note:HRS's tin plating takes actions against whisker.
A255
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

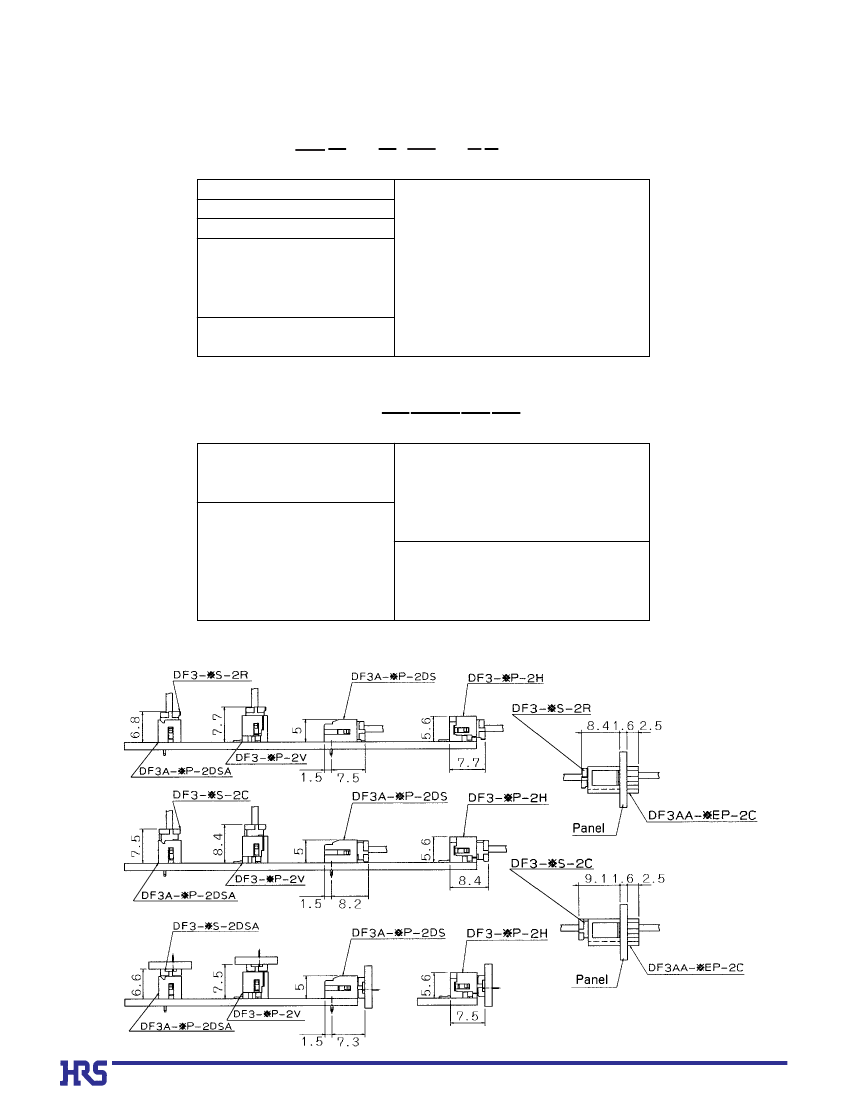

■Ordering
Information
●Connector
DF 3 -
*
S - 2C
q
q
Series Name
w
Series No.
r
Connector Type
S
P
EP
t
Contact Pitch
: Socket
: Pin Header
: In-line Plug
: 2mm
w
e
r
t y
: DF
: 3, 3A, 3AA
y
Connection Form/Contact Style
C
: Crimp socket
R26 : ID socket for AWG26
R28 : ID socket for AWG28
DSA : Straight through hole
DS : Right angle through hole
V
H
A
: Straight SMT
: Right angle SMT
: Adapter
e
Number of Contacts : 2~15
●Contact
DF3 - EP2428PCFA
q
q
Contact Type
NONE : For socket
EP
22
: For in-line plug
: AWG22
w
Applicable Wire Size
2428 : AWG24
to
28
w
e
r
e
Contact Type/Packaging Type
SCF
SC
PCF
PC
Blank
A
C
: Socket contact, Embossed tape
: Socket contact, Bag
: Plug contact, Embossed tape
: Plug contact, Bag
: Tin plated
: Gold plated
: Gold plated
r
Plating Type
■Application
pattern
A256
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

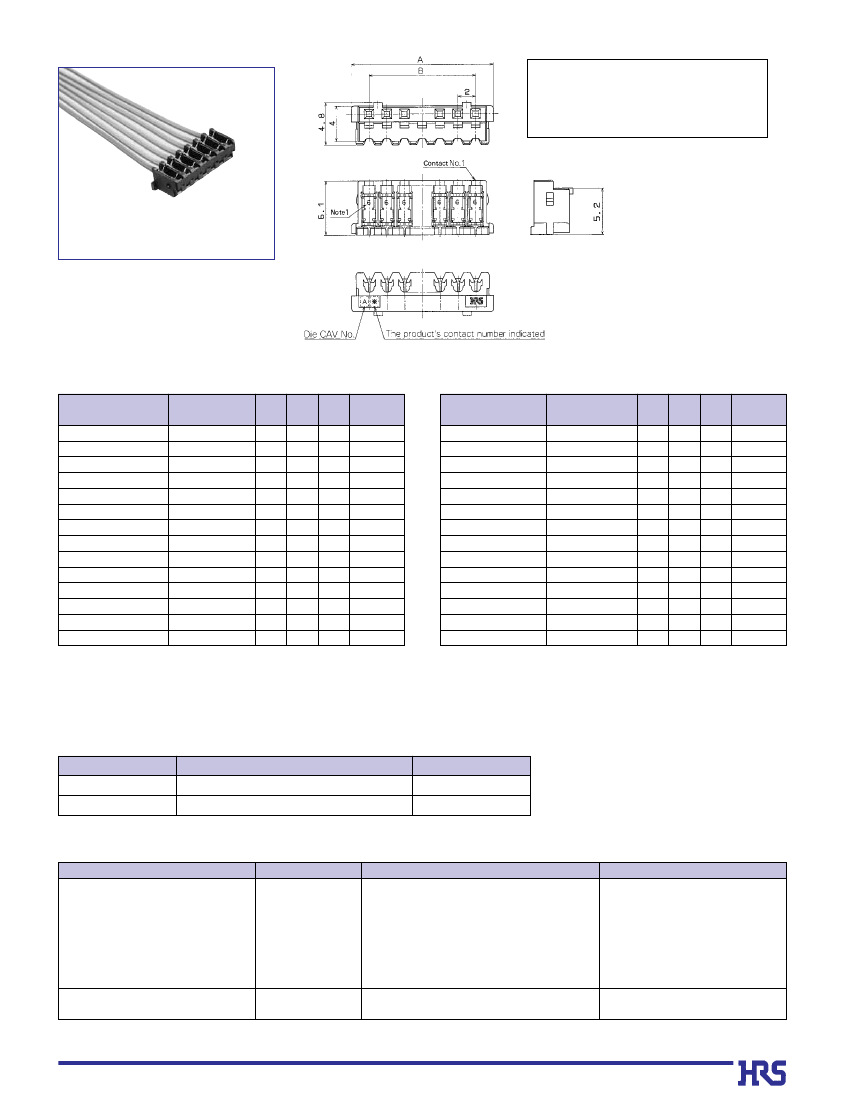

■ID
Socket
[Specific No.]
–
* *
,
(*
*)
Blank
(01)
(20)
: Tin plated, 100 pieces per bag
: Gold plated, 100 pieces per bag
: Tin plated, Tube packaging
This picture shows the cable
assembled status.
Note 1.
Mark to determine the socket name
Mark6: R26, Mark8: R28
●AWG26
●AWG28
Unit: mm
Number of
Tube packaging
Number of
A
B
A
B
Part Number
CL No.
Part Number
CL No.
Contacts
Quantity
Contacts
DF3- 2S-2R26(**)
543-0078-7-**
2
6
2 190 pieces
DF3- 2S-2R28(**)
543-0092-8-
**
2
6
2
(**)
**
DF3- 3S-2R26(**)
543-0079-0-**
3
8
4 142
543-0093-0-
3
8
4
DF3- 3S-2R28
**
)
**
DF3- 4S-2R26(**)
543-0080-9-**
4
10
6 114
DF3- 4S-2R28(
543-0094-3-
4
10
6
**
)
**
DF3- 5S-2R26(**)
543-0081-1-**
5
12
8
094
DF3- 5S-2R28(
543-0095-6-
5
12
8
DF3- 6S-2R26(**)
543-0082-4-**
6
14
10
080
DF3- 6S-2R28(
**
)
543-0096-9-
**
6
14
10
DF3- 7S-2R26(**)
543-0083-7-**
7
16
12
070
DF3- 7S-2R28(
**
)
543-0097-1-
**
7
16
12
DF3- 8S-2R26(**)
543-0084-0-**
8
18
14
062
DF3- 8S-2R28(
**
)
543-0098-4-
**
8
18
14
DF3- 9S-2R26(**)
543-0085-2-**
9
20
16
056
DF3- 9S-2R28(
**
)
543-0099-7-
**
9
20
16
DF3-10S-2R26(**)
543-0086-5-**
10
22
18
052
DF3-10S-2R28(
**
)
543-0100-4-
**
10
22
18
DF3-11S-2R26(**)
543-0087-8-**
11
24
20
046
DF3-11S-2R28(
**
)
543-0101-7-
**
11
24
20
DF3-12S-2R26(**)
543-0088-0-**
12
26
22
044
DF3-12S-2R28(
**
)
543-0102-0-
**
12
26
22
DF3-13S-2R26(**)
543-0089-3-**
13
28
24
040
DF3-13S-2R28(
**
)
543-0103-2-
**
13
28
24
DF3-14S-2R26(**)
543-0090-2-**
14
30
26
038
DF3-14S-2R28(
**
)
543-0104-5-
**
14
30
26
DF3-15S-2R26(**)
543-0091-5-**
15
32
28
034
DF3-15S-2R28(
**
)
543-0105-8-
**
15
32
28
Note 2.The quantity for delivery of the specific No. "None" and (01) is determined per bag (100pcs.). If needed, please order
productsper bag.
Note 3.If the Full automatic IDC machine to hit the DF11 single core,the (20) tube packaging specification will be applied.
Note 4.Order the tube packaging product, multiplying the tube packaging quantity (pieces).
Unit: mm
Tube packaging
Quantity
190 pieces
142
114
094
080
070
062
056
052
046
044
040
038
034
the
■Applicable
Cable
Part Number
DF3-
*
S-2R26
DF3-
*
S-2R28
Applicable Cable
UL1061 AWG26 (7/0.16)
UL1061 AWG28
(
7/0.127
)
Jacket Diameter
Ø0.9 to
1mm
Ø0.9 to
1mm
■Applicable
ID Connection Tool
Type
Part Number
Connection Type
■
Effective Harness Form
1DF11-Both
ended, single ended
2DF11-DF11,
Separation
3DF11-DF3,
Separation
■
Effective Harness Length
100 to 2,000mm
■
Conduction Inspection Mechanism Installed
DF3 No restriction
DF4 No restriction
Remarks
DF11 Single Contact Punching
Full Automatic ID Machine
AM700/DF11
Connector is the
specification (20).
Tube packaging applied
DF3 DF4 Desktop ID Machine
DF3(4)/ID-MO
Desktop machine for small lot
A257
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

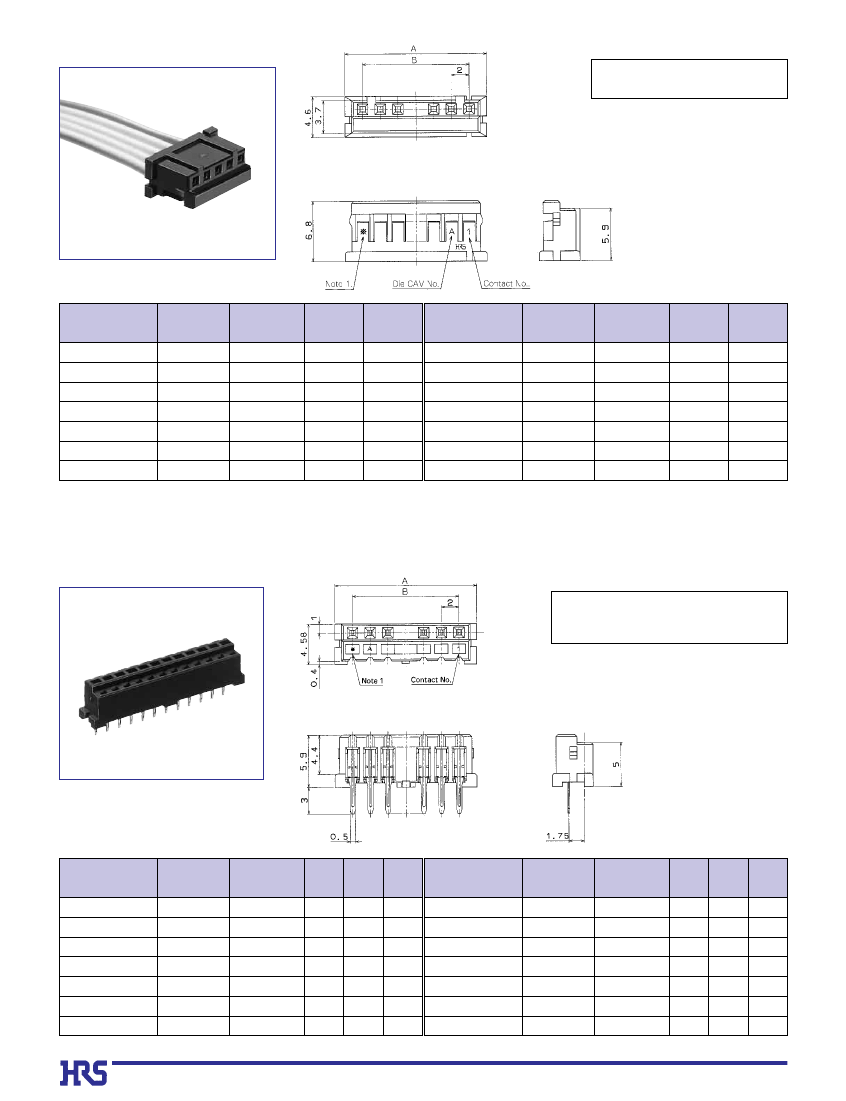

■Crimping
Socket
[Specific No.]
–
* *
,
(*
*)
Blank: 100 pieces per pack
This picture shows the Contact
crimped status.
Unit: mm
Part Number
CL No.
Number of Contacts
2
3
4
5
6
7
A
06
08
10
12
14
16
B
02
04
06
08
10
12
Part Number
CL No.
Number of Contacts
09
10
11
12
13
14
A
20
22
24
26
28
30
B
16
18
20
22
24
26
DF3-2S-2C(**) 543-0003-8-**
DF3-3S-2C(**) 543-0004-0-**
DF3-4S-2C(**) 543-0005-3-**
DF3-5S-2C(**) 543-0006-6-**
DF3-6S-2C(**) 543-0007-9-**
DF3-7S-2C(**) 543-0008-1-**
DF3-19S-2C(**) 543-0010-3-**
DF3-10S-2C(**) 543-0011-6-**
DF3-11S-2C(**) 543-0012-9-**
DF3-12S-2C(**) 543-0013-1-**
DF3-13S-2C(**) 543-0014-4-**
DF3-14S-2C(**) 543-0015-7-**
14
28
18
32
8
15
DF3-8S-2C(**) 543-0009-4-**
DF3-15S-2C(**) 543-0016-0-**
Note1: The product's contact number indicated.
Note2: The quantity for delivery of the specification No. "None" is determined per bag (100 pcs.).
If needed, please order the products per bag.
Note3: A quantity of "500 pieces package" and "1000 pieces package" for delivery is dealt with pieces. Order example: 500, 1000, and 1500 pieces...
■Receptacle
[Specific No.]
–
* *
,
(*
*)
(20) :Tin plated, Tube packaging
(50) :Gold plated, Tube packaging
Note1: The product's contact number indicated
●Board
Through-hole Diameter:
Ø0.7
+
0.1
+
0
Unit: mm
Part Number
CL No.
Number of Contacts
2
3
4
5
6
7
A
06
08
10
12
14
16
B
02
04
06
08
10
12
Tube Package
Quantity
Part Number
CL No.
Number of Contacts
09
10
11
12
13
14
15
A
20
22
24
26
28
30
32
B
16
18
20
22
24
26
28
Tube Package
Quantity
24 pieces
21
20
18
17
16
15
DF3-2S-2DSA(**) 543-0048-6-**
DF3-3S-2DSA(**) 543-0049-9-**
DF3-4S-2DSA(**) 543-0050-8-**
DF3-5S-2DSA(**) 543-0051-0-**
DF3-6S-2DSA(**) 543-0052-3-**
DF3-7S-2DSA(**) 543-0053-6-**
80 pieces DF3- 9S-2DSA(**) 543-0055-1-**
60
48
40
34
30
DF3-10S-2DSA(**) 543-0056-4-**
DF3-11S-2DSA(**) 543-0057-7-**
DF3-12S-2DSA(
**)
543-0058-0-**
DF3-13S-2DSA(
**)
543-0059-2-**
DF3-14S-2DSA(**) 543-0060-1-**
14 27
18
8
DF3-8S-2DSA(**) 543-0054-9-**
DF3-15S-2DSA(
**)
543-0061-4-**
Note2: Please order the tube packaging at the multiplied tube packaging quantity (pieces).
Tomorrow is Thanksgiving. I almost forgot about this important holiday due to my busy work and life. I don’t post often, but I will stop today to say thank you to my family! Thank you to my friends! T...
The program burned into 430 is text.d43, right?To check the size of the program, do you use the emulator to check the start and end segments of the program?Or check the size of the text.d43 file?Or is...
[i=s] This post was last edited by long521 on 2018-6-13 10:34 [/i] When I first played with PIC, it was MPLAB 8.9, a very classic IDE. When X was released, many people still used this old version. Com...
Most readers in my country are very familiar with the 89C51 series of microcontrollers. In order to deepen the understanding of the MSP430 series of microcontrollers, we might as well compare the two....
Sailing is gaining more and more attention. How to use modern technology to assist training and improve competition results is particularly important. Considering the real-time data collection in t...[Details]
As a wireless broadband metropolitan area network standard, WiMAX technology has greater advantages than previous 3.5GHz MMDS products in terms of non-line-of-sight transmission and spectrum utiliz...[Details]
China's new energy vehicles are in a transition period from research and development to real industrial development. In 2012, with the intensive launch of new energy vehicle policy planning, the de...[Details]
System design is a complex process. It is not enough to just use ICs. There are many details to consider. This article uses a high-fidelity music playback system as an example to introduce how to s...[Details]
0 Introduction
With the development of society, people pay more and more attention to security work. Monitoring products have been used in various fields instead of being used only in importan...[Details]
The concept of state machine
State machine is an important concept in software programming. More important than this concept is its flexible application. In a clear and efficient program, ther...[Details]
With concerns about the growing energy crisis, motor efficiency has become an important and timely topic. This is because motors use 63% to 70% of the electricity produced in the United States and ...[Details]
LED lighting: Basic circuit design can be completed in as little as one day
Semiconductor manufacturers are also getting involved in the LED lighting business. The power circuit of LED req...[Details]
1. Overview
At present, an information revolution is in the ascendant around the world, led by microelectronics, computers and communication technologies, and centered on information technolog...[Details]
1 Introduction
With the improvement of people's quality of life, lamps are no longer just basic indoor lighting tools, but also a kind of practical art for architectural decoration. When ther...[Details]
Traditional
virtual instruments
consist of a data acquisition
board
based on PCI bus and
corresponding software. However, with
the rapid development of
computer
network techno...[Details]
In the "digital pressure measurement" experimental device of applied physics, the subject technical knowledge of analog circuits, digital circuits, sensors and single-chip microcomputers is used. In o...[Details]
The ARINC429 bus is one of the most commonly used communication buses between various subsystems of avionics. As the "skeleton" of modern avionics systems, once the bus system or the attached airbo...[Details]
Overview
By transmitting ultrasonic energy into the human body and receiving and processing the returning reflected signals, phased array ultrasound systems can generate images of organs and s...[Details]
People who often surf the Internet until late at night, their families always complain that turning on the big lights in the living room affects their rest, but some people don't have keyboard ligh...[Details]
Analog electronics
京公网安备 11010802033920号
EEWORLD
