5-103639-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-103639-5

5-103639-5: Description06 MTE HDR SRST LATCH .100CL; CategoryThe connector The connector; File Size252KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-103639-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-103639-5	-	-	View	Buy Now

5-103639-5 Overview

06 MTE HDR SRST LATCH .100CL

5-103639-5 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Is Samacsys	N
Other features	AMPMODU, LATCHED, POLARIZED
body width	0.275 inch
subject depth	0.535 inch
body length	0.7 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (100) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	3.892 N
Insulation resistance	400000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	103639
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
Evacuation force-minimum value	.278 N
Base Number Matches	1

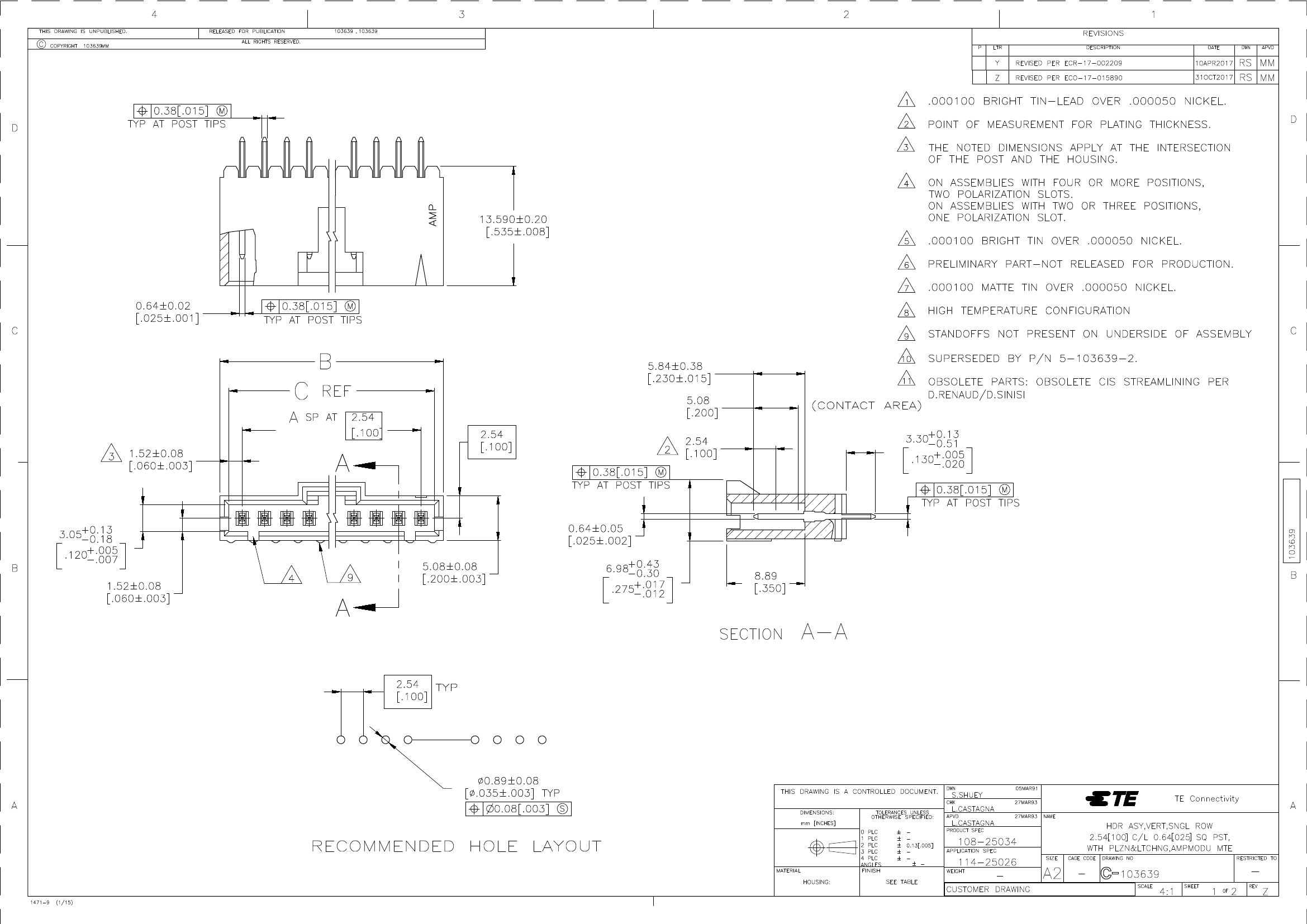

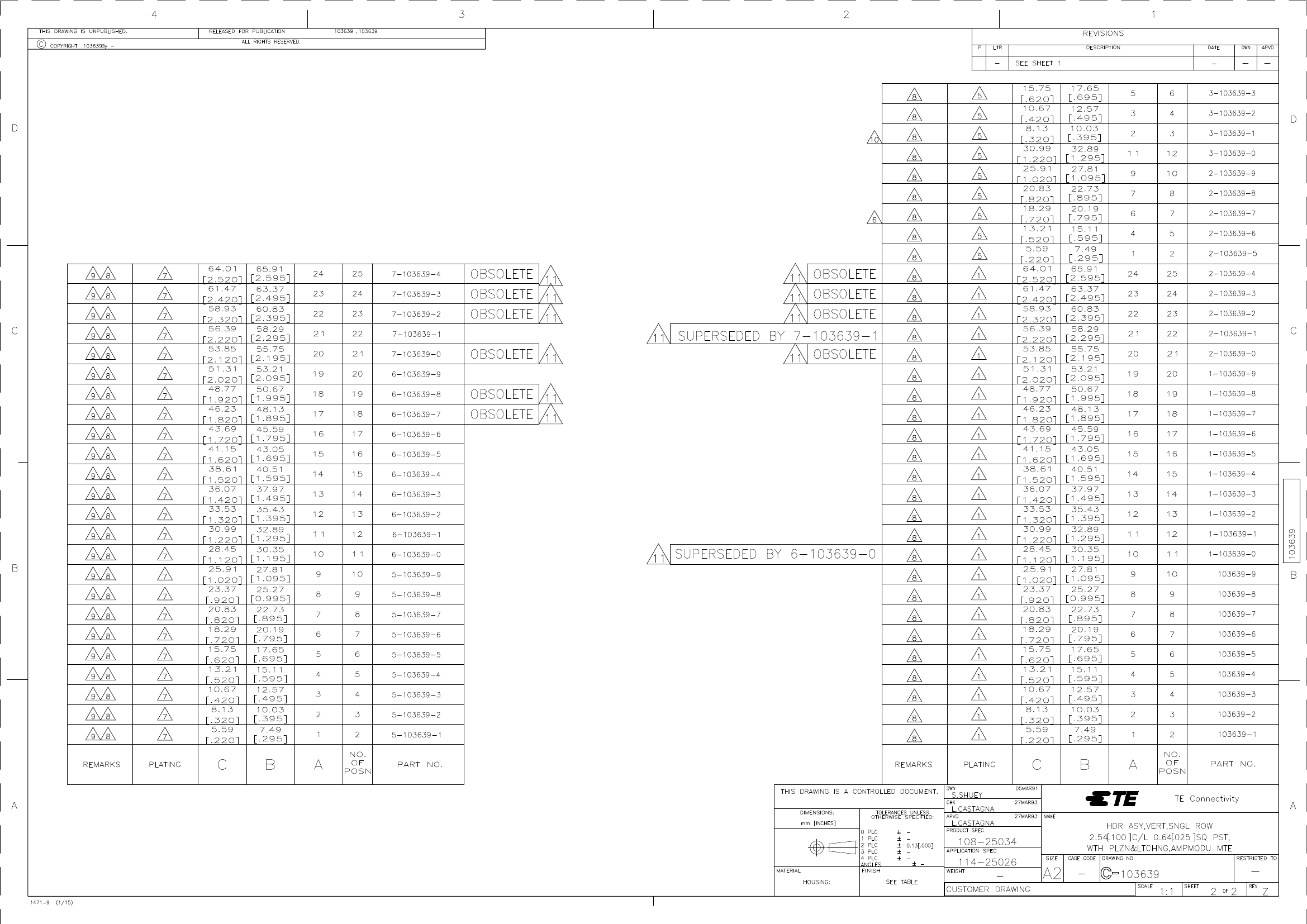

Preview

Download Datasheet

View All

5-103639-5 Related Products

	5-103639-5	5-103639-2	5-103639-1	5-103639-3
Description	06 MTE HDR SRST LATCH .100CL	03 MTE HDR SRST LATCH .100CL	Number of Pins: 2 Connector Type: Header Series: - Pitch: 0.100" (2.54mm) Contact Type: Male Pin 2 Position Header Connector Pitch 2.54mm Through Hole Tin	Number of Pins: 4 Connector Type: Header Series: - Pitch: 0.100" (2.54mm) Contact Type: Male Pin 4 Position Header Connector Pitch 2.54mm Through Hole Tin
Brand Name	AMP	AMP	AMP	AMP
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	compliant	compliant	compliant	compliant
Is Samacsys	N	N	N	N
Other features	AMPMODU, LATCHED, POLARIZED	AMPMODU, LATCHED, POLARIZED	AMPMODU, LATCHED, POLARIZED	AMPMODU, LATCHED, POLARIZED
body width	0.275 inch	0.275 inch	0.275 inch	0.275 inch
subject depth	0.535 inch	0.535 inch	0.535 inch	0.535 inch
body length	0.7 inch	0.4 inch	0.3 inch	0.5 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	15 mΩ	15 mΩ	15 mΩ	15 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	600VAC V	600VAC V	600VAC V	600VAC V
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
maximum insertion force	3.892 N	3.892 N	3.892 N	3.892 N
Insulation resistance	400000000 Ω	400000000 Ω	400000000 Ω	400000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO	NO	NO
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO	NO
Installation option 1	LATCH	LATCH	LATCH	LATCH
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1
Number of rows loaded	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	100u inch	100u inch	100u inch	100u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A	3 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.13 inch	0.13 inch	0.13 inch	0.13 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	6	3	2	4
Evacuation force-minimum value	.278 N	.278 N	.278 N	.278 N
Base Number Matches	1	1	1	1
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	-
JESD-609 code	e3	e3	e3	-
Manufacturer's serial number	103639	103639	103639	-
