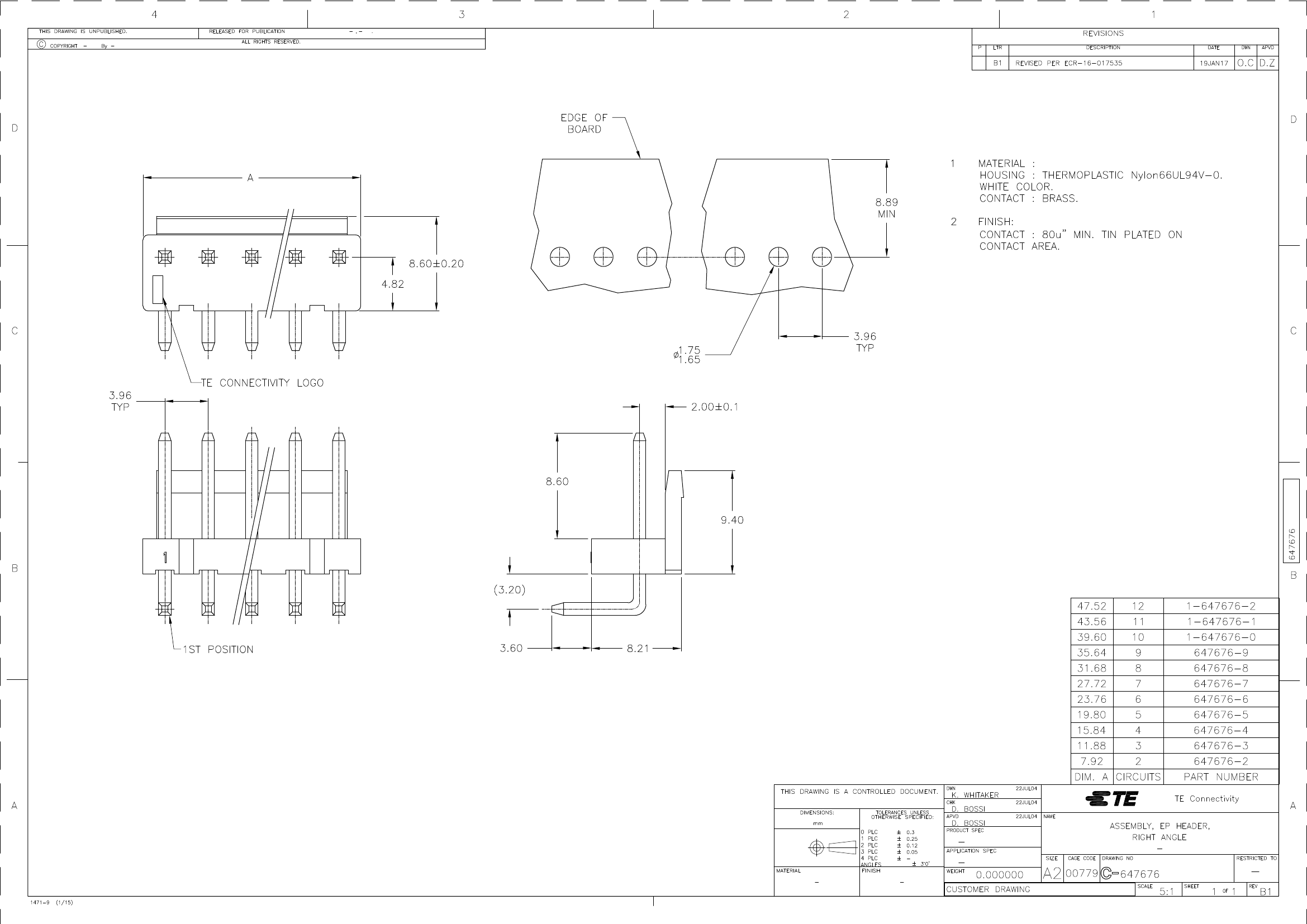

3.96 EP HDR ASSY 5P R/A
| Parameter Name | Attribute value |
| Brand Name | TE Connectivity |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| Reach Compliance Code | compliant |
| Samacsys Description | TE Connectivity EP Series, Series Number 647676, 3.96mm Pitch 5 Way 1 Row Right Angle PCB Header, Solder Termination |
| body width | 0.339 inch |
| subject depth | 0.496 inch |
| body length | 0.78 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact arrangement | S0P5 |
| Contact to complete cooperation | TIN (80) |
| Contact completed and terminated | Tin (Sn) |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1500VAC V |
| Durability | 50 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 9.7856 N |
| Insulation resistance | 500000000 Ω |
| Insulator color | WHITE |
| insulator material | NYLON |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Mixed contacts | NO |
| Installation option 2 | LATCHING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -25 °C |
| Options | GENERAL PURPOSE |
| Plating thickness | 80u inch |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.142 inch |
| Terminal pitch | 3.96 mm |
| Termination type | SOLDER |
| Total number of contacts | 5 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | 1.668 N |
| Base Number Matches | 1 |
| 647676-5 | 647676-3 | 647676-2 | 647676-4 | |
|---|---|---|---|---|
| Description | 3.96 EP HDR ASSY 5P R/A | 3.96 EP HDR ASSY 3P R/A | 3.96 EP HDR ASSY 2P R/A | Pin Count: 4 Connector Type: Head Contact Type: Male Pin Pitch: 0.156" (3.96mm) Series: - 4 Position Header Connector Pitch 3.96mm Through Hole, Right Angle Tin |
| Brand Name | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to |
| Maker | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| Samacsys Description | TE Connectivity EP Series, Series Number 647676, 3.96mm Pitch 5 Way 1 Row Right Angle PCB Header, Solder Termination | TE Connectivity EP Series, Series Number 647676, 3.96mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination | TE Connectivity EP Series, Series Number 647676, 3.96mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination | TE Connectivity EP Series, Series Number 647676, 3.96mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination |
| body width | 0.339 inch | 0.339 inch | 0.339 inch | 0.339 inch |
| subject depth | 0.496 inch | 0.496 inch | 0.496 inch | 0.496 inch |
| body length | 0.78 inch | 0.468 inch | 0.312 inch | 0.624 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact arrangement | S0P5 | S0P3 | S0P2 | S0P4 |
| Contact to complete cooperation | TIN (80) | TIN (80) | TIN (80) | TIN (80) |
| Contact completed and terminated | Tin (Sn) | Tin (Sn) | Tin (Sn) | Tin (Sn) |
| Contact point gender | MALE | MALE | MALE | MALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO |
| Dielectric withstand voltage | 1500VAC V | 1500VAC V | 1500VAC V | 1500VAC V |
| Durability | 50 Cycles | 50 Cycles | 50 Cycles | 50 Cycles |
| Filter function | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO |
| maximum insertion force | 9.7856 N | 9.7856 N | 9.7856 N | 9.7856 N |
| Insulation resistance | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω |
| Insulator color | WHITE | WHITE | WHITE | WHITE |
| insulator material | NYLON | NYLON | NYLON | NYLON |
| JESD-609 code | e3 | e3 | e3 | e3 |
| MIL compliance | NO | NO | NO | NO |
| Mixed contacts | NO | NO | NO | NO |
| Installation option 2 | LATCHING | LATCHING | LATCHING | LATCHING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE |
| Number of rows loaded | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -25 °C | -25 °C | -25 °C | -25 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Plating thickness | 80u inch | 80u inch | 80u inch | 80u inch |
| Guideline | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.142 inch | 0.142 inch | 0.142 inch | 0.142 inch |
| Terminal pitch | 3.96 mm | 3.96 mm | 3.96 mm | 3.96 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 5 | 3 | 2 | 4 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Evacuation force-minimum value | 1.668 N | 1.668 N | 1.668 N | 1.668 N |
| ECCN code | - | EAR99 | EAR99 | EAR99 |
