Part Number

Search

1586840-3

Description
VAL-U-LOK PIN 16AWG PHBZ SN LP
CategoryThe connector
File Size75KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance

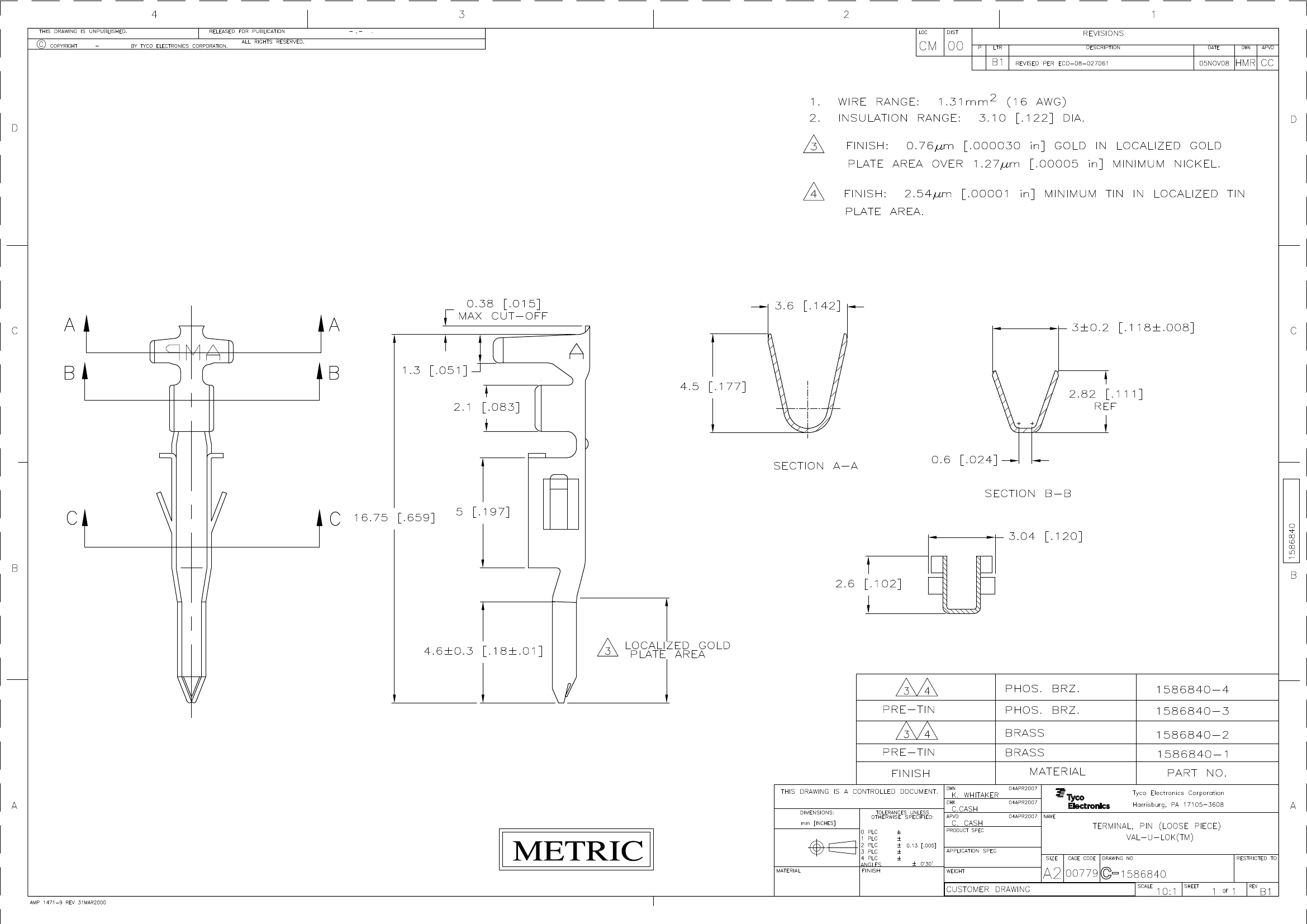

Download Datasheet Parametric Compare View All

1586840-3 Online Shopping

Suppliers Part Number Price MOQ In stock
1586840-3 - - View Buy Now

1586840-3 Overview

VAL-U-LOK PIN 16AWG PHBZ SN LP

1586840-3 Parametric

Parameter NameAttribute value
Connector Systemline to line
Cable typeSeparate conductor
Connectors and terminals terminate toWires and cables
Glow Wire RatingsStandard Parts - Non-Glow Wire
Operating voltage (VAC)600
Terminal typePin
Terminal contact plating materialPre-tin plating
Terminal termination area plating materialtin
Terminal classificationSignal
Terminal base materialPhosphor bronze
Contact Current Rating (Max) (A)9
Terminal contact plating thickness2.54 µm [ 100 µin ]
Terminal designFormed pins
Cable termination methodcrimp
Terminal positioning forcewith
Terminal retention typelock gun
Connector mounting typeCable installation
Cable size1.31 – 1.46 mm², 16 AWG
Acceptable wire insulation diameter range1.8 – 3.1 mm [ .071 – .12 in ]
Working group temperature range-40 – 105 °C [ -40 – 221 °F ]
Circuit ApplicationSignal
UL ratingRecognized
UL file numberE28476
CSA file number208567
Agencies/StandardsCSA, UL
Encapsulation methodbag

1586840-3 Related Products

1586840-3 1586840-4 1586840-1 1586840-2
Description VAL-U-LOK PIN 16AWG PHBZ SN LP VAL-U-LOK PIN 16AWG PHBZ AU LP VAL-U-LOK PIN 16AWG BR SN LP VAL-U-LOK PIN 16AWG BR AU LP
Connector System line to line line to line line to line line to line
Cable type Separate conductor Separate conductor Separate conductor Separate conductor
Connectors and terminals terminate to Wires and cables Wires and cables Wires and cables Wires and cables
Glow Wire Ratings Standard Parts - Non-Glow Wire Standard Parts - Non-Glow Wire Standard Parts - Non-Glow Wire Standard Parts - Non-Glow Wire
Operating voltage (VAC) 600 600 600 600
Terminal type Pin Pin Pin Pin
Terminal contact plating material Pre-tin plating gold Pre-tin plating gold
Terminal termination area plating material tin gold tin gold
Terminal classification Signal Signal Signal Signal
Terminal base material Phosphor bronze Phosphor bronze brass brass
Contact Current Rating (Max) (A) 9 9 9 9
Terminal contact plating thickness 2.54 µm [ 100 µin ] .76 µm [ 29.92 µin ] 2.54 µm [ 100 µin ] .76 µm [ 29.92 µin ]
Terminal design Formed pins Formed pins Formed pins Formed pins
Cable termination method crimp crimp crimp crimp
Terminal positioning force with with with with
Terminal retention type lock gun lock gun lock gun lock gun
Connector mounting type Cable installation Cable installation Cable installation Cable installation
Cable size 1.31 – 1.46 mm², 16 AWG 1.31 – 1.46 mm², 16 AWG 1.31 – 1.46 mm², 16 AWG 1.31 – 1.46 mm², 16 AWG
Acceptable wire insulation diameter range 1.8 – 3.1 mm [ .071 – .12 in ] 1.8 – 3.1 mm [ .071 – .12 in ] 1.8 mm [ .071 – .12 in ] 1.8 – 3.1 mm [ .071 – .12 in ]
Working group temperature range -40 – 105 °C [ -40 – 221 °F ] -40 – 105 °C [ -40 – 221 °F ] -40 – 105 °C [ -40 – 221 °F ] -40 – 105 °C [ -40 – 221 °F ]
Circuit Application Signal Signal Signal Signal
UL rating Recognized Recognized Recognized Recognized
UL file number E28476 E28476 E28476 E28476
CSA file number 208567 208567 208567 208567
Agencies/Standards CSA, UL CSA, UL CSA, UL CSA, UL
Encapsulation method bag scattered parts bag bag
