SF3030B428M00T04MB00 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> SF3030B428M00T04MB00

SF3030B428M00T04MB00: DescriptionSAW Filter, 6 Pin(s), Ceramic; CategoryAnalog mixed-signal IC filter; File Size180KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric View All

SF3030B428M00T04MB00 Overview

SAW Filter, 6 Pin(s), Ceramic

SF3030B428M00T04MB00 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	Yes
Is Samacsys	N
Objectid	1244223870
Reach Compliance Code	Unknown
Country Of Origin	Japan
filter type	SAW FILTER
Installation type	SURFACE MOUNT
Number of terminals	6
Packaging Materials	CERAMIC
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C

Preview

Download Datasheet

View All

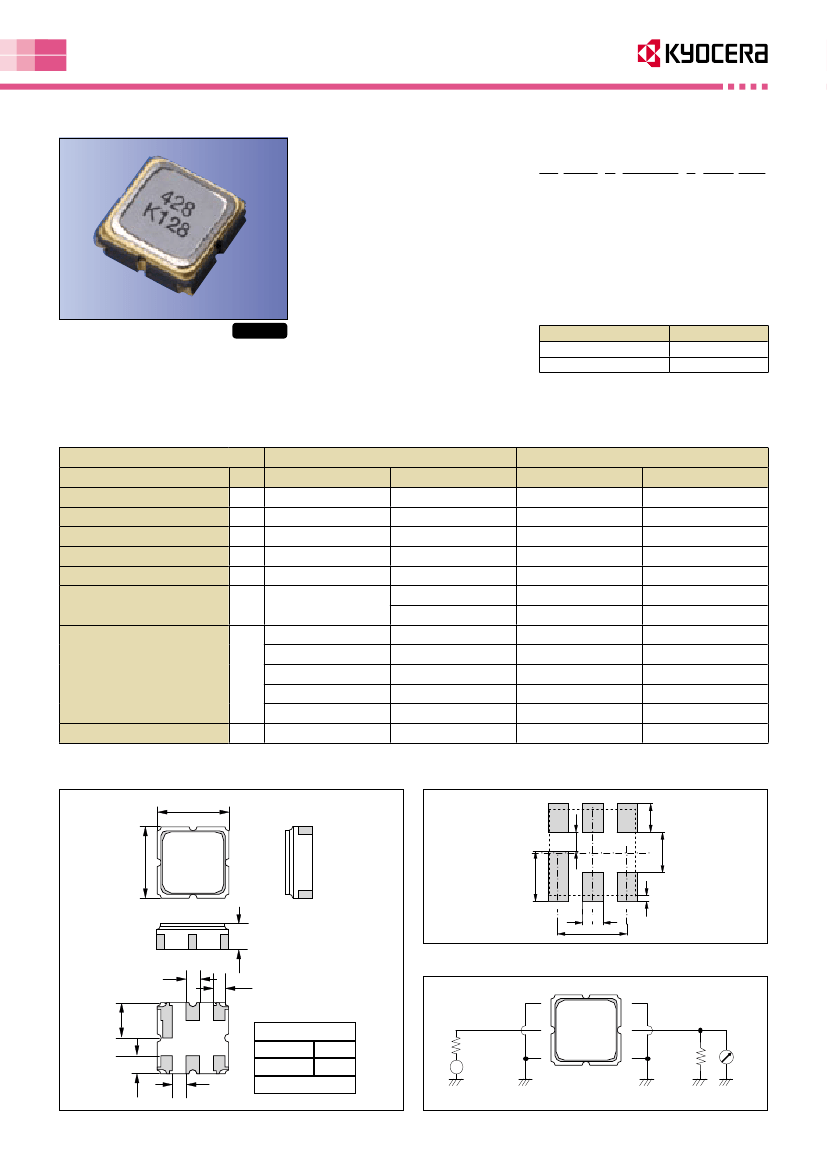

Surface Acoustic Wave (SAW) Filters

400MHz Band SAW Filters for Low Power Radio Communications

SF3030B428M00T04MA00/ SF3030B428M00T04MB00

Features

• RF filter for transmitter and receiver

• For low power radio communications

• Miniature size and light weight

How to Order

SF 3030 B 428M00 T 04M A00

①

②

③

④

⑤ ⑥

⑦

①

Type of Product (SAW Filter)

②

Package Size (3.0×3.0mm)

③

Sealing Type (Seam Weld Type)

④

Nominal Frequency (428.00MHz)

⑤

Material (LiTaO

)

⑥

Pass Bandwidth (4MHz)

⑦

Customer Special Model Suffix (STD)

New Part Number

Old Part Number

SF3030B428M00T04MA00 TSFB58-428-004M0

—

SF3030B428M00T04MB00

Packaging (Tape & Reel 1000 pcs./ reel)

Standard Frequency

• 428.00MHz

RoHS Compliant

Specifications

Type

Item

Nominal Frequency (fo)

Operating Temperature Range

Storage Temperature Range

Passband Width

Passband Ripple

Insertion loss

Unit

MHz

°C

MHz

SF3030B428M00T04MA00

Condition

—

SF3030B428M00T04MB00

Condition

—

Specifications

428.000

-40

+85

-40

+85

fo±2 min.

1.5 max.

3.0 max. (-40 to

+85°C)

50 min.

—

Specifications

428.000

-40

+85

-40

+85

—

3dB Band

fo±2MHz

fo±2MHz Maximum Loss

383 to 389MHz

—

fo±2MHz

—

1.0 max.

1.5 max.

—

2.8 max. (-20 to

+70°C)

fo±2MHz Maximum Loss

70MHz

140MHz

210MHz

856MHz

1284MHz

—

45 min.

37 min.

33 min.

24 min.

20 min.

50 typ.

Attenuation

(from through leve)

—

Terminating Impedance

—

50 typ.

Dimensions

3.0±0.1

(Unit: mm)

Recommended Land Pattern

1.00

(Unit: mm)

SF3030B428M00T04MA00

3.0±0.1

1.2 max.

0.7

1.20×2

0.6

1.5

Test Circuit

0.5

0.75

0.6

Single

Input

Output

others Ground

：

50Ω

∼

Volt meter

Connection

SSG

0.20

K128

428

0.65

1.75

1.40

K128

428
