CIRCUIT BREAKER
A-Series
Well known for their proven reliability, Carling Technologies’ A-Series hydraulic magnetic circuit breakers are
compact, temperature stable and designed for precision operation in OEM markets requiring general purpose
as well as full load amp applications. When front panel operation and aesthetics demand a clean, contemporary
design, the visi-rocker or paddle actuators are ideally suitable. A sealed toggle actuator style is also available and
ideal for harsh environment applications requiring additional sealing protection. Optional rocker-guard and push-
to-reset bezels, which help prevent inadvertent actuation, are also available.
1-6 poles; ratings from 0.02 to 50 amps, up to 277VAC or 80VDC; UL Recognized, UL Listed, UL1500, UL1077,
TUV, VDE & CSA
A-Series
Resources:
Configure a Complete Part
Download CAD & Sales Drawing
Product Highlights:
• Up to 50 amps in a compact size
• Various actuator styles
• Sealed metal toggle option tested to
MIL-PRF-55629C. Meets IP68
Requirements
Typical Applications:
• Telecom / Datacom
• Marine
• Military
• Renewable Energy
• Generators & Welder
Carling Technologies, Inc.
60 Johnson Avenue, Plainville, CT
06062
Email:
sales
@
carlingtech.com
Application Support:
team2
@
carlingtech.com
Phone:
860.793.9281
Fax:
860.793.9231
www.carlingtech.com
2 |
A-Series Circuit Breaker – General Specifications
277VAC 50/60 Hz, 80VDC
Standard current coils: 0.100,
0.250, 0.500, 0.750, 1.00, 2.50,
5.00, 7.50, 10.0, 15.0, 20.0, 25.0,
30.0, 35.0, 40.0, 50.0. Other ratings
available - consult ordering
scheme.
Standard Voltage Coils DC-6V, 12V; AC-120V, Other ratings
available, consult ordering scheme.
Auxiliary Switch Rating SPDT; 10.1 A - 250VAC,
1.0 A-65VDC/0.5 A - 80 VDC,
0.1A - 125VAC (with gold contacts).
Insulation Resistance
Minimum: 100 Megohms at 500
VDC
Dielectric Strength
UL, CSA - 1500V 60 Hz for one
minute between all electrically
isolated terminals. A-Series rocker
circuit breakers comply with the
8mm spacing & 3750V dielectric
requirements from hazardous
voltage to operator accessible
surfaces per EN 60950 and VDE
0805.
Resistance, Impedance Values from Line to Load Terminal
- based on Series Trip Circuit
Breaker.

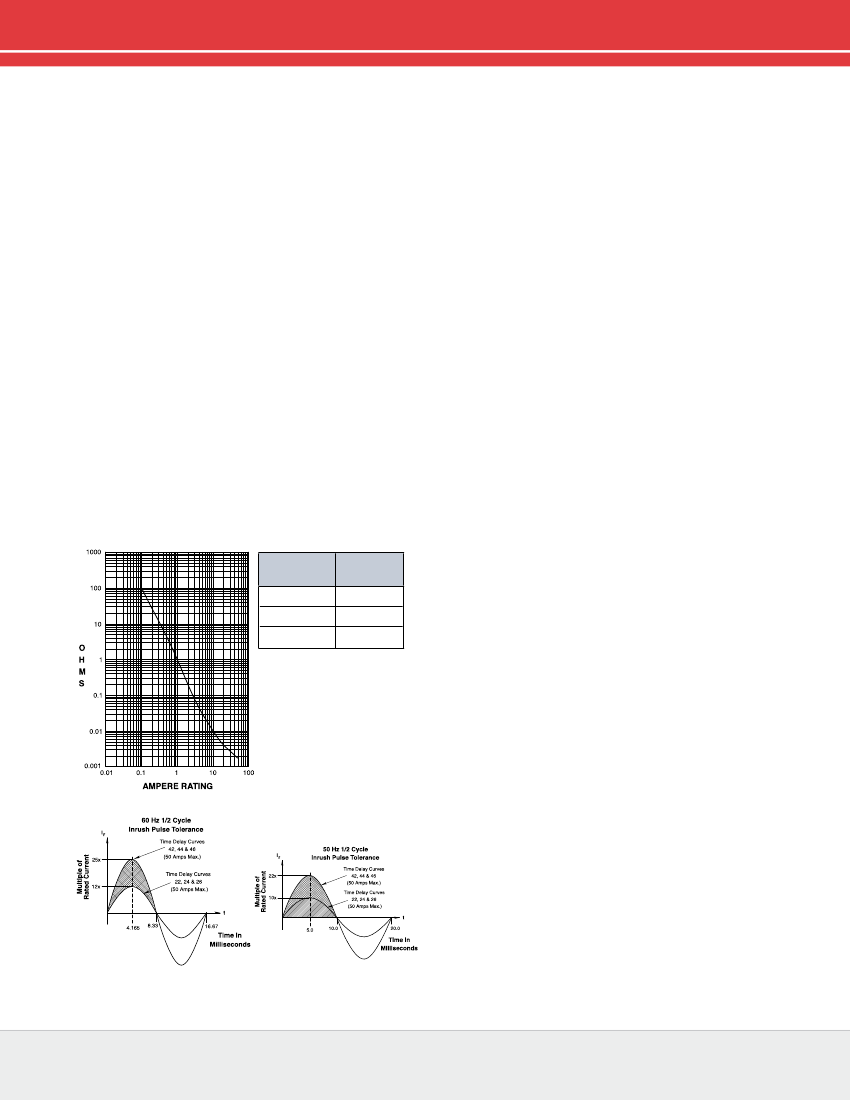

RESISTANCE PER POLE VALUES
from Line to Load Terminals
(Values Based on Series Trip Circuit Breaker)
Maximum Voltage
Current Ratings
Electrical
Endurance
Trip Free
Mechanical
Trip Indication
10,000 ON-OFF operations @ 6 per
minute; with rated Current & Voltage.
All A-Series Circuit Breakers will trip
on overload, even when the actuator
is forcibly held in the ON position.
The operating actuator moves
positively to the OFF position when
an overload causes the circuit
breaker to trip. When mid-trip
handle is specified, the handle
moves to the mid position on
electrical trip of the circuit breaker.
When mid-trip handle with alarm
switch is specified, the handle
moves to the mid position & the
alarm switch actuates when the
circuit breaker is electrically tripped.
Number of Poles
CURRENT
(AMPS)
TOLERANCE
(%)
1 - 6 Poles (handle) and 1-3 poles
(rocker) at 30 Amps or less. 1 and 2
poles at 31 Amps thru 50 Amps.
Internal Circuit Config. Series, (with or without auxiliary
switch), Shunt and Relay with current
or voltage trip coils, Dual Coil,
Switch Only with or without auxiliary
switch.
Weight
Approximately 65 grams/pole.
(Approximately 2.32 ounces/pole)
Standard Colors
Housing - Black; Actuator- See
Ordering Scheme.
Designed and tested in accordance with requirements of
specification MIL-PRF-55629 & MIL-STD-202 as follows:
Shock
Withstands 100 Gs, 6ms, sawtooth
while carrying rated current per
Method 213, Test Condition “I”.
Instantaneous and ultra-short curves
tested @ 90% of rated current.
Vibration
Withstands 0.060” excursion from
10-55 Hz, and 10 Gs 55-500 Hz,
at rated current per Method 204C,
Test Condition A. Instantaneous and
ultrashort curves tested at 90% of
rated current.
Moisture Resistance
Method 106D; ten 24-hour cycles @
+ 25°C to +65°C, 80-98% RH.56
days @ +85°C, 85% RH.
Salt Spray
Method 101, Condition A (90-95%
RH @ 5% NaCl Solution, 96 hrs).
Thermal Shock
Method 107D, Condition A (Five
cycles @ -55°C to +25°C to +85°C to
+25°C).
Operating Temperature -40° C to +85° C
Physical
0.10 - 5.0
5.1 - 20.0
20.1 - 50.0
15
25
35
Environmental
Pulse Tolerance Curves
*Manufacturer reserves the right to change product specification without prior notice.
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com
5 |
A-Series Circuit Breaker – General Specifications

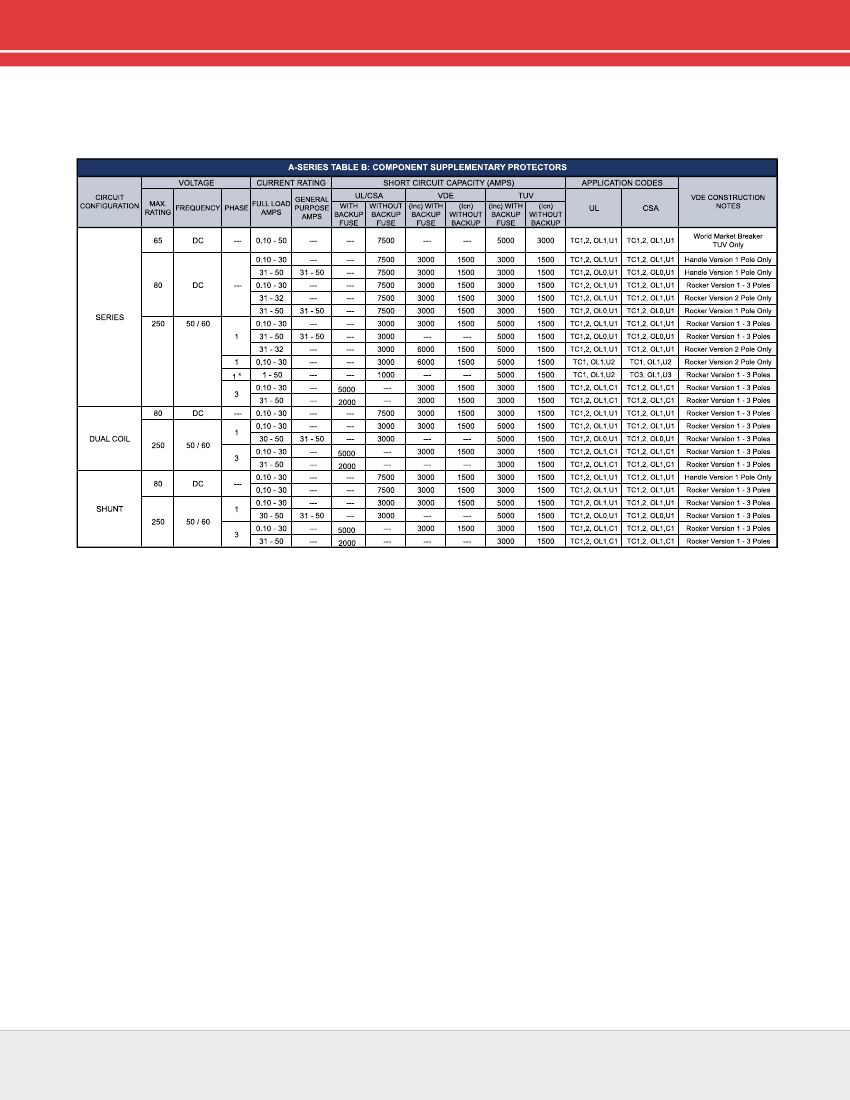

Table C:
Lists UL Recognized, CSA Accepted configurations and performance capabilities as Protectors, Supplementary for Marine
Electrical and Fuel Systems (Guide PEQZ2, File E75596). Ignition Protected per UL 1500. UL Classified Small Craft Electrical Devices,
Marine in accordance with ISO 8846 (Guide UZMK, File MQ1515) as Marine Supplementary Protectors.
A-SERIES TABLE C: UL1500 (Marine Ignition Protected)
CIRCUIT
CONFIGURATION
Electrical Tables
VOLTAGE
MAX. RATING
FREQUENCY
PHASE
CURRENT
RATING
FULL LOAD AMPS
SHORT CIRCUIT
CAPACITY (AMPS)
WITHOUT BACKUP
FUSE
APPLICATION CODES
UL
CSA
SERIES
14
1
32
1
65
125
125 / 250
250
DC
DC
DC
50 / 60
50 / 60
50 / 60
---
---
---
1
1
1
2
0.02 - 50
0.02 - 50
0.02 - 50
0.02 - 50
0.02 - 50
0.02 - 30
5000
5000
3000
3000
3000
1500
TC1,OL1,U1
TC1,OL1,U2
TC1,OL1,U1
TC1,OL1,U2
TC1,OL1,U2
TC1,OL1,U1
TC1,OL1,U1
TC1,OL1,U2
TC1,OL1,U1
TC1,OL1,U2
TC1,OL1,U2
TC1,OL1,U1
Notes:
Notes:
1
Available with special catalog number only (consult factory).
2
2 pole protector required (with one per power line) for 125 / 250 VAC. 1 pole protector required for 125 VAC 1 phase power system
1 Available with Special Catalog Number Only (consult factory)
2 2 pole protector required (with one per power line) for 125 / 250 VAC. 1 pole protector required for 125 VAC 1 phase power system
Table D:
Lists UL Listed configurations and performance capabilities as Circuit Breakers for use in Communications Equipment
(Guide DITT, File E189195), under UL489A.
Notes:
1
Parallel Pole Construction
Agency Certifications
UL Recognized
UL Standard 1077
Component Recognition Program
as Protectors Supplementary
(Guide CCN/QVNU2, File E75596)
Switches, Industrial Control
(Guide CCN/NRNT2, File E148683)
Protectors, Supplementary for
Marine Electrical & Fuel Systems
(Guide PEQZ2, File E75596)
Ignition Protection
Communications Equipment
(Guide CCN/DITT, File E189195)
CSA Accepted
Component Supplementary
Protector under Class 3215 30,
File 047848 0 000 CSA
Standard C22.2 No. 235
EN60934, under License No.
R72103448
EN60934, VDE 0642 under File
No. 10537
UL Standard 508
UL Standard 1500
TUV Certified
VDE Certified
UL Listed
UL Standard 489A
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com
