1N483BPBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N483BPBF

1N483BPBF: DescriptionRectifier Diode; CategoryDiscrete semiconductor diode; File Size227KB，2 Pages; ManufacturerDigitron; Websitehttp://www.digitroncorp.com; Environmental Compliance

Download Datasheet Parametric View All

1N483BPBF Overview

Rectifier Diode

1N483BPBF Parametric

Parameter Name	Attribute value

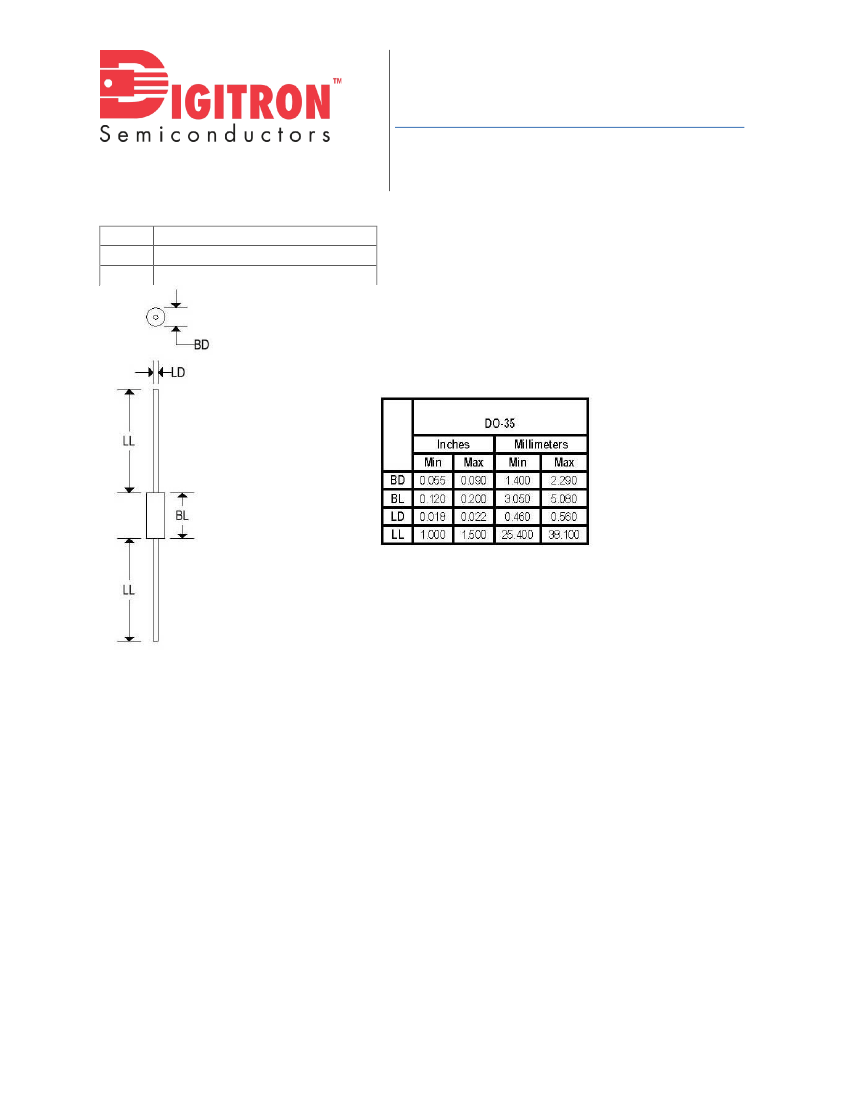

JEDEC-95 code	DO-35
JESD-30 code	O-LALF-W2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
YTEOL	5.78
Objectid	8335596927
Is it Rohs certified?	Yes
application	GENERAL PURPOSE
Maximum non-repetitive peak forward current	2 A
Phase	1
Reverse test voltage	70 V
Terminal location	AXIAL
Shell connection	ISOLATED
Number of terminals	2
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Terminal form	WIRE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
Number of components	1
Maximum output current	0.2 A
Maximum repetitive peak reverse voltage	70 V
Configuration	SINGLE
surface mount	NO
Maximum reverse current	0.025 µA

Preview

Download Datasheet

View All

High-reliability discrete products

and engineering services since 1977

FEATURES:



1N482B-1N486B

LOW LEAKAGE RECTIFIERS

Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number

Available Non-RoHS (standard) or RoHS compliant (add PBF suffix)

MAXIMUM RATINGS

Rating

Average Forward Rectified Current @ T

= 75°C

Average Forward Rectified Current @ T

= 150°C

Maximum Non-Repetitive Surge (8.3ms ½ sine)

Junction Temperature Range

Storage Temperature range

Thermal Resistance @ L = 3/8”

Symbol

FSM

stg

ϴJL

Value

200

2.0

-65 to 175

250

Unit

°C

°C/mW

ELECTRICAL CHARACTERISTICS

Reverse Voltage

Part number

Working Peak

Reverse Voltage

Volts

Maximum Forward

Voltage Drop

@ 0.1A

Maximum Leakage Current

RWM

Volts

100

180

225

@ V

RWM

25°C

150°C

µA

Volts

1.0

1N482B

1N483B

1N484B

1N485B

1N486B

110

200

250

Rev. 20121213
