2. It is particular effective with unstable grounding.
3. High frequency EMI prevention of computers ,
printers , VCRs , TVs and portable telephone.
4. The FBM□-A□□ series can be used in high
current circuits due to its low DC resistance.
It can match power line to a maximum of 10A DC.
ORDERING CODE
(1) PRODUCT TYPE CODE
FBM : Ferrite Bead Multilayer
口:
RoHS Code
(2) DESIGN CODE
Type : 11,10,09,15,HA,L11,L10
(3) SIZE CODE
See Following Table
(4) IMPEDANCE VALUE CODE
Example : 121=120Ω , 280=28Ω
(5) A口口 MEANS HIGH CURRENT RATING
Example：A10 means 1000mA
A08 means 800mA
(6) R : SPECIAL DCR CODE
(7) TAPING

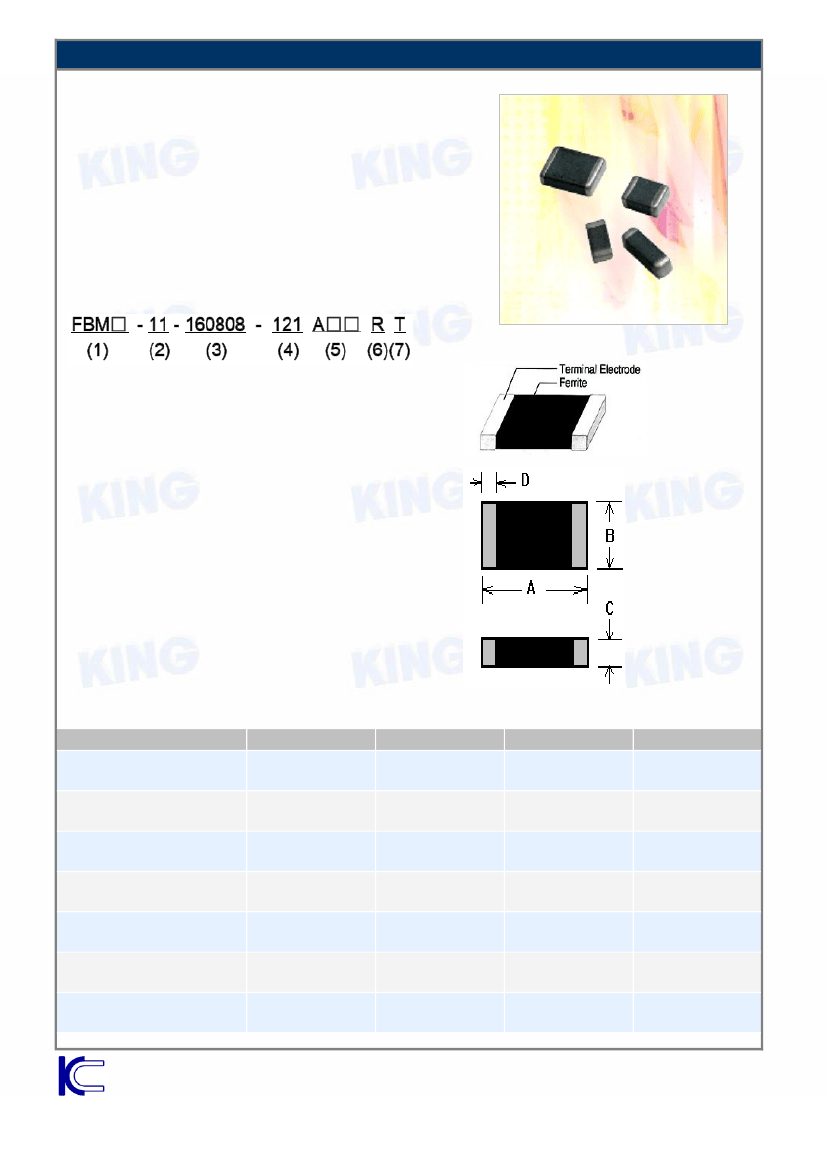

SHAPE & DIMENSIONS
SIZE CODE
FBM□-11-100505
(0402)
FBM□-11-160808
(0603)
FBM□-11-201209
(0805)
FBM□-11-321611
(1206)
FBM□-11-322513
(1210)
FBM□-11-451616
(1806)
FBM□-_ _-453215
(1812)
A
1.00±0.10
(0.040±0.004)
1.60±0.20
(0.063±0.008)
2.00±0.20
(0.079±0.008)
3.20±0.20
(0.126±0.008)
3.20±0.20
(0.126±0.008)
4.50±0.20
(0.177±0.008)
4.50±0.20
(0.177±0.008)
B
0.50±0.10
(0.020±0.004)
0.80±0.20
(0.031±0.008)
1.20±0.20
(0.047±0.008)
1.60±0.20
(0.063±0.008)
2.50±0.20
(0.098±0.008)
1.60±0.20
(0.063±0.008)
3.20±0.20
(0.126±0.008)
C
0.50±0.10
(0.020±0.004)
0.80±0.20
(0.031±0.008)
0.90±0.20
(0.035±0.008)
1.10±0.20
(0.043±0.008)
1.30±0.20
(0.051±0.008)
1.60±0.20
(0.063±0.008)
1.50±0.20
(0.059±0.008)
UNIT:mm (inch)
D
0.25±0.10
(0.010±0.004)
0.30±0.20
(0.012±0.008)
0.50±0.30
(0.020±0.012)
0.50±0.30
(0.020±0.012)
0.50±0.30
(0.020±0.012)
0.50±0.30
(0.020±0.012)
0.50±0.30
(0.020±0.012)
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
1

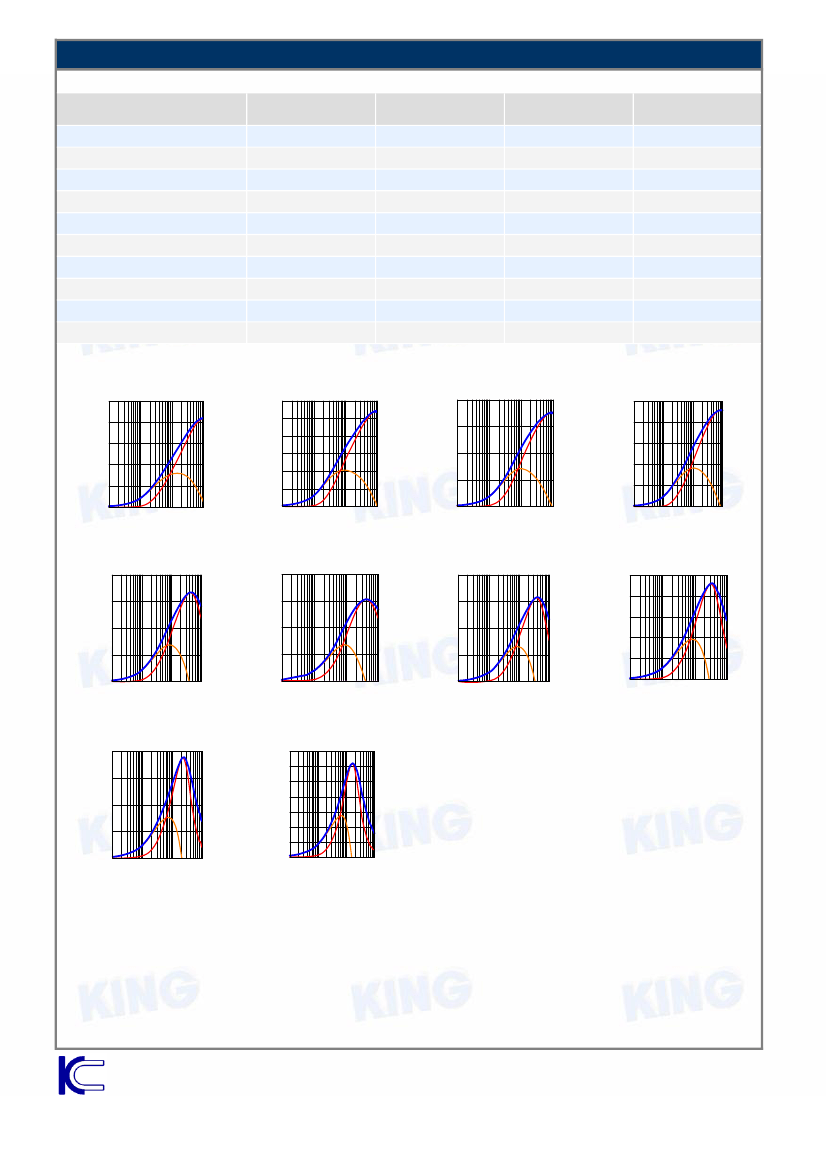

FBM-A.A07
MULTILAYER CHIP BEADS
→
FBM□-11-100505：High Current Standard Type
ELECTRICAL CHARACTERISTICS
ORDERING CODE
FBM□-11-100505-100A10T
FBM□-11-100505-300A10T
FBM□-11-100505-400A07T
FBM□-11-100505-600A10T
FBM□-11-100505-121A10T
FBM□-11-100505-121A20T
FBM□-11-100505-221A10T
FBM□-11-100505-301A02T
FBM□-11-100505-601A03T
FBM□-11-100505-102A02T
Impedance
(Ω)
10±25%
30±25%
40±25%
60±25%
120±25%
120±25%
220±25%
300±25%
600±25%
1000±25%
Test Frequency
(MHz)
100
100
100
100
100
100
100
100
100
100
DC Resistance
(Ω)max
0.200
0.200
0.200
0.200
0.200
0.100
0.200
0.600
0.500
0.800
Rated Current
(mA)max
1000
1000
700
1000
1000
2000
1000
200
300
200
FBM -11-100505-100A10T
25
20
IMPEDANCE
FBM -11-100505-300A10T
60
50
Z
FBM -11-100505-400A07T
80
60
40
20
XL
0
1
10
100
FREQ(MHZ)
1000
Z
FBM -11-100505-600A10T
100
80
IMPEDANCE
Z
60
40
20
XL
0
1
10
100 1000
FREQ(MHZ)
IMPEDANCE
IMPEDANCE
15
10
5
0
1
Z
R
40
30
20
10
R
R
R
XL
XL
10
100
FREQ(MHZ)
1000
10
100
FREQ(MHZ)
1000
0
1
FBM -11-100505-121A10T
240
IMPEDANCE
FBM -11-100505-121A20T
240
180
Z
120
60
XL
0
1
10
100
FREQ(MHZ)
1000
R
FBM -11-100505-221A10T
400
FBM -11-100505-301A02T
500
IMPEDANCE
400
300
200
100
0
1
XL
10
100
FREQ(MHZ)
1000
Z
IMPEDANCE
IMPEDANCE
180
Z
120
60
0
1
R
300
200
100
Z
R
R
XL
10
100 1000
FREQ(MHZ)
XL
0
1
10
100 1000
FREQ(MHZ)
FBM -11-100505-601A03T
800
Z
IMPEDANCE
R
IMPEDANCE
FBM -11-100505-102A02T
1400
1200
1000
800
600
400
200
0
1
XL
10
100 1000
FREQ(MHZ)
Z
R
600
400
200
XL
0
1
10
100 1000
FREQ(MHZ)
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
2

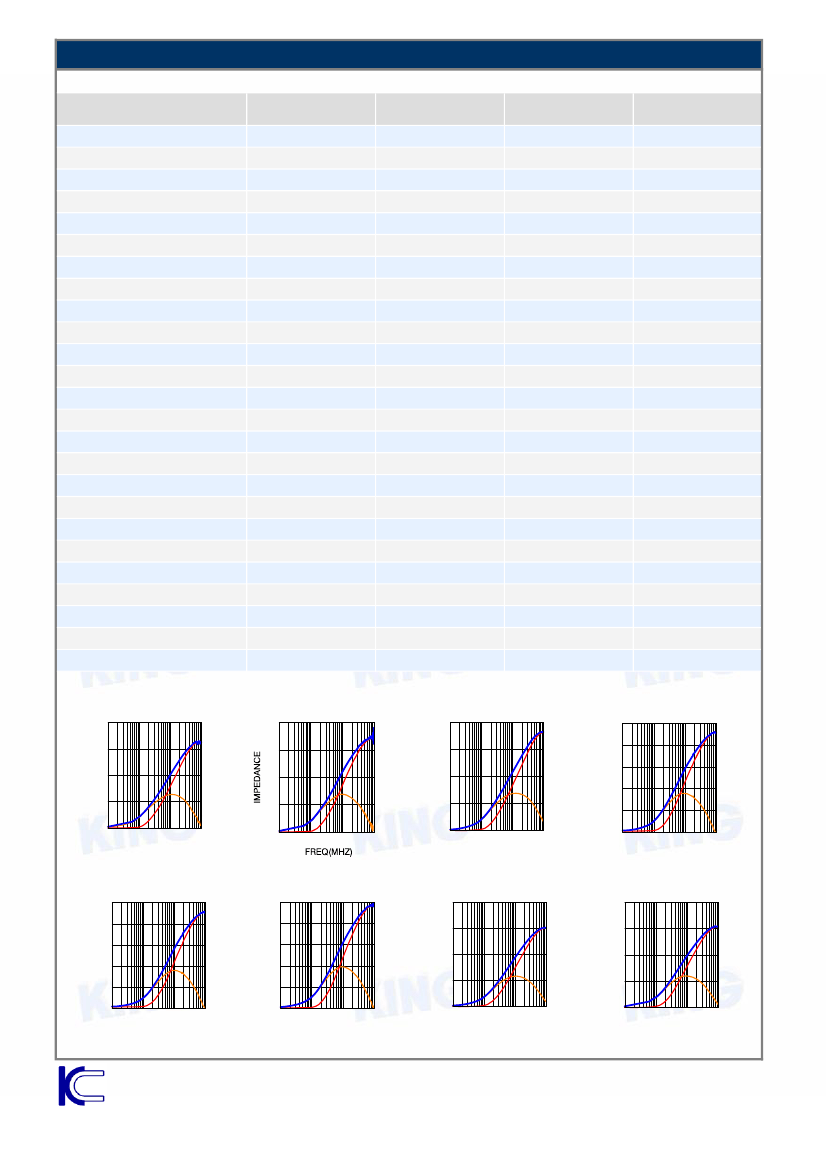

FBM-A.A07
MULTILAYER CHIP BEADS
→
FBM□-11-160808：High Current Standard Type
ELECTRICAL CHARACTERISTICS
ORDERING CODE
FBM□-11-160808-100A60T
FBM□-11-160808-110A40T
FBM□-11-160808-200A30T
FBM□-11-160808-250A30T
FBM□-11-160808-300A10T
FBM□-11-160808-300A25T
FBM□-11-160808-390A10T
FBM□-11-160808-390A40T
FBM□-11-160808-470A40T
FBM□-11-160808-500A10T
FBM□-11-160808-600A30T
FBM□-11-160808-600A40T
FBM□-11-160808-700A20T
FBM□-11-160808-101A20T
FBM□-11-160808-121A20T
FBM□-11-160808-121A30T
FBM□-11-160808-151A20T
FBM□-11-160808-181A15T
FBM□-11-160808-201A30T
FBM□-11-160808-221A15T
FBM□-11-160808-221A20T
FBM□-11-160808-301A20T
FBM□-11-160808-331A20T
FBM□-11-160808-501A10T
FBM□-11-160808-601A10T
Impedance
(Ω)
10±25%
11±25%
20±25%
25±25%
30±25%
30±25%
39±25%
39±25%
47±25%
50±25%
60±25%
60±25%
70±25%
100±25%
120±25%
120±25%
150±25%
180±25%
200±25%
220±25%
220±25%
300±25%
330±25%
500±25%
600±25%
Test Frequency
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DC Resistance
(Ω)max
0.010
0.035
0.040
0.040
0.100
0.050
0.200
0.035
0.035
0.200
0.040
0.035
0.100
0.100
0.100
0.040
0.100
0.150
0.040
0.150
0.100
0.100
0.100
0.200
0.200
Rated Current
(mA)max
6000
4000
3000
3000
1000
2500
1000
4000
2000
1000
3000
4000
2000
2000
2000
3000
2000
1500
3000
1500
2000
2000
2000
1000
1000
FBM -11-160808-100A60T
20
15
10
5
XL
0
1
10
100
FREQ(MHZ)
1000
FBM -11-160808-110A40T
20
15
FBM -11-160808-200A30T
40
30
20
10
XL
0
Z
R
FBM -11-160808-250A30T
50
40
IMPEDANCE
Z
30
20
10
0
1
XL
10
100
FREQ(MHZ)
1000
R
IMPEDANCE
Z
R
Z
10
R
5
0
1
XL
IMPEDANCE
10
100
1000
1
10
100
FREQ(MHZ)
1000
FBM -11-160808-300A10T
50
40
IMPEDANCE
FBM -11-160808-300A25T
50
40
IMPEDANCE
Z
R
FBM -11-160808-390A10T
80
60
40
20
XL
0
1
10
100
FREQ(MHZ)
1000
Z
R
FBM -11-160808-390A40T
80
60
Z
40
20
XL
0
1
10
100
FREQ(MHZ)
1000
R
IMPEDANCE
30
20
10
0
1
Z
30
20
10
XL
10
100
FREQ(MHZ)
1000
R
XL
10
100
FREQ(MHZ)
1000
0
1
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
IMPEDANCE
3

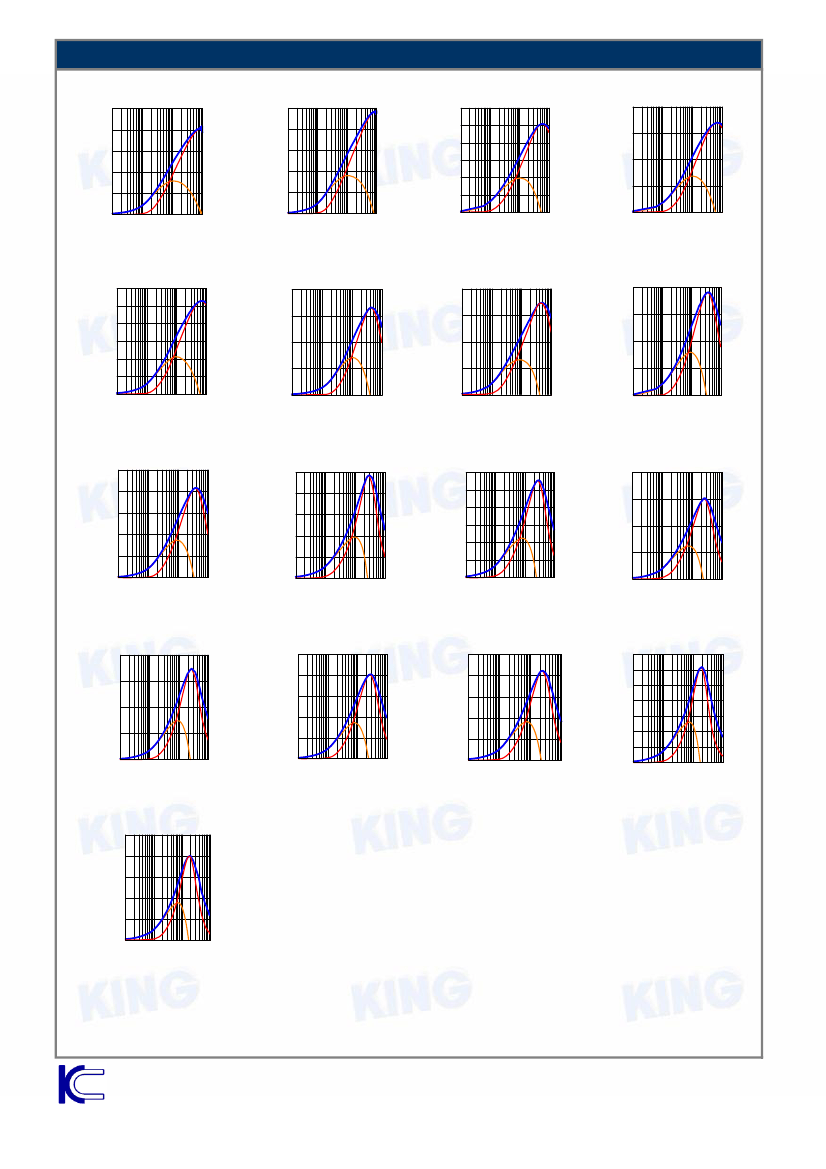

FBM-A.A07
MULTILAYER CHIP BEADS
→
FBM□-11-160808：High Current Standard Type
FBM -11-160808-470A40T
100
IMPEDANCE
IMPEDANCE
FBM -11-160808-500A10T
100
80
FBM -11-160808-600A30T
120
100
Z
FBM -11-160808-600A40T
120
90
Z
60
30
0
1
R
80
Z
60
R
40
20
0
1
XL
IMPEDANCE
60
40
20
0
1
XL
80
60
40
20
0
1
Z
R
R
IMPEDANCE
XL
10
100 1000
FREQ(MHZ)
XL
10
100 1000
FREQ(MHZ)
10
100
1000
FREQ(MHZ)
10
100 1000
FREQ(MHZ)
FBM -11-160808-700A20T
120
100
IMPEDANCE
80
60
40
20
0
1
XL
10
100 1000
FREQ(MHZ)
Z
R
FBM -11-160808-101A20T
200
150
Z
100
50
0
1
XL
10
100 1000
FREQ(MHZ)
R
FBM -11-160808-121A20T
200
150
Z
100
50
XL
0
1
10
100 1000
FREQ(MHZ)
R
FBM -11-160808-121A30T
200
150
Z
100
50
XL
0
1
10
100 1000
FREQ(MHZ)
R
FBM -11-160808-151A20T
250
200
IMPEDANCE
IMPEDANCE
FBM -11-160808-181A15T
300
240
IMPEDANCE
FBM -11-160808-201A30T
300
250
IMPEDANCE
IMPEDANCE
IMPEDANCE
IMPEDANCE
FBM -11-160808-221A15T
400
300
Z
200
100
0
1
R
150
100
50
0
1
Z
R
180
120
60
Z
R
200
150
100
50
Z
R
XL
10
100 1000
FREQ(MHZ)
XL
10
100 1000
FREQ(MHZ)
XL
0
1
10
100 1000
FREQ(MHZ)
XL
0
1
10
100 1000
FREQ(MHZ)
FBM -11-160808-221A20T
400
300
Z
200
100
XL
0
1
10
100 1000
FREQ(MHZ)
R
FBM -11-160808-301A20T
500
400
FBM -11-160808-331A20T
500
400
IMPEDANCE
FBM -11-160808-501A10T
700
600
IMPEDANCE
500
400
300
200
100
IMPEDANCE
IMPEDANCE
300
200
100
Z
R
300
200
100
Z
R
Z
R
XL
0
1
10
100 1000
FREQ(MHZ)
XL
0
1
10
100
FREQ(MHz)
1000
0
XL
1
10
100
FREQ(MHZ)
1000
FBM -11-160808-601A10T
1000
800
IMPEDANCE
600
400
200
0
1
XL
10
100 1000
FREQ(MHZ)
Z
R
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
4
FBM-A.A07
MULTILAYER CHIP BEADS
→
FBM□-11-201209：High Current Standard Type
ELECTRICAL CHARACTERISTICS
ORDERING CODE
FBM□-11-201209-100A10T
FBM□-11-201209-100A60T
FBM□-11-201209-110A10T
FBM□-11-201209-110A30T
FBM□-11-201209-110A40T
FBM□-11-201209-220A60T
FBM□-11-201209-330A40T
FBM□-11-201209-400A08T
FBM□-11-201209-420A40T
FBM□-11-201209-500A40T
FBM□-11-201209-520A10T
FBM□-11-201209-600A30T
FBM□-11-201209-600A40T
FBM□-11-201209-600A50T
FBM□-11-201209-700A30T
FBM□-11-201209-800A30T
FBM□-11-201209-800A40T
FBM□-11-201209-800A50T
FBM□-11-201209-101A30T
FBM□-11-201209-121A30T
FBM□-11-201209-121A40T
FBM□-11-201209-121A50T
FBM□-11-201209-151A25T
FBM□-11-201209-151A40T
FBM□-11-201209-201A30T
FBM□-11-201209-201A40T
FBM□-11-201209-221A30T
FBM□-11-201209-251A30T
FBM□-11-201209-301A10T
FBM□-11-201209-301A20T
FBM□-11-201209-301A30T
FBM□-11-201209-331A15T
FBM□-11-201209-401A30T
FBM□-11-201209-601A10T
FBM□-11-201209-601A20T
FBM□-11-201209-102A10T
FBM□-11-201209-152A03T
Impedance
(Ω)
10±25%
10±25%
11±25%
11±25%
11±25%
22±25%
33±25%
40±25%
42±25%
50±25%
52±25%
60±25%
60±25%
60±25%
70±25%
80±25%
80±25%
80±25%
100±25%
120±25%
120±25%
120±25%
150±25%
150±25%
200±25%
200±25%
220±25%
250±25%
300±25%
300±25%
300±25%
330±25%
400±25%
600±25%
600±25%
1000±25%
1500±25%
Test Frequency
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DC Resistance
(Ω)max
0.200
0.010
0.200
0.040
0.035
0.010
0.035
0.250
0.035
0.035
0.200
0.040
0.035
0.020
0.040
0.040
0.035
0.020
0.040
0.040
0.035
0.020
0.050
0.035
0.040
0.035
0.040
0.040
0.200
0.100
0.040
0.150
0.040
0.200
0.100
0.200
0.500
Rated Current
(mA)max
1000
6000
1000
3000
4000
6000
4000
800
4000
4000
1000
3000
4000
5000
3000
3000
4000
5000
3000
3000
4000
5000
2500
4000
3000
4000
3000
3000
1000
2000
3000
1500
3000
1000
2000
1000
300
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
The inverter suddenly malfunctioned. I don't know what happened. Only the word PF was displayed where the tachometer was supposed to be. What is the problem? How should I solve it? Please ask an exper...
[i=s]This post was last edited by jameswangsynnex on 2015-3-3 20:00[/i] My conclusion is that if a product's user interface is too clumsy for the average consumer to understand, then the product is de...
Hello everyone~ I want to set some shortcut keys for Allegro. I used to use AD, and now I use Allegro. The shortcut keys of the two are quite different. I want to set the shortcut keys of Allegro myse...
I am currently working on a project that requires the conversion between unicode and Chinese character area codes. I have searched the Internet for a long time and I know that it can be done using API...
introduction
Since the beginning of the 21st century, the world of information has changed rapidly. Maybe a high-tech product will be released today and a better similar product will be releas...[Details]
A single-chip microcomputer is also called a single-chip microcontroller. It is not a chip that completes a certain logical function, but a computer system integrated into one chip. In general, a c...[Details]
1. Introduction
RFID (radio frequency identification) is a non-contact automatic identification technology that emerged in the 1990s. It uses the characteristics of radio frequency signal prop...[Details]
As cellular phones become more advanced, the power consumption of the system during operation and the power consumption during standby are also increasing. Therefore, the power management design of...[Details]
Electronic systems are located at different points on the automotive power bus and therefore often need to operate under very stringent power requirements. These include load dump, cold crank, very lo...[Details]
Since the No. 4 blast furnace of Handan Iron and Steel was put into operation in 1993, its external equipment has been seriously aged, and the original PLC control system TDC3000 of the hot blast furn...[Details]
1. Introduction
Testing the temperature of steel billets before rolling is an important measure to ensure the quality of steel. Traditional manual testing is difficult to ensure product qu...[Details]
The concept of state machine
State machine is an important concept in software programming. More important than this concept is its flexible application. In a clear and efficient program, ther...[Details]
Continuity test
A variety of devices need to be checked for continuity, including cable assemblies, printed circuit boards, and connectors to ensure that these components have the expected contin...[Details]
System Overview
The system consists of a signal preprocessing circuit, a single-chip computer AT89C2051, a systematic LED display module, a serial port data storage circuit and system software...[Details]
Introduction
In industrial control, speed measurement is often required. Generally, a contact tachometer is used. This tachometer must be placed against the center of the shaft to measure. It...[Details]
Traditional
virtual instruments
consist of a data acquisition
board
based on PCI bus and
corresponding software. However, with
the rapid development of
computer
network techno...[Details]
introduction
LEDs continue to gain popularity in automotive applications, thanks to their long lifespan and the flexibility they offer for body styling and interior design. Some may be surpris...[Details]
1 Development of LED Film and Television Lighting
1.1 The significance of developing film and television lighting
Lighting power consumption accounts for a large proportion of the total p...[Details]
1 Overview
In the field of traditional lighting, the concepts and definitions of lamps and lamps are clear. Lamps and lamps have their own applicable product standards, supporting technical st...[Details]
Industrial Control Electronics
京公网安备 11010802033920号
EEWORLD
