Type N Straight Plug One Piece Style for Semi-Rigid Cable

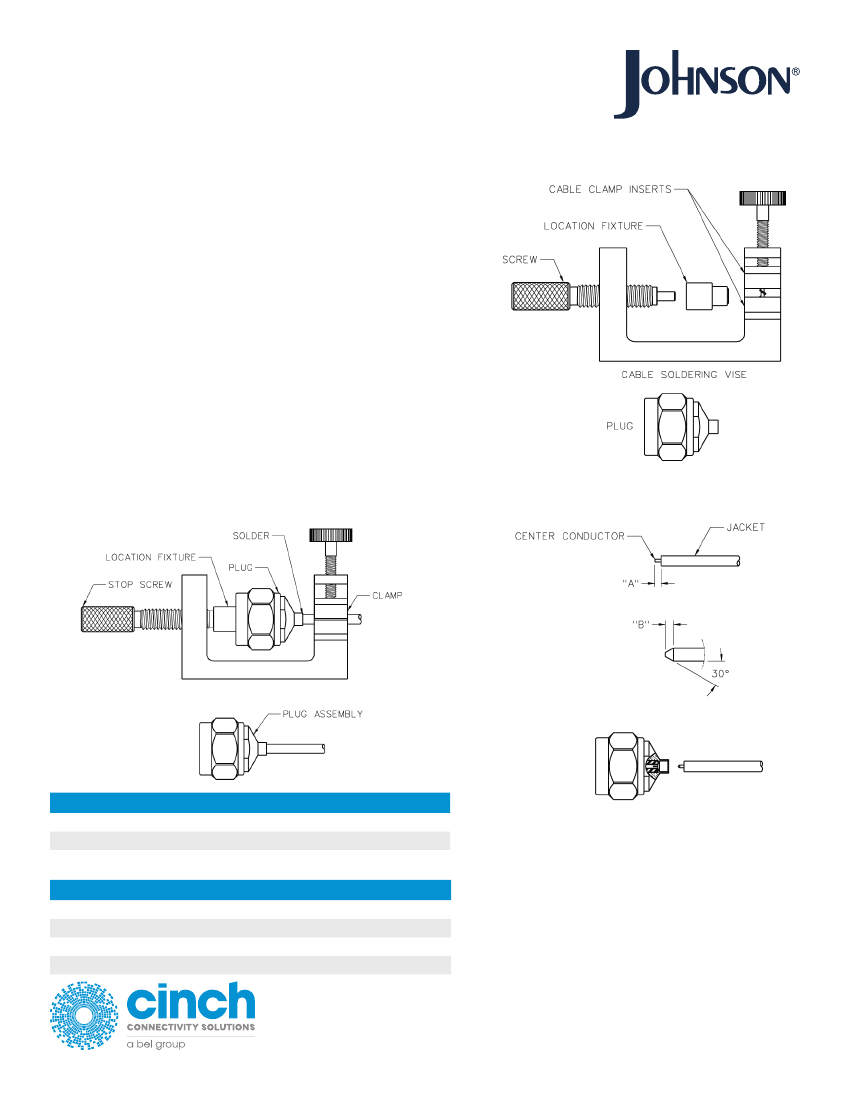

1. Identify connector and tools. (4 piece parts)
2. Strip cable jacket and dielectric to dimension shown. Do
not nick center conductor.
3. Bevel end of cable center conductor per appropriate
dimensional profile.
4. Clean all debris from prepared cable and insert cable into
connector assembly, making sure cable jacket bottoms out
against internal shoulder of connector assembly and center
conductor engages with internal captivated plug contact.
5.
Insert location fixture into connector assembly and clamp
cable in vise. Tighten stop screw until light pressure is
applied between connector assembly and cable jacket. 6.
Solder connector body to cable jacket, using a minimum
amount of solder for a full fillet joint. Allow assembly to cool
before removing connector from vise.
Cable Group
RG-405, .086 Semi-Rigid
RG-402, .141 Semi-Rigid
RG-401, .250 Semi-Rigid
Part No.
138-4693-011
138-4694-011
138-4696-011
“A”
.085 (2.16)
.085 (2.16)
.150 (3.81)
“B”
.014 (0.36)
.022 (0.56)
.045 (1.14)
Assembly
Location Fixture
Cable Vise
Clamp Inserts
Stop Screw
140-0000-983
140-0000-962
140-0000-964
140-0000-981
140-0000-983
140-0000-962
140-0000-965
140-0000-981
140-0000-983
140-0000-962
140-0000-986
140-0000-981
