ARM62312AM: Description829MHz，1.582GHz，2.2GHz，2.45GHz，5.537GHz GPS，LTE，Wi-Fi 模块 RF 天线 698MHz ~ 960MHz，1.559GHz ~ 1.606GHz，1.71GHz ~ 2.69GHz，2.4GHz ~ 2.5GHz，5.15GHz ~ 5.925GHz 4.6dBi，5.1dBi，4.9dBi，7.9dBi SMA 公头（3），RP-SMA 公头（3）胶合剂; CategoryTopical application Wireless rf/communication; File Size4MB，25 Pages; ManufacturerPulseLarsen Antennas; Environmental Compliance

Download Datasheet Parametric View All

ARM62312AM Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ARM62312AM	-	-	View	Buy Now

ARM62312AM Overview

829MHz，1.582GHz，2.2GHz，2.45GHz，5.537GHz GPS，LTE，Wi-Fi 模块 RF 天线 698MHz ~ 960MHz，1.559GHz ~ 1.606GHz，1.71GHz ~ 2.69GHz，2.4GHz ~ 2.5GHz，5.15GHz ~ 5.925GHz 4.6dBi，5.1dBi，4.9dBi，7.9dBi SMA 公头（3），RP-SMA 公头（3）胶合剂

ARM62312AM Parametric

Parameter Name	Attribute value
category
Maker	PulseLarsen Antennas
series	ARMADILLO
Package	Bulk
RF series/standard	蜂窝，导航，WiFi
frequency group	broadband
Frequency (center/band)	829MHz，1.582GHz，2.2GHz，2.45GHz，5.537GHz
Frequency Range	698MHz ~ 960MHz，1.559GHz ~ 1.606GHz，1.71GHz ~ 2.69GHz，2.4GHz ~ 2.5GHz，5.15GHz ~ 5.925GHz
Antenna type	module
VSWR	2，2.5
Return loss	-
Gain	4.6dBi，5.1dBi，4.9dBi，7.9dBi
characteristic	电缆 - 5.18m，LNA
Termination	SMA 公头（3），RP-SMA 公头（3）
Intrusion protection	IP67
Installation type	glue
Height (maximum value)	1.772"（45.00mm）
application	GPS，LTE，Wi-Fi
Number of frequency bands	6

Preview

Download Datasheet

View All

Series: ARMADILLO

Description:

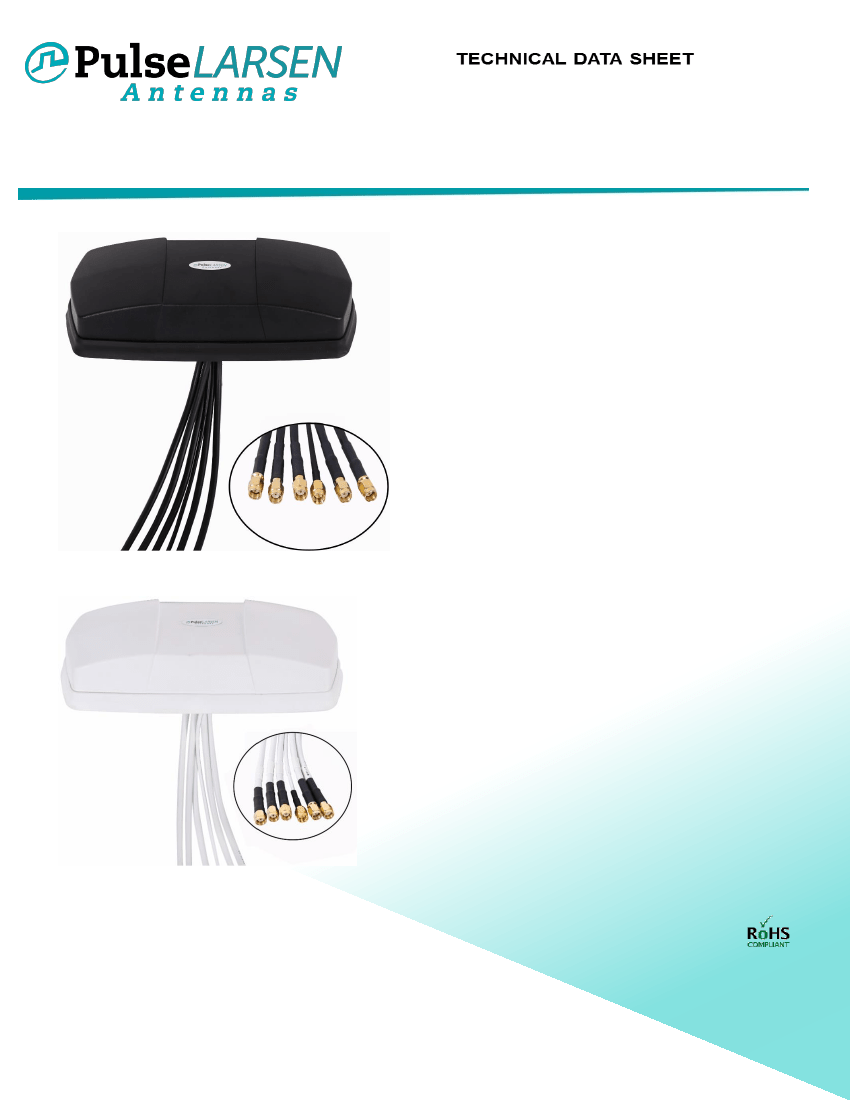

Vehicular Multiband Antenna with

Adhesive Mount

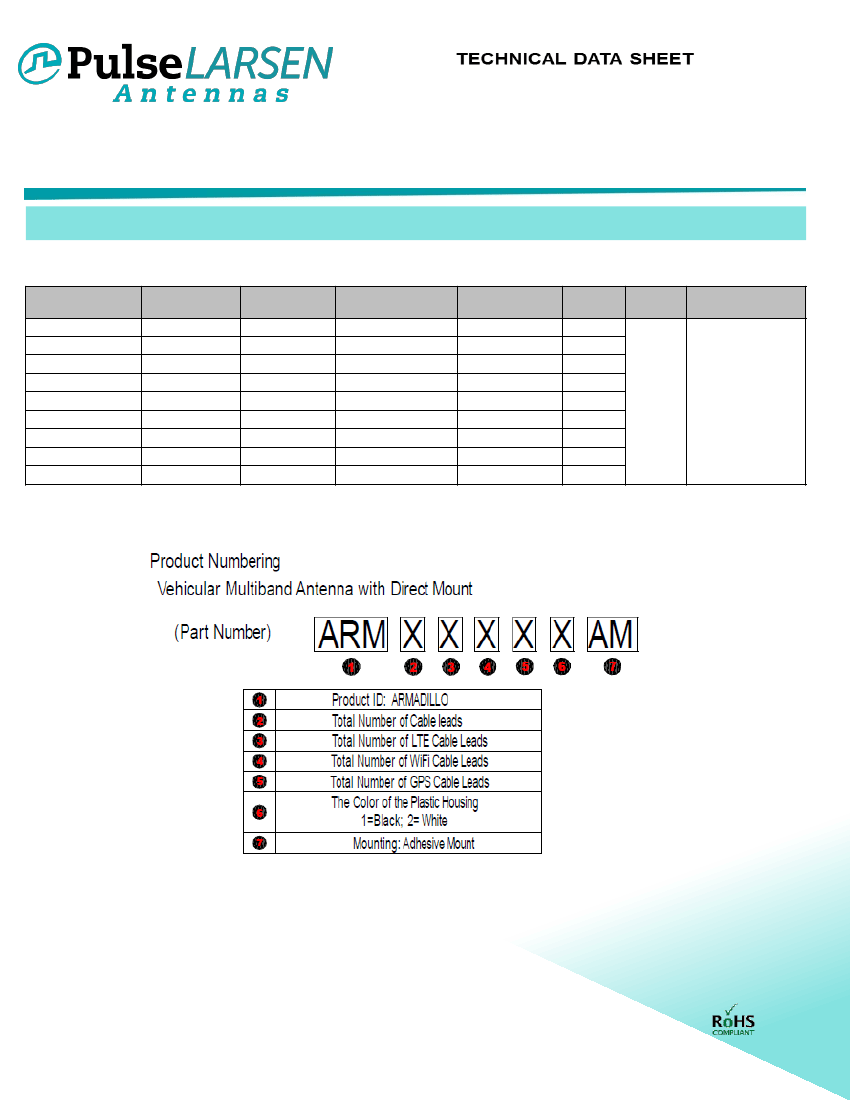

PART NUMBER: ARMXXXXXAM

Features:

• Low profile, only 1.8” tall

• Up to 6-lead Configuration

• LTE(2x) MIMO

• WiFi(3x) MIMO-|2.4/5.x GHz

• GPS/GNSS (1x)

• Frequency of Operation:

• 698-960MHz,1710-2690MHz

• 2400-2500MHz,5150-5925MHz

• 1559-1606MHz

Applications:

• Telematics, Navigation

• First Responders(Police,

Fire, Ambulance/EMS)

• Energy, Utility, Construction

• Fleet Management

• DSRC(Dedicated Short

Range Communications)

• Available Configurations:

• Black, White

• Direct, Magnetic, Adhes.Mount

Issue: 1901

In the effort to improve our products, we reserve the right to make changes judged to be necessary.

CONFIDENTIAL AND PROPRIETARY INFORMATION

This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws.

Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or

use without specific written authorization of Pulse is strictly forbidden.

For more information:

Pulse Worldwide Headquarters

15255 Innovation Drive #100

San Diego, CA 92128

USA

Tel:1-858-674-8100

Pulse/Larsen Antennas

18110 SE 34

St Bldg 2 Suite 250

Vancouver, WA 98683

USA

Tel: 1-360-944-7551

Europe Headquarters

Pulse GmbH & Do, KG

Zeppelinstrasse 15

Herrenberg, Germany

Tel: 49 7032 7806 0

Pulse (Suzhou) Wireless Products Co, Inc.

99 Huo Ju Road(#29 Bldg,4

Phase

Suzhou New District

Jiangsu Province, Suzhou 215009 PR China

Tel: 86 512 6807 9998
