PG0642.102NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PG0642.102NL

PG0642.102NL: Description1 µH 屏蔽绕线电感器 14.5 A 5.8 毫欧非标准 -; CategoryPassive components inductor; File Size307KB，2 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric View All

PG0642.102NL Overview

1 µH 屏蔽绕线电感器 14.5 A 5.8 毫欧非标准 -

PG0642.102NL Parametric

Parameter Name	Attribute value
category
Maker	Pulse Electronics
series	PG0642NL
Package	tray
type	Winding
Material - Core	-
Tolerance	±20%
电流 - 饱和（Isat）	22A
shield	shield
DC 电阻 (DCR)	5.8 milliohms
不同频率时 Q 值	-
Frequency - Self-resonance	-
grade	-
Operating temperature	-40°C ~ 125°C
characteristic	-
Installation type	surface mount type
Package/casing	non-standard
Supplier device packaging	-
size/dimensions	0.311" long x 0.299" wide (7.90mm x 7.60mm)
Height - Installation (maximum)	0.197"（5.00mm）
inductance	1 µH
Rated current (amps)	14.5 A
Inductor Frequency - Test	100 kHz

Preview

Download Datasheet

View All

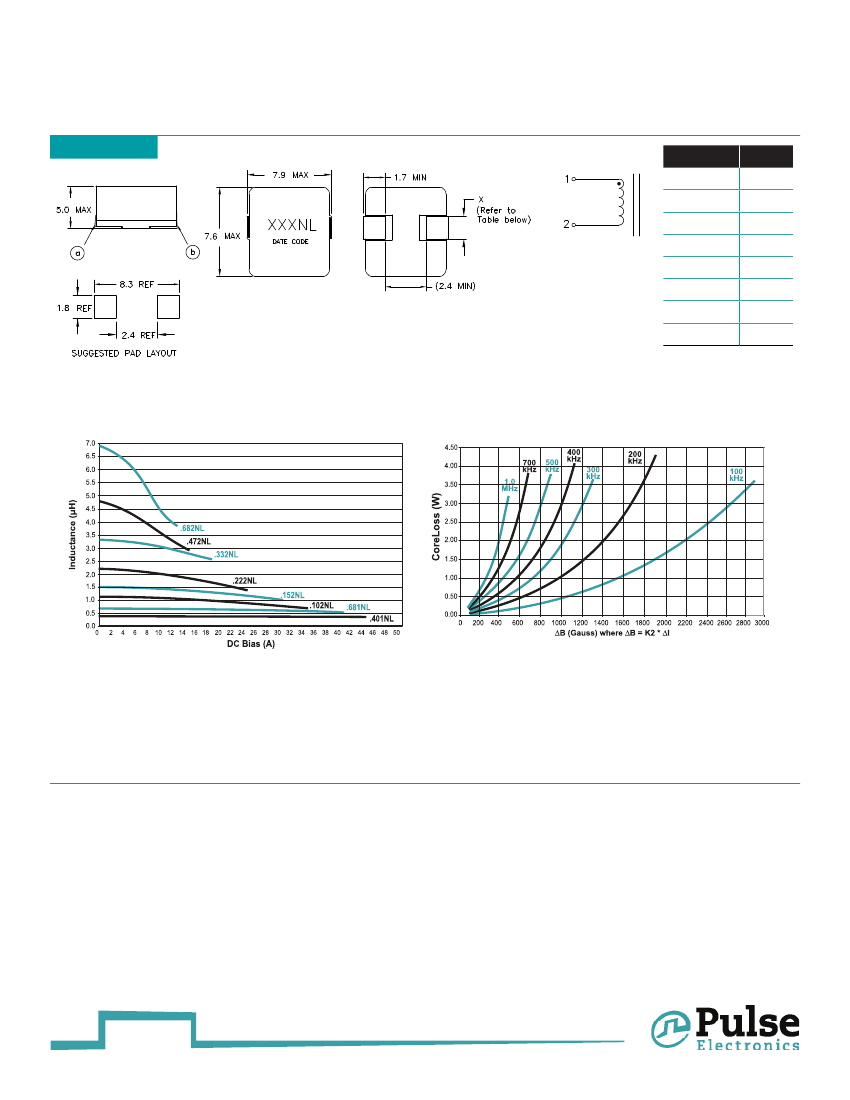

SMT Power Inductors

Round Wire Coils - PG0642NL Series

Height:

5.0mm Max

Footprint:

7.9mm x 7.6mm Max

Saturation Current:

up to 32Apk

Inductance Range:

0.32µH to 5.4µH

Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C

Part

Number

PG0642.401NL

PG0642.681NL

PG0642.102NL

PG0642.152NL

PG0642.222NL

PG0642.332NL

PG0642.472NL

PG0642.682NL

Inductance

@ Irated

(µH TYP)

0.32

0.54

0.80

1.20

1.70

2.60

3.70

5.40

Irated

(A)

20.0

17.5

14.5

13.3

10.0

9.5

9.0

6.0

DCR

(mΩ)

(±6%)

3.3

4.3

5.8

6.8

12.7

16.6

18.4

26.4

Inductance

@ 0A

(µH

±20%)

0.40

0.68

1.00

1.50

2.20

3.30

4.70

6.80

Saturation

Current Isat

(A TYP)

Heating

Current I

(A TYP)

20.0

17.5

14.5

13.3

10.0

9.5

9.0

6.0

Core Loss

Factor

33.6

46.5

58.2

75.7

84.7

107.0

140.1

176.2

Notes:

1. Actual temperature of the component (ambient plus temperature rise) must be

within the standard operating temperature range.

2. Inductance at Irated is a typical inductance value for the component taken at rated

current.

3. The rated current listed is the lower of the saturation current (@ 25°C) or the heating

current depending on which value is lower.

4. The DCR of the part is measured at an ambient temperature of 20C 3C from point a

and b as shown above on the mechanical drawing.

5. The saturation current, I

SAT

, is the current at which the component inductance drops

by 20% (typical) at an ambient temperature of 25°C. This current is determined by

placing the component in the specified ambient environment and applying a short

duration pulse current (to eliminate self-heating effects) to the component.

6. The heating current, I

, is the DC current required to raise the component tempera-

ture by approximately 40°C. The heating current is determined by mounting the

component on a typical PCB and applying current for 30 minutes. The temperature is

measured by placing the thermocouple on top of the unit under test. Take note that

the component’s performance varies depending on the system condition. It is sug-

gested that the component be tested at the system level, to verify the temperature

rise of the component during system operation.

Core Loss approximation is based on published core data:

Core Loss

= K1 * (f)

1.48

* (K2ΔI)

1.97

Where: Core Loss

= in Watts

= 5.894E-10

= switching frequency in kHz

K1 & K2

= core loss factors

ΔI

= delta I across the component in Ampere

K2*ΔI

= one half of the peak to peak flux density

across the component in Gauss

Unless otherwise specified, all testing is made at 100kHz, 0.1V

Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part

number (i.e. PG0642.222NL becomes PG0642.222NLT). Pulse complies to industry

standard tape and reel specification EIA481. The tape and reel for this product has a

width (W=24mm), pitch (Po=12mm) and depth (Ko=5.5mm).

USA 858 674 8100

Germany 49 2354 777 100

Singapore 65 6287 8998

Shanghai 86 21 62787060

China 86 755 33966678

Taiwan 886 3 4356768

P670.F (12/16)

pulseelectronics.com
