5962R9573601V9A datasheet, PDF

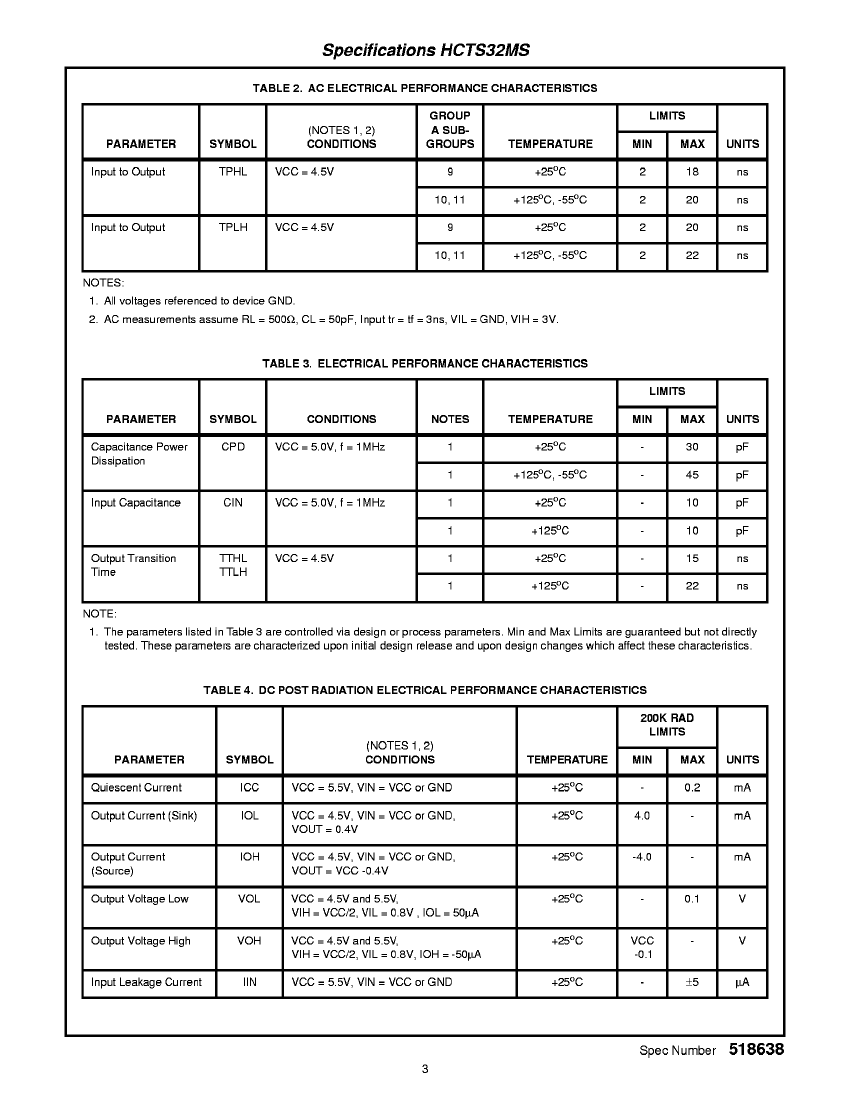

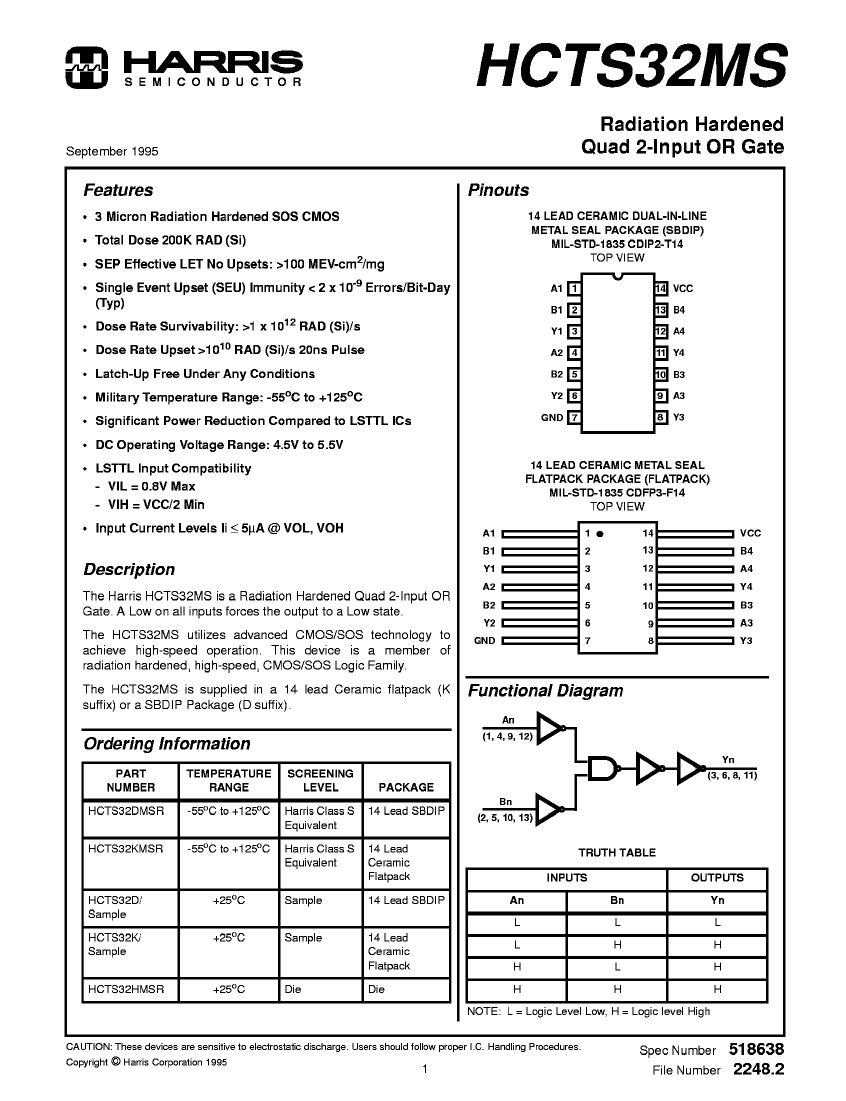

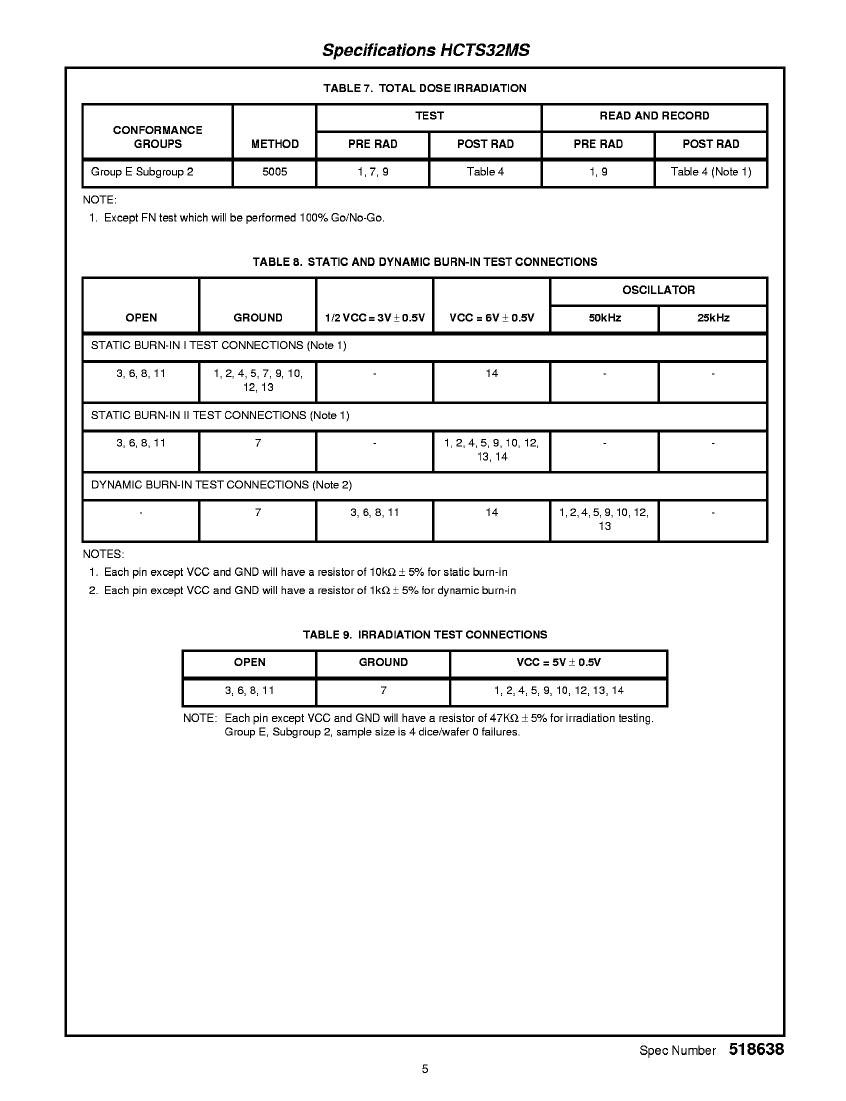

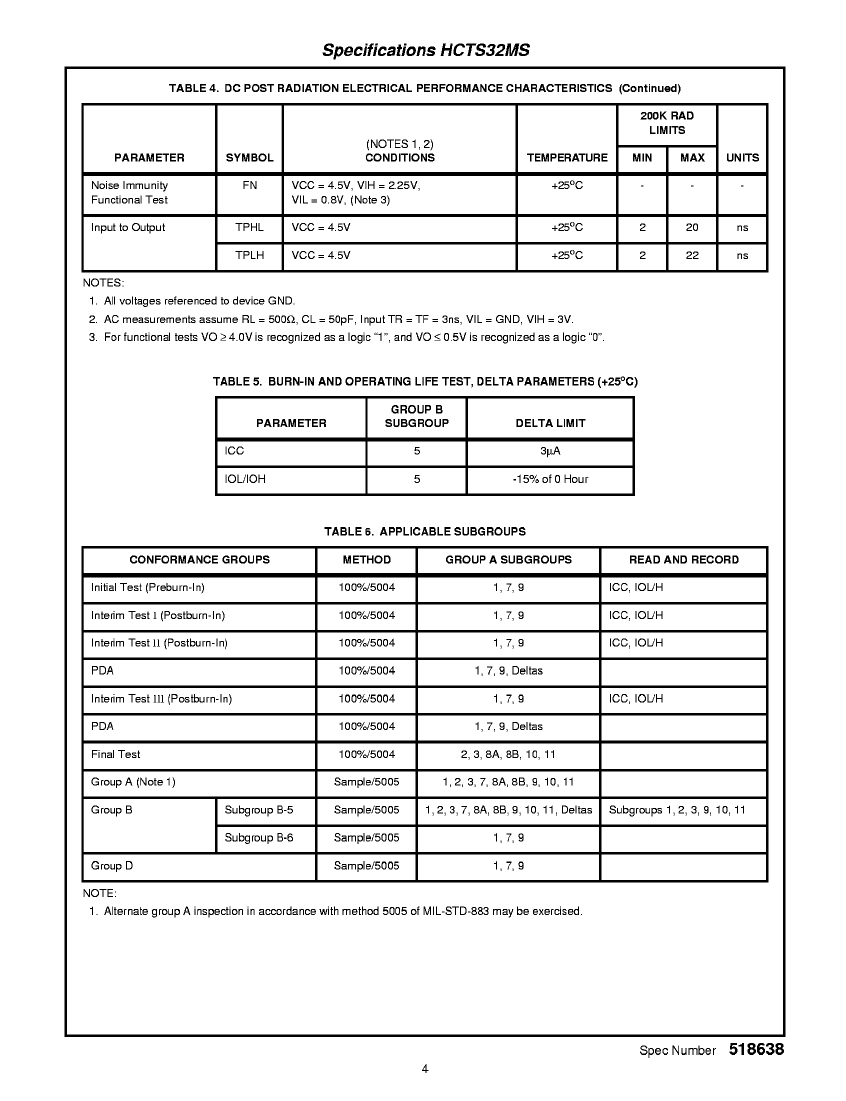

5962R9573601V9A: DescriptionHCT SERIES, QUAD 2-INPUT OR GATE, UUC14; Categorylogic logic; File Size220KB，8 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9573601V9A Overview

HCT SERIES, QUAD 2-INPUT OR GATE, UUC14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIE
package instruction	DIE, DIE OR CHIP
Contacts	14
Reach Compliance Code	compliant
series	HCT
JESD-30 code	S-XUUC-N14
Load capacitance (CL)	50 pF
Logic integrated circuit type	OR GATE
MaximumI(ol)	0.00005 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	DIE OR CHIP
Package shape	SQUARE
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Prop。Delay @ Nom-Sup	22 ns
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535V;38534K;883S
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	100k Rad(Si) V
Base Number Matches	1

	5962R9573601V9A	5962R9573601VCC
Description	HCT SERIES, QUAD 2-INPUT OR GATE, UUC14	HCT SERIES, QUAD 2-INPUT OR GATE, CDIP14, METAL SEALED, SIDE BRAZED, CERAMIC, DIP-14
Parts packaging code	DIE	DIP
package instruction	DIE, DIE OR CHIP	DIP, DIP14,.3
Contacts	14	14
Reach Compliance Code	compliant	unknown
series	HCT	HCT
JESD-30 code	S-XUUC-N14	R-CDIP-T14
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	OR GATE	OR GATE
MaximumI(ol)	0.00005 A	0.004 A
Number of functions	4	4
Number of entries	2	2
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIE	DIP
Encapsulate equivalent code	DIE OR CHIP	DIP14,.3
Package shape	SQUARE	RECTANGULAR
Package form	UNCASED CHIP	IN-LINE
power supply	5 V	5 V
Prop。Delay @ Nom-Sup	22 ns	22 ns
propagation delay (tpd)	20 ns	20 ns
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
Filter level	38535V;38534K;883S	38535V;38534K;883S
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE
Terminal location	UPPER	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V
Base Number Matches	1	1
