10-00778 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> USB cable/IEEE 1394 cable> 10-00778

10-00778: DescriptionUSB 2.0 缆线 B母头至微型B公头 0.33'（100.0mm）屏蔽; CategoryWire/cable USB cable/IEEE 1394 cable; File Size133KB，1 Pages; ManufacturerTensility International Corporation; Websitehttp://tensility.com/; Environmental Compliance

Download Datasheet Parametric View All

10-00778 Overview

USB 2.0 缆线 B母头至微型B公头 0.33'（100.0mm）屏蔽

10-00778 Parametric

Parameter Name	Attribute value
category
Maker	Tensility International Corporation
series	-
Package	Bulk
Configuration	B female to micro B male
length	0.33'（100.0mm）
Specification	USB 2.0
Wire gauge	28 AWG，28 AWG
shield	shield
color	White
style	-

Preview

Download Datasheet

View All

ITEM NO.

PART NUMBER

50-00426

50-00429

30-00099

24-00057

24-00024

DESCRIPTION

Connector, USB B receptacle

Connector, plug, USB micro B

Wire, 4C, 1PR + 2C, 28 AWG, UL2725, 30V, 80C, 3.6mm, shielded, VW-1, PVC, 79A, USB 2.0, white

Overmold, jack, USB B

Overmold, plug, USB micro B

QTY.

PVC, white

COMPONENT NOTES

100 ±15

5.5 ±0.50

Drain wire

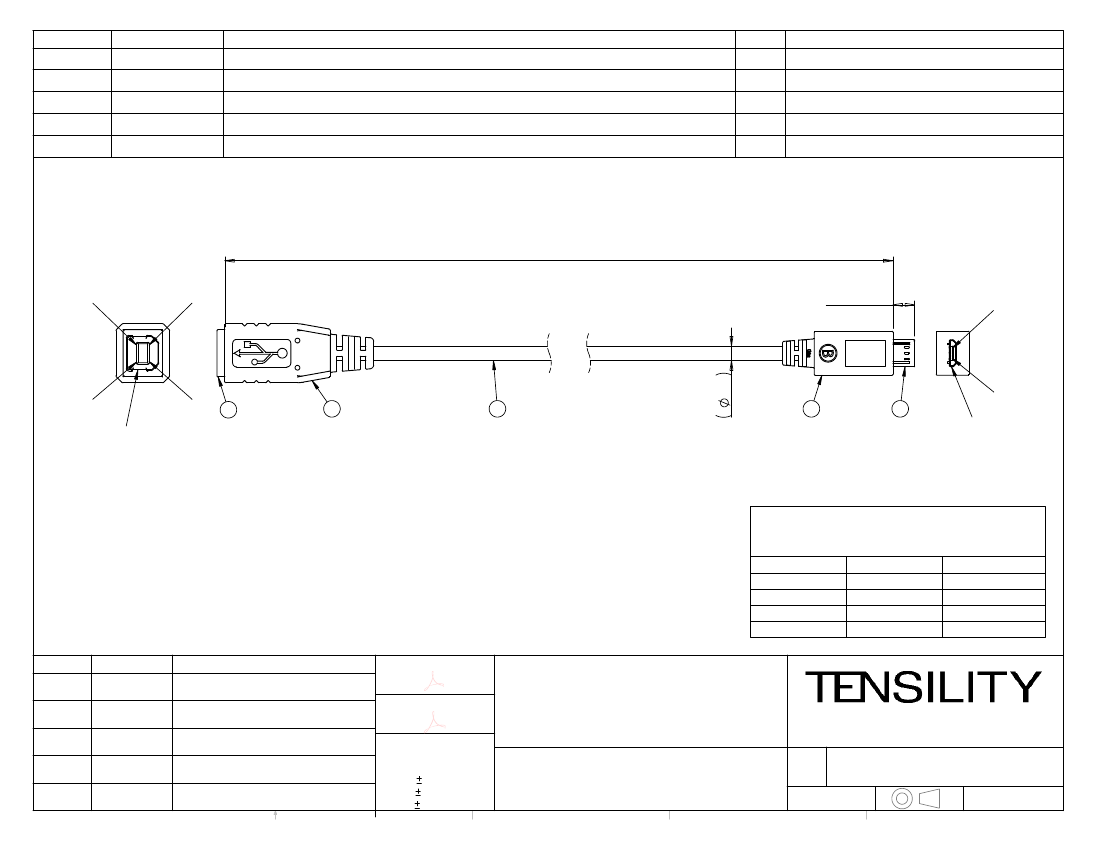

Wiring diagram

50-00426

Shell

Prepared:

Verified:

Notes:

RoHS compliant

Function test: no open, no short circuit, no

intermittent

Description:

Cable, 100 mm, USB B receptacle to USB micro B

male, 28 AWG, 30-00099 wire, white

tel

fax

Wire Color

Red

White

Green

Black

Drain & Shield

50-00429

Shell

Notes:

Cables individually tied and bundled in groups of 10

Functionally equivalent components may be substituted

Revision:

Date:

9/21/2011

1/29/2014

11/1/2018

Description:

Initial release

Corrected shield type

Removed label

Digitally signed by AW

Date: 2018.11.01

14:19:45 -07'00'

Digitally signed by GL

Date: 2018.11.02

09:43:55 -07'00'

Dimensions are in

millimeters.

Tolerances:

0.5 mm

0.3 mm

X.X:

X.XX: 0.05 mm

1.541.323.3228

1.541.323.4202

Part number:

800

web

877.670.7118

tensility.com

Size:

Scale:

10-00778

1:1

Sheet 1 of 1

To see a custom version of this cable assembly, call Tensility at 541-323-3228 or email engineering@tensility.com

3.6
