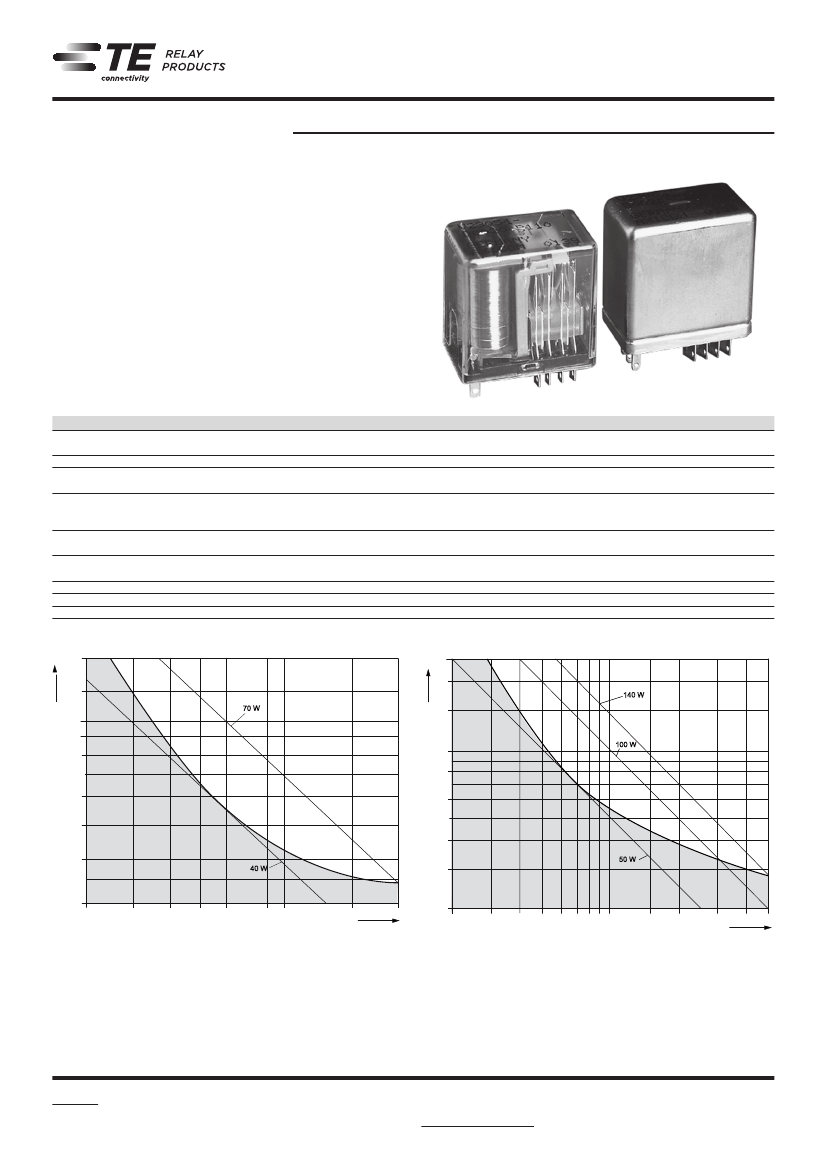

Signal Relays
Cradle S Relay V23054/V23062
n
n
n
n
n
n
n
AXICOM
Strong magnet system and wide voltage range
Highly reliable
Contacts for signal loads and currents up to 5A
DC coils operating voltage 6VDC to 220VDC; AC, latching and non-
latching coils on request
Multi purpose relay
Great variety of contact arrangements and materials to meet
specific applications
Sockets for easy and quick mounting of relays
Typical applications
Press controls with high safety requirements (forcibly guided springs),
traffic and railroad signalling, motor vehicle traffic controls, power plants
and nuclear power plants controls
Contact Data
Product code block 3
Contact arrangement
Max. switching voltage
B104/B110/
B112/B133
Rated current
Limiting continuous current
at max. ambient temperature
2A
Breaking capacity max.
35 to 70W
see DC load breaking capacity curve below 50VA
Contact material
silver, gold-flashed
Contact style
single contact
Frequency of operation, without load, max.
50 ops./s
Operate / release time typ.
16/2ms
Mechanical endurance
app. 10
7
ops.
Max. DC breaking capacity, contact sets B1xx, C1xx
150
V_
120
B604/B610/
C104/C110/
C404/C410/
F104/F105/
B612/B633
C112/C133
C422/C433
F110
max. 6 form C (6 CO) contacts or 6 form A (6 NO) contacts (see product code table)
150VDC
36VDC
150VDC
36VDC
260VDC
125VAC
30VAC
125VAC
30VAC
250VAC
2A
0.2A
2A
0.2A
5A
2A
5W, 5VA
-
gold F
single contact
max. 50 ops./s
16/2ms
app. 10
7
ops.
2A
35 to 70W
50VA
silver, gold-flashed
bifurcated contacts
max. 50 ops./s
16/2ms
app. 10
7
ops.
2A
5W, 5VA
-
gold F
bifurcated contacts
max. 50 ops./s
16/2ms
app. 10
7
ops.
5A
50 to 140W
500VA
silver, gold-flashed
single contact
max. 10 ops./s
16/2ms
app. 10
7
ops.
Max. DC breaking capacity, contact sets F1xx
250
V_
200
U
100
140 W
70 W
U
150
80
100
80
100 W
60
60
50
DC voltage [VDC]
50
DC voltage [VDC]
safe breaking, no stationary arc
contact material Ag, gold flashed
40
40
40 W
safe breaking, no stationary arc
contact material Ag, gold flashed
50 W
30
30
0,3
0,4
0,5
0,6
0,8
1
1,5
DC current [A]
I
2A
20
0,2
0,3
0,4
0,5
0,6
0,8
1
1,5
DC current [A]
I
2
3
4
5A
03-2012, Rev. 0312
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
Signal Relays
Cradle S Relay V23054/V23062
(Continued)
Coil Data
Insulation Data
AXICOM
Magnetic system
Coil voltage range
Max. coil temperature
Thermal resistance
neutral
6 to 220 VDC,
1000 - 2000mW power consumption
100 °C
< 40K/W
Coil
resistance
Ω ± 10%
33
70
130
185
270
390
630
1.75
800
890
1050
1900
3800
5800
9200
15500
25000
Rated coil
power
mW
1091
1008
1108
845
948
1026
914
823
980
945
975
1066
947
996
1315
1008
1936
Initial surge withstand voltage
between open contacts
between contact and coil
between adjacent contacts
Initial insulation resistance, at 500VDC
B1xx,B6xx,C1xx,C4xx F1xx
500V
rms
500V
rms
500V
rms
500V
rms
1000V
rms
1000V
rms
> 10
6
Ω
Coil versions, DC coil, monostable
Coil
Rated
Operate/Limiting
code
voltage
voltage
1)
VDC
VDC
011
6
-
012
8.4
-
015
12
-
016
12.5
-
017
16
-
019
20
-
020
24
-
002
1.2
-
025
28
-
046
29
-
021
32
-
022
45
-
026
60
-
014
76
-
004
110
-
013
125
-
003
220
-
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature
-40 to +70°C
Category of environmental protection
IEC 61810
RT I - dust protected,
RT V - hermetically sealed
Degree of protection, IEC 60529
dust-protected IP 30,
or hermetically sealed IP 67
Terminal type
PCB, solder terminals
Weight
V23054 Size I
approx. 20g
V23054 Size II
approx. 25g
V23054Size III
approx. 27g
V23062 Size I
approx. 30g
V23062 Size II
approx. 35g
Washing
not recommended
Ultrasonic cleaning
not recommended
Packaging unit
5 pcs.
Other Data
1) See part code table.
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Accessories
For details see datasheet
Cradle Relay, Accessories and Mounting
Terminals:
coil with 1 winding: start 4, end 1
coil with 2 windings (upon request):
start 3, end 2 for winding I, start 4, end 1 for winding II
The minimum voltage U
I
depends on the contact set and the ambient
temperature, the maximum voltage U
II
only depends on the ambient
temperature.
Between minimum voltage U
I tamb
and operating voltage U a safety margin
of approx. 20% is recommended.
U
I tamb
(1.2)
U
I tamb
U
II tamb
tamb
U
U
I tamb
U
II tamb
k
I
and k
II
< U
I
≤ U
II
tamb
U
I
· U20 °C · k
I tamb
U
Il
20 °C · k
II tamb
Ambient temperature
Operating voltage
Minimum voltage at ambient temperature, tamb
Maximum voltage at ambient temperature, tamb
Factors
2
03-2012, Rev. 0312
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
Signal Relays
Cradle S Relay V23054/V23062
(Continued)

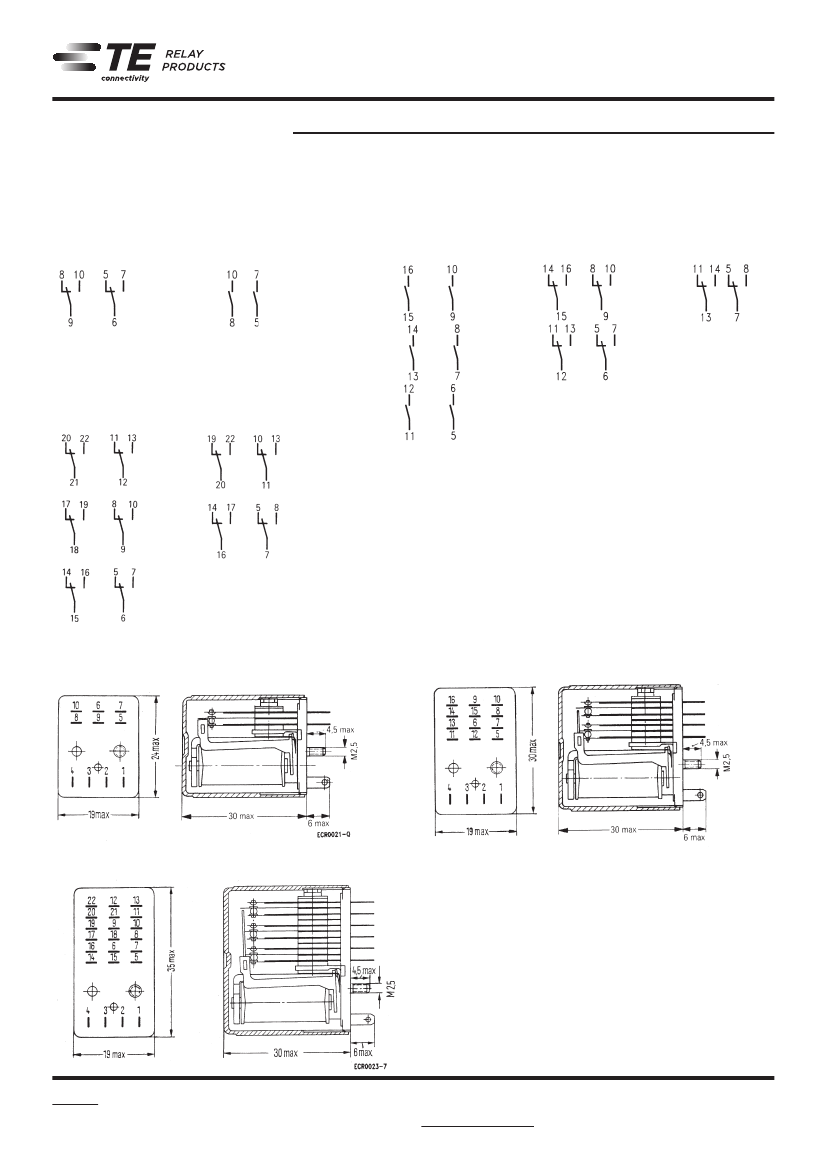

Terminal assignment
Size I
2 form C (2 CO)
V230xx-xxxxx-Bx04
V230xx-xxxxx-Cx04
2 form A (2 NO)
V230xx-xxxxx-F105
Size II
6 form A (6 NO)
V230xx-xxxxx-Bx12
V230xx-xxxxx-Cx12
4 form C (4 CO)
V230xx-xxxxx-Bx10
V230xx-xxxxx-Cx10
AXICOM
2 form C (2 CO)
V230xx-xxxxx-F104
Size III
6 form C (6 CO)
V230xx-xxxxx-Bx33
V230xx-xxxxx-Cx33
4 form C (4 CO)
V230xx-xxxxx-F110

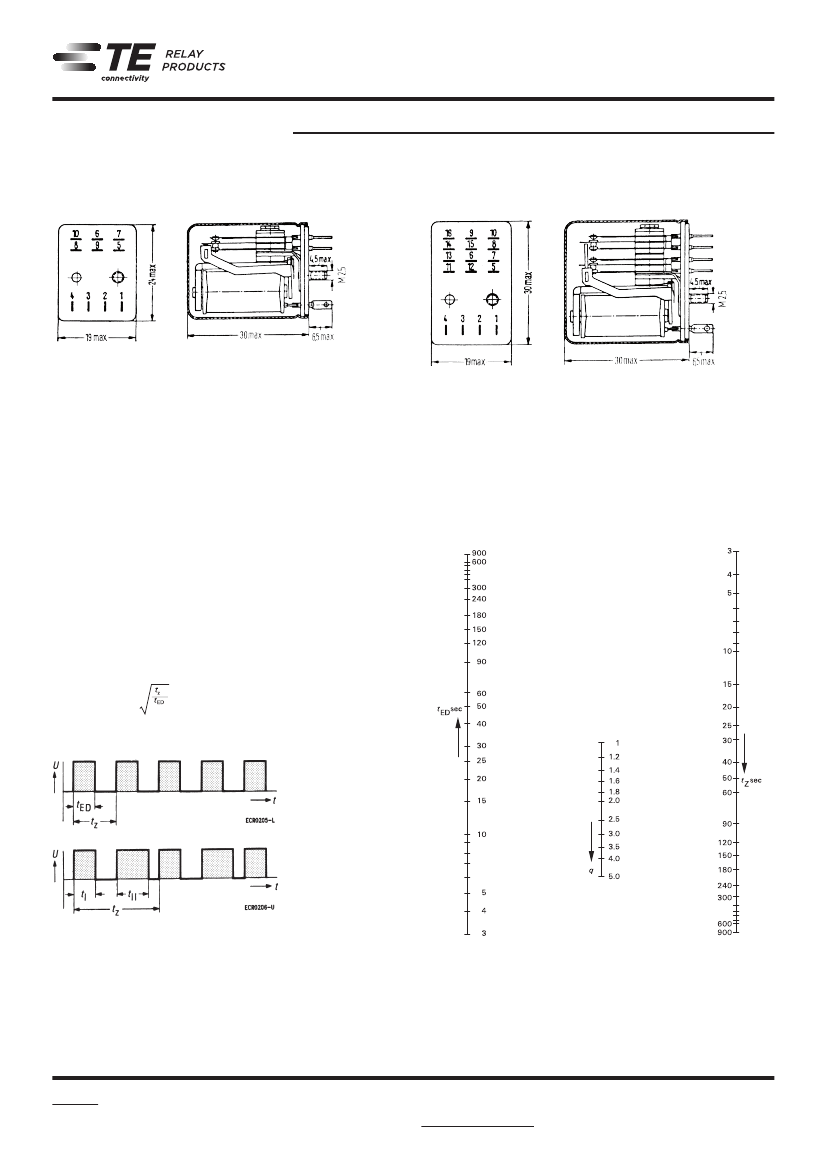

Dimensions
V23054-Cxxx, size I type
V23054-Dxxx, size II type
V23054-Exxx, size I type
03-2012, Rev. 0312
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
3
Signal Relays
Cradle S Relay V23054/V23062
(Continued)
Dimensions
