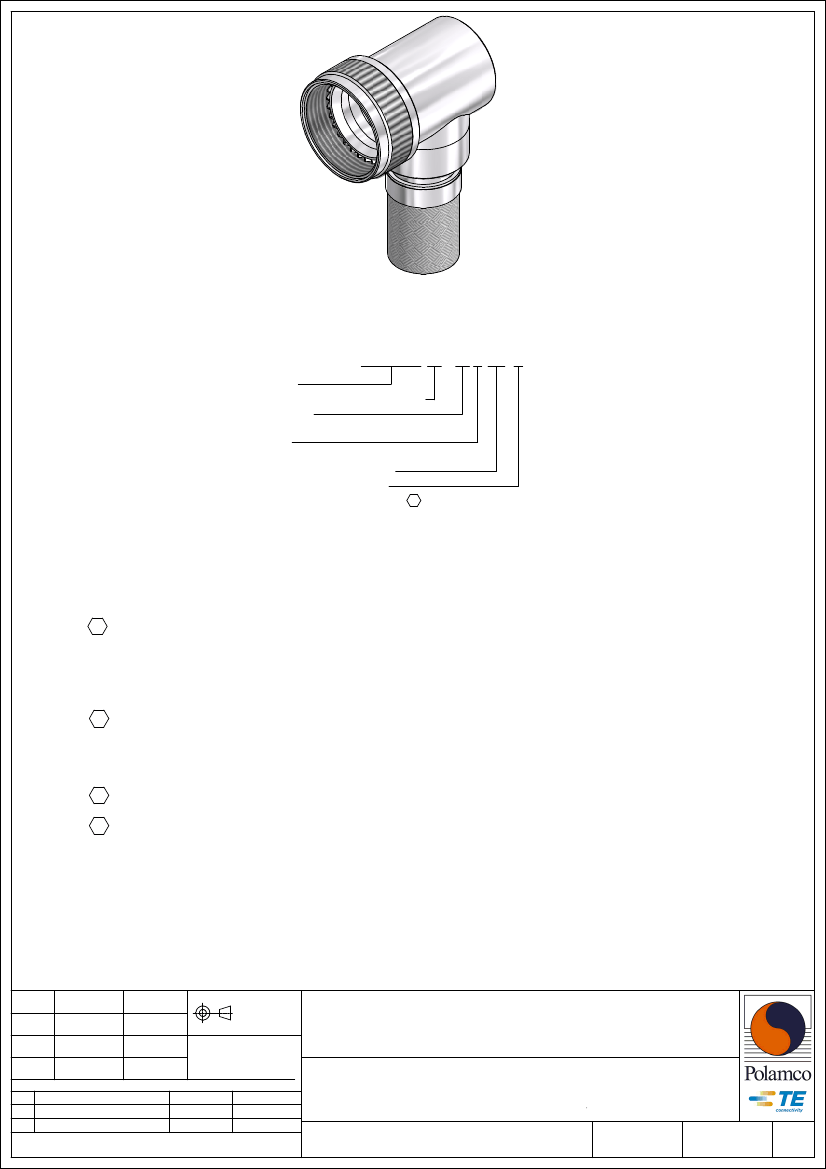

CODE 54 - BRAID TAIL BACKSHELL
203M216-19B08-L
SERIES
ORDER NUMBER (TABLE 1)
MATERIAL
REFER TO CH00-0250-004
FINISH
REFER TO CH00-0250-004
ENTRY SIZE (TABLE 2)
MODIFICATION CODE
REFER TO CH00-0250-004 2
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A HEAT SHRINKABLE LIPPED
BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-004
3. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER. (e.g. 06090-203M216-19B08).
4. WHEN ENTRY SIZE EXCEEDS "MAX ENTRY", A 2 PIECE BACKSHELL (TYPE 2) IS SUPPLIED.
5. BRAID TERMINATION RING MAY BE SUPPLIED AS TINEL-LOCK SHAPE MEMORY
RING AT MANUFACTURERS OPTION.
6. BACKSHELL MATES TO MIL-C-81703, SERIES III, MS3424, MS3446, MS3464, MS3467, MS3468, CLASS E & L
7. BACKSHELL MATES TO MIL-C-5015G, MS3400 SERIES, CLASS D, E, K, L, U & W,
MS3400, MS3401, MS3404, MS3406,MS3450, MS3451, MS3454, MS3456, MS3470, MS3471, MS3472,
MS3474, MS3475, MS3476. MIL-C-83723, SERIES II, CLASS A & L. MIL-C-83723,
SERIES I & III, CLASS A, G, K, R & S: M83723/1, /2, /3, /4, /5, /6, /7, /8, /13,
/14, /36, /37, /38, /40, /41, /42, /43, /48, /49, /65, /66, /67, /68, /69,
/70, /71, /72, /73, /74, /75, /76, /77, /78, /82, /83, /84, /85, /86, /87, /91, /92, /95, /97, /98,
(MS3155 CONTROLLED INTERFACE).
8. WHEN "L" MODIFICATION IS SPECIFIED, COUPLING NUT SHALL HAVE 3 WIRE HOLES,
120° APART.
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
13/02/2015
13/02/2015
24/02/2015
01/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
BRAID TAIL BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
R REVISED PER ECO-15-003651
S
REVISED PER ECO-15-013980
DA TE
10/03/2015
01/10/2015
APPROVED
I.MYONG
H.SMITH
MIL-DTL-26482 SERIES II / MIL-DTL-83723 SERIES I & III
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
203M2XX
S
1
STAINLESS
STEEL
TEETH VIEW
IF MAX ENTRY IS EXCEEDED BACKSHELL
WILL BE SUPPLIED AS TYPE 2
H
W
T
16,80
`
0,50
SILICONE
O-RING
M
A THREAD
XXXX
A THREAD
ØB
ØK
ØB
PART MARK
HERE
E
XXXX
PART MARK
HERE
ØZ
152,4 MIN
4
TINNED COPPER
SHIELD
TINNED COPPER
SHIELD

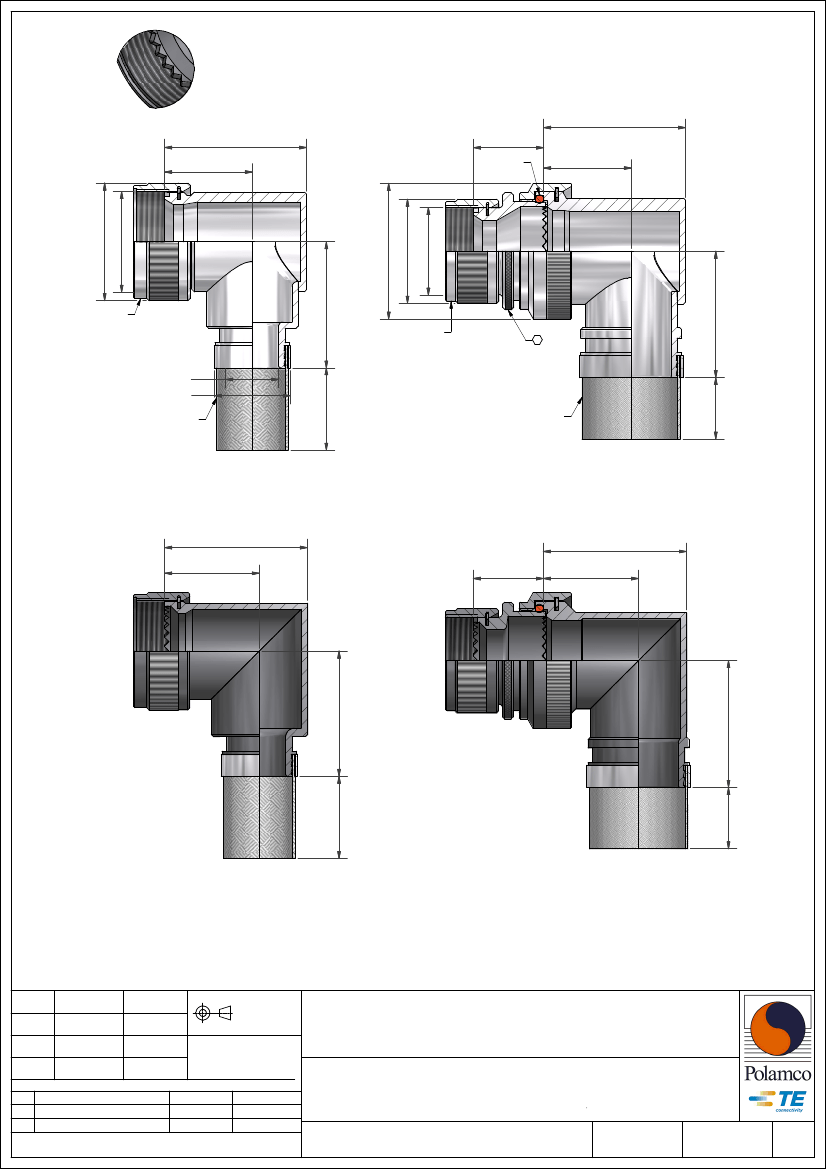

90° BACKSHELL - TYPE 2
90° BACKSHELL - TYPE 1
W
T
16,80
`
0,50
M
H
E
152,4 MIN
ØY
J
152,4 MIN
90° BACKSHELL - TYPE 1
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
90° BACKSHELL - TYPE 2
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
13/02/2015
13/02/2015
24/02/2015
01/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
BRAID TAIL BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
R REVISED PER ECO-15-003651
S
REVISED PER ECO-15-013980
DA TE
10/03/2015
01/10/2015
APPROVED
I.MYONG
H.SMITH
MIL-DTL-26482 SERIES II / MIL-DTL-83723 SERIES I & III
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
152,4 MIN
J
SHT
203M2XX
S
2
TABLE 1
ORDER
NUMBER
03
08
10
12
14
16
18
20
22
24
28
32
36
40
44
48
61
6
3
SHELL SIZE
7
8 & 8S
10, 10S, 10SL
12 & 12S
14 & 14S
16 & 16S
18
20
22
24
28
32
36
40
44
48
A THREAD
9/16-24 UNEF
1/2-20 UNF
5/8-24 UNEF
3/4-20 UNEF
7/8-20 UNEF
1-20 UNEF
1 1/16-18 UNEF
1 3/16-18 UNEF
1 5/16-18 UNEF
1 7/16-18 UNEF
1 3/4-18UNS
2-18 UNS
2 1/4-16 UN
2 1/2-16 UN
2 3/4-16 UN
3-16UN
1 1/2-18 UNEF
10
7
12
19
27
37
61
ØB
MAX
17,0
15,6
18,6
21,7
24,9
28,2
30,9
34,1
37,3
40,4
50,0
56,3
62,7
69,0
75,4
81,7
42,0
MAX
ENTRY
04
04
06
08
09
11
12
14
16
18
22
24
28
28
28
28
18
W
±0,5
26,4
24,5
26,5
29,0
30,5
34,0
37,0
42,0
44,0
45,0
54,2
60,9
67,2
73,2
79,5
85,8
47,8
T
±0,5
17,8
17,5
17,8
18,7
19,0
21,0
23,5
27,0
27,0
27,0
31,4
36,4
38,0
41,0
44,1
47,2
28,0
E
±0,5
23,8
23,8
25,5
26,5
28,1
30,2
30,2
32,0
33,6
35,1
38,7
42,3
47,1
49,3
52,5
55,6
36,6
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
W
T
E
±0,5
±0,5
±0,5
26,3
16,0
23,8
22,4
17,5
23,8
25,0
18,8
25,5
28,3
20,4
26,5
30,4
21,5
28,1
33,5
23,0
30,2
35,5
24,0
30,2
38,8
25,7
32,0
41,9
27,2
33,6
44,8
28,7
35,1
50,7
31,6
38,7
60,0
33,5
42,3
65,5
36,0
47,1
72,0
39,3
49,3
75,5
40,8
52,5
75,5
40,8
55,6
48,3
27,0
36,6
TABLE 2
ENTRY
SIZE
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
20
21
22
24
28
ØK
MAX
NA
NA
21,0
21,0
21,0
24,5
24,5
29,0
32,5
32,5
35,5
35,5
37,0
37,0
40,0
40,0
43,5
48,5
48,5
52,1
58,5
ØZ
REF
4,77
6,35
7,92
9,52
11,12
12,70
14,27
15,87
17,47
19,05
20,62
22,23
23,82
25,40
26,98
28,60
31,80
33,34
35,00
38,10
44,45
ØY
REF
13,1
13,1
13,1
17,9
17,9
17,9
17,9
24,2
24,2
24,2
24,2
30,6
30,6
30,6
33,2
33,2
42,0
42,0
42,0
42,0
49,0
H
±0,5
NA
NA
24,0
24,0
24,0
27,0
27,0
31,0
34,0
34,0
35,0
35,0
38,0
38,0
42,0
42,0
45,0
54,5
54,5
58,0
65,5
M
±0,5
NA
NA
15,5
15,5
15,5
17,0
17,0
19,5
21,0
21,0
20,0
20,0
21,5
21,5
24,0
24,0
25,5
31,0
31,0
33,0
36,5
J
±0,5
NA
NA
25,7
25,7
25,7
27,2
27,2
28,7
30,4
30,4
32,1
32,1
33,7
33,7
35,2
35,2
36,7
39,8
39,8
43,8
48,9
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
H
M
J
±0,5
±0,5
±0,5
NA
NA
NA
NA
NA
NA
24,3
17,2
25,7
24,3
17,2
25,7
24,3
17,2
25,7
28,3
19,4
27,2
28,3
19,4
27,2
31,1
21,0
28,7
34,2
22,8
30,4
34,2
22,8
30,4
38,5
25,3
32,1
38,5
25,3
32,1
40,7
26,1
33,7
40,7
26,1
33,7
43,7
27,6
35,2
43,7
27,6
35,2
46,4
29,1
36,7
50,0
31,0
39,8
50,0
31,0
39,8
53,5
33,0
43,8
60,3
36,5
48,9
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
13/02/2015
13/02/2015
24/02/2015
01/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
BRAID TAIL BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
R REVISED PER ECO-15-003651
S
REVISED PER ECO-15-013980
DA TE
10/03/2015
01/10/2015
APPROVED
I.MYONG
H.SMITH
MIL-DTL-26482 SERIES II / MIL-DTL-83723 SERIES I & III
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
203M2XX
S
3
