SN0504-270K

Description
General Purpose Inductor, 27uH, 10%, 2320,
CategoryPassive components    inductor
File Size116KB,11 Pages
ManufacturerKitagawa Electronics
Download Datasheet Parametric View All

SN0504-270K Overview

General Purpose Inductor, 27uH, 10%, 2320,

SN0504-270K Parametric

Parameter NameAttribute value
MakerKitagawa Electronics
package instruction2320
Reach Compliance Codeunknown
ECCN codeEAR99
Base Number Matches1

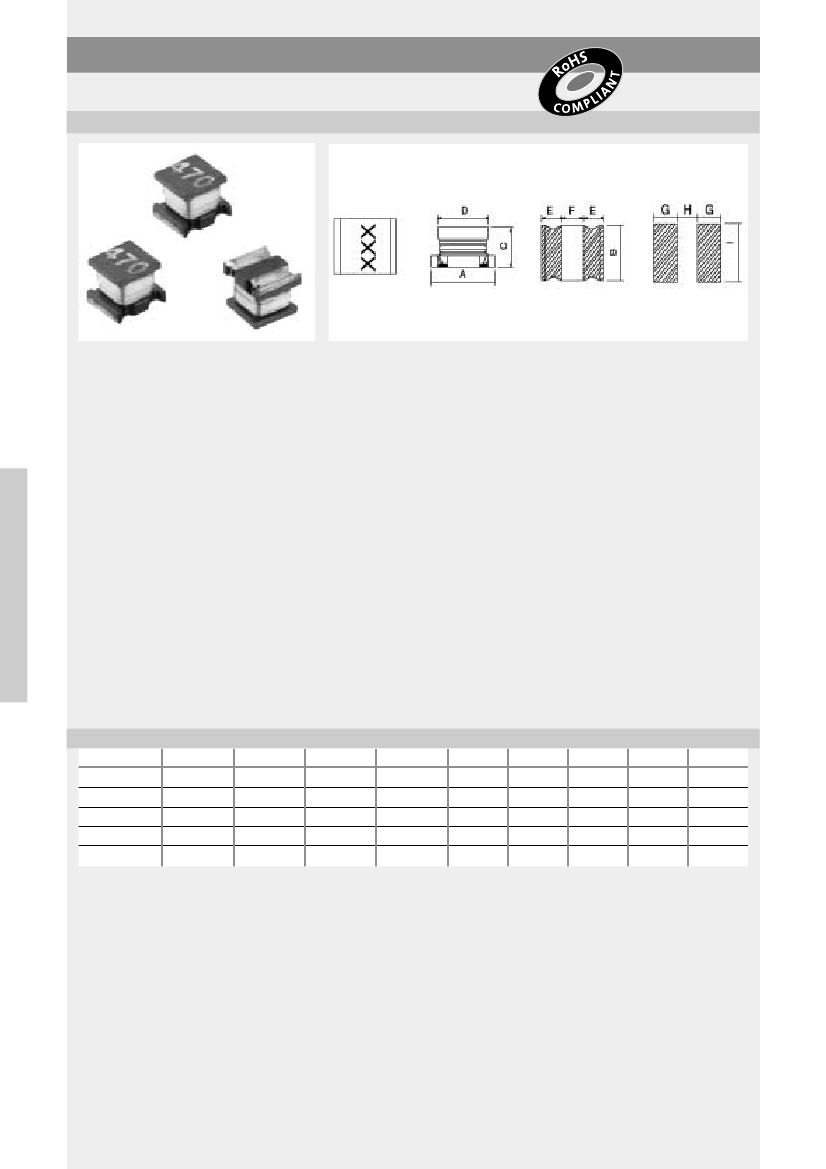

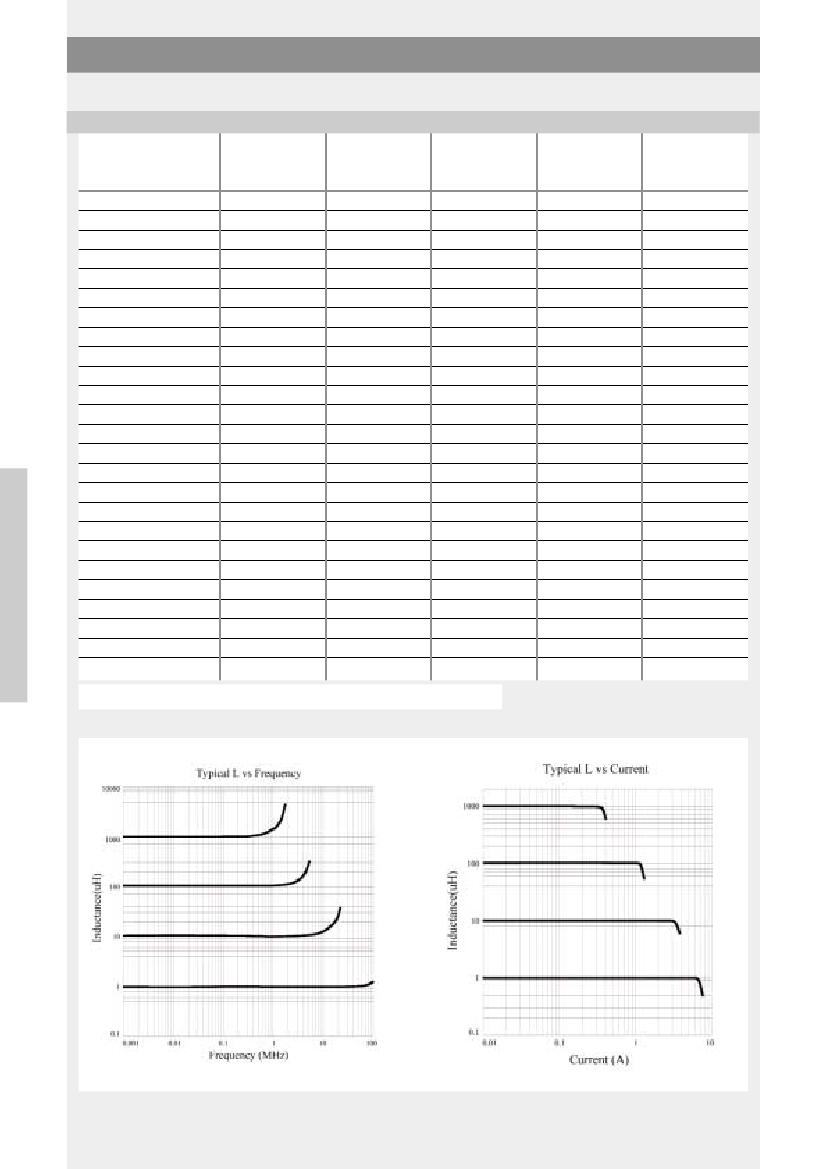

POWER INDUCTOR (NON SHIELDED)
POWER CHOKE - TRQ2B/3B/3C/4C/6C SERIES
EXTERNAL DIMENSIONS
(Unit: mm)
Test Equipment and Conditions
• Inductance is measured with HP-4284A LCR meter or equivalent.
• S.R.F. measured with HP-8714C RF network analyzer or equivalent.
• Maximum allowable DC current is that which causes a 10% inductance reduction of the initial value, or coil temperature
to rise by 40°C,whichever is smaller. (Reference ambient temperature 20°C).
• Operating Temperature Range : -25°C to +85°C.
POWER INDUCTOR (NON SHIELDED)
Features
• Open magnetic sructure enables low cost.
• Low DC resistance permits high current flow.
• The series exhibit low voltage drops and small variations in inductance with respect to temperature rise and DC current
level. This makes them excellent for use as power supply line choke coils.
• Excellent solder heat resistance. Both flow and reflow soldering methods can be employed.
• Suitable for lead free soldering.
• ROHS Compliant.
Applications
• Suitable for enhancing the performance of electronic circuits in video, communications and audio equipment.
Solder Land Information
Type
TRQ2B
TRQ3B
TRQ3C
TRQ4C
TRQ6C
A
2.5±0.3
3.2±0.3
3.2±0.3
4.5±0.3
5.7±0.3
B
2.0±0.3
1.6±0.3
2.5±0.2
3.2±0.2
5.0±0.3
C
2.0±0.2
2.0±0.3
2.0±0.2
2.6±0.2
4.7±0.3
D
2.0±0.2
2.3±0.2
2.5±0.2
3.6±0.2
5.0±0.3
E
0.8
1.0
0.9±0.3
1.0min.
1.3min.
F
0.8
1.0
1.3±0.3
1.0min.
1.7min.
G
1.2
1.3
1.3
1.8
2.3
H
0.8
1.0
1.0
1.5
1.7
I
2.5
3.0
3.0
3.8
5.5
