54FCT240DMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54FCT240DMQB

54FCT240DMQB: DescriptionBus Driver, 2-Func, 4-Bit, Inverted Output, CMOS, CDIP20,; Categorylogic logic; File Size339KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54FCT240DMQB Overview

Bus Driver, 2-Func, 4-Bit, Inverted Output, CMOS, CDIP20,

54FCT240DMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
Control type	ENABLE LOW
JESD-30 code	R-XDIP-T20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.048 A
Number of digits	4
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	9 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

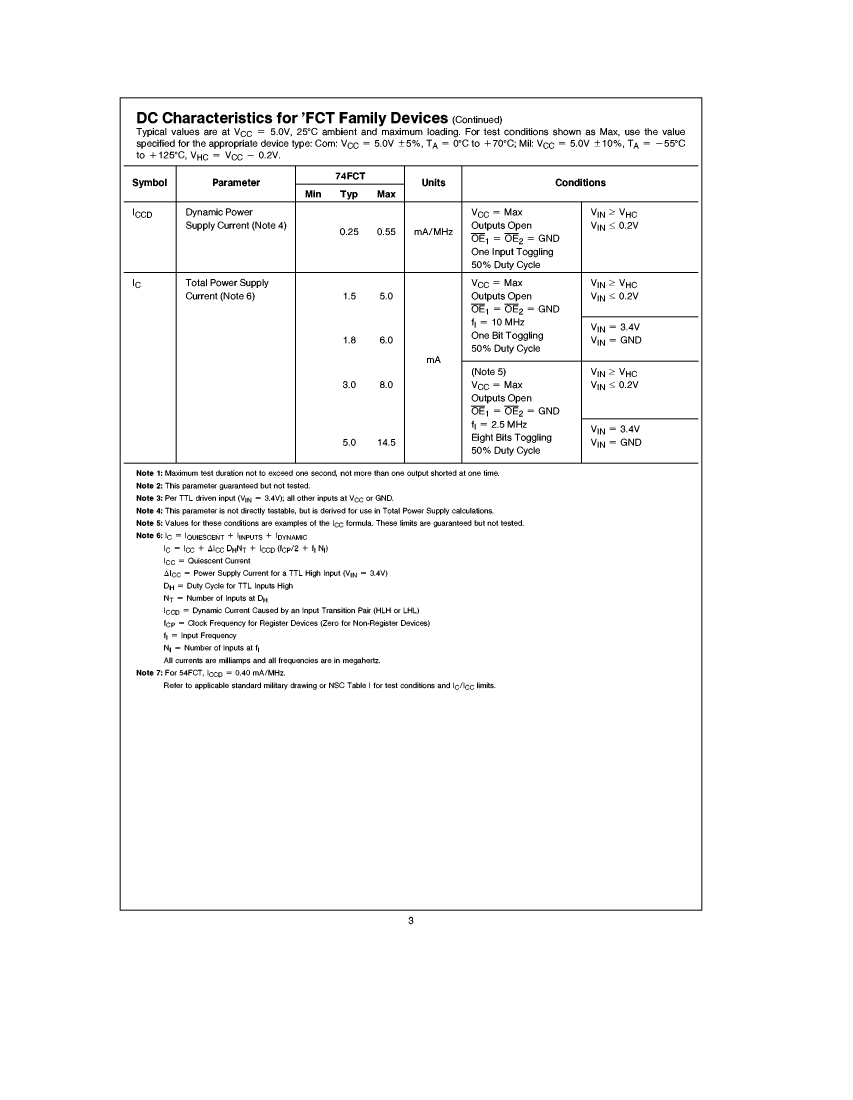

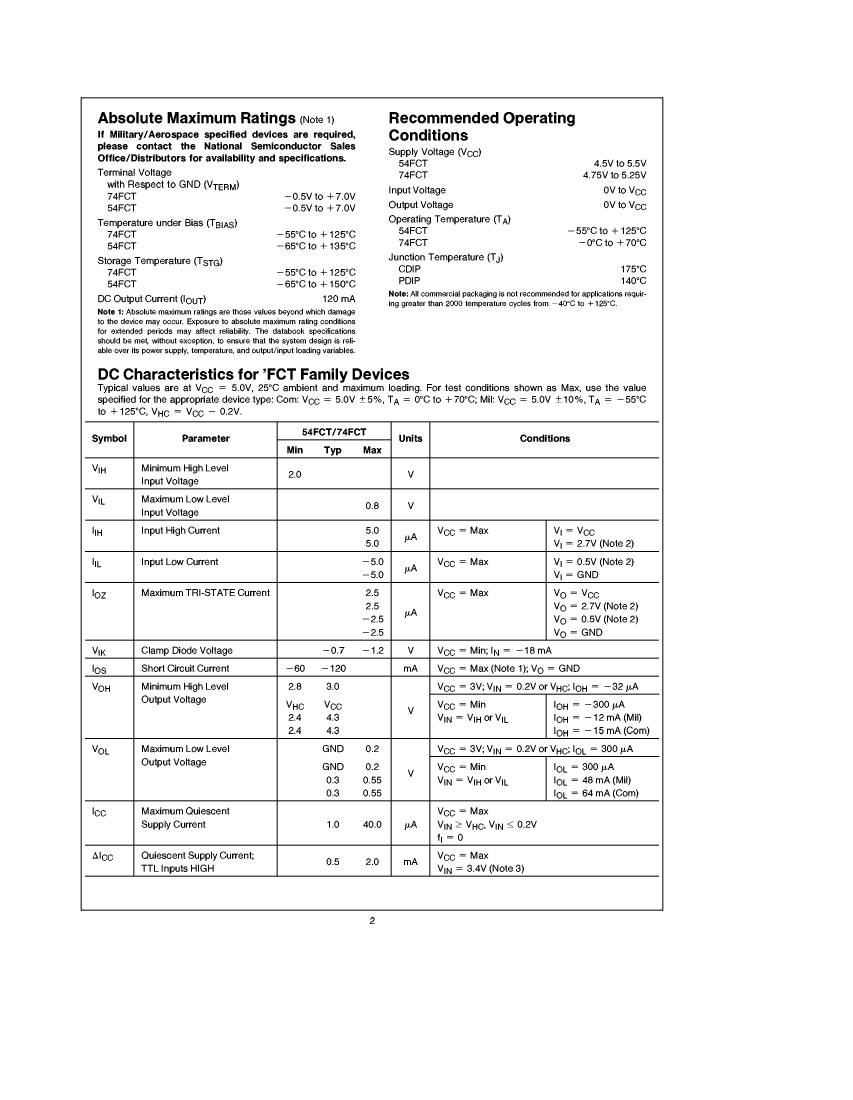

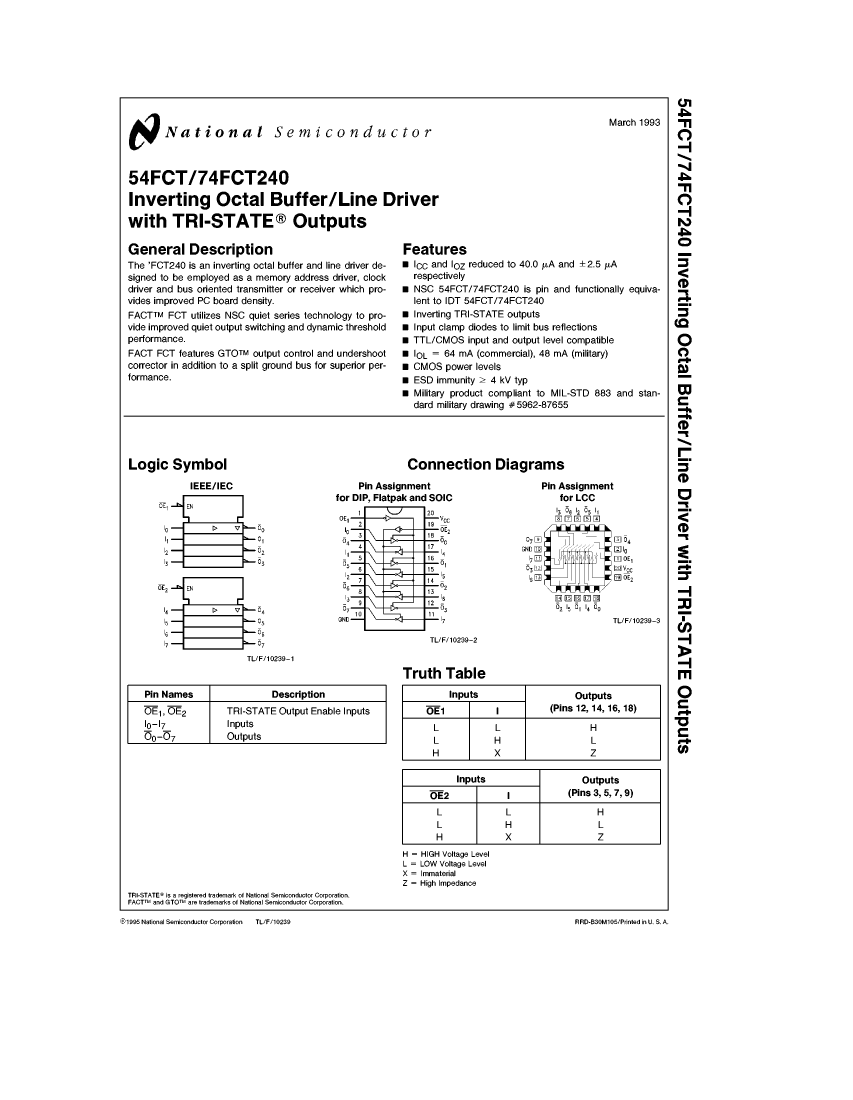

Preview

Download Datasheet

View All

54FCT240DMQB Related Products

	54FCT240DMQB	54FCT240FMQB	74FCT240SC	74FCT240PC	74FCT240PCQR
Description	Bus Driver, 2-Func, 4-Bit, Inverted Output, CMOS, CDIP20,	Bus Driver, 2-Func, 4-Bit, Inverted Output, CMOS, CDFP20,	Bus Driver, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20,	Bus Driver, 2-Func, 4-Bit, Inverted Output, CMOS, PDIP20,	Bus Driver, 2-Func, 4-Bit, Inverted Output, CMOS, PDIP20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	DIP, DIP20,.3	DFP, FL20,.3	SOP, SOP20,.4	DIP, DIP20,.3	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW
JESD-30 code	R-XDIP-T20	R-XDFP-F20	R-PDSO-G20	R-PDIP-T20	R-PDIP-T20
JESD-609 code	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.048 A	0.048 A	0.064 A	0.064 A	0.064 A
Number of digits	4	4	4	4	4
Number of functions	2	2	2	2	2
Number of terminals	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DFP	SOP	DIP	DIP
Encapsulate equivalent code	DIP20,.3	FL20,.3	SOP20,.4	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	SMALL OUTLINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	9 ns	9 ns	8 ns	8 ns	8 ns
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Base Number Matches	1	1	1	-	-
