82WR500KLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 82WR500KLF

82WR500KLF: DescriptionTrimmer, Cermet, 0.5W, 500000ohm, 200V, 10% +/-Tol, -100,100ppm/Cel, 1 Turn(s), 1/4 INCH, CIRCULAR, 3 PINS; CategoryPassive components The resistor; File Size59KB，4 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

82WR500KLF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	82WR500KLF	-	-	View	Buy Now

82WR500KLF Overview

Trimmer, Cermet, 0.5W, 500000ohm, 200V, 10% +/-Tol, -100,100ppm/Cel, 1 Turn(s), 1/4 INCH, CIRCULAR, 3 PINS

82WR500KLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1735388503
package instruction	1/4 INCH, CIRCULAR, 3 PINS
Reach Compliance Code	compliant
Country Of Origin	Mexico
YTEOL	7.6
Actuator direction	VERTICAL
Actuator type	SCREW
Other features	RATED AC VOLTAGE (V): 200
structure	Cylindrical
gang number	1
JESD-609 code	e3
Lead diameter	0.432 mm
Lead length	4.57 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package diameter	6.35 mm
Package length	5.3 mm
Package shape	CIRCULAR PACKAGE
Package form	PCB Mount
method of packing	BULK
Rated power dissipation(P)	0.5 W
Rated temperature	70 °C
resistance	500000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	220 deg
surface mount	NO
technology	CERMET
Temperature Coefficient	100 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE
Tolerance	10%
Operating Voltage	200 V

Preview

Download Datasheet

View All

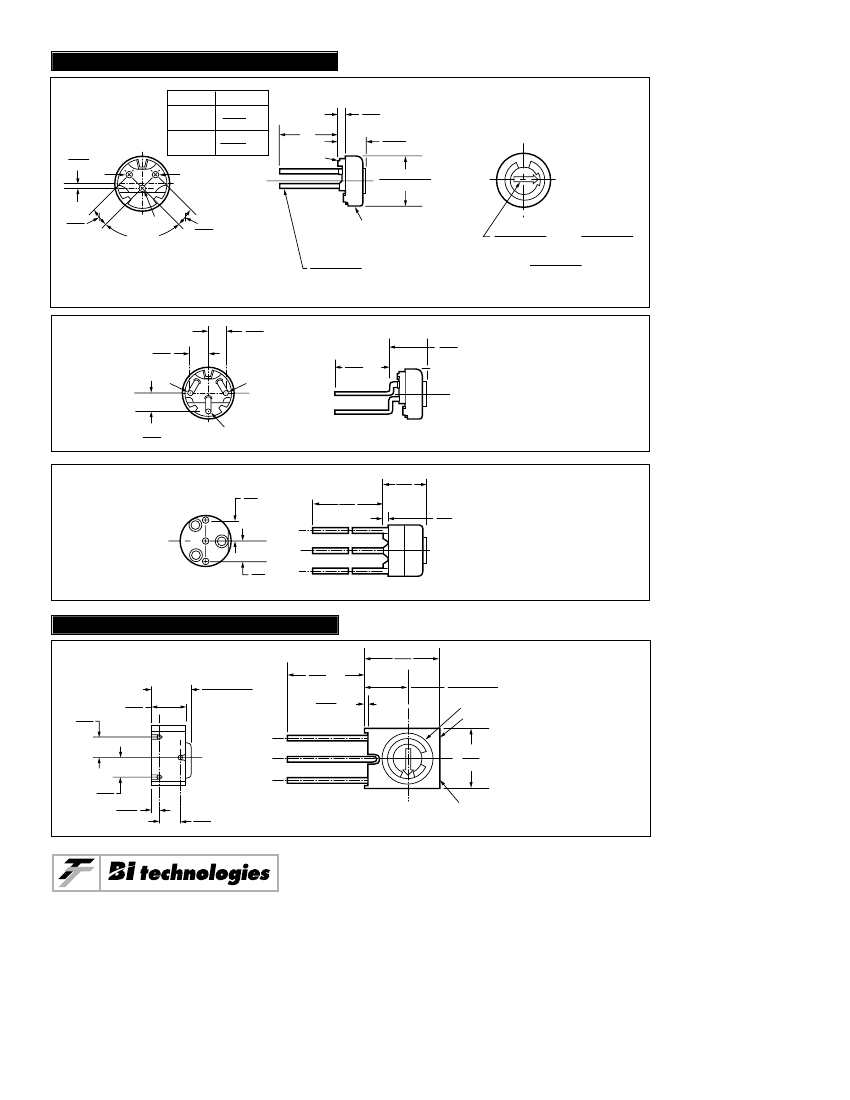

MODEL 82

1/4” Diameter

Single Turn

Cermet Trimming

Potentiometer

ELECTRICAL

Standard Resistance Range, Ohms

Standard Resistance Tolerance

Input Voltage, Maximum

Slider Current, Maximum

Power Rating, Watts

End Resistance, Maximum

Actual Electrical Travel, Nominal

Dielectric Strength

Insulation Resistance, Minimum

Resolution

Contact Resistance Variation, Maximum

ENVIRONMENTAL

10 to 1Meg

±10% (<100 Ohms = ±20%)

200 Vdc or rms not to exceed power rating

100mA or within rated power, whichever is less

0.5 at 70°C derating to 0 at 125°C

2 Ohms

220°

600 Vrms

1,000 Megohms

Essentially infinite

1% or 1 Ohm, whichever is greater

Seal

Temperature Coefficient, Maximum

Operating Temperature Range

Thermal Shock

Moisture Resistance

Shock, 6ms Sawtooth

Vibration

High Temperature Exposure

Rotational Life

Load Life at 0.5 Watts

Resistance to Solder Heat

MECHANICAL

85°C Fluorinert® (No Leaks)

±100ppm/°C

–55°C to +125°C

5 cycles, –55°C to +125°C (1%

∆RT,

1%∆VR)

Ten 24 hour cycles (1%

∆RT,

IR 100 Megohms Min.)

100G’s (1%

∆RT,

∆VR

)

20G’s, 10 to 2,000 Hz (1%

∆RT,

∆VR

)

250 hours at 125°C (2%

∆RT,

∆VR

)

200 cycles (3%

∆RT)

1,000 hours at 70°C (2%

∆RT)

260°C for 10 sec. (1%

∆RT)

Mechanical Stops

Torque, Starting Maximum

Weight, Nominal

Fluorinert® is a registered trademark of 3M Company.

Specifications subject to change without notice.

Solid

3 oz.-in. (0.021 N-m)

.02 oz. (0.60 grams)

1-65

Model 82

82WR500KLF Related Products

	82WR500KLF	82WR250KLF	82WR1MEGLF	82WR50LF	82WR10LF	82WR5KLF	82WR2KLF	82WR25KLF	82WR100KLF	82PAR2KLFTB
Description	Trimmer, Cermet, 0.5W, 500000ohm, 200V, 10% +/-Tol, -100,100ppm/Cel, 1 Turn(s), 1/4 INCH, CIRCULAR, 3 PINS	trimmer resistors - through hole 1/2W 250k ohms 10% single turn	trimmer resistors - through hole 1/2W 1M ohms 10% single turn	Trimmer, Cermet, 0.5W, 50ohm, 200V, 20% +/-Tol, -100,100ppm/Cel, 1 Turn(s), 1/4 INCH, CIRCULAR, 3 PINS	Trimmer, Cermet, 0.5W, 10ohm, 200V, 20% +/-Tol, -100,100ppm/Cel, 1 Turn(s), 1/4 INCH, CIRCULAR, 3 PINS	Trimmer, Cermet, 0.5W, 5000ohm, 200V, 10% +/-Tol, -100,100ppm/Cel, 1 Turn(s), 1/4 INCH, CIRCULAR, 3 PINS	Trimmer, Cermet, 0.5W, 2000ohm, 200V, 10% +/-Tol, -100,100ppm/Cel, 1 Turn(s), 1/4 INCH, CIRCULAR, 3 PINS	Trimmer, Cermet, 0.5W, 25000ohm, 200V, 10% +/-Tol, -100,100ppm/Cel, 1 Turn(s), 1/4 INCH, CIRCULAR, 3 PINS	Trimmer, Cermet, 0.5W, 100000ohm, 200V, 10% +/-Tol, -100,100ppm/Cel, 1 Turn(s), 1/4 INCH, CIRCULAR, 3 PINS	trimmer resistors - through hole 1/2W 2K ohms 10% single turn
Is it Rohs certified?	conform to	-	-	conform to	conform to	conform to	conform to	conform to	conform to	-
Objectid	1735388503	-	-	1735388518	1735388451	1735388524	1735388497	1735388491	1735388433	-
package instruction	1/4 INCH, CIRCULAR, 3 PINS	-	-	1/4 INCH, CIRCULAR, 3 PINS	1/4 INCH, CIRCULAR, 3 PINS	1/4 INCH, CIRCULAR, 3 PINS	1/4 INCH, CIRCULAR, 3 PINS	1/4 INCH, CIRCULAR, 3 PINS	1/4 INCH, CIRCULAR, 3 PINS	-
Reach Compliance Code	compliant	-	-	compliant	compliant	compliant	compliant	compliant	compliant	-
Country Of Origin	Mexico	-	-	Mexico	Mexico	Mexico	Mexico	Mexico	Mexico	-
YTEOL	7.6	-	-	7.6	7.6	7.6	7.6	7.6	7.6	-
Actuator direction	VERTICAL	-	-	VERTICAL	VERTICAL	VERTICAL	VERTICAL	VERTICAL	VERTICAL	-
Actuator type	SCREW	-	-	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	-
Other features	RATED AC VOLTAGE (V): 200	-	-	RATED AC VOLTAGE (V): 200	RATED AC VOLTAGE (V): 200	RATED AC VOLTAGE (V): 200	RATED AC VOLTAGE (V): 200	RATED AC VOLTAGE (V): 200	RATED AC VOLTAGE (V): 200	-
structure	Cylindrical	-	-	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	-
gang number	1	-	-	1	1	1	1	1	1	-
JESD-609 code	e3	-	-	e3	e3	e3	e3	e3	e3	-
Lead diameter	0.432 mm	-	-	0.432 mm	0.432 mm	0.432 mm	0.432 mm	0.432 mm	0.432 mm	-
Lead length	4.57 mm	-	-	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm	-
Installation features	THROUGH HOLE MOUNT	-	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-
Number of terminals	3	-	-	3	3	3	3	3	3	-
number of turns	1	-	-	1	1	1	1	1	1	-
Maximum operating temperature	125 °C	-	-	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-
Package diameter	6.35 mm	-	-	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	-
Package length	5.3 mm	-	-	5.3 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm	-
Package shape	CIRCULAR PACKAGE	-	-	CIRCULAR PACKAGE	CIRCULAR PACKAGE	CIRCULAR PACKAGE	CIRCULAR PACKAGE	CIRCULAR PACKAGE	CIRCULAR PACKAGE	-
Package form	PCB Mount	-	-	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	-
method of packing	BULK	-	-	BULK	BULK	BULK	BULK	BULK	BULK	-
Rated power dissipation(P)	0.5 W	-	-	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	-
Rated temperature	70 °C	-	-	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	-
resistance	500000 Ω	-	-	50 Ω	10 Ω	5000 Ω	2000 Ω	25000 Ω	100000 Ω	-
resistance law	LINEAR	-	-	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	-
Resistor type	TRIMMER	-	-	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER	-
rotation angle	220 deg	-	-	220 deg	220 deg	220 deg	220 deg	220 deg	220 deg	-
surface mount	NO	-	-	NO	NO	NO	NO	NO	NO	-
technology	CERMET	-	-	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET	-
Temperature Coefficient	100 ppm/°C	-	-	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	-
Terminal surface	Matte Tin (Sn)	-	-	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	-
Terminal shape	WIRE	-	-	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	-
Tolerance	10%	-	-	20%	20%	10%	10%	10%	10%	-
Operating Voltage	200 V	-	-	200 V	200 V	200 V	200 V	200 V	200 V	-
