5750489-4

Description
15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG
CategoryThe connector    The connector
File Size522KB,12 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

5750489-4 Overview

15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG

5750489-4 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codeunknown
Other featuresAMPLIMITE
Body/casing typePLUG
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationGOLD FLASH OVER NICKEL
Contact completed and terminatedTIN (120) OVER NICKEL
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number5750489
Mixed contactsNO
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell surfaceNICKEL
Shell materialSTEEL
Housing size1/E
Termination typeSOLDER
Total number of contacts15
UL Flammability Code94V-0
Base Number Matches1
AMPLIMITE* HD-22
Straight Front
Metal Shell Connectors
Application Specification
114-13199
04 MAY 07
Rev A
NOTE
i
All numerical values are in metric units [with U.S. customary units in brackets]. Dimensions are in millimeters [and
inches]. Unless otherwise specified, dimensions have a tolerance of +0.13 [+.005] and angles have a tolerance of +2 .
Figures and illustrations are for identification only and are not drawn to scale.
_
1. INTRODUCTION
This specification covers requirements for the application of AMPLIMITE HD–22 Straight Front Metal Shell
Connectors designed for printed circuit (pc) boards. The connectors are available with boardlocks and 4–40
threaded inserts, nonremovable 4–40 female screwlocks, or through holes in the mounting flange. Connectors
are designed to be placed on the pc board manually.
Front Metal Shell Connector receptacles are available in 15, 26, 62, and 78 positions; plugs are available in 15
and 78 positions. The connector plugs contain pin contacts and the receptacles contain socket contacts. This
document supercedes Application Specification 114–40022.

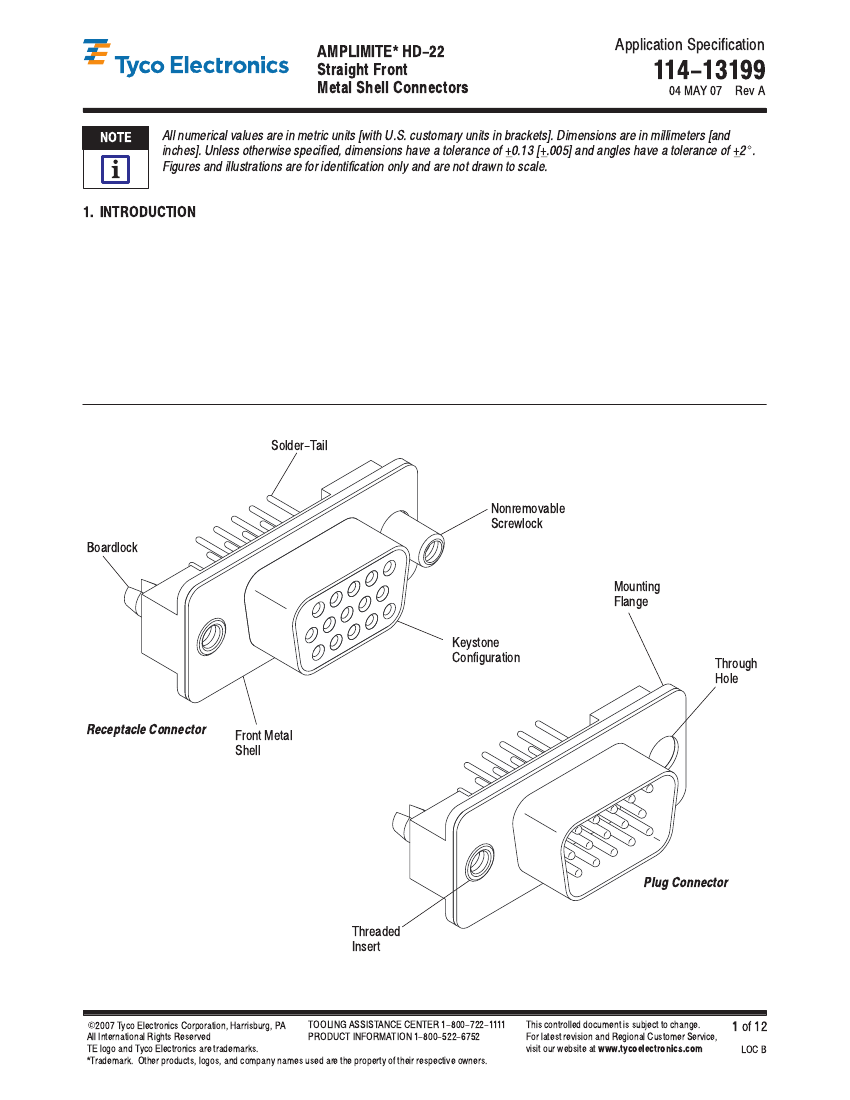

Figure 1 provides connector features and terms used throughout this specification. Use these terms when
corresponding with Tyco Electronics Representatives to facilitate assistance. The connector illustrations
present composites of mounting options and do not depict actual applications.
Solder-Tail
Nonremovable
Screwlock
Boardlock
Mounting
Flange
Keystone
Configuration
Through
Hole
Receptacle Connector
Front Metal
Shell
Plug Connector
Threaded
Insert
Figure 1
E
2007 Tyco Electronics Corporation, Harrisburg, PA
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
1 of 12
LOC B
*Trademark. Other products, logos, and company names used are the property of their respective owners.

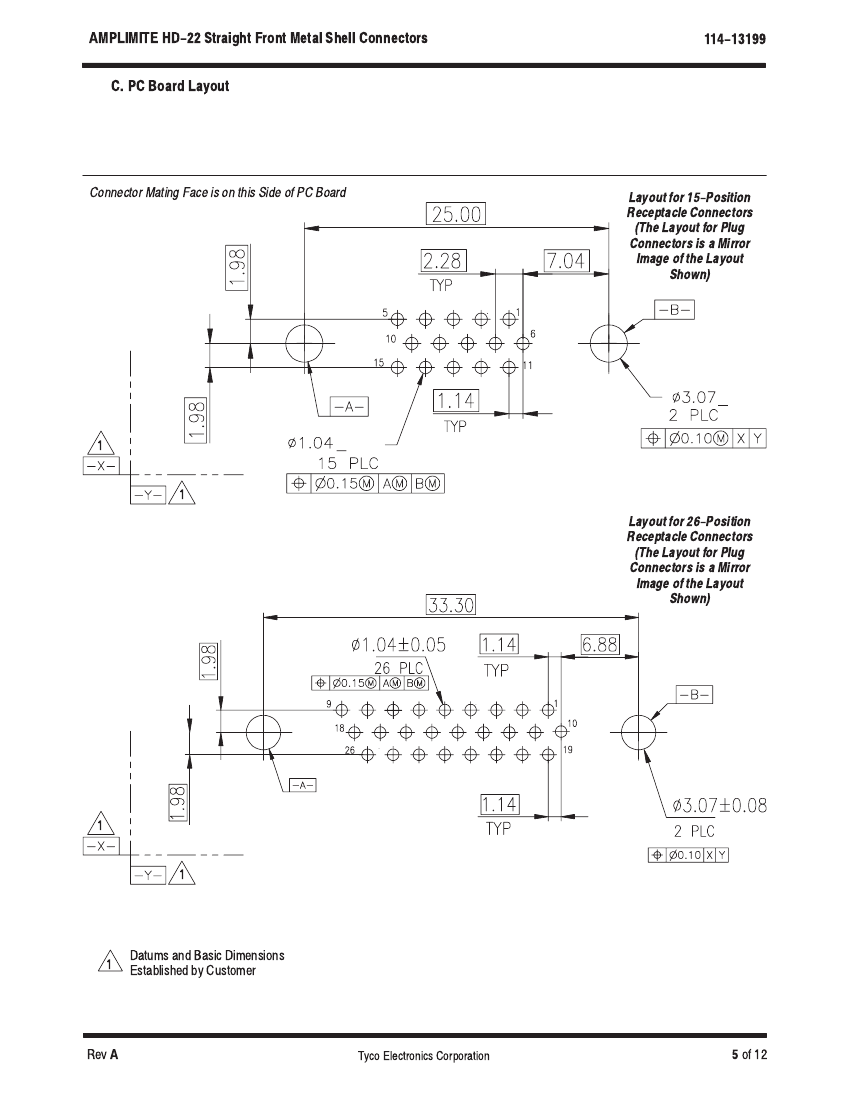

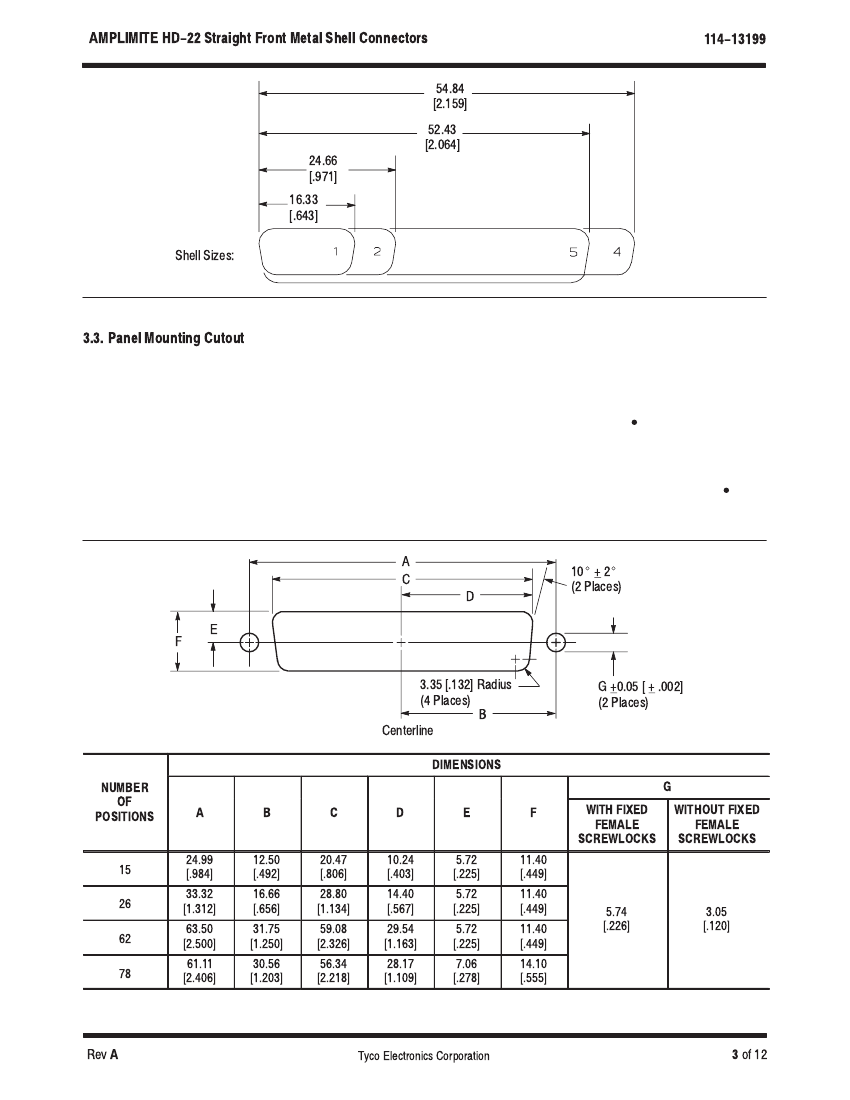

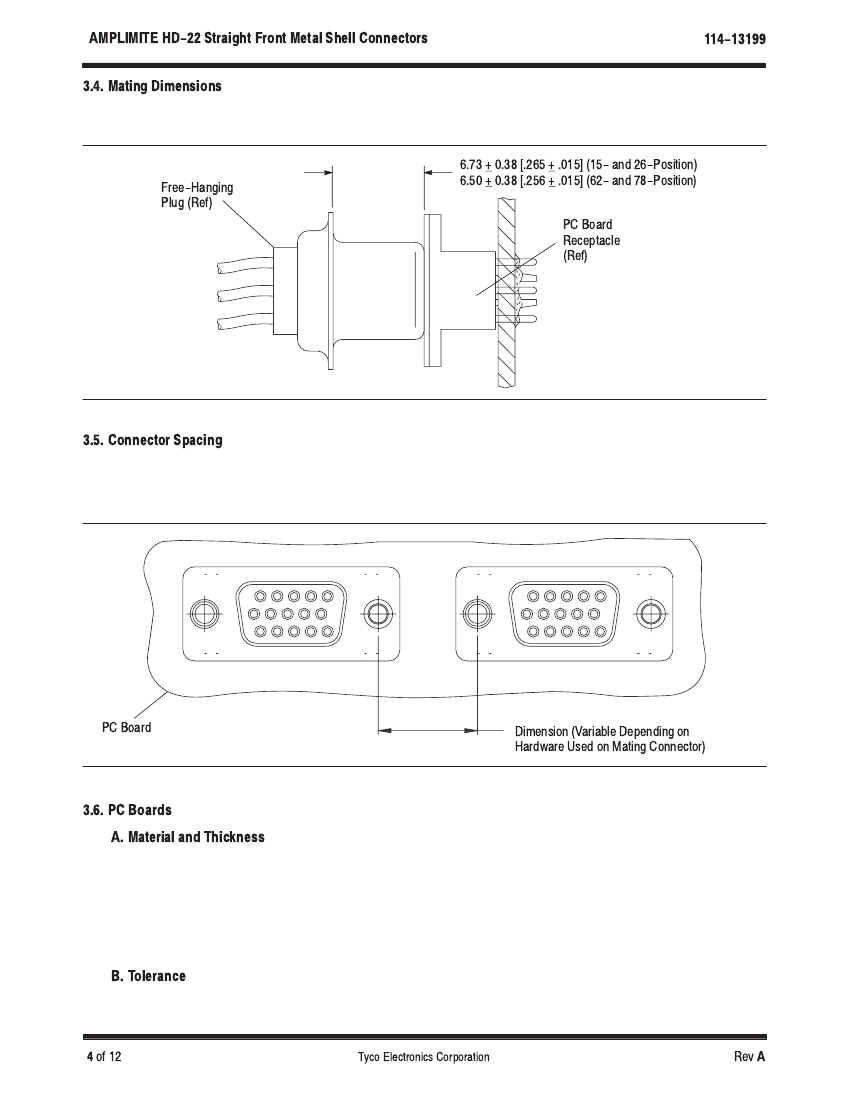

5750489-4 Related Products

5750489-4 749798-4 5750360-4 3-747786-3 750360-3 750360-4 786382-3
Description 15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG 15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG 15 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE CONNECTOR, 62 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE 15 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE 15 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE CONNECTOR, 15 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown
Other features AMPLIMITE AMPLIMITE AMPLIMITE AMPLIMITE AMPLIMITE AMPLIMITE STANDARD PROFILE
Body/casing type PLUG PLUG RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR
Contact point gender MALE MALE FEMALE FEMALE FEMALE FEMALE FEMALE
DIN compliance NO NO NO NO NO NO NO
empty shell NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO
insulator material GLASS FILLED POLYBUTYLENE TEREPHTHALATE POLYETHYLENE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER GLASS FILLED POLYAMIDE GLASS FILLED POLYAMIDE POLYETHYLENE
MIL compliance NO NO NO NO NO NO NO
Manufacturer's serial number 5750489 749798 5750360 747786 750360 750360 786382
Mixed contacts NO NO NO NO NO NO NO
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Shell surface NICKEL NICKEL NICKEL TIN NICKEL NICKEL NICKEL
Shell material STEEL STEEL STEEL STEEL STEEL STEEL STEEL
Housing size 1/E 1/E 1/E 4/C 1/E 1/E 1/E
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 15 15 15 62 15 15 15
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Base Number Matches 1 1 1 1 1 1 1
Is it Rohs certified? conform to incompatible conform to - incompatible incompatible incompatible
Maker TE Connectivity TE Connectivity TE Connectivity - TE Connectivity TE Connectivity TE Connectivity
Contact to complete cooperation GOLD FLASH OVER NICKEL GOLD FLASH GOLD (30) OVER NICKEL - GOLD (15) GOLD (30) GOLD (15)
Contact completed and terminated TIN (120) OVER NICKEL TIN LEAD OVER NICKEL TIN (120) OVER NICKEL - TIN LEAD OVER NICKEL TIN LEAD OVER NICKEL TIN LEAD OVER NICKEL
Contact material NOT SPECIFIED BRASS NOT SPECIFIED - PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
JESD-609 code e3 e0 e3 - e0 e0 e0
