Technical specification:
Rated voltage:
IEC 60664-1
300 V
2
2,7 kV
0,75mm²
8A
>=100 M
3/2
IP 68, in mated
condition
-30° ... +80°
C
C
>=100
crimped
1,5mm²
12 A
41
Overvoltage category:
IEC 60664-1
Overvoltage:
IEC 60664-1
Ø14
Ø26
A
Current rating:
IEC 60512-3 at 40°C
Insulation resistance:
IEC 60512
34
Pollution degree:
IEC 60664-1
Degree of protection:
IEC 60529
L
3
n
19
Temperature range:
IEC 60664-1
Mating cycles:
IEC 60512-9a
Termination:
Materials:
Contact:
Contact plating:
D
CuZn
Nickel, gold plated
TPU, UL 94
CuZn, nickel plated
TPU, UL 94, grey
A
PE
3
2
Contact assignment:
PE
2
3
green-yellow
brown
blue
Contact carrier:
Coupling nut:
Moulding body:
Part no:
41-01020
41-01021
41-01022
41-01023
41-xxxxx
41-01117
41-01118
41-01119
41-01120
Description:
SAL - 7/8 - RKW2PE - 2 / K0
SAL - 7/8 - RKW2PE - 3 / K0
SAL - 7/8 - RKW2PE - 5 / K0
SAL - 7/8 - RKW2PE - 10 / K0
SAL - 7/8 - RKW2PE - ... / K0
SAL - 7/8 - RKW2PE - 2 / K0 / 150
SAL - 7/8 - RKW2PE - 3 / K0 / 150
SAL - 7/8 - RKW2PE - 5 / K0 / 150
SAL - 7/8 - RKW2PE - 10 / K0 / 150
SAL - 7/8 - RKW2PE - ... / K0 / 150
Length L: Cable:
2m
3m
5m
10m
x
2m
3m
5m
10m
x
TPU, UL 20940,
black, 3x1,50mm²
Cable: 781-K08300
TPU, UL 20940,
black, 3x0,75mm²
Cable: 781-K07300
D see data sheet cable
DO NOT ALTER CAD DRAWING BY HAND
41-xxxxx
Directive 2002/95/EC RoHS compliant
Index: b 10.02.1 VF Ä3891
cable type changed, technical specification
changed, part no. cable in table added,
neutral line added
tolerance of cable:
dim. in mm
date
drawn
11.10.07
appd.
title:
name

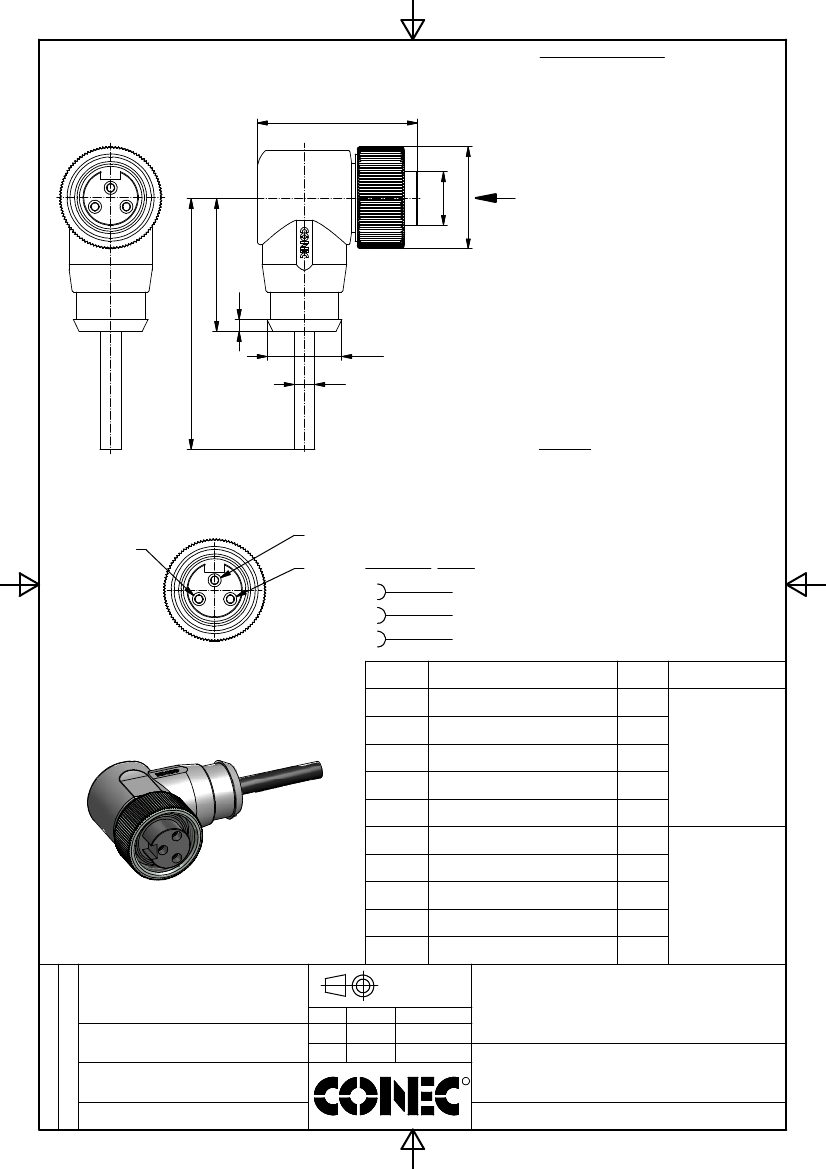

Female connector 7/8" angled
dwg no:
R
L <= 4m: L + 40mm
L > 4m: L + 1%
0
0,0
0,00
± 0,50mm
± 0,25mm
± 0,10mm
Franz
Mankopf
11.10.07
general tolerance:
41K1A310
part no:
THIS DRAWING MAY NOT BE COPIED OR REPRODUCED IN ANY WAY, AND
MAY NOT BE PASSED ON TO A THIRD PARTY WITHOUT WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC GmbH
see table
