Protections: Short circuit / Overload / Over voltage / Over temperature
‧
Forced air cooling by built-in DC Fan with fan speed control function
‧
1U low profile 30mm
‧
Optional conformal coating models (RSP-320-
□
CC)
‧
LED indicator for power on
‧
3 years warranty

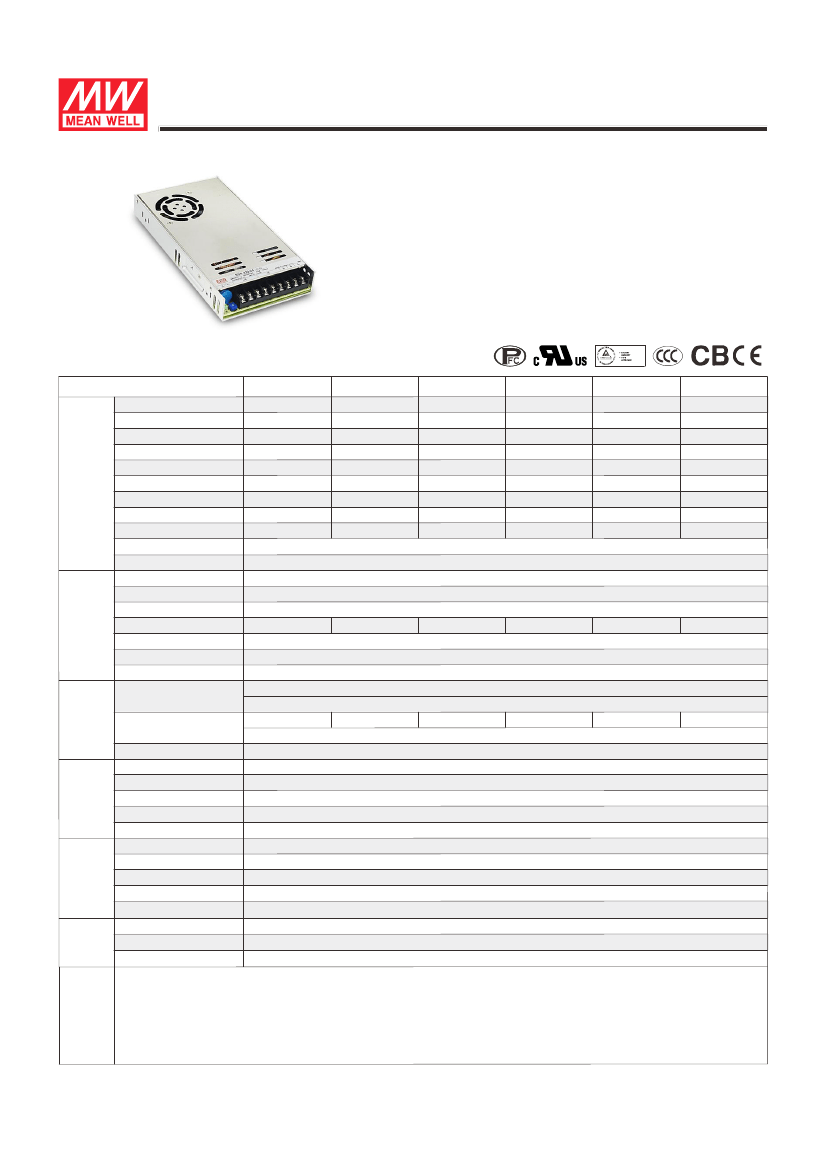

SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
VOLTAGE ADJ. RANGE
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
RSP-320-2.5
2.5V
60A
0 ~ 60A
150W
2.35 ~ 2.85V
±0.5%
±1.5%
8ms at full load
RSP-320-3.3
3.3V
60A
0 ~ 60A
198W
100mVp-p
2.97 ~ 3.8V
±2.0%
±0.5%
±1.5%
230VAC /115VAC
124 ~ 370VDC
PF>0.98/115VAC at full load
79.5%
1.5 A/230VAC
40A/230VAC
81%
83%
4A/115VAC
88%
2A/230VAC
88%
RSP-320-4
4V
60A
0 ~ 60A
240W
100mVp-p
3.7 ~ 4.3V
±2.0%
±0.5%
±1.0%
RSP-320-5
5V
60A
0 ~ 60A
300W
150mVp-p
4.5 ~ 5.5V
±2.0%
±0.5%
±1.0%
RSP-320-7.5
7.5V
40A
0 ~ 40A
300W
150mVp-p
6 ~ 9V
±2.0%
±0.5%
±1.0%
RSP-320-12
12V
26.7A
0 ~ 26.7A
320.4W
150mVp-p
10 ~ 13.2V
±1.0%
±0.3%
±0.5%
RIPPLE & NOISE (max.)
Note.2
100mVp-p
VOLTAGE TOLERANCE
Note.3
±2.0%
1500ms, 50ms/230VAC
3000ms, 50ms/115VAC at full load
Note.4
88 ~ 264VAC
VOLTAGE RANGE
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVERLOAD
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
PF>0.95/230VAC
75.5%
2.7A/115VAC
20A/115VAC
<1mA / 240VAC
105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
2.88 ~ 3.38V
3.8 ~ 4.5V
4.5 ~ 5.3V
5.75 ~ 6.75V
9.4 ~ 10.9V
Protection type : Shut down o/p voltage, re-power on to recover
Shut down o/p voltage, recovers automatically after temperature goes down
-30 ~ +70
℃
(Refer to "Derating Curve")
13.8 ~ 16.2V
20 ~ 90% RH non-condensing
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
-40 ~ +85
℃
, 10 ~ 95% RH
TEMP. COEFFICIENT
±
0.03%/
℃
(0 ~ 50
℃
)
VIBRATION
SAFETY STANDARDS
SAFETY & WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC
(Note 5)
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS
DIMENSION
PACKING
NOTE
1.
2.
3.
4.
5.
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
UL60950-1, TUV EN60950-1 , CCC GB4943 approved
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3,GB9254 class B,GB17625.1
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
206.5K hrs min.
MIL-HDBK-217F (25
℃
)
215*115*30mm (L*W*H)
0.9Kg; 15pcs/14.5Kg/0.78CUFT
All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
Derating may be needed under low input voltages. Please check the derating curve for more details.
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”
(as available on http://www.meanwell.com)
6. For charging related applications, please consult Mean Well for details.
File Name:RSP-320-SPEC 2014-04-01
320W Single Output with PFC Function
RSP-320
series
■
Features :
‧
Universal AC input / Full range
‧
Built-in active PFC function, PF>0.95
‧
High efficiency up to 90%
‧
Protections: Short circuit / Overload / Over voltage / Over temperature
‧
Forced air cooling by built-in DC Fan with fan speed control function
‧
1U low profile 30mm
‧
Optional conformal coating models (RSP-320-
□
CC)
‧
LED indicator for power on
‧
3 years warranty
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
VOLTAGE ADJ. RANGE
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
RSP-320-13.5
13.5V
23.8A
0 ~ 23.8A
321.3W
12 ~ 15V
±0.3%
±0.5%
8ms at full load
RSP-320-15
15V
21.4A
0 ~ 21.4A
321W
150mVp-p
13.5 ~ 18V
±1.0%
±0.3%
±0.5%
230VAC /115VAC
124 ~ 370VDC
PF>0.98/115VAC at full load
88.5%
2A/230VAC
40A/230VAC
89%
89%
89.5%
90%
RSP-320-24
24V
13.4A
0 ~ 13.4A
321.6W
150mVp-p
20 ~ 26.4V
±1.0%
±0.2%
±0.5%
RSP-320-27
27V
11.9A
0 ~ 11.9A
321.3W
200mVp-p
26 ~ 31.5V
±1.0%
±0.2%
±0.5%
RSP-320-36
36V
8.9A
0 ~ 8.9A
320.4W
220mVp-p
32.4 ~ 39.6V
±1.0%
±0.2%
±0.5%
RSP-320-48
48V
6.7A
0 ~ 6.7A
321.6W
240mVp-p
41 ~ 56V
±1.0%
±0.2%
±0.5%
RIPPLE & NOISE (max.)
Note.2
150mVp-p
VOLTAGE TOLERANCE
Note.3
±1.0%
1500ms, 50ms/230VAC
3000ms, 50ms/115VAC at full load
Note.4
88 ~ 264VAC
VOLTAGE RANGE
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVERLOAD
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
PF>0.95/230VAC
88%
4A/115VAC
20A/115VAC
<1mA / 240VAC
105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
15.7 ~ 18.4V
18.8 ~ 21.8V
27.6 ~ 32.4V
32.9 ~ 38.3V
41.4 ~ 48.6V
Protection type : Shut down o/p voltage, re-power on to recover
Shut down o/p voltage, recovers automatically after temperature goes down
-30 ~ +70
℃
(Refer to "Derating Curve")
58.4 ~ 68V
20 ~ 90% RH non-condensing
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
-40 ~ +85
℃
, 10 ~ 95% RH
TEMP. COEFFICIENT
±
0.03%/
℃
(0 ~ 50
℃
)
VIBRATION
SAFETY STANDARDS
SAFETY & WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC
(Note 5)
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS

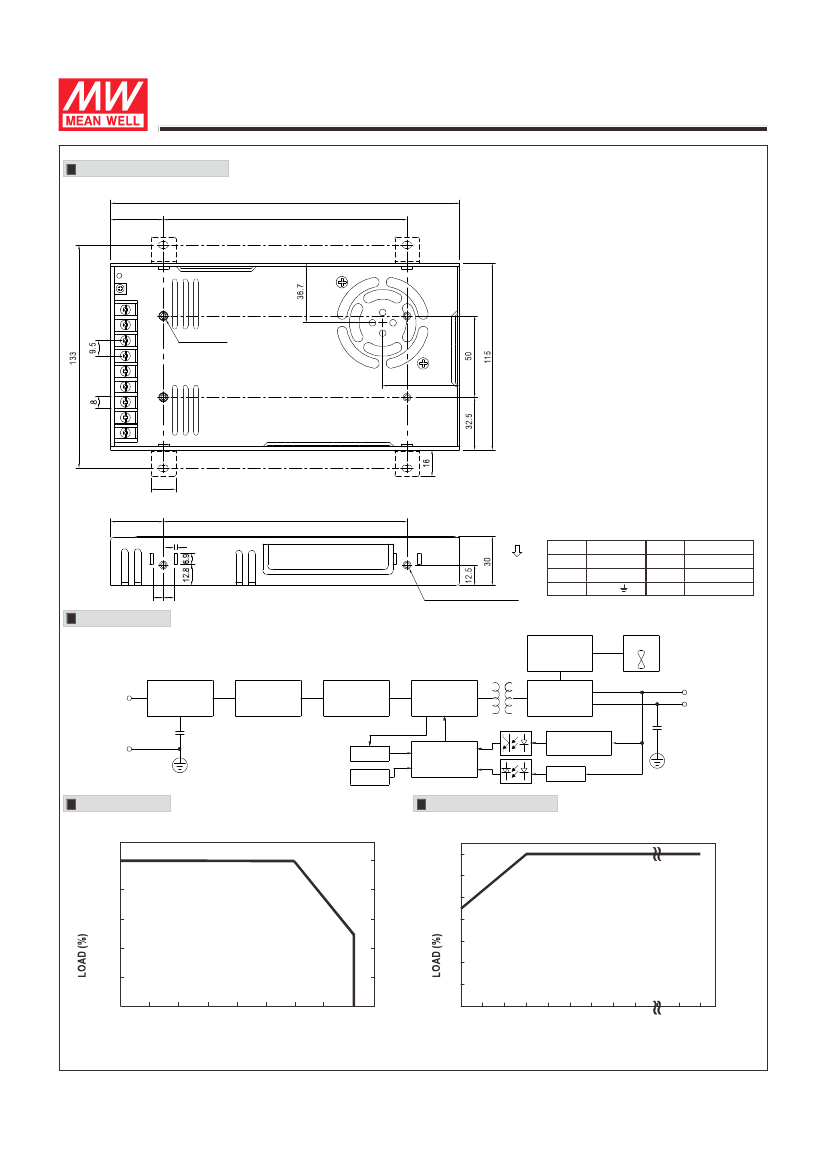

DIMENSION
PACKING
NOTE
1.
2.
3.
4.
5.
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
UL60950-1, TUV EN60950-1 ,CCC GB4943 approved
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3,GB9254 class B,GB17625.1
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
206.5K hrs min.
MIL-HDBK-217F (25
℃
)
215*115*30mm (L*W*H)
0.9Kg; 15pcs/14.5Kg/0.78CUFT
All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance : includes set up tolerance, line regulation and load regulation.
Derating may be needed under low input voltages. Please check the derating curve for more details.
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”
(as available on http://www.meanwell.com)
6. For charging related applications, please consult Mean Well for details.
