5962R9578301V9A: DescriptionXOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS; Categorylogic logic; File Size207KB，8 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962R9578301V9A Overview

XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS

5962R9578301V9A Parametric

Parameter Name	Attribute value
package instruction	DIE,
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	X-XUUC-N14
JESD-609 code	e0
Logic integrated circuit type	XOR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	UPPER
total dose	100k Rad(Si) V
Base Number Matches	1

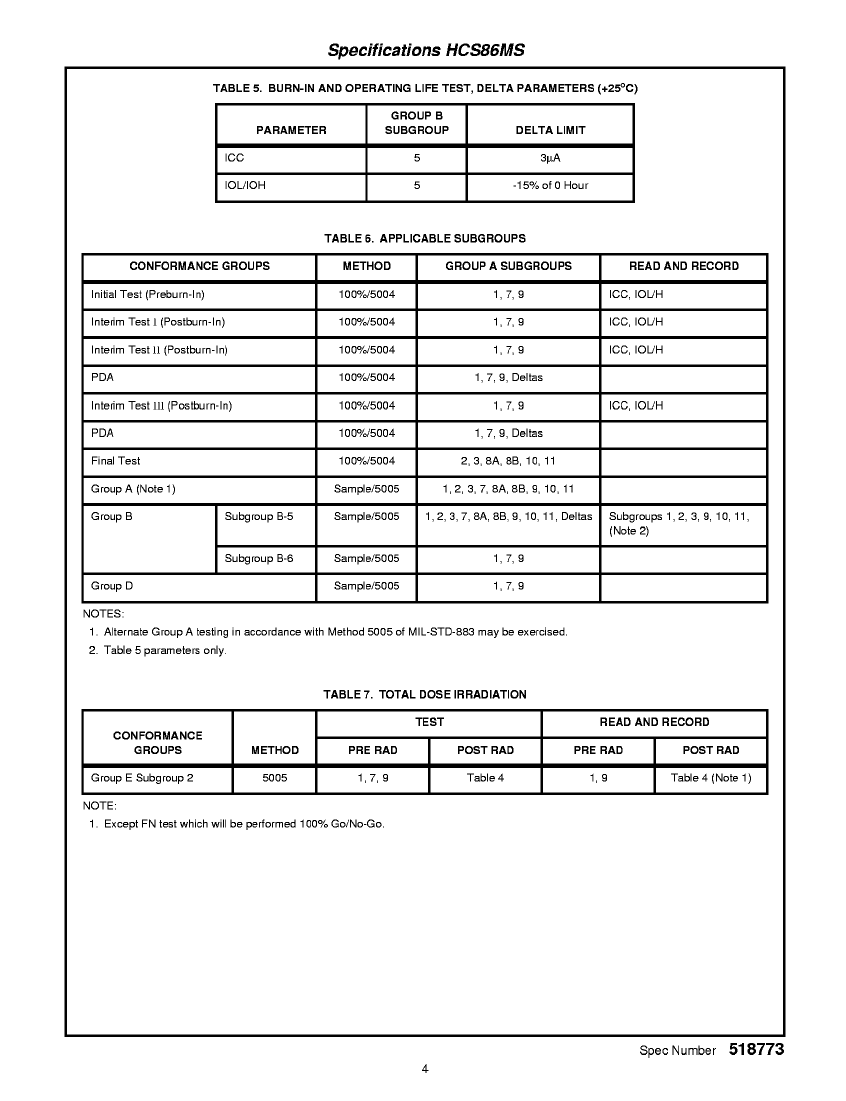

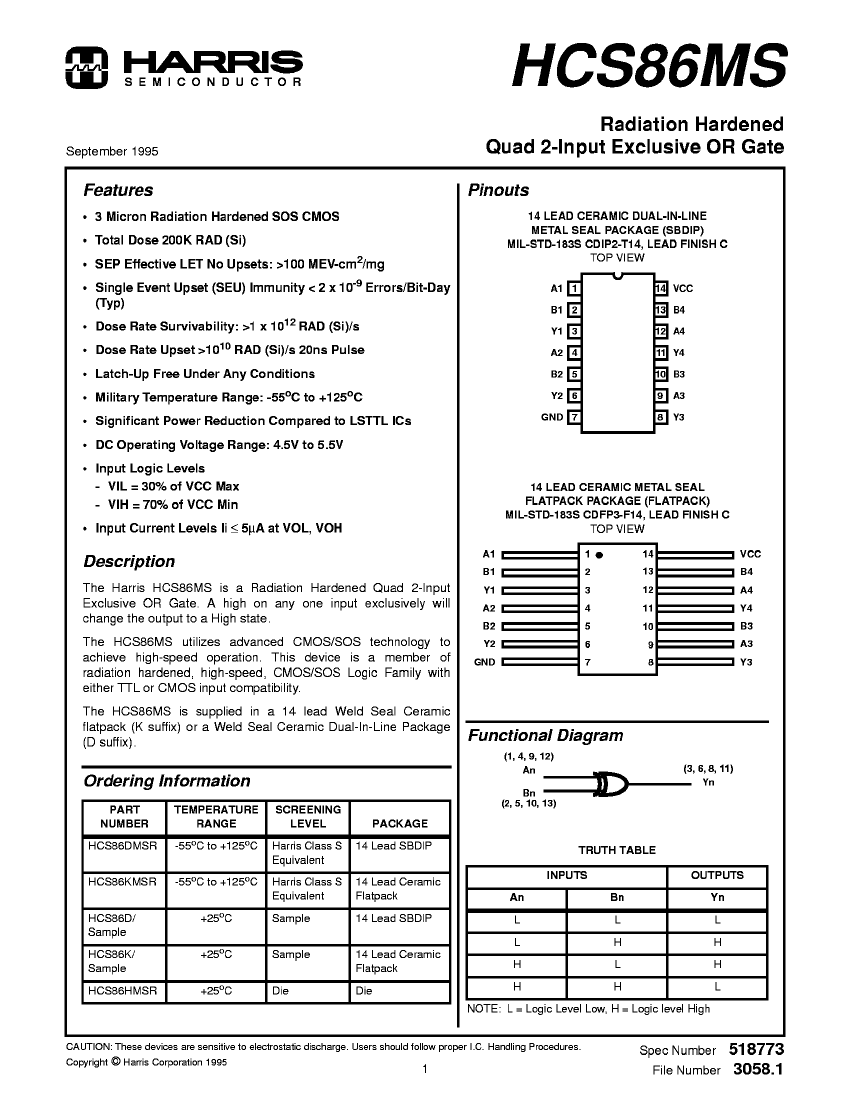

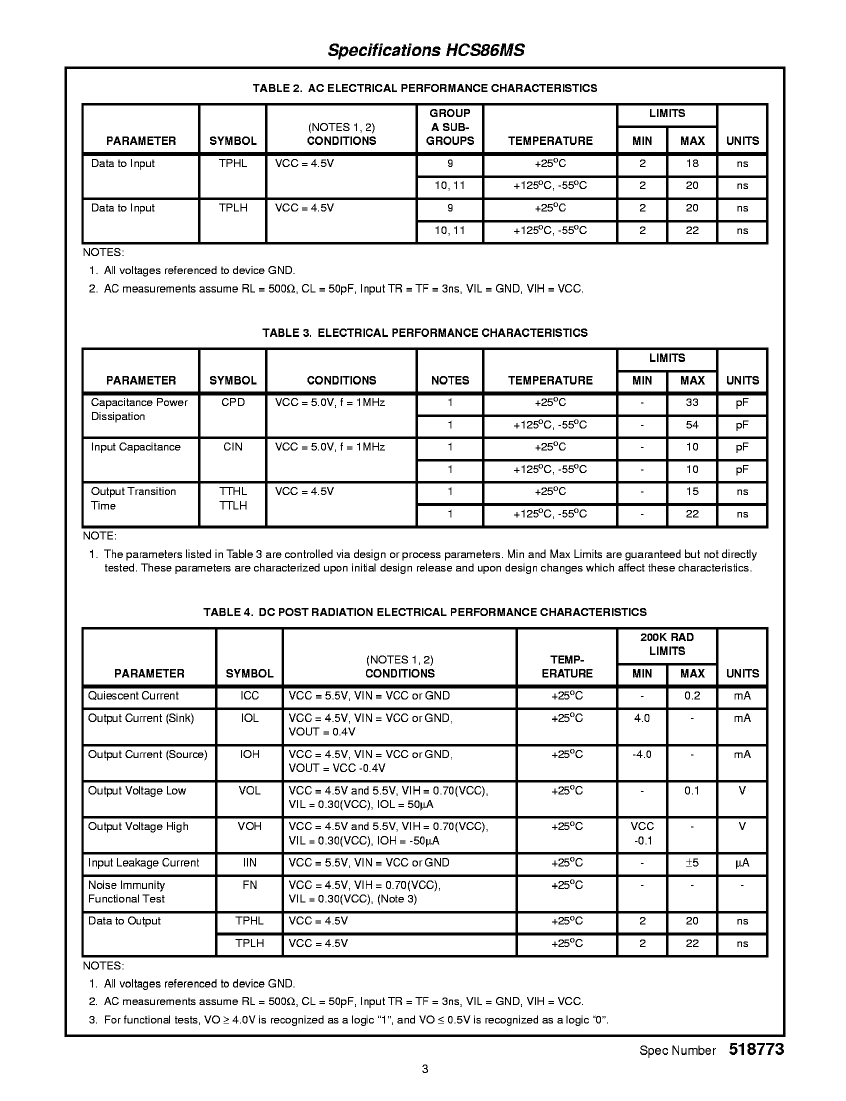

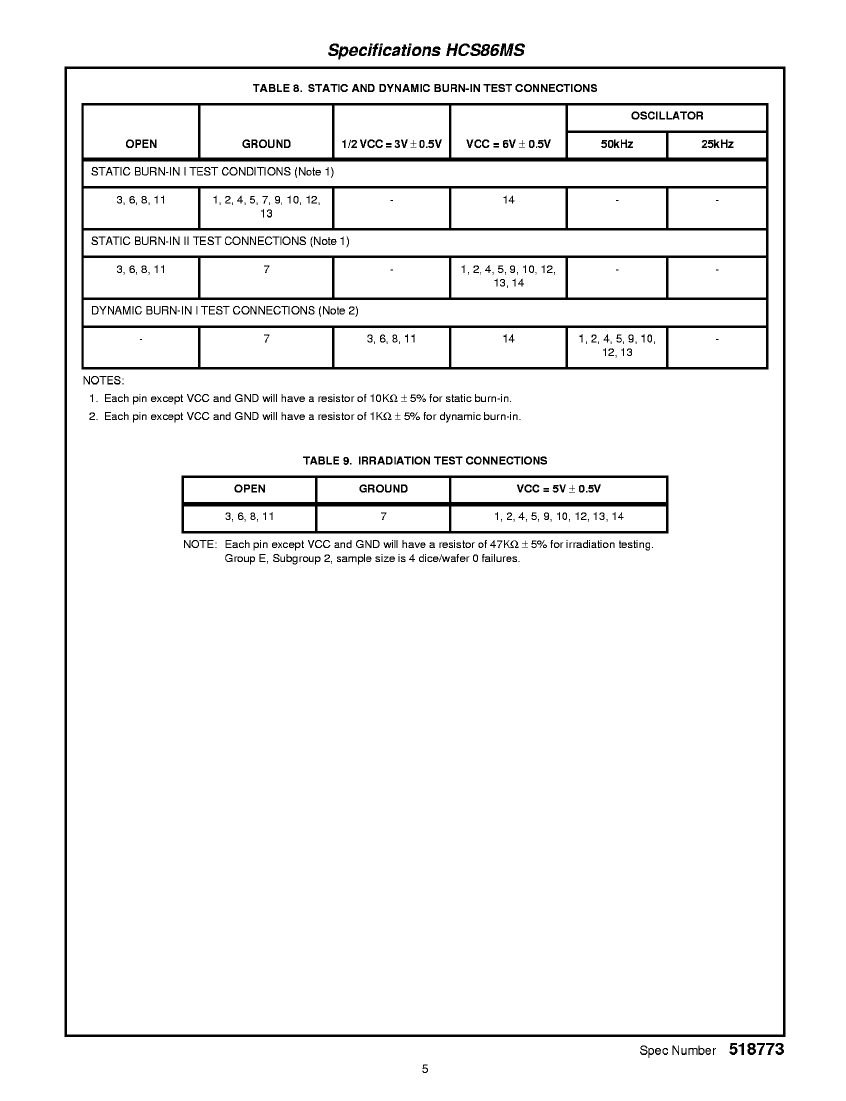

Preview

Download Datasheet

View All

5962R9578301V9A Related Products

	5962R9578301V9A	HCS86DMSR	HCS86KMSR	HCS86D/SAMPLE	HCS86K/SAMPLE	HCS86HMSR
Description	XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS	XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14	XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDFP14	XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14	XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDFP14	XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS
package instruction	DIE,	DIP, DIP14,.3	DFP, FL14,.3	,	,	DIE,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	X-XUUC-N14	R-CDIP-T14	R-CDFP-F14	R-CDIP-T14	R-CDFP-F14	X-XUUC-N14
Logic integrated circuit type	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE
Number of functions	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14
Package body material	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
Package shape	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	UNSPECIFIED
Package form	UNCASED CHIP	IN-LINE	FLATPACK	IN-LINE	FLATPACK	UNCASED CHIP
propagation delay (tpd)	20 ns	20 ns	20 ns	20 ns	20 ns	20 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	NO LEAD	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT	NO LEAD
Terminal location	UPPER	DUAL	DUAL	DUAL	DUAL	UPPER
encapsulated code	DIE	DIP	DFP	-	-	DIE
Maker	-	Harris	Harris	Harris	Harris	Harris
