BCM2702
®
HIGH-PERFORMANCE MOBILE MULTIMEDIA PROCESSOR
FEATURES
•
Very Low Power
•
MPEG-4 encode from only 10 mW
•
CIF MPEG-4 encode @ 30fps: only 38mW including audio
•
NTSC/PAL direct video output
•
VGA MPEG-4 encode/decode at 30 fps with audio
SUMMARY OF BENEFITS
•
Based on the new VideoCore
®
II processing engine, the
BCM2702 is software compatible with the established
VideoCore
®
family, allowing rapid development of next-
generation products and backward compatibility for
applications software.
Highly integrated solution combining video and audio
processing, polyphonic sound synthesis, an LCD controller,
and SRAM on a single chip.
Video and multimedia processor for advanced handheld
multimedia products.
•
Designed and optimized for video record/playback, mobile TV,
and 3D mobile gaming at extremely low power.
Fully programmable architecture which enables the full range
of multimedia codecs to be implemented in software. This
provides total flexibility to the system designer without the
costly overhead and time-to-market uncertainty of hardware
accelerators.
Broadcom provides all the necessary middleware and services
for rapid and seamless integration with a host processor, as
well as a complete development kit with a fully featured
toolchain for rapid development of applications.
•
•
•
•
•
•
•
•
•
•
•
•
•
8-megapixel JPEG encode and decode
Ability to process raw Bayer camera data
3GP and MP4 file streaming and MMS support
Multiple format audio recording and playback
DRM ready
64-polyphony MIDI player and music synthesizer
On-board USB 1.1
1.25 MB of on-chip SRAM
High-quality graphics acceleration for 3D games
SD, MMC, SDIO and MemoryStick interfaces
100% programmable
•
•

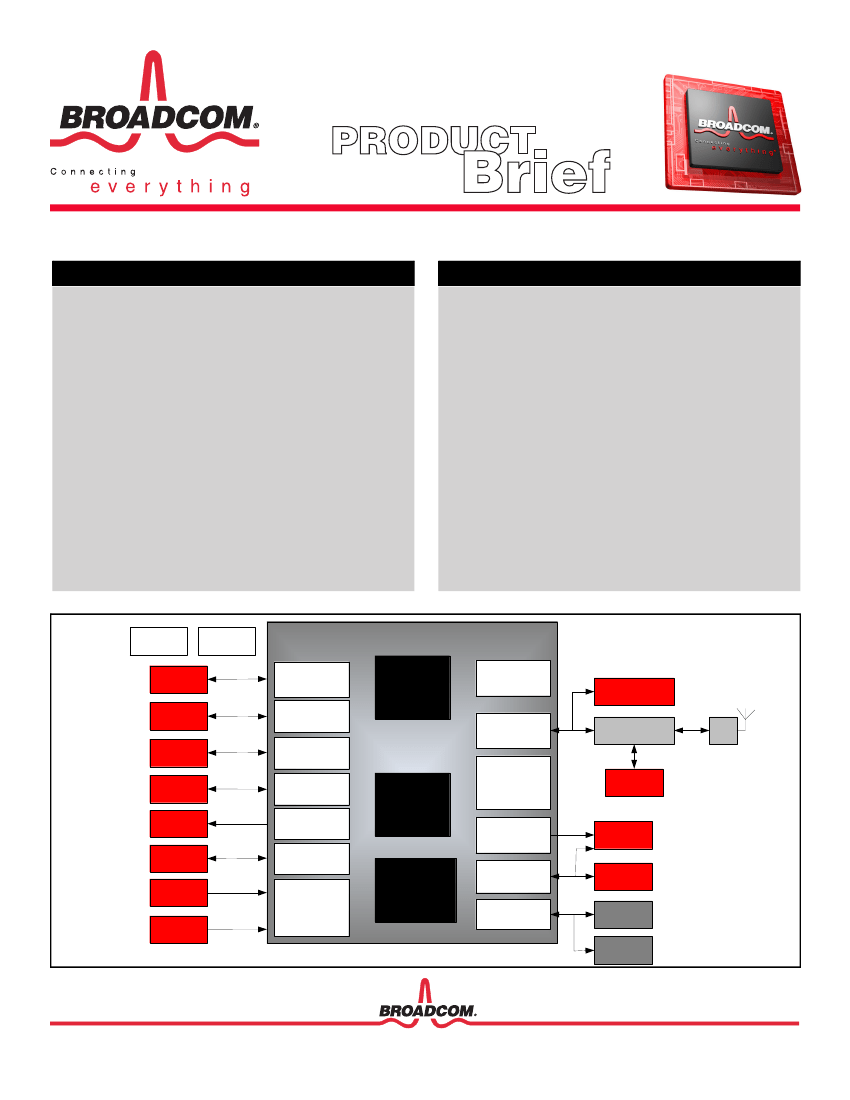

BCM2702 Block Diagram
Audio In
Audio Out
Audio
Memory
Stick
SDCard or
MMC
Debug
B-SCAN
TV
Speaker
mic
I
2
S or PCM or
AC’97 I/F
MemoryStick
PRO I/F
SDIO I/F
Bus Bypass
Mode
VideoCore II
with DRM
Baseband
FLASH
Baseband
RF
BCM2702
8/16-bit
Parallel Host
Interface
I
2
C
SPI Master
UART
GPIO
Display
Controller
Second
External
Memory I/F
External
Memory I/F
JTAG
PAL/NTSC
Out
USB1.1 Slave
Analog Blocks
including
SMPS and PLL
10 Mb
On-Chip RAM
Camera 1
Main LCD
PC
Sub-LCD
Optional
Flash
Optional
SDRAM
Camera 1
Multiformat
Raw/CCIR601
Camera I/F
Camera 2
OVERVIEW
Specifications
Processor
-
150-MHz dual-ALU VideoCore
®
II
-
128 Kb instruction and data caches
-
10 Mb of on-chip SRAM
Camera Interface
-
Programmable 8/16-bit CMOS/CCD camera input port
-
Up to 8-megapixel image sensors
-
YUV CCIR 601/656
-
Raw Bayer RGB format ( 8/10/12/16-bit data)
-
Windowing and subsampling functions
-
Can be used to connect to mobile TV front end
-
Supports two image sensors
LCD Controller & Interface
-
Support for multiple displays up to XGA resolution
-
Up to 24-bit internal precision (16M colors)
-
8/9/16/18/21-bit video
-
RGB external data bus
-
Scalable image output with pixel level interpolation
-
Configurable refresh rate
-
PAL/NTSC analogue TV output as S-Video or Composite
-
Macrovision support
Serial Interfaces
-
USB 1.1 slave
-
I
2
C master
-
SPI master
-
UART for Bluetooth, IrDA
General Purpose and Debug Interfaces
-
52 pins of GPIO
-
JTAG and emulation interface
-
Boundary scan
Audio Interfaces
-
AC '97
-
I
2
S
-
PCM audio
Power Modes
-
Run
-
Sleep
-
Hibernate
-
Power-down
External Memory/Card Interfaces
-
High-speed memory interface (connection to SDRAM, SRAM, Flash
and external peripherals)
-
Secondary memory interface (e.g., for connection to memory-
mapped LCD and external peripherals)
-
MemoryStick PRO
-
SD, MMC, and SDIO
-
Support for NAND/NOR Flash including NAND boot
-
High speed DMA
Host/Baseband Interface
-
Appears as memory-mapped peripheral to host
-
Programmable industry-standard interfaces
-
3 bit address and 8/16-bit data bus
-
Dual software channel
-
Power efficient bypass mode
DRM
-
DRM-capable
-
Unique chip ID code
-
Encrypted code with freely programmable key
-
CPRM encryption for SD card, AES, 3DES, RSA, etc.
Technology
-
281-pin TFBGA package (10.9mm x 10.1mm)
-
0.13 micron CMOS
Clock and Power Management
-
On-chip SMPS controller
-
Four power modes: Run, Sleep, Hibernate, and Power-Down
-
0.8V - 1.2V core operation and 0.6V in hibernation mode
-
Programmable I/O 1.5V - 2.8V
-
Bypass mode allows host access to memory-mapped peripherals with
BCM2702 in Power-Down
-
Clock manager: 3 PLLs generate 195-KHz – 200-MHz clocks for
external devices
