BCM97110
®
SINGLE-CHIP DOCSIS® 1.1/PVR SET-TOP BOX DEVELOPMENT PLATFORM
FEATURES
•
BCM7110 advanced single-chip set-top box including
®
SUMMARY OF BENEFITS
•
Highly integrated BCM7110 single-chip IC results in a cost-
•
•
•
•
•
•
•
DOCSIS /EuroDOCSIS™/DAVIC and PVR
•
Dual 1024/256/64-QAM variable symbol rate receivers
supporting ITU-T J.83 Annex A/B/C
•
QPSK out-of-band (OOB) receiver and QPSK to 256-QAM
upstream burst modulator
•
DOCSIS/EuroDOCSIS 1.1 MAC supporting quality of service
(QoS)
•
DAVIC 1.2/1.5 MAC
•
ATSC-compliant MPEG-2 video decoders
•
Dolby
®
AC-3/Musicam
®
(MPEG-2)
•
Dual NTSC/PAL analog video decoder
•
NTSC/PAL video encoder
•
Local bus interface
•
PVR support with IDE controller, 3DES
•
High-performance 250-MHz RISC MIPS32™ microprocessor
•
BCM3125 QAMLink
®
transceiver
•
256-QAM demodulator, upstream burst modulator
•
BCM7041 MPEG-2 encoder
•
Triple Broadcom CMOS tuners
•
VoIP module supporting up to 2 lines of voice
•
Peripheral devices include: HPNA 1/2, IEEE 1394, POD
effective, advanced set-top box solution
Triple CMOS tuner architecture allows for simultaneous Web
browsing, video viewing, and personal video recording (PVR)
MPEG-2 encoding fully supports watch and record on analog
channels
DOCSIS/EuroDOCSIS 1.1 cable modem QoS enables
applications to support VoIP and video conferencing
Support for DOCSIS/EuroDOCSIS 1.1, DAVIC 1.2/1.5, and
DCII enables deployment in virtually all major markets
worldwide
Single high-performance RISC MIPS32 processor can support
today’s demanding set-top box operating systems,
applications, and cable modem traffic
Supports high definition (HD) with sidecar (BCM7031 and
BCM7501)
Reference design includes:
•
Schematic drawings and Gerber files
•
Bill of materials (BOM)
•
Data sheets and user manual
•
Software source code
•
Applications support
interface with PCMCIA connector, dual Ethernet, and V.90
soft modem
•
Software device drivers supporting multiple operating systems

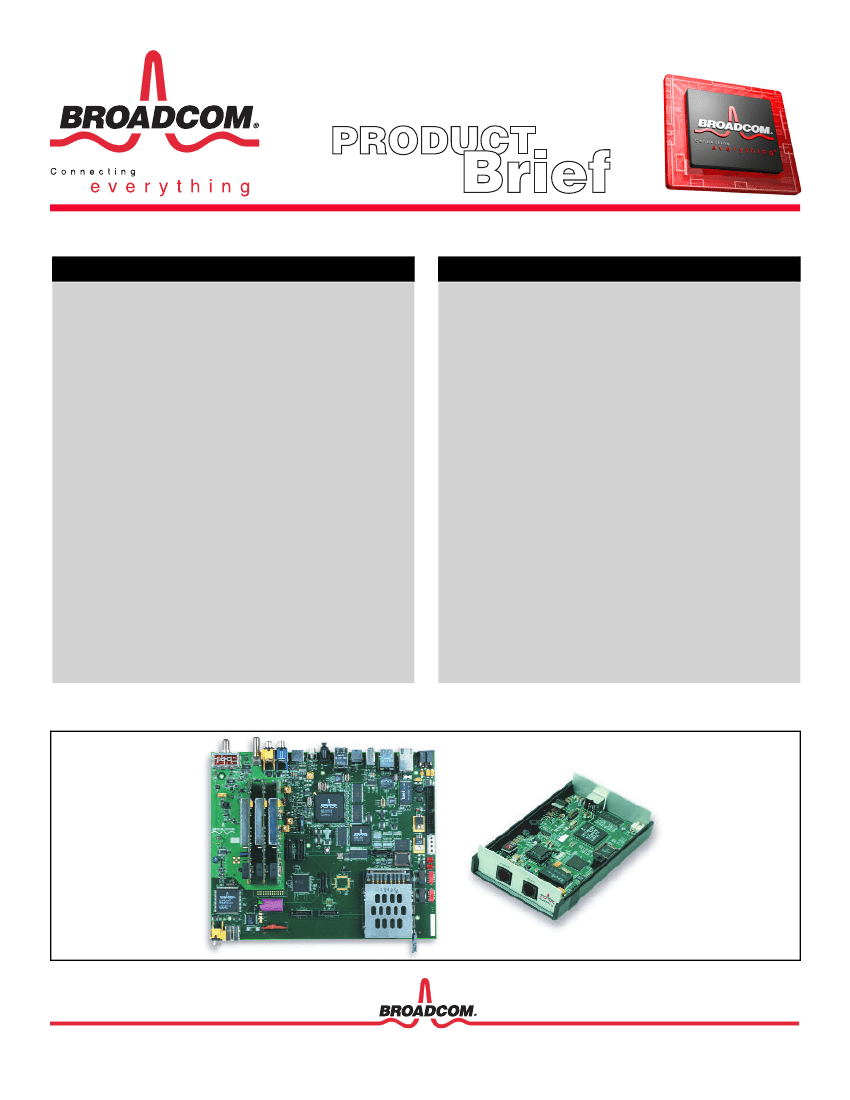

BCM97110 Single-Chip DOCSIS
®
1.1/PVR Set-Top Box Development Platform with VoIP Module
OVERVIEW
Watch and Record/DOCSIS/DAVIC
Option
DOCSIS
CMOS
Tuner
BCM3125
QAM Trans.
VoIP Module
BCM1101
HD Sidecar
BCM7031
BCM7501
HDD
Ethernet
PHY
CMOS
Tuner
DOCSIS/Video 2
S-Video/RGB
Composite
CMOS
Tuner
Video 1
BCM7110
SPDIF
Analog L/R
RF 3/4 out
Local bus bus
SDRAM
BCM4413
Ethernet
HPNA 1/2
POD
(PCMCIA
Socket)
802.11
(PCMCIA
Socket)
Flash
ROM
Peripheral
Connectors:
USB
UART
Smart
Cards
The Broadcom BCM97110 is an advanced set-top box development
platform supporting standard definition decoding, broadband cable
modem and personal video recording (PVR). It is a highly integrated,
cost-effective design built on the latest generation of Broadcom silicon
and software offering low risk and quick time-to-market for the next
generation of interactive set-top boxes.
The triple tuner architecture allows for web browsing, video viewing,
and personal video recording (PVR) on a separate channel. Time shifting
is also simultaneously supported on the channel being viewed. The dual
MPEG-2 encoder allows full support of watch and record on 2 analog
channels.
The core chip on the BCM97110 is the BCM7110 single-chip DOCSIS
1.1/PVR IC. The BCM3125 supplies the additional QAM demodulator
and upstream burst modulator. The BCM7041 dual MPEG-2 encoder
provides the real-time encoding for analog PVR.
The BCM7110 contains a complete front-end advanced set-top box
solution providing dual 1024/256/64-QAM receivers, an out-of-band
QPSK receiver, and a QPSK to 256-QAM upstream burst modulator. All
major physical layer standards are supported allowing set-tops based on
the BCM97110 design to be deployed worldwide. The BCM7110
includes a complete DOCSIS/EuroDOCSIS 1.1 MAC (including QoS)
and DAVIC 1.2/1.5 MAC for broadband interactive services.
Features also include studio-quality text for presenting standard
Windows fonts on a standard television and a 3D graphics engine for
applications such as gaming and e-commerce.
The BCM97110 also includes a high-performance MIPS RISC processor
supporting middleware, graphics, applications, and cable modem traffic.
The single processor design eliminates the need for multiple processors
in the set-top, substantially reducing system cost.
The BCM97110 contains a number of peripherals required for next-
generation set-top boxes. Some of these include home phoneline
networking (HPNA 1/2) for streaming of data and video throughout the
home, a VoIP module supporting 2 lines of voice, an IEEE 1394
connector for connecting to digital consumer electronic devices, hard
disk drive support for personal video recording (PVR), PCMCIA socket,
and a POD interface for external conditional access. In addition, a low-
cost V.90 soft modem is included for alternative low data-rate
connections.
The BCM97110 supports industry standard operating systems,
middleware, and APIs. Driver source code for these are provided as part
of the reference design.
The BCM97110 can also expand to support high definition streams with
the HD sidecar module. This daughterboad consists of the BCM7031
HD transport, video decoder, and graphics engine. Digitial Visual
Interface (DVI) is supported with the BCM7501.
