D45WG000-16502TT-G datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> D45WG000-16502TT-G

D45WG000-16502TT-G: DescriptionParallel - 3Rd Overtone Quartz Crystal, 45MHz Nom,; CategoryPassive components Crystal/resonator; File Size461KB，3 Pages; ManufacturerDB Lectro Inc; Environmental Compliance

Download Datasheet Parametric View All

D45WG000-16502TT-G Overview

Parallel - 3Rd Overtone Quartz Crystal, 45MHz Nom,

D45WG000-16502TT-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Other features	AT-CUT; TR, 7 INCH
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	50 ppm
load capacitance	16 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	45 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L8.0XB4.5XH1.5 (mm)/L0.315XB0.177XH0.059 (inch)
Series resistance	60 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

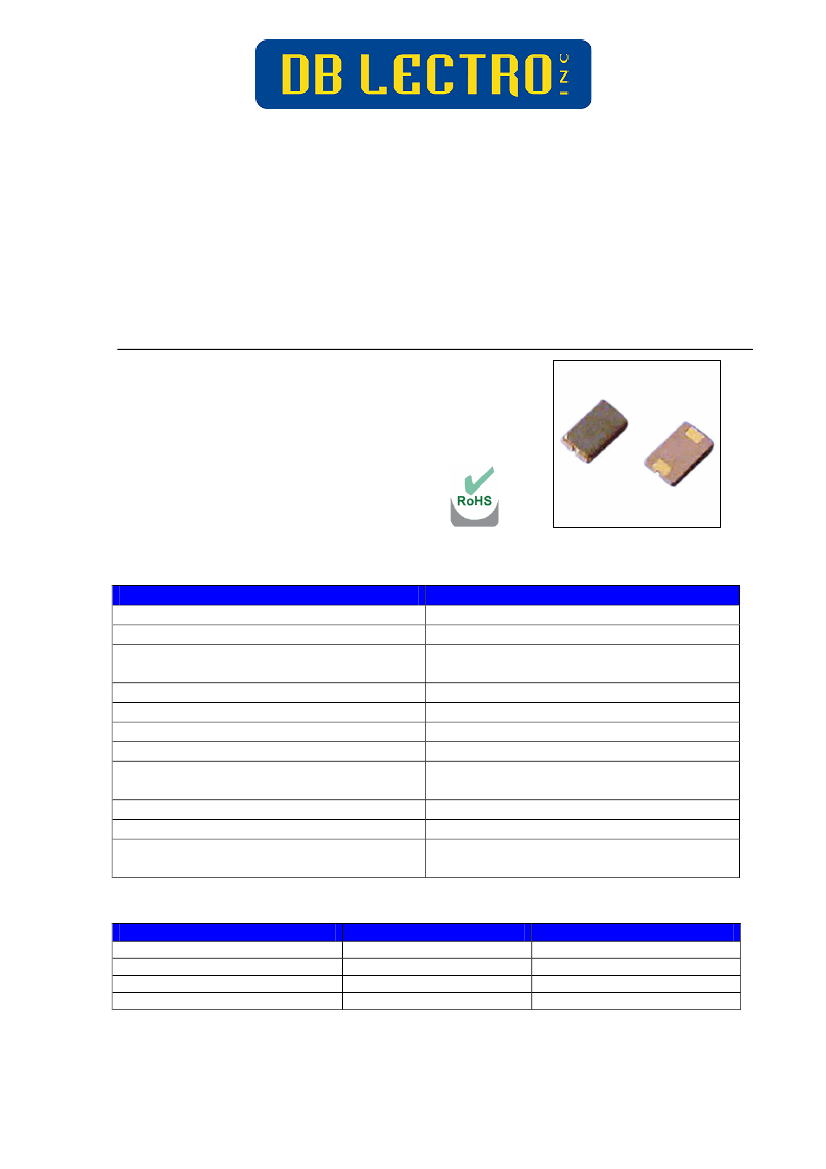

Quartz Crystal

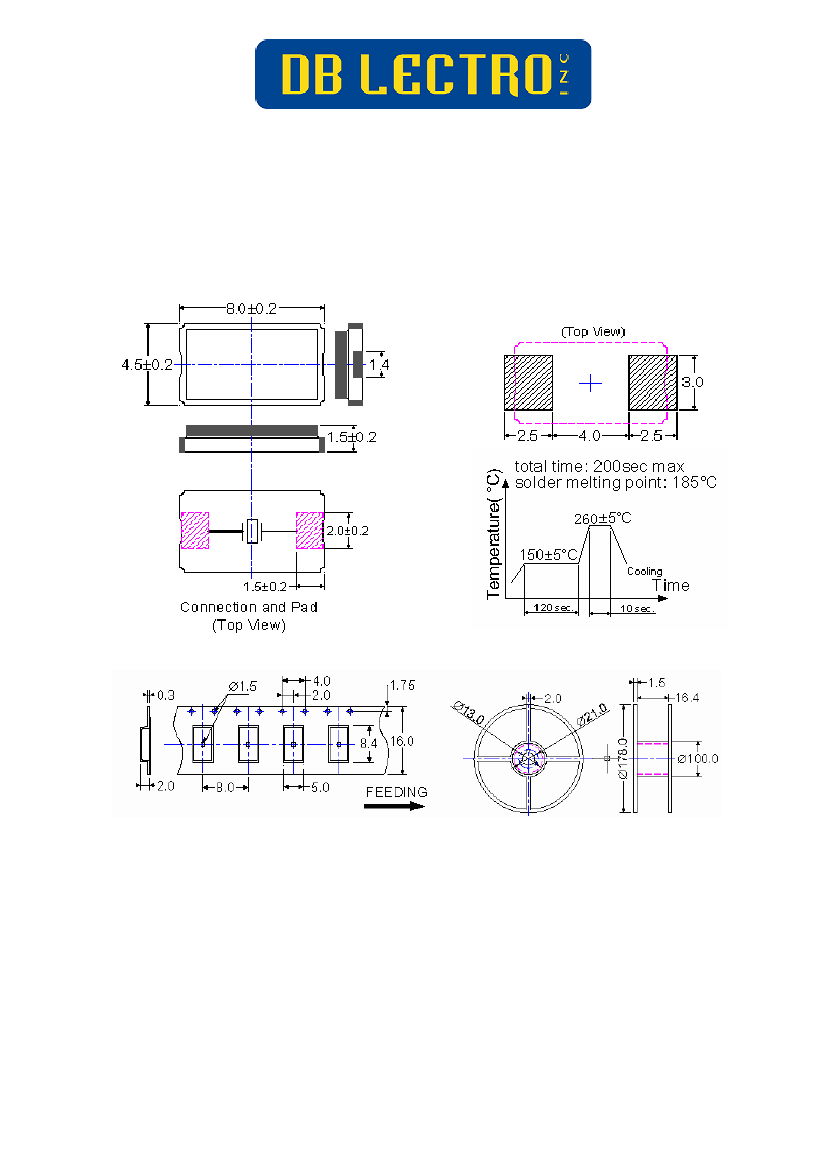

Holder Code WG, GLASS SEALED CERAMIC 5 X 3.2MM Surface Mount Package

FEATURE



Ultra thin, thickness 1.0mm



Leadless type



High precision characteristic covering up to high

frequency range



Automatic mounting



Embossed taping specification



Suitable for Reflow soldering



Lead Free & RoHS Compliant

ELECTRICAL SPECIFICATIONS

Output Frequency Range

Mode

Frequency Tolerance (at 25°C)

Frequency Stability Over Operating

Temperature Characteristics

Storage Temperature Range

Operable Temperature Range

Shunt Capacitance (C

)

Driver Level (Typical)

Load Capacitance(C

)

E uv ln S r sR s tn eE R (

q iae t ei e i a c S Ω)

Aging @25°C

year (Max)

Shock Resistance

12.000 MHz to 80.000 MHz

see Table 1*

±10ppm ~ ±50ppm Max

-10°C ~+60°C ±30ppm,

-20°C ~+70°C ±50ppm or specify

-55

°C

to +125

°C

-10°C to +60°C

~ -40°C

to +85

°C

5.0 pF Max

100µW

Series, 16pF, 20pF, 30pF, 32pF, or

specify

see Table 1*

±3ppm, ±5ppm/year

Drop test of 3 times on 2mm stainless

plate from 75cm height

REMARK:

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER.

Frequency and Equivalent Series Resistant

Frequency Range

12.000 MHz ~ 30.000 MHz

30.000 MHz ~ 40.000 MHz

30.000 MHz ~ 45.000 MHz

45.000 MHz ~ 80.000 MHz

ES R (

. . . Ω)

Max

Mode

Fundamental / AT

Third Overtone / AT

DB Lectro Inc. 3755 Place Java, Suite 140, Brossard, Québec, J4Y 0E4, Canada - T: 1-450-444-1424 / F: 1-450-444-4714 / www.dblectro.com
